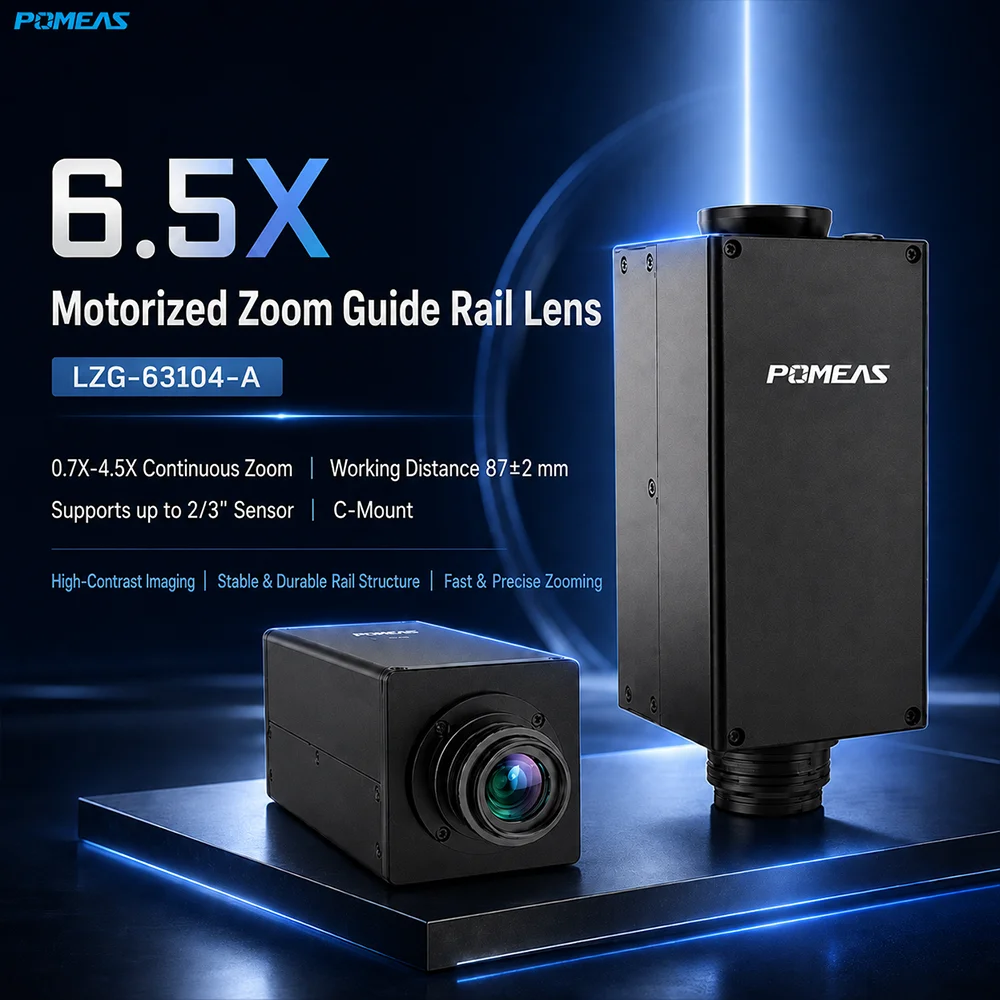

POMEAS LZG-63104-A 6.5X Motorized Zoom Rail Lens for Automated Inspection

The POMEAS LZG-63104-A is a 6.5X motorized zoom rail lens designed for automated optical inspection, machine vision imaging and precision industrial inspection applications. Its continuous optical magnification range from 0.7X to 4.5X allows the imaging system to switch efficiently between larger field-of-view observation and detailed feature inspection.

Featuring a rail-guided mechanical structure, high image contrast and motorized zoom adjustment, the LZG-63104-A is suitable for automated systems that require repeatable magnification changes and stable optical imaging. It provides an 87 ± 2 mm working distance, supports industrial cameras with sensors up to 2/3 inch, and uses a standard C-Mount interface.

Explore more POMEAS machine vision zoom lenses for different magnification ranges, working distances, control methods and illumination configurations.

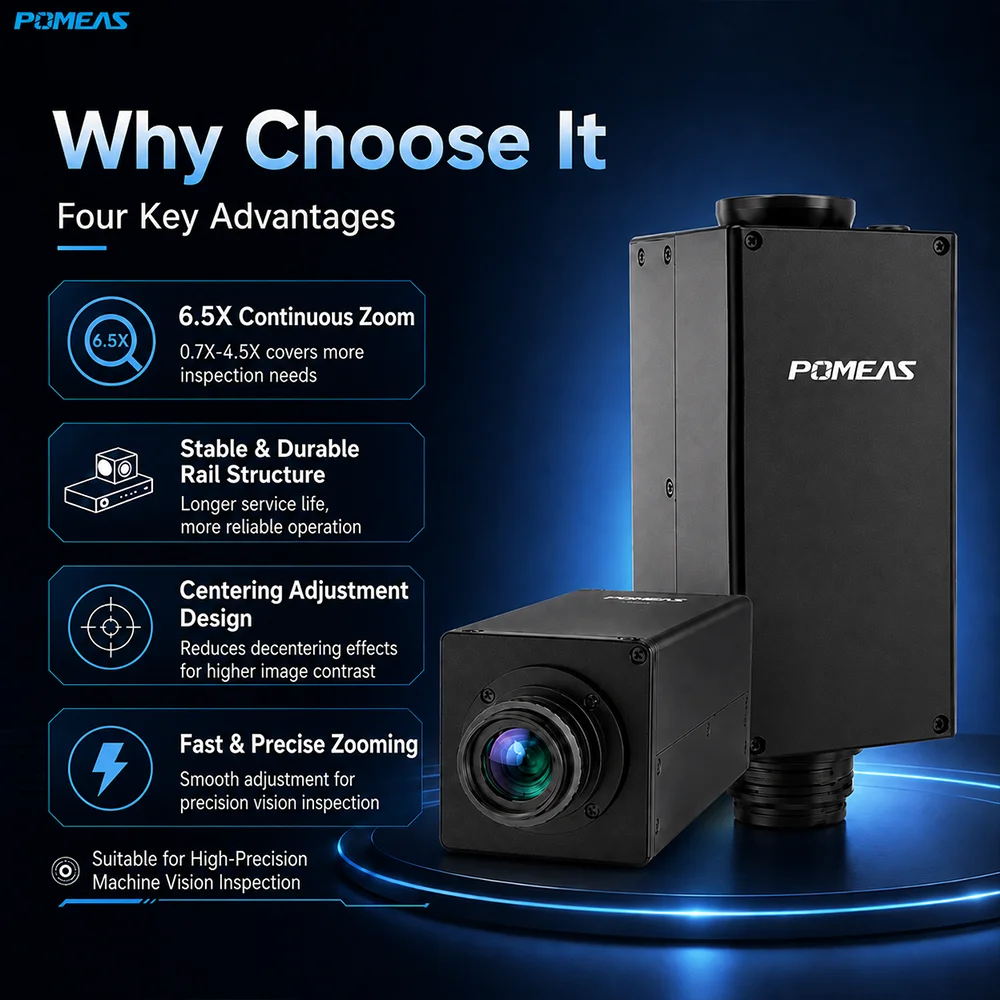

Key Features

6.5X continuous zoom ratio: Provides an optical magnification range from 0.7X to 4.5X.
Motorized zoom adjustment: Enables automated magnification switching for machine vision inspection systems.
Rail-guided structure: Designed to improve mechanical stability and zoom-position consistency.
High-contrast imaging: Optical centering adjustment helps reduce image-quality degradation caused by element decentering.
87 ± 2 mm working distance: Provides a relatively stable installation distance across the specified zoom range.
Up to 2/3-inch sensor support: Compatible with commonly used industrial area-scan cameras.
C-Mount interface: Supports convenient integration into machine vision and automated inspection equipment.
Resolution down to 3.95 μm: Supports detailed imaging at higher optical magnifications.
TV distortion as low as 0.001%: Provides low-distortion imaging at specified magnification positions.

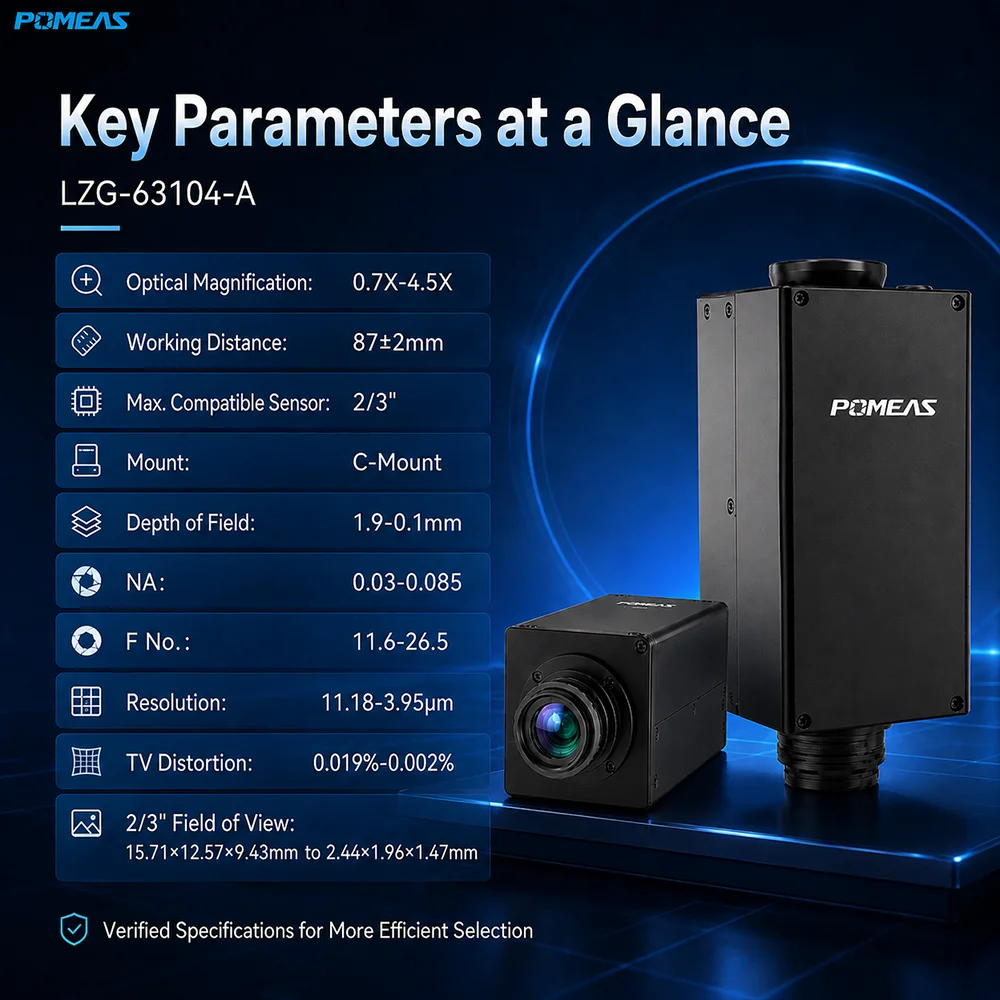

Technical Specifications

Parameter	Specification
Model	LZG-63104-A
Product Type	Motorized Zoom Rail Lens
Zoom Ratio	6.5X
Optical Magnification	0.7X–4.5X
Working Distance	87 ± 2 mm
Maximum Sensor Size	2/3 inch
Camera Mount	C-Mount
Zoom Control	Motorized
Mechanical Structure	Rail-Guided
Depth of Field	1.90–0.10 mm
Numerical Aperture	0.030–0.085
F-Number	F11.6–F26.5
Optical Resolution	11.18–3.95 μm
TV Distortion	0.001%–0.035%
Overall Length	136.60 mm
Maximum Outer Diameter	Ø46.60 mm

Optical Performance

Magnification	Depth of Field	NA	F-Number	Resolution	TV Distortion
0.7X	1.90 mm	0.030	11.6	11.18 μm	0.019%
1.0X	0.952 mm	0.042	12.1	7.99 μm	0.035%
1.5X	0.440 mm	0.060	12.5	5.59 μm	0.002%
2.0X	0.290 mm	0.070	14.2	4.79 μm	0.003%
2.5X	0.230 mm	0.070	17.8	4.79 μm	0.004%
3.0X	0.160 mm	0.085	17.6	3.95 μm	0.001%
3.5X	0.130 mm	0.085	20.5	3.95 μm	0.001%
4.0X	0.120 mm	0.085	23.5	3.95 μm	0.002%
4.5X	0.100 mm	0.085	26.5	3.95 μm	0.002%

Field of View

The following field-of-view values are shown as Diagonal × Horizontal × Vertical. Actual field of view should be confirmed using the effective sensor dimensions of the selected industrial camera.

Magnification	2/3-Inch Sensor FOV	1/2-Inch Sensor FOV	1/3-Inch Sensor FOV
0.7X	15.71 × 12.57 × 9.43 mm	11.43 × 9.14 × 6.86 mm	8.57 × 6.86 × 5.14 mm
1.0X	11.00 × 8.80 × 6.60 mm	8.00 × 6.40 × 4.80 mm	6.00 × 4.80 × 3.60 mm
1.5X	7.33 × 5.87 × 4.40 mm	5.33 × 4.27 × 3.20 mm	4.00 × 3.20 × 2.40 mm
2.0X	5.50 × 4.40 × 3.30 mm	4.00 × 3.20 × 2.40 mm	3.00 × 2.40 × 1.80 mm
2.5X	4.40 × 3.52 × 2.64 mm	3.20 × 2.56 × 1.92 mm	2.40 × 1.92 × 1.44 mm
3.0X	3.67 × 2.93 × 2.20 mm	2.67 × 2.13 × 1.60 mm	2.00 × 1.60 × 1.20 mm
3.5X	3.14 × 2.51 × 1.89 mm	2.29 × 1.83 × 1.37 mm	1.71 × 1.37 × 1.03 mm
4.0X	2.75 × 2.20 × 1.65 mm	2.00 × 1.60 × 1.20 mm	1.50 × 1.20 × 0.90 mm
4.5X	2.44 × 1.96 × 1.47 mm	1.78 × 1.42 × 1.07 mm	1.33 × 1.07 × 0.80 mm

Motorized Zoom for Automated Machine Vision

The LZG-63104-A uses motorized optical zoom adjustment, allowing machine vision systems to change magnification without requiring manual lens adjustment.

This is useful for automated inspection stations that need to inspect different product sizes, switch between positioning and detailed inspection, or use different optical magnifications during different inspection steps.

The controller, cable and electrical interface should be confirmed according to the final system configuration. For OEM or automated equipment integration, confirm the required control method before ordering.

Mechanical Dimensions

Overall length: 136.60 mm
Main body length: 128 mm
Body width: 33.30 mm
Maximum outer diameter: Ø46.60 mm
Front thread: Ø27.76-32T

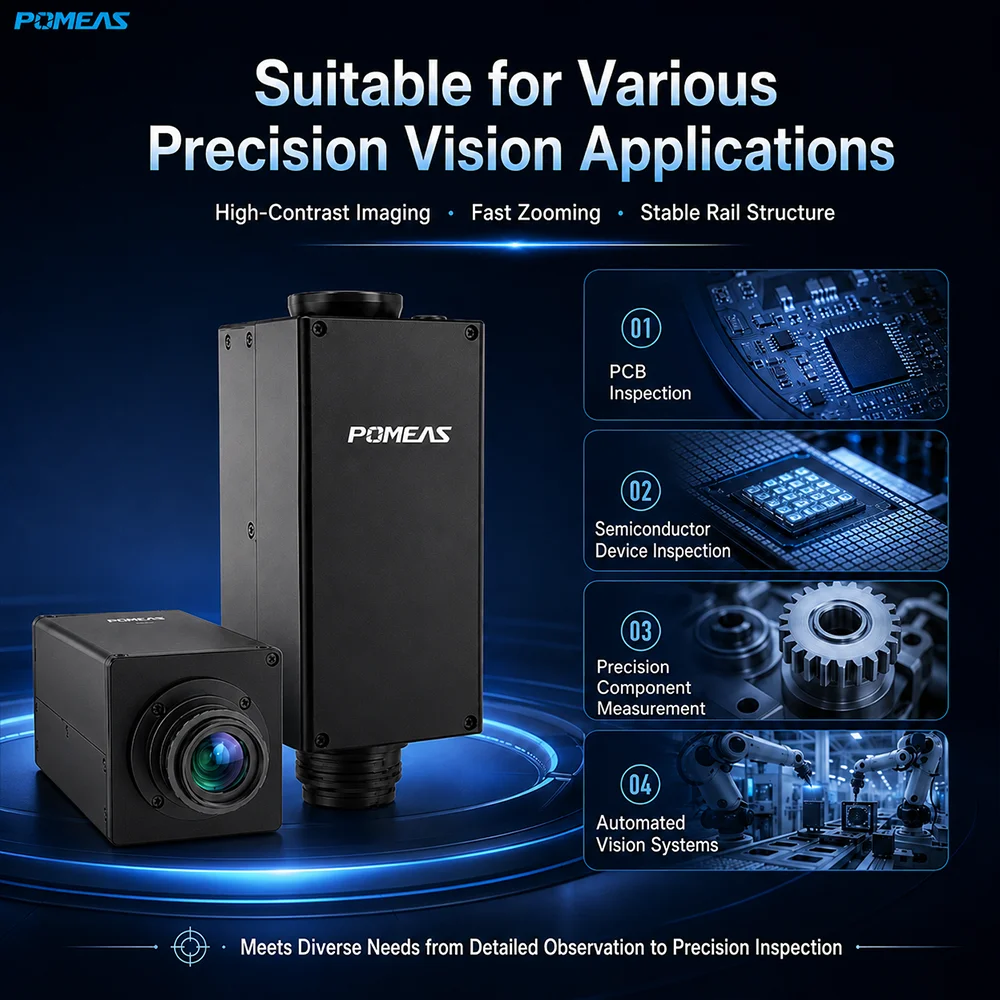

Typical Applications

PCB and electronic component inspection
Semiconductor and connector inspection
Surface defect inspection
Precision component observation
Assembly alignment and positioning
Automated optical inspection
Multi-product machine vision inspection
Automated production-line inspection
Machine vision R&D
Laboratory imaging and observation

Camera and System Integration

The C-Mount interface and support for sensors up to 2/3 inch make the LZG-63104-A suitable for integration with a wide range of industrial area-scan cameras.

Browse POMEAS industrial machine vision cameras for compatible camera options.

Camera sensor size, resolution, pixel size, required field of view, working distance and smallest inspection feature should be considered together when configuring the complete imaging system.

For electronics and semiconductor applications, read the POMEAS motorized zoom lens application and selection guide for information about 6.5X versus 12.5X zoom lenses, camera matching, field of view and illumination selection.

Frequently Asked Questions

What is the magnification range of the LZG-63104-A?

The lens provides continuous optical magnification from 0.7X to 4.5X, corresponding to a 6.5X zoom ratio.

Does the working distance change during zooming?

The specified working distance is 87 ± 2 mm, allowing the system to maintain a relatively stable installation distance across the specified zoom range.

What is the maximum supported camera sensor size?

The LZG-63104-A supports industrial camera sensors up to 2/3 inch. It can also be used with smaller sensor formats such as 1/2 inch and 1/3 inch.

What camera interface does the lens use?

The LZG-63104-A uses a standard C-Mount camera interface.

Is the LZG-63104-A suitable for automated inspection?

Yes. Its motorized zoom mechanism enables automated magnification adjustment, making it suitable for AOI equipment, multi-product inspection and machine vision systems requiring different fields of view.

Does this model include coaxial illumination?

Integrated coaxial illumination is not listed as a standard feature of the LZG-63104-A. If the inspection target is reflective or requires on-axis illumination, a suitable coaxial zoom lens configuration should be selected.

Does the lens include a motor controller?

The controller, cable and electrical interface should be confirmed according to the required system configuration before ordering.

What information is required for lens selection?

Please provide the camera model or sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy.

Need Help Selecting a Motorized Zoom Lens?

Provide your camera sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy. POMEAS can help evaluate a suitable zoom lens and camera configuration for your machine vision application.
