POMEAS PMS-MPT 2N Microscope Tube Unit | 4/3-Inch Coaxial Infinity Optics
POMEAS PMS-MPT 2N Microscope Tube Unit | 4/3-Inch Coaxial Infinity Optics
POMEAS PMS-MPT 2N Microscope Tube Unit | 4/3-Inch Coaxial Infinity Optics
POMEAS PMS-MPT 2N Microscope Tube Unit | 4/3-Inch Coaxial Infinity Optics

POMEAS PMS-MPT 2N Microscope Tube Unit | 4/3-Inch Coaxial Infinity Optics

POMEAS PMS-MPT 2N is a C-mount infinity-corrected microscope tube unit with 400 mm focal length, φ20 mm entrance pupil and coaxial illumination supporting 4/3-inch sensors.

SKU:

  • Description
  • Parameters
  • Files (0)

Product Overview

POMEAS PMS-MPT 2N Microscope Tube Unit

is part of the POMEAS industrial optics and sensing line. This page lists the key optical and interface specifications so integration engineers can match the unit to camera, lighting and host-system requirements without guesswork.

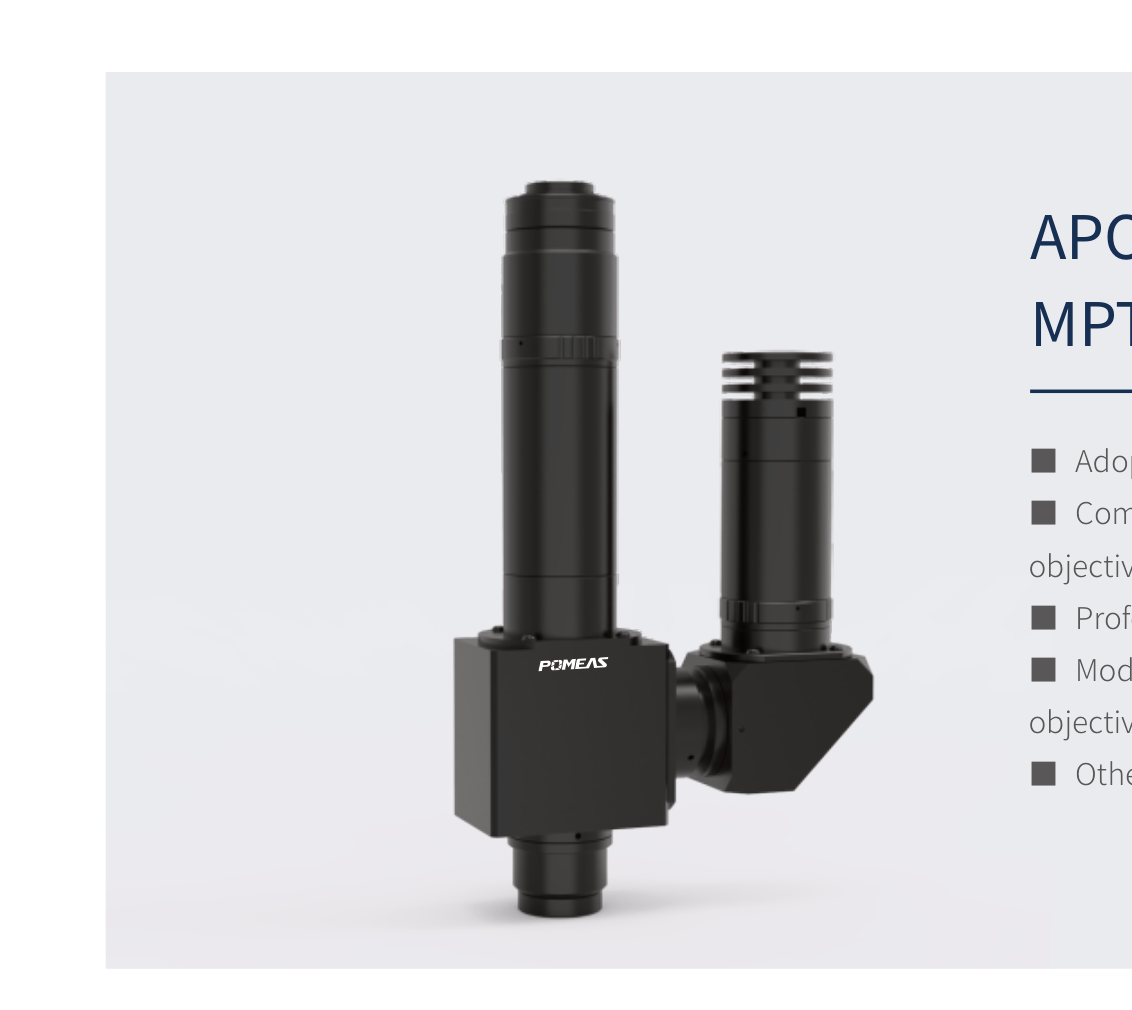

PMS-MPT 2N microscope tube unit with coaxial illumination

Key Features

  • Infinity optical design supporting up to 4/3-inch (φ22 mm) sensors
  • Compatible with mainstream flat-field achromatic long working distance objectives
  • Professional coaxial light path with uniform, high-contrast illumination
  • Modular: optional bright/dark field, DIC module and objective switching module
  • Functional extensions such as dual-camera interface and coaxial multi-interface

Specifications

Focal Length400 mm
In-pupil Diameterφ20 mm
Sensor SizeMaximum compatible 4/3-inch (φ22 mm)
Length268 mm
Interface TypeC-Mount
IlluminationCoaxial illumination
Operating Temperature-10°C to +50°C
Optical DesignInfinity-corrected; compatible with mainstream flat-field achromatic long working distance objective lenses

Applications

LCD, OLED, PCB, FPC and semiconductor inspection stations that need an infinity-corrected tube with coaxial illumination on 4/3-inch cameras.

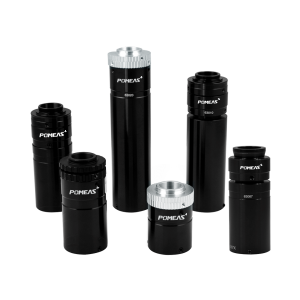

POMEAS MPT microscope tube unit series

FAQ

Which objectives work with the PMS-MPT 2N?

It is compatible with mainstream brands of flat-field achromatic long working distance objective lenses in an infinity-corrected path.

What sensor size does the PMS-MPT 2N support?

It supports up to 4/3-inch (φ22 mm) sensors through its C-mount interface.

Does the PMS-MPT 2N include illumination?

Yes, it has a professional coaxial optical path with uniform illumination for clear, high-contrast images, and supports modular extensions such as DIC and objective switching.

Related Reading: Objective & Auxiliary Lenses | Apo Vs Plan Achromatic Vs Achromatic Objectives

Focal Length
400 mm
Illumination
Coaxial
In-pupil Diameter
φ20 mm
Interface Type
C-Mount
Length
268 mm
Sensor Size
Maximum 4/3-inch (φ22 mm)
