6.5X Motorized Zoom Rail Lens with 0.7X-4.5X Magnification

6.5X Motorized Zoom Rail Lens with 0.7X-4.5X Magnification

LZG-63105-A 6.5X motorized zoom rail lens with 0.7X-4.5X magnification, 87 mm working distance, 2/3-inch sensor support and C-Mount.

SKU:

Description
Parameters
Files (1)

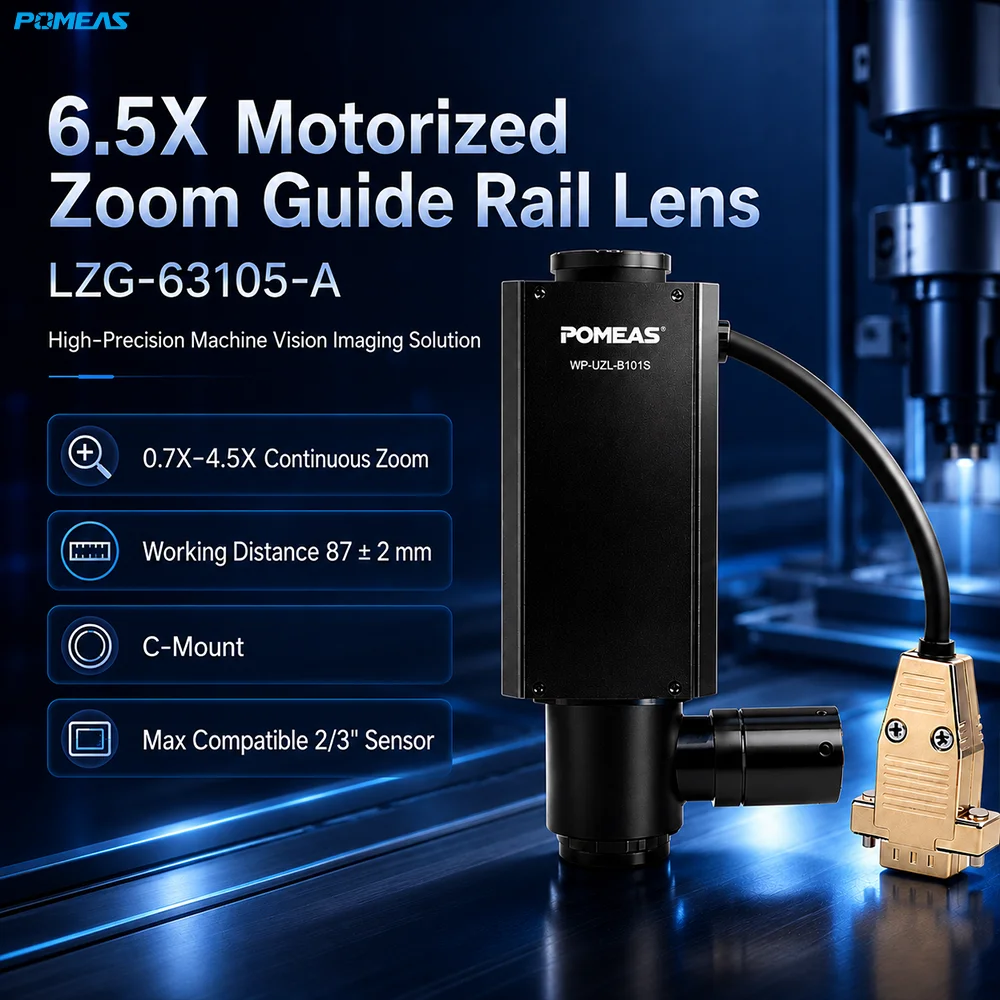

POMEAS LZG-63105-A 6.5X Motorized Zoom Rail Lens for Machine Vision

The POMEAS LZG-63105-A is a 6.5X motorized zoom rail lens designed for automated optical inspection, precision imaging and industrial machine vision applications. It provides a continuous optical magnification range from 0.7X to 4.5X, allowing the imaging system to switch efficiently between larger field-of-view observation and detailed feature inspection.

Its rail-guided mechanical structure is designed to improve zoom stability and mechanical durability, while the motorized adjustment mechanism enables automated magnification switching. The lens provides an 87 ± 2 mm working distance, supports industrial camera sensors up to 2/3 inch, and uses a standard C-Mount interface.

Explore more POMEAS machine vision zoom lenses for different magnification ranges, working distances, control methods and illumination configurations.

Key Features

6.5X continuous zoom ratio with 0.7X–4.5X optical magnification.
Motorized zoom adjustment for automated machine vision systems.
Rail-guided mechanical structure for improved zoom stability.
High-contrast optical design with centering adjustment.
Stable 87 ± 2 mm working distance across the specified zoom range.
Supports industrial camera sensors up to 2/3 inch.
Standard C-Mount interface for machine vision integration.
Resolution down to 3.95 μm at higher magnifications.
TV distortion as low as 0.001% at specified magnification positions.
Suitable for automated inspection, positioning and precision imaging.

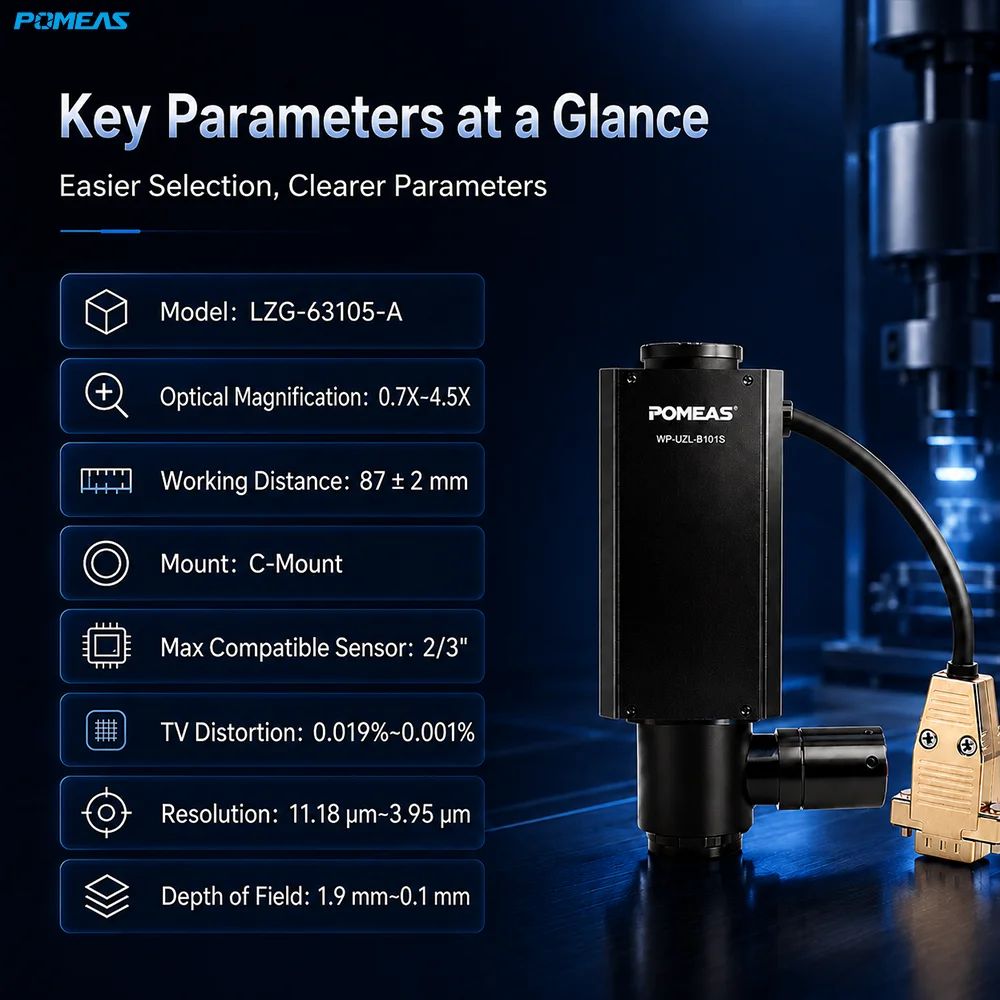

General Specifications

Parameter	Specification
Model	LZG-63105-A
Product Type	Motorized Zoom Rail Lens
Zoom Ratio	6.5X
Optical Magnification	0.7X–4.5X
Working Distance	87 ± 2 mm
Maximum Sensor Size	2/3 inch
Camera Mount	C-Mount
Zoom Method	Motorized
Mechanical Structure	Rail-Guided
Minimum Resolution	3.95 μm
TV Distortion Range	0.001%–0.035%

Optical Performance

Magnification	DOF	NA	F-Number	Resolution	TV Distortion
0.7X	1.90 mm	0.030	11.6	11.18 μm	0.019%
1.0X	0.952 mm	0.042	12.1	7.99 μm	0.035%
1.5X	0.440 mm	0.060	12.5	5.59 μm	0.002%
2.0X	0.290 mm	0.070	14.2	4.79 μm	0.003%
2.5X	0.230 mm	0.070	17.8	4.79 μm	0.004%
3.0X	0.160 mm	0.085	17.6	3.95 μm	0.001%
3.5X	0.130 mm	0.085	20.5	3.95 μm	0.001%
4.0X	0.120 mm	0.085	23.5	3.95 μm	0.002%
4.5X	0.100 mm	0.085	26.5	3.95 μm	0.002%

Field of View

The following field-of-view values are shown as Diagonal × Horizontal × Vertical. These values are based on nominal sensor dimensions and optical magnification. Actual FOV should be confirmed using the effective sensor dimensions of the selected industrial camera.

Magnification	2/3-Inch Sensor	1/2-Inch Sensor	1/3-Inch Sensor
0.7X	15.71 × 12.57 × 9.43 mm	11.43 × 9.14 × 6.86 mm	8.57 × 6.86 × 5.14 mm
1.0X	11.00 × 8.80 × 6.60 mm	8.00 × 6.40 × 4.80 mm	6.00 × 4.80 × 3.60 mm
1.5X	7.33 × 5.87 × 4.40 mm	5.33 × 4.27 × 3.20 mm	4.00 × 3.20 × 2.40 mm
2.0X	5.50 × 4.40 × 3.30 mm	4.00 × 3.20 × 2.40 mm	3.00 × 2.40 × 1.80 mm
2.5X	4.40 × 3.52 × 2.64 mm	3.20 × 2.56 × 1.92 mm	2.40 × 1.92 × 1.44 mm
3.0X	3.67 × 2.93 × 2.20 mm	2.67 × 2.13 × 1.60 mm	2.00 × 1.60 × 1.20 mm
3.5X	3.14 × 2.51 × 1.89 mm	2.29 × 1.83 × 1.37 mm	1.71 × 1.37 × 1.03 mm
4.0X	2.75 × 2.20 × 1.65 mm	2.00 × 1.60 × 1.20 mm	1.50 × 1.20 × 0.90 mm
4.5X	2.44 × 1.96 × 1.47 mm	1.78 × 1.42 × 1.07 mm	1.33 × 1.07 × 0.80 mm

Motorized Zoom for Automated Inspection

The LZG-63105-A uses motorized magnification adjustment, making it suitable for machine vision systems that need to switch between different fields of view without manually adjusting the lens.

Typical applications include multi-product inspection, automated optical inspection, remote optical adjustment and systems that require different magnification settings during different inspection steps.

The controller, cable and electrical interface should be selected according to the final system configuration. Confirm the required control method and integration interface before ordering.

Mechanical Dimensions

Overall length: 158.60 mm
Main body length: 150 mm
Upper housing width: 33.30 mm
Maximum outer diameter: Ø46.60 mm
Front thread: Ø27.76-32T

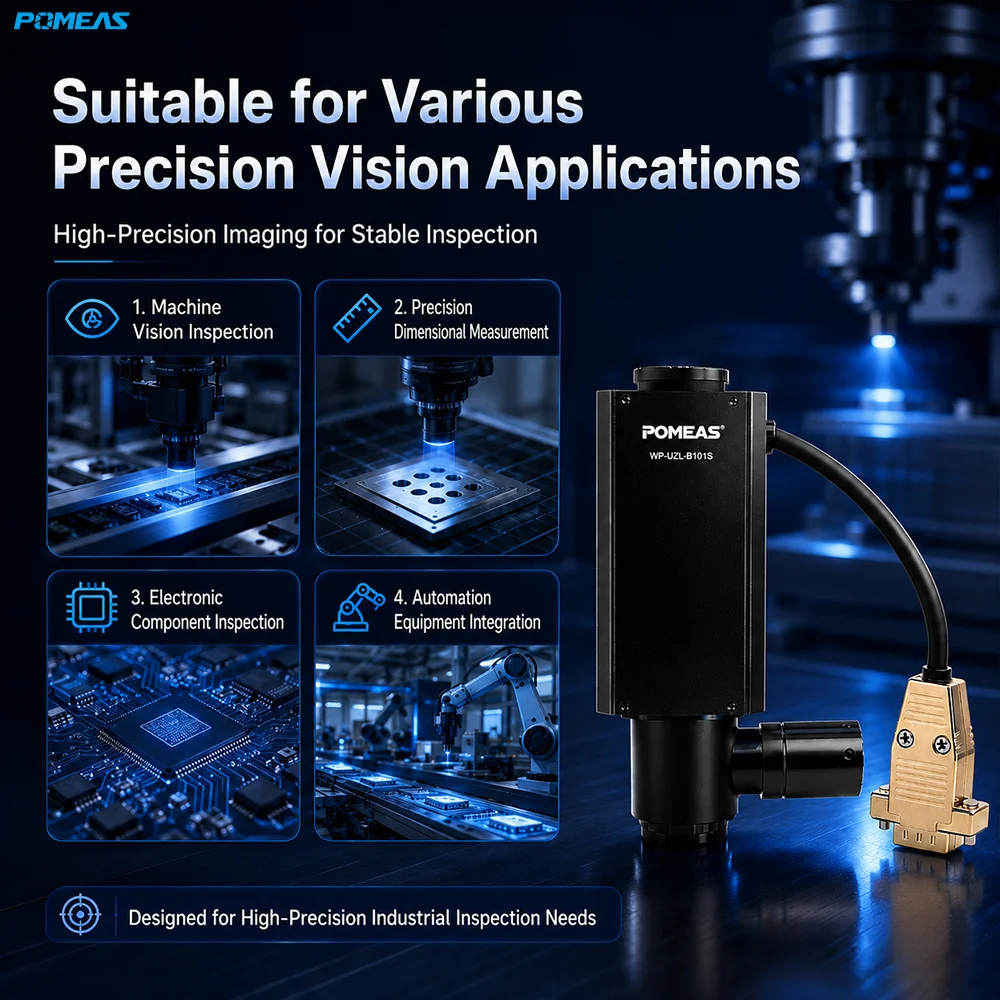

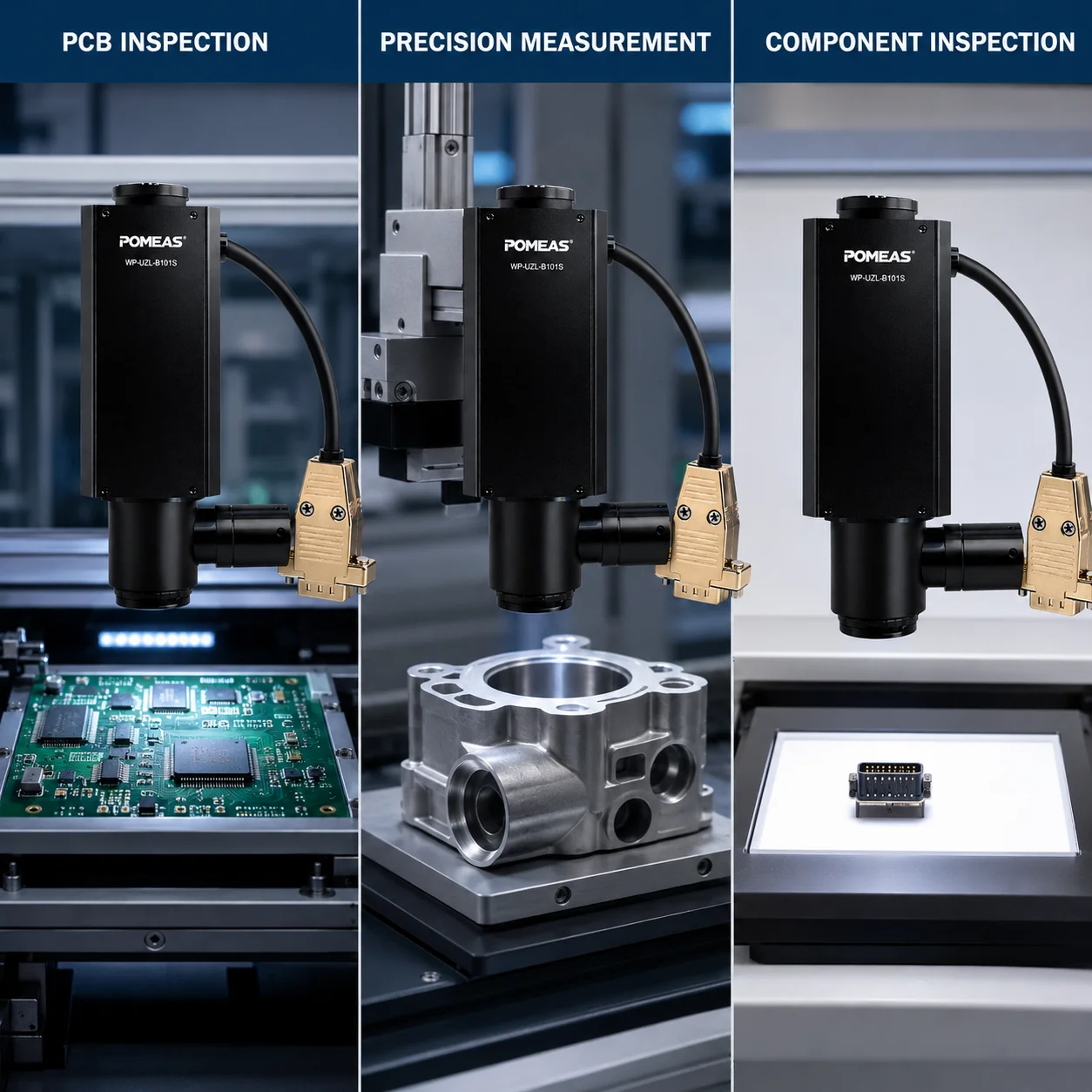

Typical Applications

PCB and electronic component inspection
Semiconductor and connector inspection
Precision component observation
Surface defect inspection
Assembly alignment and positioning
Automated optical inspection
Automated production-line inspection
Multi-product machine vision inspection
Machine vision R&D
Laboratory imaging and observation

Camera and Lens Selection

The C-Mount interface and support for sensors up to 2/3 inch allow the LZG-63105-A to be integrated with a wide range of industrial area-scan cameras.

Browse POMEAS industrial machine vision cameras for compatible camera options.

Camera sensor size, pixel size, resolution, required field of view, working distance and smallest inspection feature should be evaluated together rather than selecting a lens based only on magnification.

For additional guidance, read the POMEAS continuous zoom lens selection guide to learn how camera specifications, field of view, working distance, inspection requirements and zoom control affect lens selection.

Frequently Asked Questions

What is the zoom range of the LZG-63105-A?

The lens provides a 6.5X zoom ratio with continuous optical magnification from 0.7X to 4.5X.

What is the working distance?

The specified working distance is 87 ± 2 mm, providing a relatively stable installation distance across the zoom range.

What camera sensor size does this lens support?

The LZG-63105-A supports industrial camera sensors up to 2/3 inch. It can also be used with smaller sensor formats such as 1/2 inch and 1/3 inch.

Is the LZG-63105-A suitable for automated inspection?

Yes. Its motorized zoom mechanism allows magnification to be changed automatically, making it suitable for automated optical inspection, multi-product inspection and machine vision systems that require different fields of view.

Does the lens include a controller?

The controller, cable and electrical interface should be confirmed according to the required system configuration before ordering.

Does this model include coaxial illumination?

Coaxial illumination is not described as a standard feature of the LZG-63105-A. If the inspection target is highly reflective or requires on-axis illumination, confirm a suitable coaxial zoom lens configuration before ordering.

What information is required for lens selection?

Please provide the camera model or sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy.

Need Help Selecting a Motorized Zoom Lens?

Send us your camera sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy. POMEAS can help evaluate a suitable zoom lens, industrial camera and optical configuration for your machine vision application.
