Pomeas Motorized 12.5X Zoom Lens for Automated Inspection
PMS-LZL-12104-D1 is a motorized 12.5X zoom lens with 0.58X–7.5X magnification, C-mount, 2/3" sensor support and 77.4±2mm working distance.
SKU:
PMS-LZL-12104-D1 Motorized 12.5X Zoom Lens for Automated Inspection

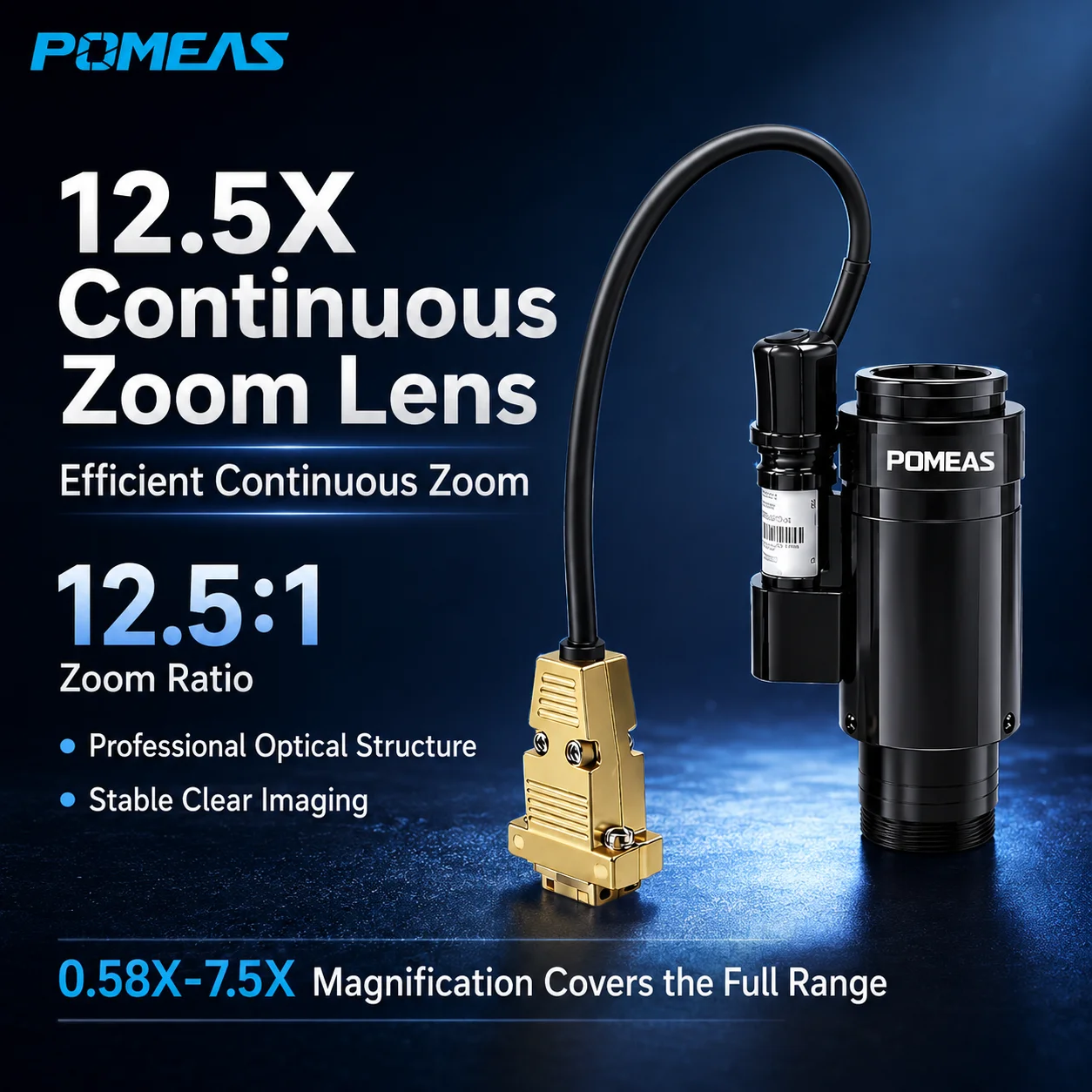

The POMEAS PMS-LZL-12104-D1 is a motorized 12.5X continuous zoom lens designed for automated machine vision inspection, semiconductor equipment, electronics inspection and precision industrial imaging. It provides an optical magnification range from 0.58X to 7.5X, allowing the imaging system to switch between larger field-of-view observation and high-magnification detail inspection without manually replacing the lens.
Compared with a manual zoom lens, the PMS-LZL-12104-D1 is better suited to automated systems that require controlled magnification adjustment, repeatable optical settings and integration into machine vision equipment.

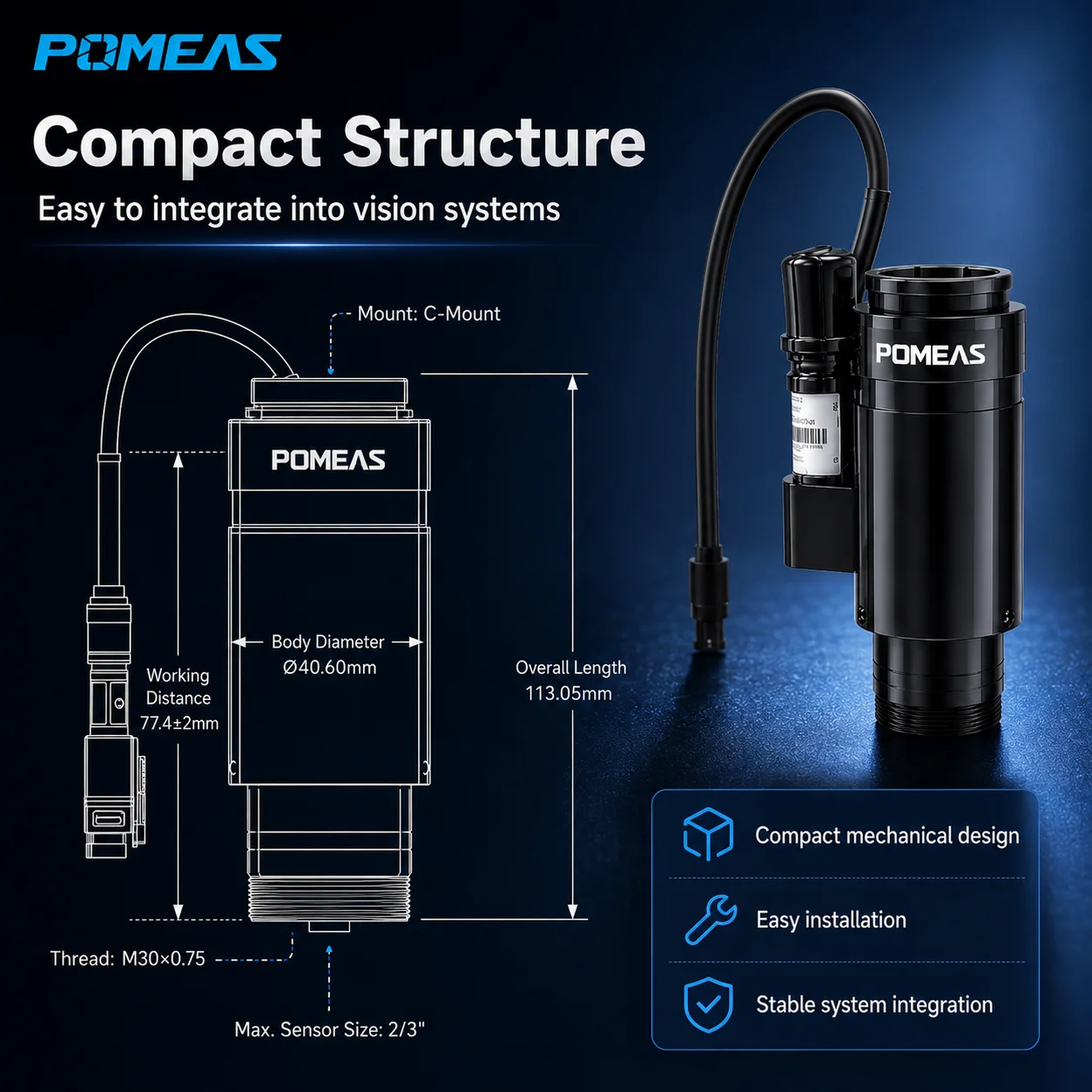

The lens provides a 77.4 ± 2 mm working distance, supports industrial cameras with sensor formats up to 2/3 inch, and uses a standard C-Mount camera interface.
Explore more POMEAS machine vision zoom lenses for different zoom ratios, working distances, control methods and illumination configurations.
Product Images

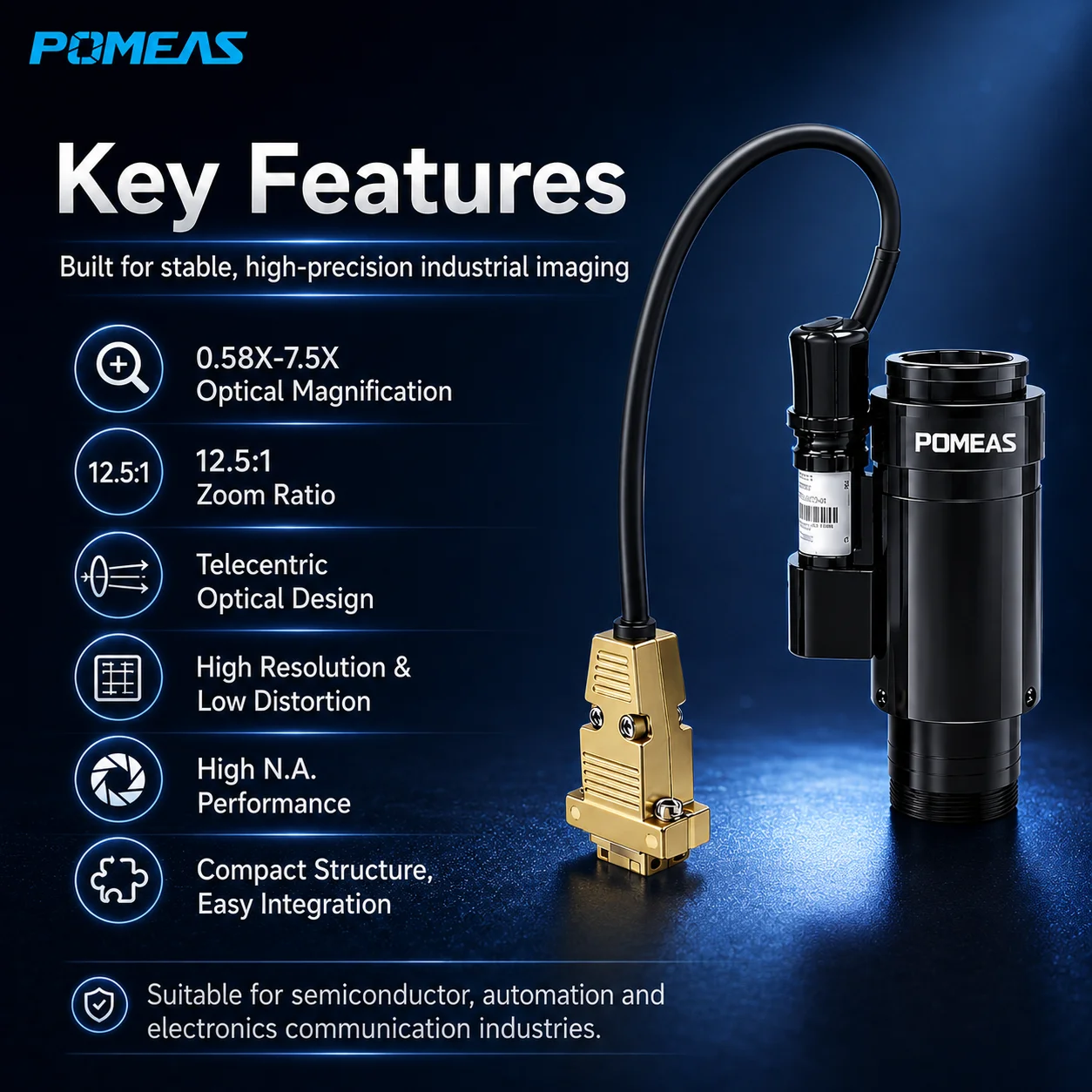

Key Advantages
Motorized Zoom for Automated Equipment
Motorized magnification adjustment allows the inspection system to change the optical field of view without requiring manual lens adjustment, making the lens suitable for automated production equipment and remote optical control.
0.58X–7.5X Optical Magnification
The wide optical magnification range covers both larger-area observation and high-magnification detail inspection within the same optical system.

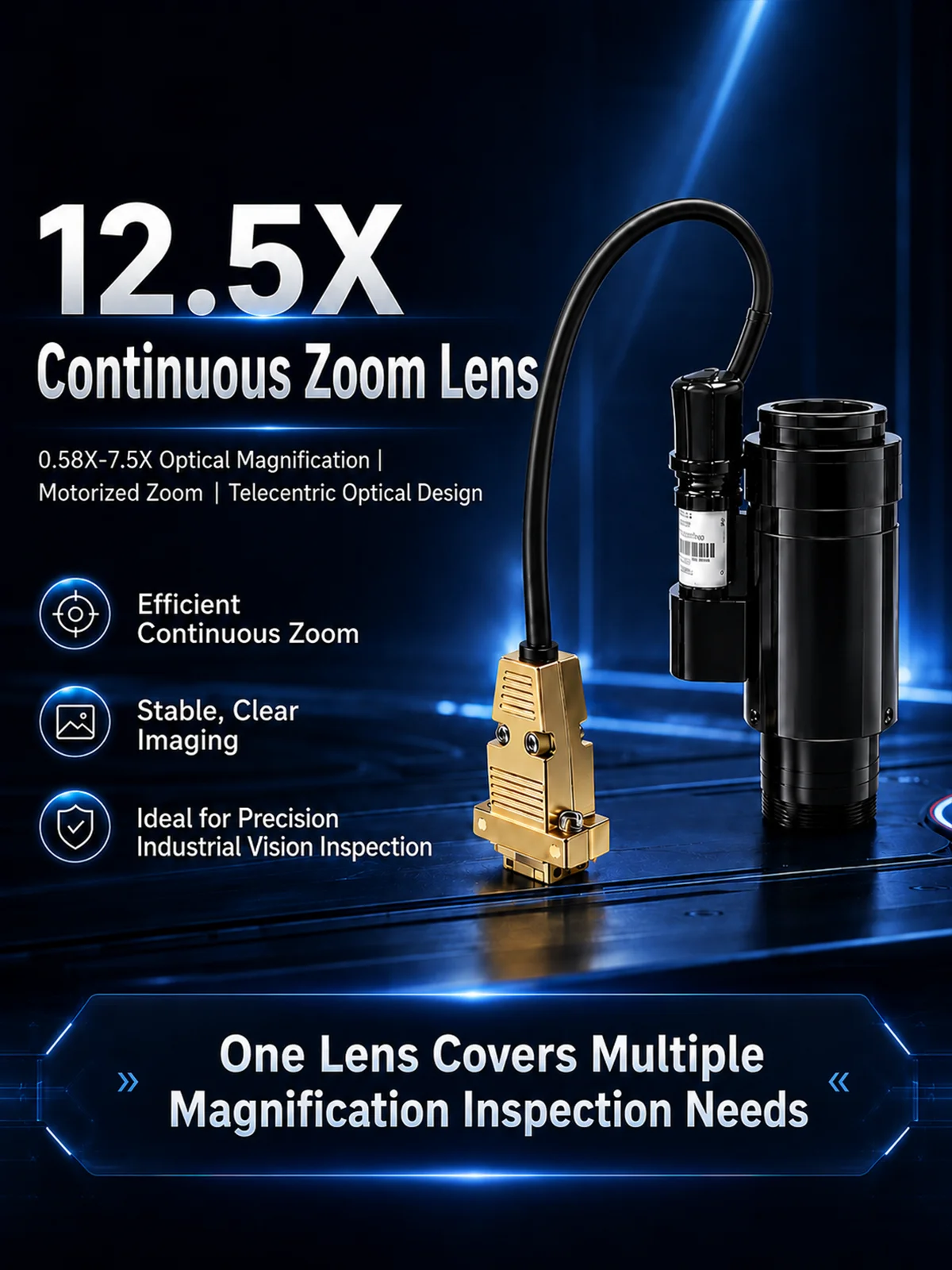

12.5X Continuous Zoom Ratio
The 12.5:1 zoom ratio allows one imaging setup to handle different inspection areas and object sizes, reducing the need to frequently change lenses.

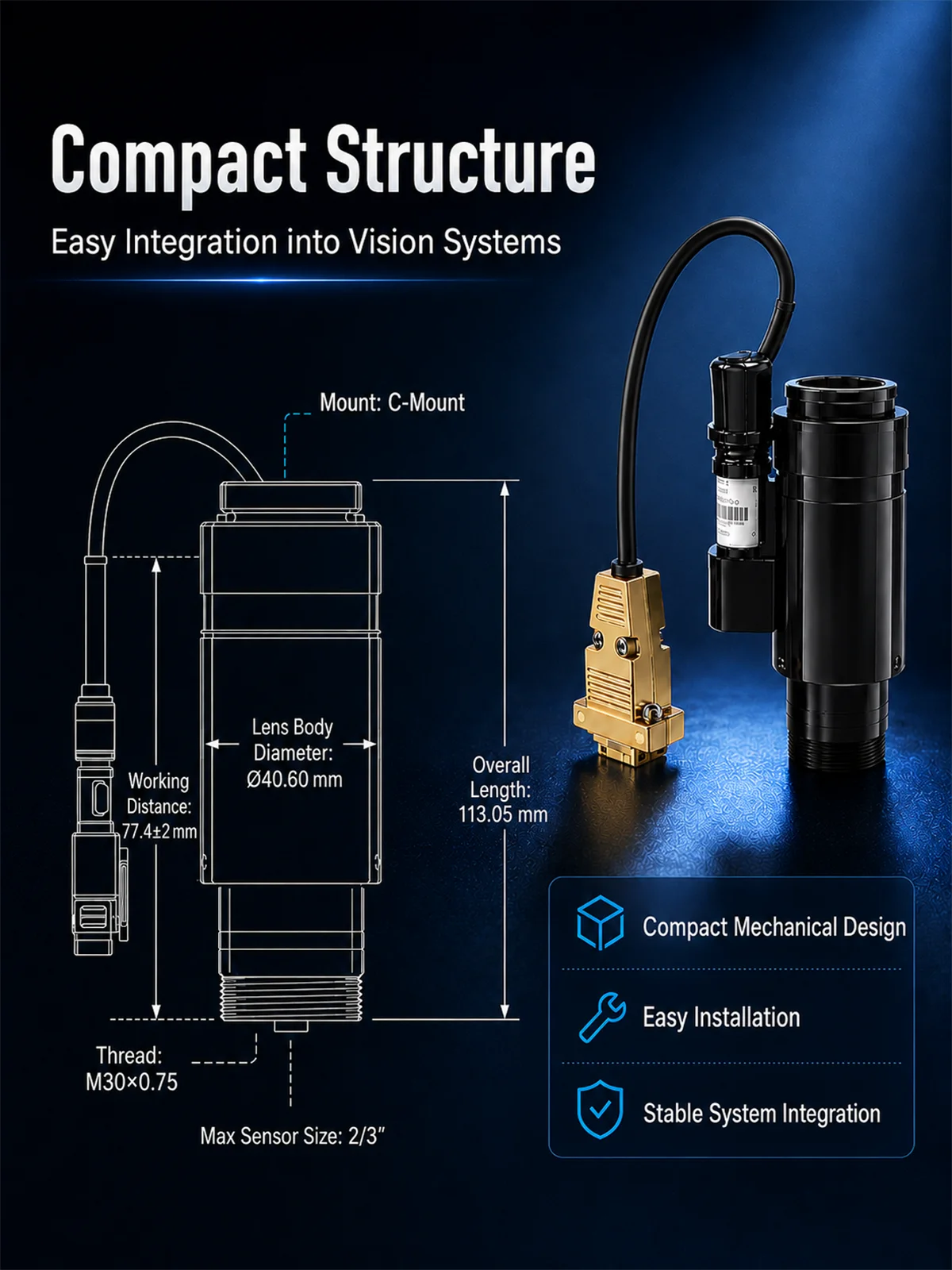

77.4 ± 2 mm Working Distance
The specified working distance provides practical installation space for samples, fixtures and machine vision lighting.
C-Mount and 2/3-Inch Sensor Support
The standard C-Mount interface supports integration with common industrial cameras using sensor formats up to 2/3 inch.

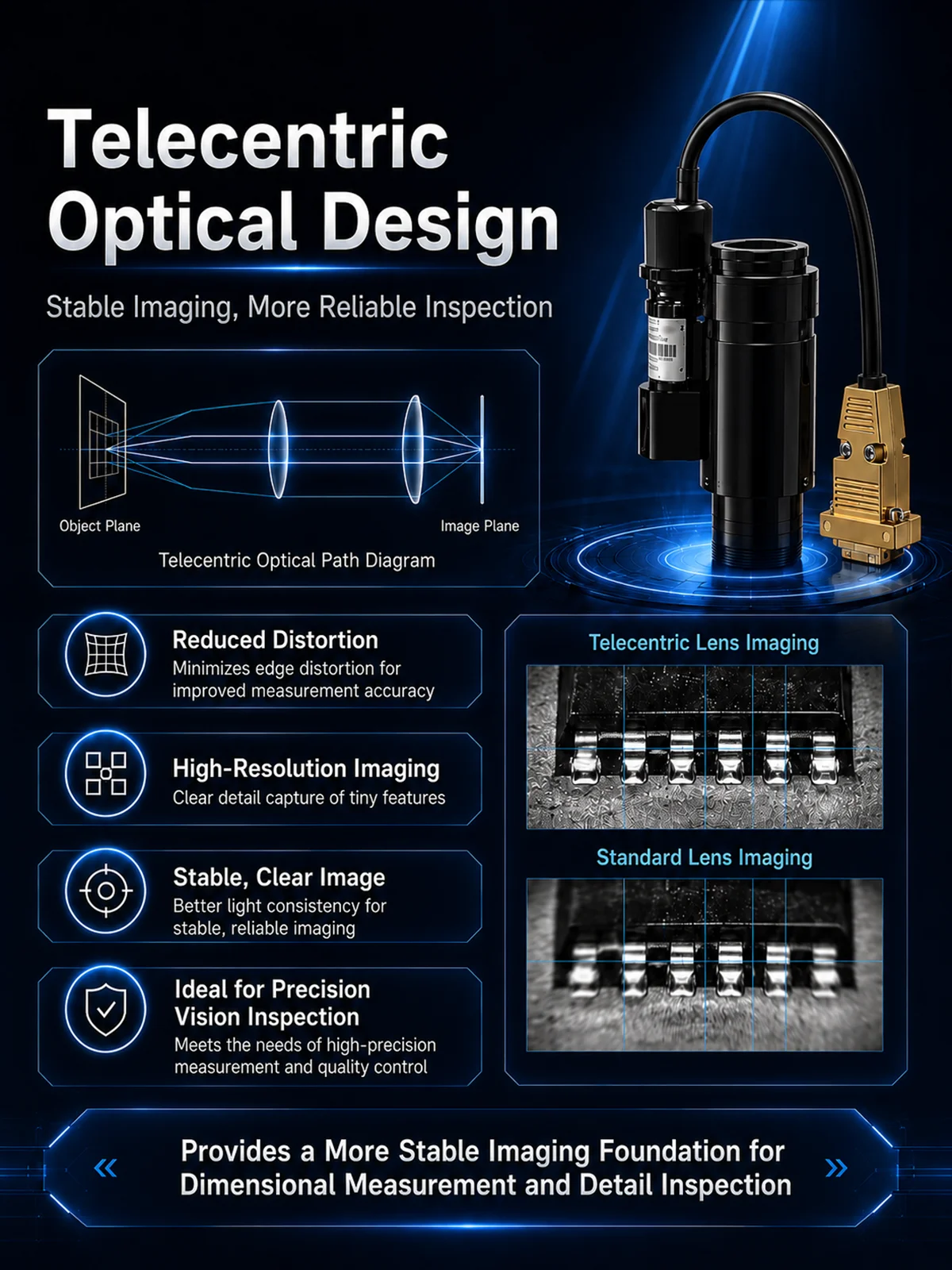

Low TV Distortion
TV distortion ranges from approximately 0.001% to 0.050% depending on magnification, supporting stable industrial imaging across the zoom range.
Technical Specifications

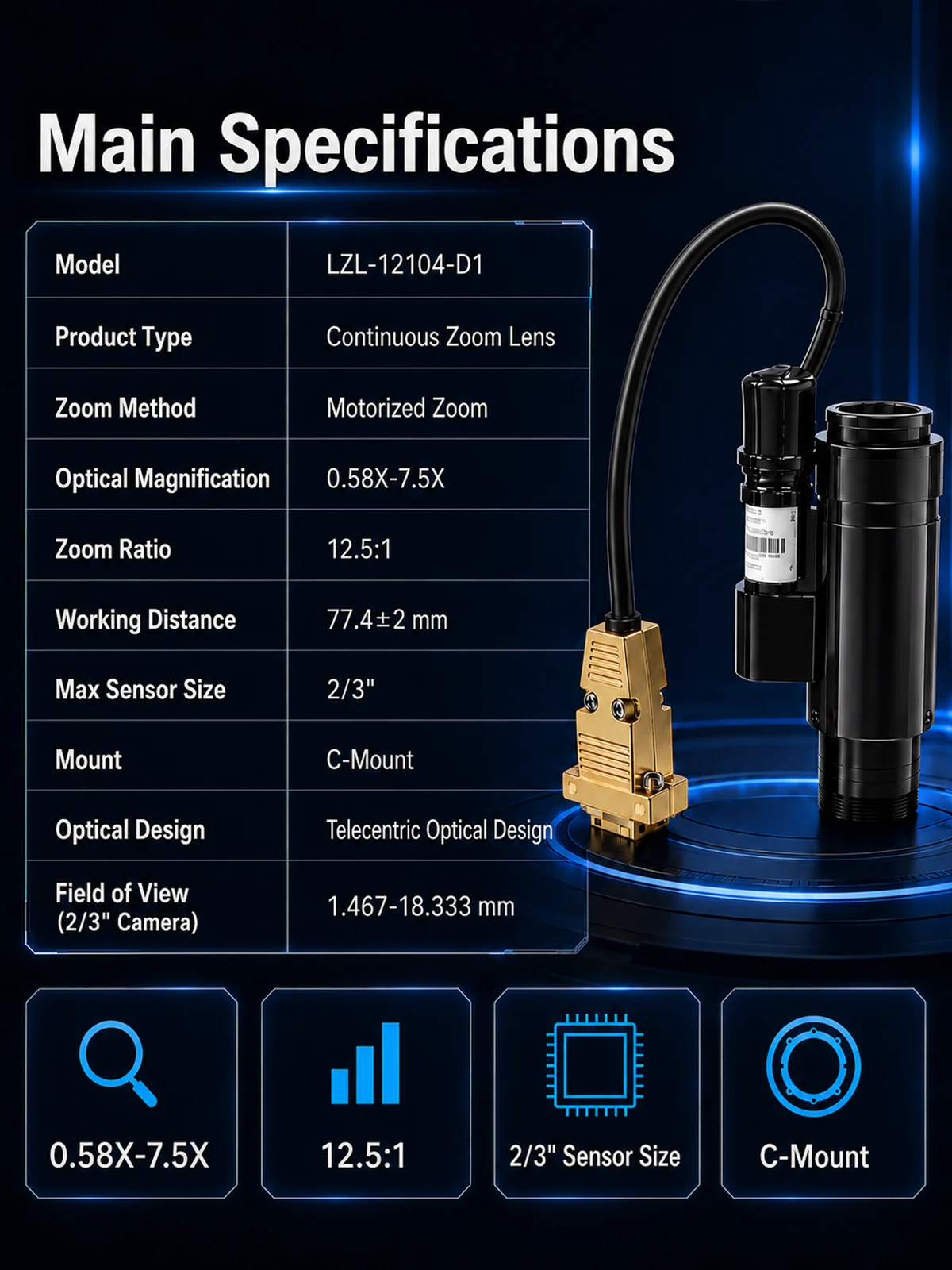

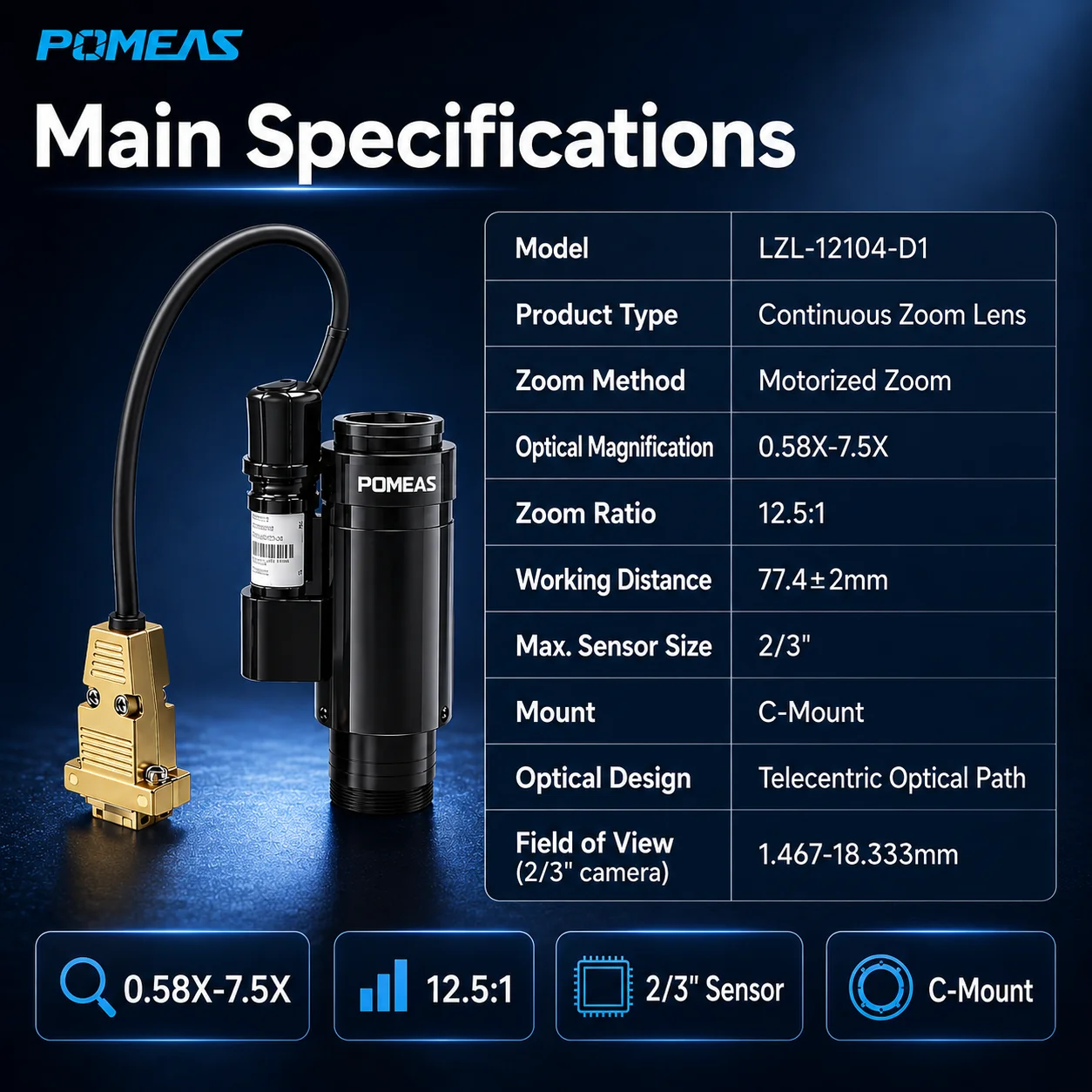

| Parameter | Specification |
|---|---|
| Model | PMS-LZL-12104-D1 |
| Product Type | Motorized Continuous Zoom Lens |
| Zoom Ratio | 12.5X / 12.5:1 |
| Optical Magnification | 0.58X–7.5X |
| Working Distance | 77.4 ± 2 mm |
| Maximum Sensor Size | 2/3 Inch |
| Camera Mount | C-Mount |
| Zoom Control | Motorized |
| TV Distortion | 0.001%–0.050% |
| Reference FOV Range | Approx. 1.47–18.97 mm Diagonal |
| Typical Applications | Semiconductor, Electronics, AOI, Automated Machine Vision |
Motorized Zoom for Automated Machine Vision
The main advantage of the PMS-LZL-12104-D1 over a manual zoom lens is its ability to change magnification through an automated optical mechanism.
This is useful when a machine vision system needs to inspect different product sizes, switch between positioning and detailed inspection, or use different magnifications during different inspection stages.
The exact controller, cable, communication interface and software integration should be confirmed according to the final machine configuration before ordering.
Field of View and Magnification Selection
The final field of view depends on both the camera sensor size and selected optical magnification. Lower magnification provides a larger inspection area, while higher magnification provides a smaller field of view for detailed feature observation.
| Selection Item | Reference | Why It Matters |
|---|---|---|
| Camera Sensor Size | Up to 2/3 Inch | Determines the image area and affects the final field of view. |
| Optical Magnification | 0.58X–7.5X | Lower magnification provides a wider view; higher magnification provides finer detail. |
| Working Distance | 77.4 ± 2 mm | Determines the installation distance between the lens and inspection object. |
| Camera Interface | C-Mount | Supports integration with compatible industrial machine vision cameras. |
| Zoom Control | Motorized | Allows magnification adjustment to be integrated into automated inspection equipment. |
Selection Note: For accurate lens selection, provide the camera model or sensor dimensions, pixel size, object dimensions, required field of view, working distance, smallest inspection feature and required inspection accuracy.
Typical Applications
Semiconductor Automation
Suitable for chip surface observation, bonding-area inspection and precision structure imaging in automated semiconductor equipment.
Electronic Component Inspection
The wide zoom range supports inspection of circuit details, connectors, electronic communication components and small precision parts.
Automated Vision Equipment
Motorized optical adjustment is useful for machine vision systems that require different magnifications for different products or inspection stages.
Automated Optical Inspection
The lens can be integrated into AOI systems that need to switch between larger-area positioning and detailed local inspection.
Precision Industrial Inspection
Low distortion and adjustable magnification make the lens suitable for detailed inspection of precision industrial components.
Machine Vision R&D
The 12.5X optical range can also be used in optical evaluation, laboratory imaging and machine vision development platforms.
Camera and System Integration
The PMS-LZL-12104-D1 uses a standard C-Mount interface and supports industrial cameras with sensor formats up to 2/3 inch.
Browse POMEAS industrial machine vision cameras for compatible camera options.
Camera sensor size, pixel size, resolution, required field of view, working distance and smallest inspection feature should be considered together when configuring the complete imaging system.
For additional information about zoom-lens selection for electronics and semiconductor inspection, read the zoom lens selection case: 10-4 mm FOV, 5 μm defect inspection.
Frequently Asked Questions
What is the main difference between the PMS-LZL-12104-D1 and a manual zoom lens?
The PMS-LZL-12104-D1 uses motorized zoom adjustment, making it more suitable for automated equipment that requires controlled or remote magnification changes.
What is the optical magnification range?
The lens provides continuous optical magnification from 0.58X to 7.5X, corresponding to a 12.5X zoom ratio.
What camera sensor size does the lens support?
The PMS-LZL-12104-D1 supports industrial cameras with sensor formats up to 2/3 inch.
What is the working distance?
The specified working distance is 77.4 ± 2 mm.
What camera mount does the lens use?
The lens uses a standard C-Mount interface for integration with compatible industrial machine vision cameras.
Is this lens suitable for automated inspection?
Yes. Motorized optical magnification adjustment makes the lens suitable for AOI equipment, semiconductor automation and machine vision systems that need to switch between multiple fields of view.
Does this model include coaxial illumination?
Integrated coaxial illumination is not listed as a standard feature of the PMS-LZL-12104-D1. For reflective surfaces requiring on-axis illumination, a motorized coaxial zoom configuration should be selected.
What information is required for lens selection?
Please provide the camera model or sensor size, pixel size, target dimensions, required field of view, working distance, smallest inspection feature and required inspection accuracy.
Related Optical Solutions
Explore the complete POMEAS machine vision zoom lens series for manual, motorized and coaxial configurations.
For reflective surfaces requiring integrated coaxial illumination, view the PMS-LZL-12105 12.5X motorized coaxial zoom lens .
For manual continuous zoom applications, view the PMS-LZL-12100 12.5X manual continuous zoom lens .
For applications requiring predefined manual zoom positions, view the PMS-LZL-12100D15 12.5X detented zoom lens .
Browse POMEAS industrial machine vision cameras for complete camera and lens integration.
Need Help Selecting a Motorized 12.5X Zoom Lens?
Send us your camera sensor size, pixel size, target dimensions, required field of view, working distance, smallest inspection feature and required inspection accuracy. POMEAS can help evaluate a suitable zoom lens and industrial camera configuration for your machine vision application.
