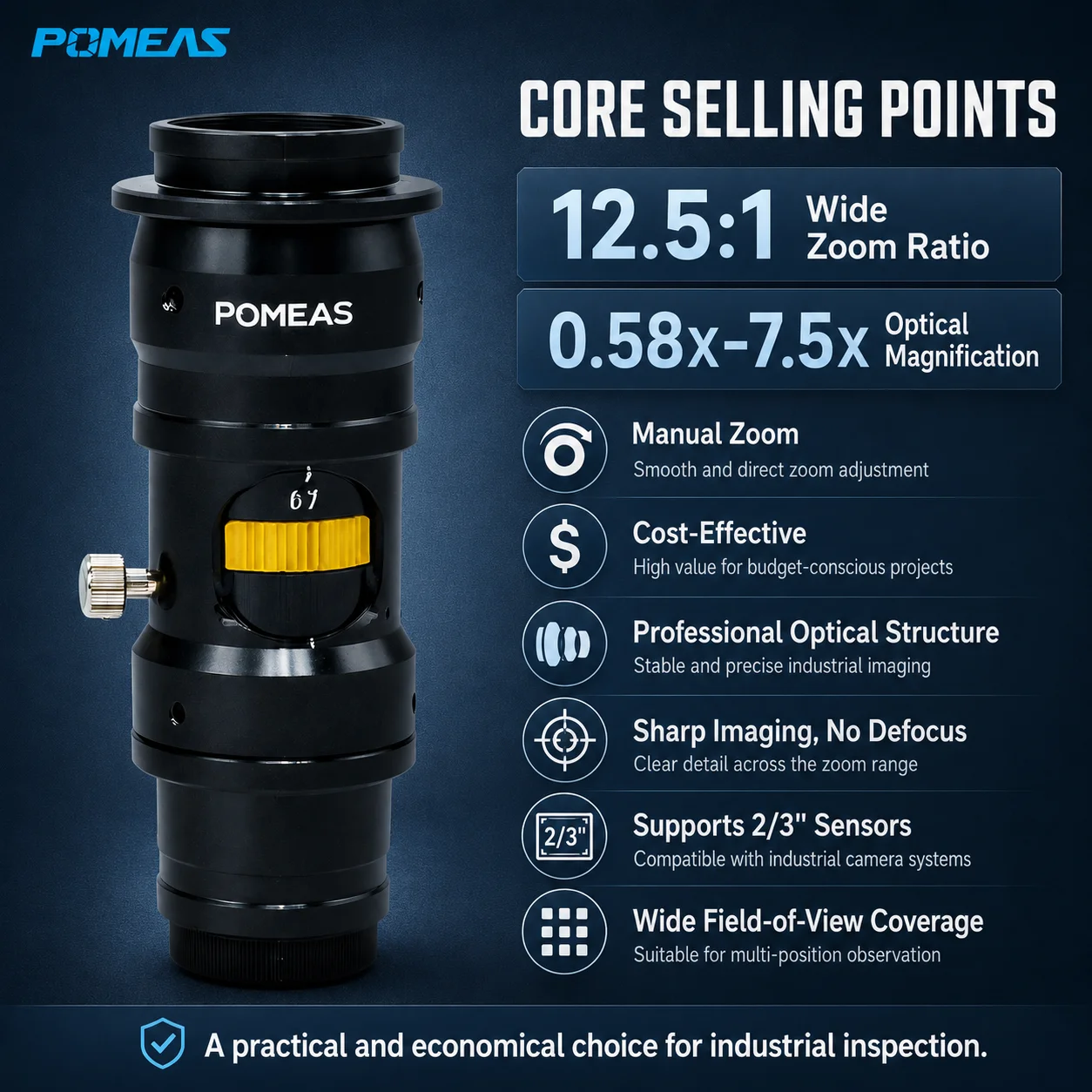

12.5X Manual Continuous Zoom Lens with 0.58X-7.5X Magnification
LZL-12100 12.5X manual continuous zoom lens with 0.58X-7.5X magnification, 77.4 mm WD, 2/3-inch sensor support and C-Mount.
SKU:
- LZL-12100D15
- LZL-12100DS12
- LZL-12100
PMS-LZL-12100 12.5X Manual Continuous Zoom Lens for Machine Vision
The PMS-LZL-12100 is a manual continuous zoom lens designed for semiconductor inspection, industrial automation, electronics manufacturing, communication component inspection and precision machine vision imaging. Its 12.5X zoom ratio provides a wide optical magnification range from 0.58X to 7.5X.
The lens combines high resolution, low TV distortion, high numerical aperture and a stable optical design for industrial imaging. Its compact mechanical structure makes it suitable for integration into automated inspection equipment, measurement systems and laboratory imaging platforms.
Explore more POMEAS machine vision zoom lenses for different magnification ranges, working distances, control methods and illumination configurations.
Key Features
- 12.5X continuous optical zoom ratio.
- Wide 0.58X–7.5X optical magnification range.
- Manual continuous zoom adjustment.
- High resolution, low distortion and high numerical aperture.
- Resolution down to 3.05 μm at higher magnifications.
- Stable 77.4 ± 2 mm working distance.
- Supports industrial camera sensors up to 2/3 inch.
- Standard C-Mount camera interface.
- Compact mechanical structure for equipment integration.
- Suitable for both large-field observation and detailed feature inspection.

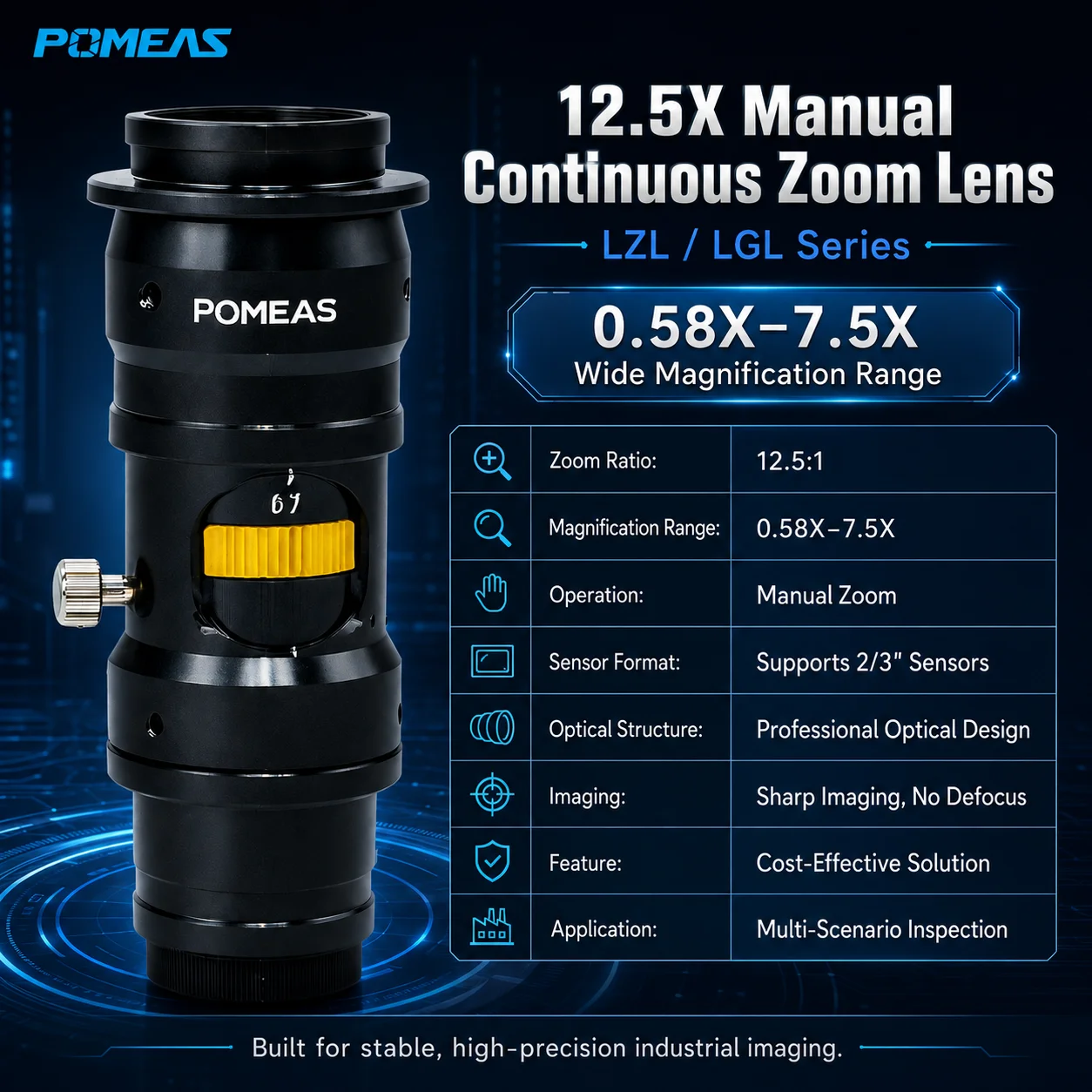

General Specifications
| Parameter | Specification |
|---|---|
| Model | PMS-LZL-12100 |
| Product Type | Manual Continuous Zoom Lens |
| Zoom Ratio | 12.5X |
| Optical Magnification | 0.58X–7.5X |
| Working Distance | 77.4 ± 2 mm |
| Maximum Sensor Size | 2/3 inch |
| Camera Mount | C-Mount |
| Zoom Method | Manual Continuous Zoom |
| Minimum Resolution | 3.05 μm |
| Overall Body Length | 104.30 mm |
| Maximum Outer Diameter | Ø44 mm |
Optical Performance and Field of View
The following field-of-view values are based on a 2/3-inch sensor and are shown as Diagonal × Horizontal × Vertical. Actual field of view may vary according to the camera sensor dimensions and system configuration.
| Magnification | DOF | NA | F-Number | Resolution | TV Distortion | FOV D × H × V |
|---|---|---|---|---|---|---|
| 0.58X | 2.75 mm | 0.025 | 12.5 | 13 μm | 0.050% | 18.97 × 15.17 × 11.38 mm |
| 0.6X | 2.67 mm | 0.025 | 12.5 | 13 μm | 0.050% | 18.33 × 14.67 × 11.00 mm |
| 1.0X | 0.95 mm | 0.043 | 11.85 | 7.8 μm | 0.002% | 11.00 × 8.80 × 6.60 mm |
| 1.5X | 0.43 mm | 0.063 | 11.95 | 5.3 μm | 0.010% | 7.33 × 5.87 × 4.40 mm |
| 2.0X | 0.27 mm | 0.074 | 13.65 | 4.53 μm | 0.020% | 5.50 × 4.40 × 3.30 mm |
| 2.5X | 0.20 mm | 0.082 | 15.3 | 4.09 μm | 0.003% | 4.40 × 3.52 × 2.64 mm |
| 3.0X | 0.15 mm | 0.090 | 16.5 | 3.73 μm | 0.020% | 3.67 × 2.93 × 2.20 mm |
| 3.5X | 0.12 mm | 0.097 | 18.4 | 3.46 μm | 0.020% | 3.14 × 2.51 × 1.89 mm |
| 4.0X | 0.10 mm | 0.100 | 19.9 | 3.36 μm | 0.018% | 2.75 × 2.20 × 1.65 mm |
| 4.5X | 0.081 mm | 0.110 | 20.4 | 3.05 μm | 0.020% | 2.44 × 1.96 × 1.47 mm |
| 5.0X | 0.073 mm | 0.110 | 22.45 | 3.05 μm | 0.010% | 2.20 × 1.76 × 1.32 mm |
| 5.5X | 0.066 mm | 0.110 | 22.7 | 3.05 μm | 0.010% | 2.00 × 1.60 × 1.20 mm |
| 6.0X | 0.061 mm | 0.110 | 26.8 | 3.05 μm | 0.001% | 1.83 × 1.47 × 1.10 mm |
| 6.5X | 0.056 mm | 0.110 | 29.4 | 3.05 μm | 0.010% | 1.69 × 1.35 × 1.02 mm |
| 7.0X | 0.052 mm | 0.110 | 31.7 | 3.05 μm | 0.005% | 1.57 × 1.26 × 0.94 mm |
| 7.5X | 0.050 mm | 0.110 | 33.9 | 3.05 μm | 0.005% | 1.47 × 1.17 × 0.88 mm |
Mechanical Dimensions
- Overall body length: 104.30 mm
- Maximum outer diameter: Ø44 mm
- Camera-side diameter: Ø33.30 mm
- Middle body diameters: Ø39.65 mm and Ø34.10 mm
- Lower body diameter: Ø31.40 mm
- Front thread: Ø27.76-32T-2B
- Mounting thread: M30×0.75
Typical Applications
- Semiconductor inspection
- PCB and electronic component inspection
- Communication component inspection
- Precision component observation
- Surface defect inspection
- Assembly alignment and positioning
- Automated production equipment
- Machine vision R&D
- Laboratory imaging and observation

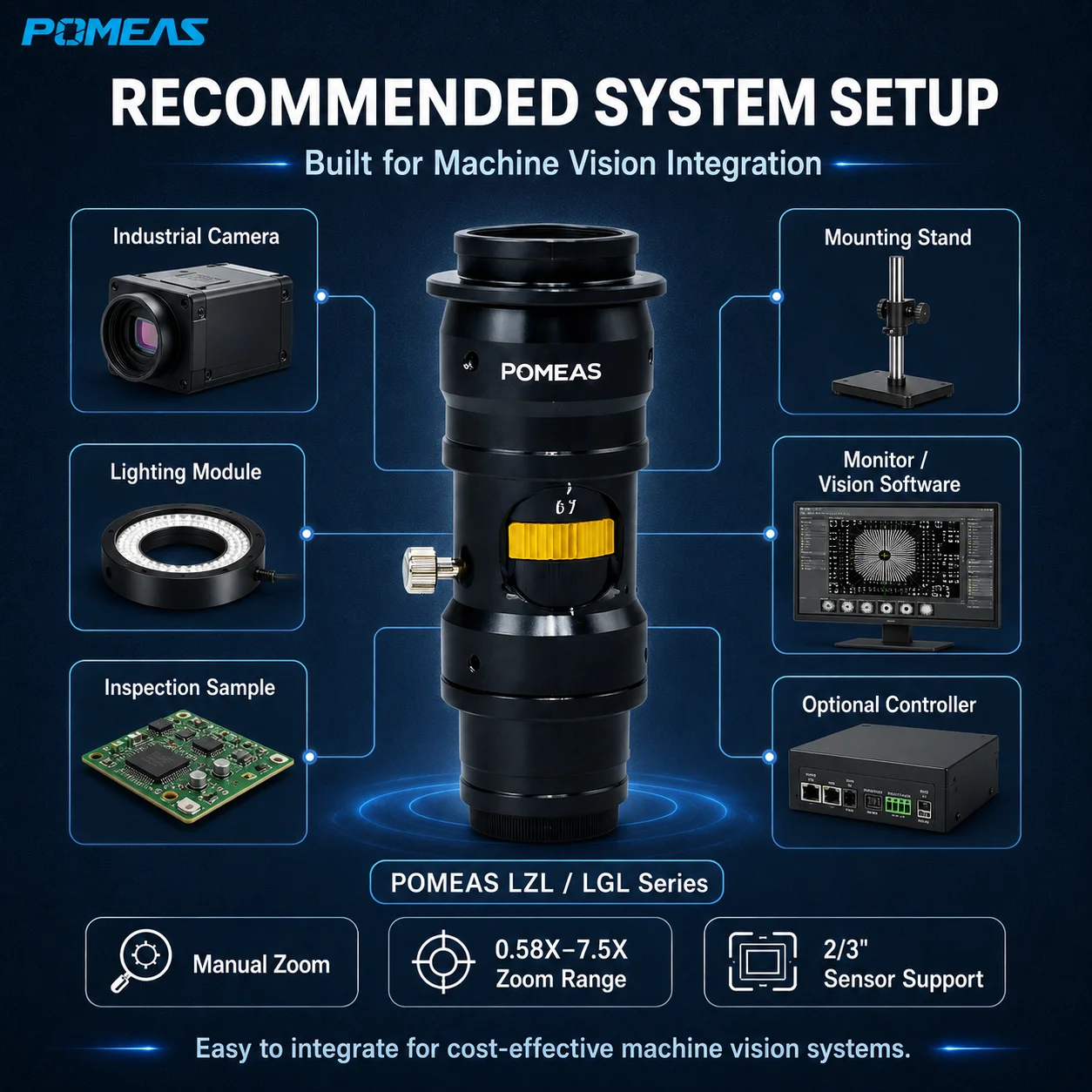

Camera and System Integration
The C-Mount interface and support for sensor formats up to 2/3 inch make the PMS-LZL-12100 suitable for integration with a wide range of industrial area-scan cameras.
Browse POMEAS industrial machine vision cameras for compatible camera options. The selected camera sensor should not exceed the maximum image format supported by the lens.
Camera sensor size, pixel size, resolution, required field of view, working distance, smallest inspection feature and required inspection accuracy should be evaluated together when configuring the imaging system.
Manual Continuous Zoom vs Detented Zoom
The PMS-LZL-12100 provides free manual continuous adjustment throughout the 0.58X–7.5X magnification range. This is useful when engineers need maximum flexibility to adjust the field of view and magnification according to different inspection targets.
For applications that require operators to return repeatedly to predefined magnification positions, consider the PMS-LZL-12100D15 12.5X detented zoom lens , which provides 15 mechanical detent positions for improved zoom-position repeatability.
Frequently Asked Questions
What is the zoom range of the PMS-LZL-12100?
The lens provides a 12.5X continuous zoom ratio with an optical magnification range from 0.58X to 7.5X.
Is the PMS-LZL-12100 motorized?
No. The PMS-LZL-12100 uses manual continuous zoom adjustment. Motorized zoom models are available for applications that require automated magnification control.
What is the maximum supported camera sensor size?
The lens supports industrial machine vision cameras with sensor formats up to 2/3 inch and uses a standard C-Mount interface.
What is the working distance?
The nominal working distance is 77.4 ± 2 mm across the specified magnification range.
What is the field of view at 0.58X?
With the specified 2/3-inch reference sensor, the field of view at 0.58X is approximately 18.97 × 15.17 × 11.38 mm in diagonal, horizontal and vertical dimensions.
What is the field of view at 7.5X?
With the same 2/3-inch reference sensor, the field of view at 7.5X is approximately 1.47 × 1.17 × 0.88 mm.
What information is required for lens selection?
Please provide the camera sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy.
Related Optical Solutions
Explore the complete POMEAS machine vision zoom lens series for different zoom ratios, working distances, manual or motorized control methods and illumination configurations.
For repeatable manual magnification settings, view the PMS-LZL-12100D15 12.5X detented zoom lens .
For reflective surfaces that benefit from on-axis illumination, view the PMS-LZL-12101 12.5X continuous zoom lens with coaxial illumination .
Browse POMEAS industrial machine vision cameras for camera and lens system integration.
Need Help Selecting a Zoom Lens?
Send us your camera sensor size, pixel size, required field of view, working distance, object dimensions, smallest inspection feature and required inspection accuracy. POMEAS can help evaluate a suitable lens and camera configuration for your machine vision application.
