PMS-LZL-12101D 12.5x Coaxial Industrial Zoom Lens

PMS-LZ-63107-M3 Coaxial Industrial Zoom Lens

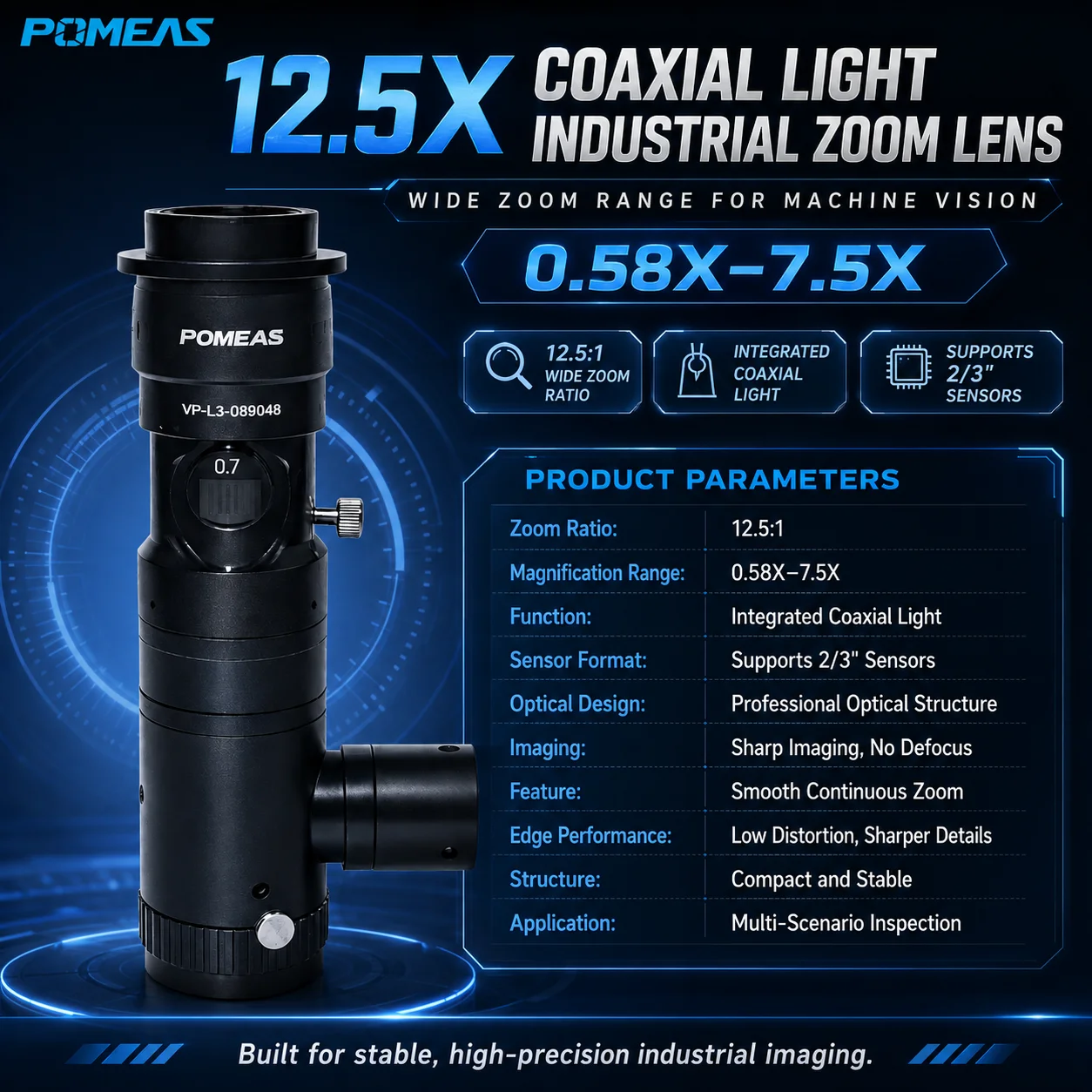

PMS-LZ-63107-M3 is a coaxial industrial zoom lens designed for machine vision inspection, semiconductor automation, electronics inspection, and reflective surface imaging. It integrates a coaxial light path with a 12.5:1 zoom ratio, allowing the lens to support high-magnification inspection while helping improve image visibility on flat, reflective, or low-contrast surfaces.

The lens provides 0.58x-7.5x optical magnification, 77.4±2mm working distance, 2/3" sensor support, and C-Mount connection. Its compact structure makes it suitable for automated inspection equipment, precision vision modules, semiconductor inspection stations, and electronic communication component inspection systems.

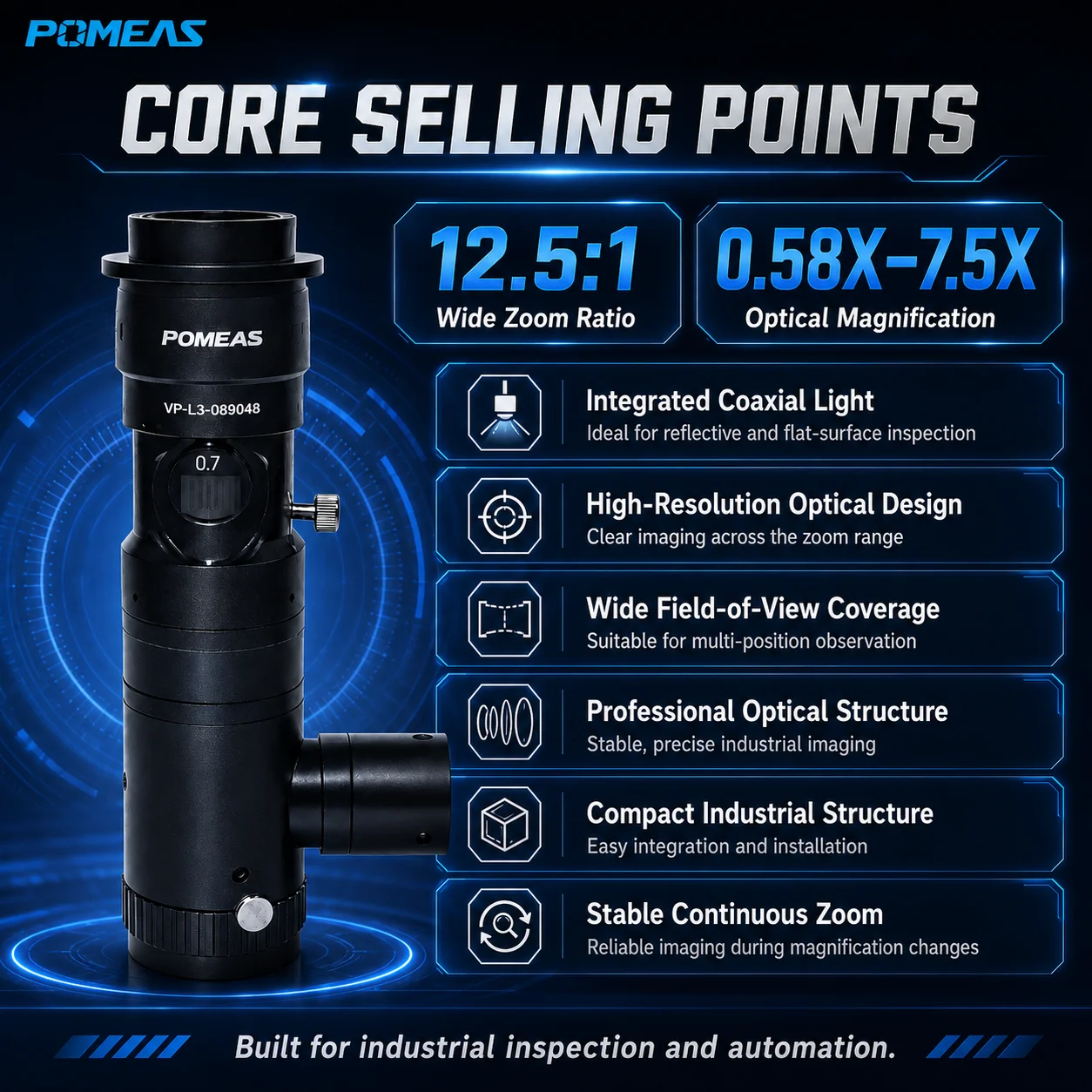

Key Features

• Coaxial Light Path: Helps improve imaging for reflective surfaces, circuit patterns, metal parts, electronic components, and flat inspection targets.
• 12.5:1 Zoom Ratio: Supports flexible field-of-view adjustment from overview inspection to detailed observation.
• 0.58x-7.5x Optical Magnification: Covers a wide magnification range for different inspection sizes and visual requirements.
• 77.4±2mm Working Distance: Provides usable space for fixtures, lighting modules, motion platforms, and automation structures.
• 2/3" Sensor Support: Designed for big FOV applications with 2/3" industrial cameras.
• C-Mount Interface: Supports integration with standard industrial cameras used in machine vision systems.
• Compact Structure: Helps simplify installation in inspection machines, vision modules, and OEM equipment.
• Motorized Control Compatibility: Can work with a compatible control system using RS232 or USB for automated zoom control.

Why Coaxial Illumination Matters

Coaxial illumination is useful when the inspection target has reflective, flat, or patterned surfaces. By directing light along the optical axis, the lens can help reduce uneven shadows and improve the visibility of surface details that may be difficult to capture with side lighting.

This makes PMS-LZ-63107-M3 suitable for PCB traces, semiconductor-related parts, metal surfaces, electronic communication components, bonding areas, and other precision targets where surface contrast and detail recognition are important.

Built for Semiconductor and Electronics Inspection

PMS-LZ-63107-M3 is suitable for semiconductor automation, electronics inspection, electronic communication inspection, and machine vision applications. Its coaxial optical structure helps support inspection tasks involving reflective surfaces, fine patterns, and compact components.

For manufacturers and equipment builders serving advanced electronics and semiconductor production regions such as Taiwan, Malaysia, and Southeast Asia, this lens can be used in visual inspection modules for circuits, components, precision assemblies, and automated optical inspection equipment.

Wide Zoom Range for Flexible Machine Vision Setups

The 0.58x-7.5x optical magnification range allows users to switch between larger field-of-view observation and higher-magnification detail inspection. This flexibility is useful when one inspection system needs to handle different object sizes, product models, or inspection positions.

The 12.5:1 zoom ratio helps reduce lens replacement frequency and supports more adaptable machine vision system design.

Designed for 2/3" Industrial Cameras

PMS-LZ-63107-M3 supports up to 2/3" sensor cameras and is suitable for big FOV applications. When paired with an appropriate industrial camera, it can capture practical inspection areas while maintaining zoom flexibility for different vision tasks.

Compact Structure for Equipment Integration

The compact mechanical structure helps the lens fit into machine vision equipment, automated inspection stations, and OEM imaging modules. The 77.4±2mm working distance also provides space for mechanical fixtures and production-line integration.

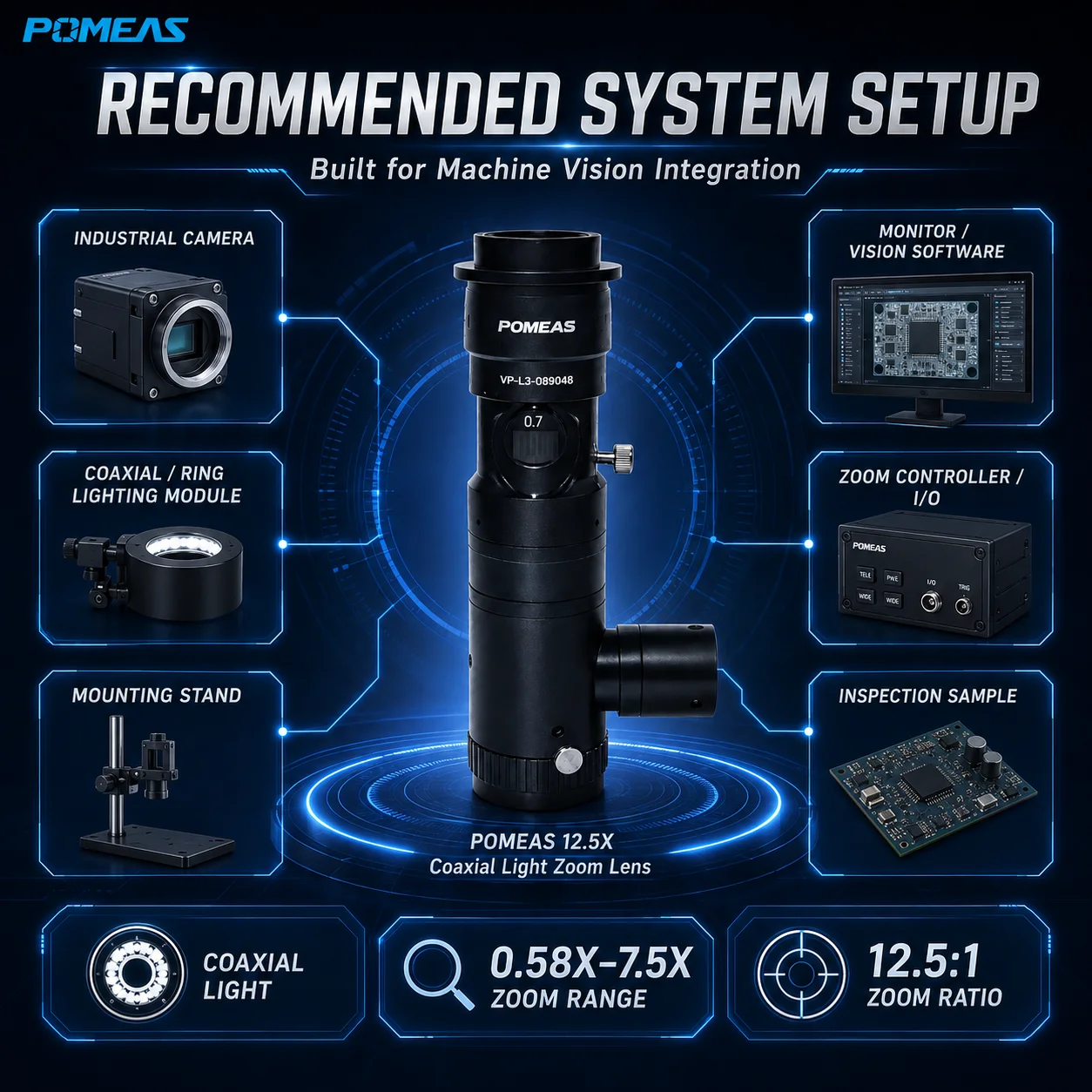

Control and OEM Integration

The lens is designed as a manual zoom model and can be paired with a compatible motorized control system when automatic zoom adjustment is required. The control system can support RS232 or USB communication, and software code can be provided for OEM platform integration.

Technical Specifications

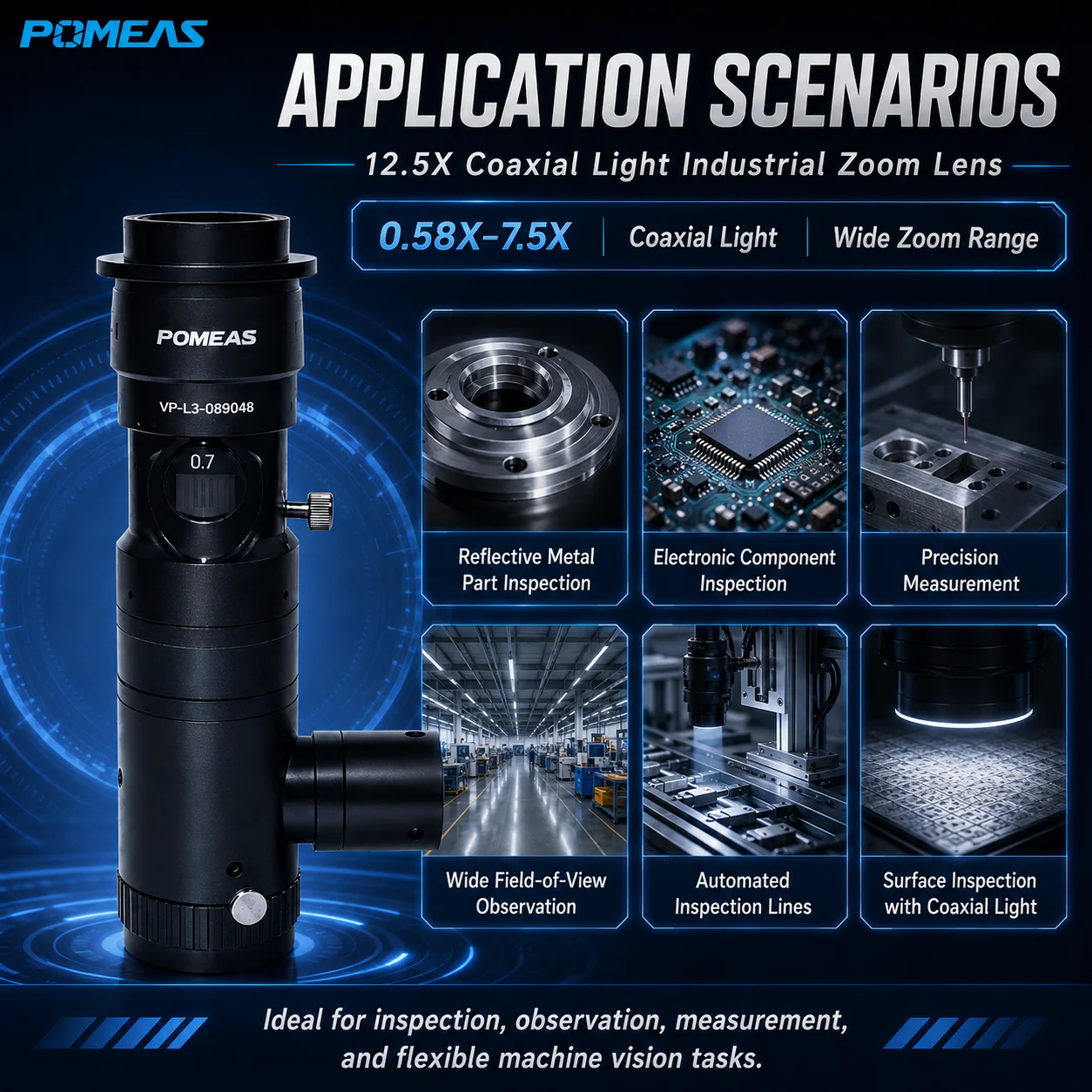

Typical Applications

• Reflective surface inspection
• PCB trace and pad inspection
• Semiconductor automation inspection
• Electronic communication component inspection
• Metal surface and precision part inspection
• Machine vision positioning and measurement
• Automated optical inspection systems
• OEM vision inspection modules

FAQ

What is PMS-LZ-63107-M3?

PMS-LZ-63107-M3 is a coaxial industrial zoom lens for machine vision, semiconductor automation, electronics inspection, and reflective surface imaging.

Why is coaxial light important for machine vision inspection?

Coaxial light helps improve visibility on reflective, flat, or patterned surfaces by sending illumination along the optical axis. It is useful for PCB, metal, semiconductor, and electronic component inspection.

What is the optical magnification range?

The optical magnification range is 0.58x-7.5x, with a 12.5:1 zoom ratio for flexible field-of-view adjustment.

What camera sensor size does this lens support?

PMS-LZ-63107-M3 supports up to 2/3" sensor industrial cameras for big FOV machine vision applications.

What is the working distance?

The working distance is 77.4±2mm, providing space for fixtures, lighting, and mechanical structures in inspection equipment.

Is this lens suitable for semiconductor automation?

Yes. It is suitable for semiconductor automation, electronics inspection, electronic communication inspection, and precision machine vision applications.
