PMS-LZL-12102-M12 Manual Zoom Lens 12.5X for Machine Vision

LZL-12102-M12 12.5X Manual Zoom Lens

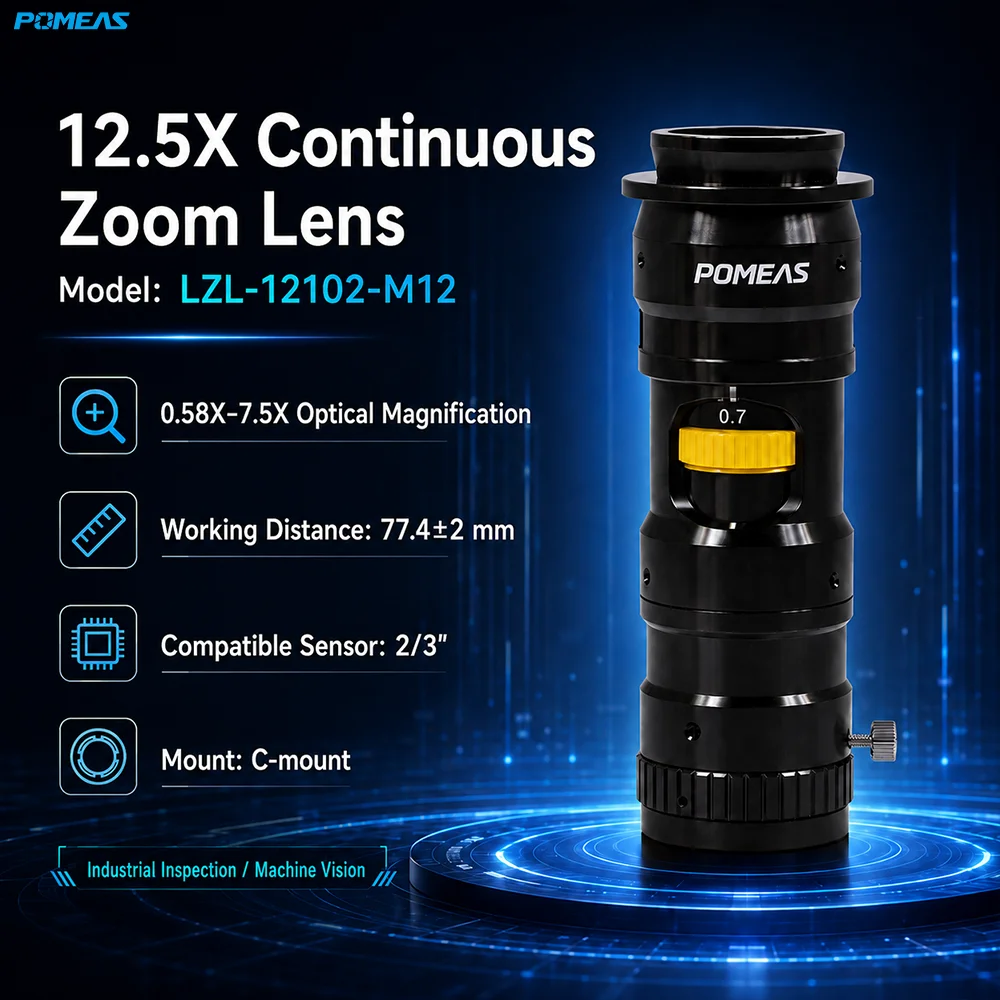

The LZL-12102-M12 is a 12.5X manual zoom lens designed for machine vision inspection and industrial imaging systems. It provides a 0.58X–7.5X optical magnification range, allowing users to switch between a wider field of view and detailed close-up inspection without replacing the lens.

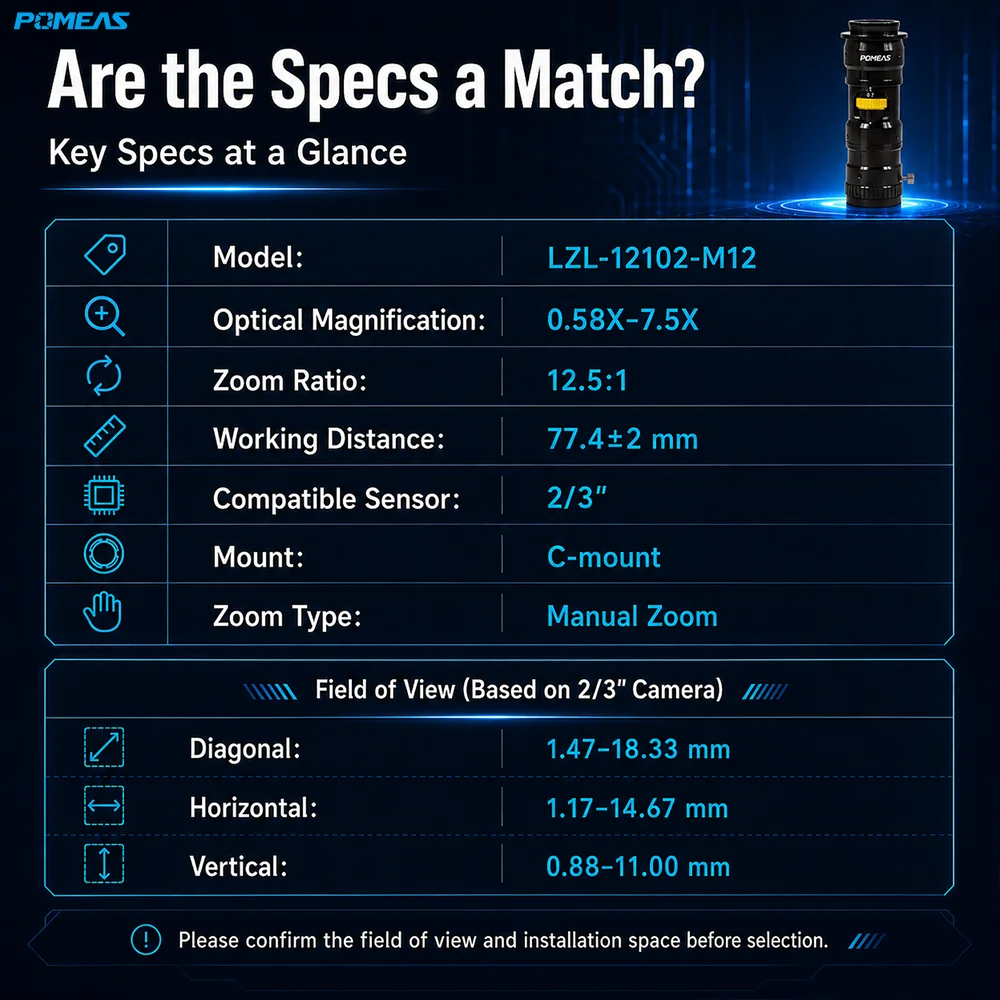

With a 77.4±2mm working distance, C-mount interface and support for up to 2/3" sensors, this lens is suitable for compact vision systems used in semiconductor, automation and electronic inspection applications.

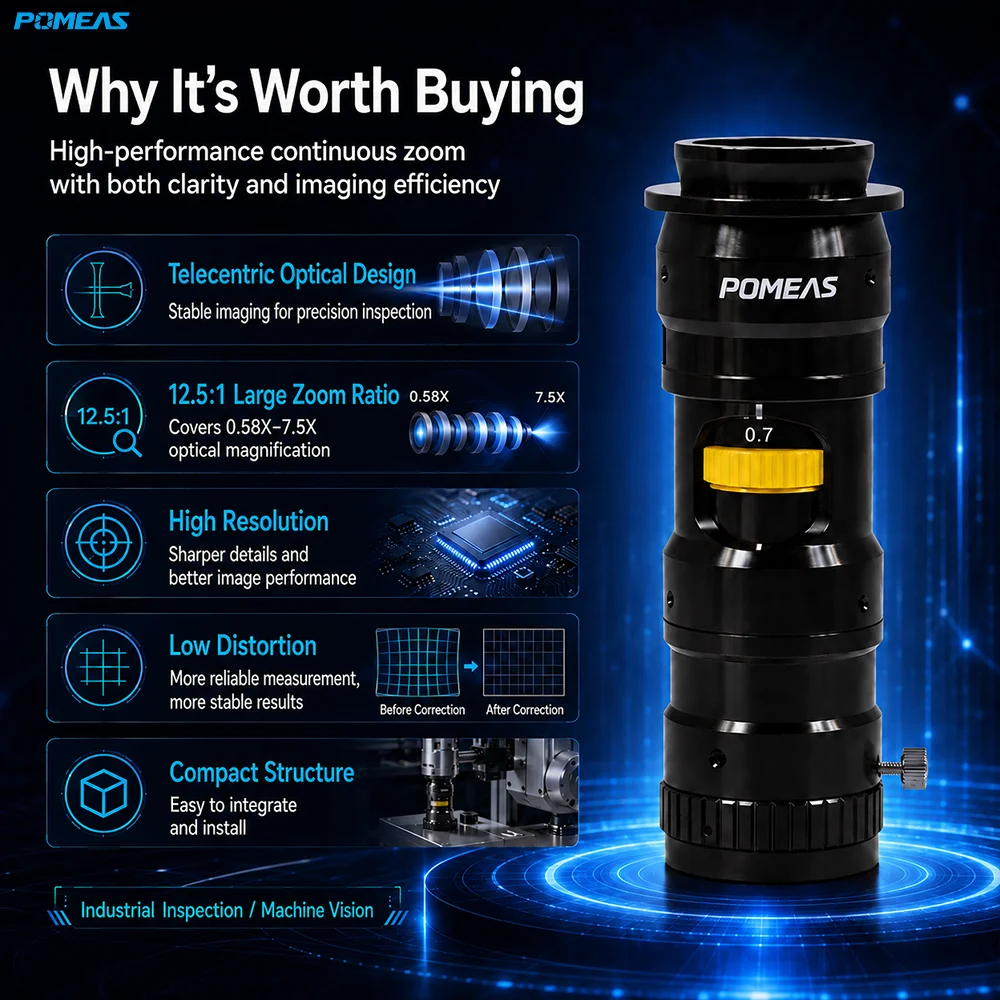

Key Features

0.58X–7.5X Magnification Range
Supports both wide-area observation and high-magnification detail inspection.

12.5X Zoom Ratio
Provides flexible magnification adjustment for different object sizes and inspection requirements.

C-Mount Interface
Easy to integrate with common industrial cameras and machine vision systems.

Supports 2/3" Sensors
Designed for cameras up to 2/3" sensor format.

77.4±2mm Working Distance
Suitable for compact inspection stations and automated equipment integration.

Low Distortion Optical Performance
TV distortion ranges from 0.001% to 0.050% across different magnifications, supporting stable image inspection.

7. Applications

Semiconductor Inspection
For chip surface, bonding area and precision component inspection.

Electronic Component Inspection
For observing circuit details, small parts and electronic communication components.

Automation Equipment
For machine vision systems requiring adjustable magnification in limited installation space.

Precision Visual Inspection
For industrial imaging tasks that require different fields of view in one optical setup.

8. FAQ

Q1: What is the magnification range of LZL-12102-M12?
A: The magnification range is 0.58X to 7.5X.

Q2: What is the zoom ratio of this lens?
A: It is a 12.5X zoom lens.

Q3: What camera sensor size does it support?
A: It supports up to 2/3" sensor size.

Q4: What is the working distance?
A: The working distance is 77.4±2mm.

Q5: Is this lens manual or motorized?
A: This model is a manual zoom lens with C-mount interface.
