4K Industrial Zoom Lens - 1" C-Mount Machine Vision Lens

Product Description

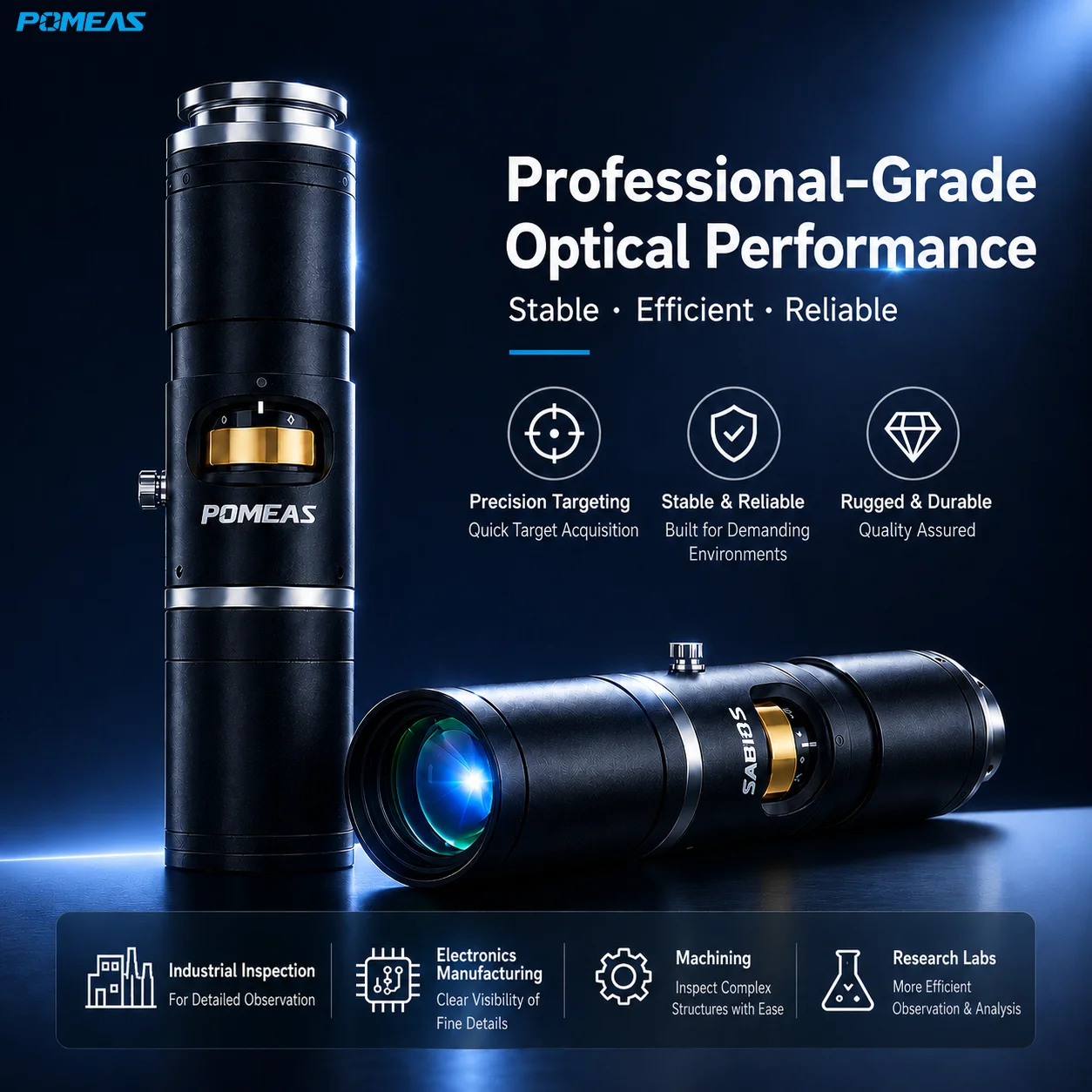

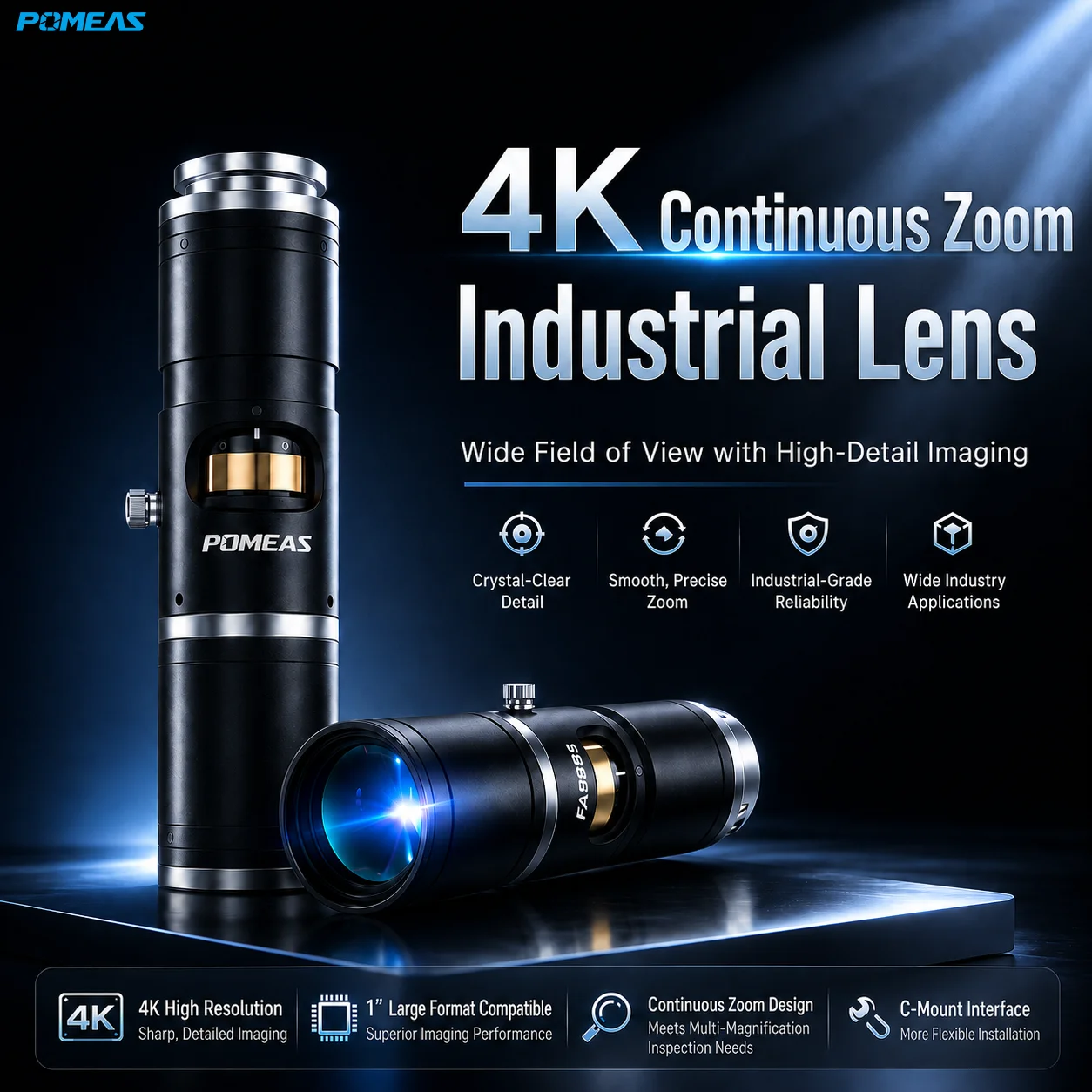

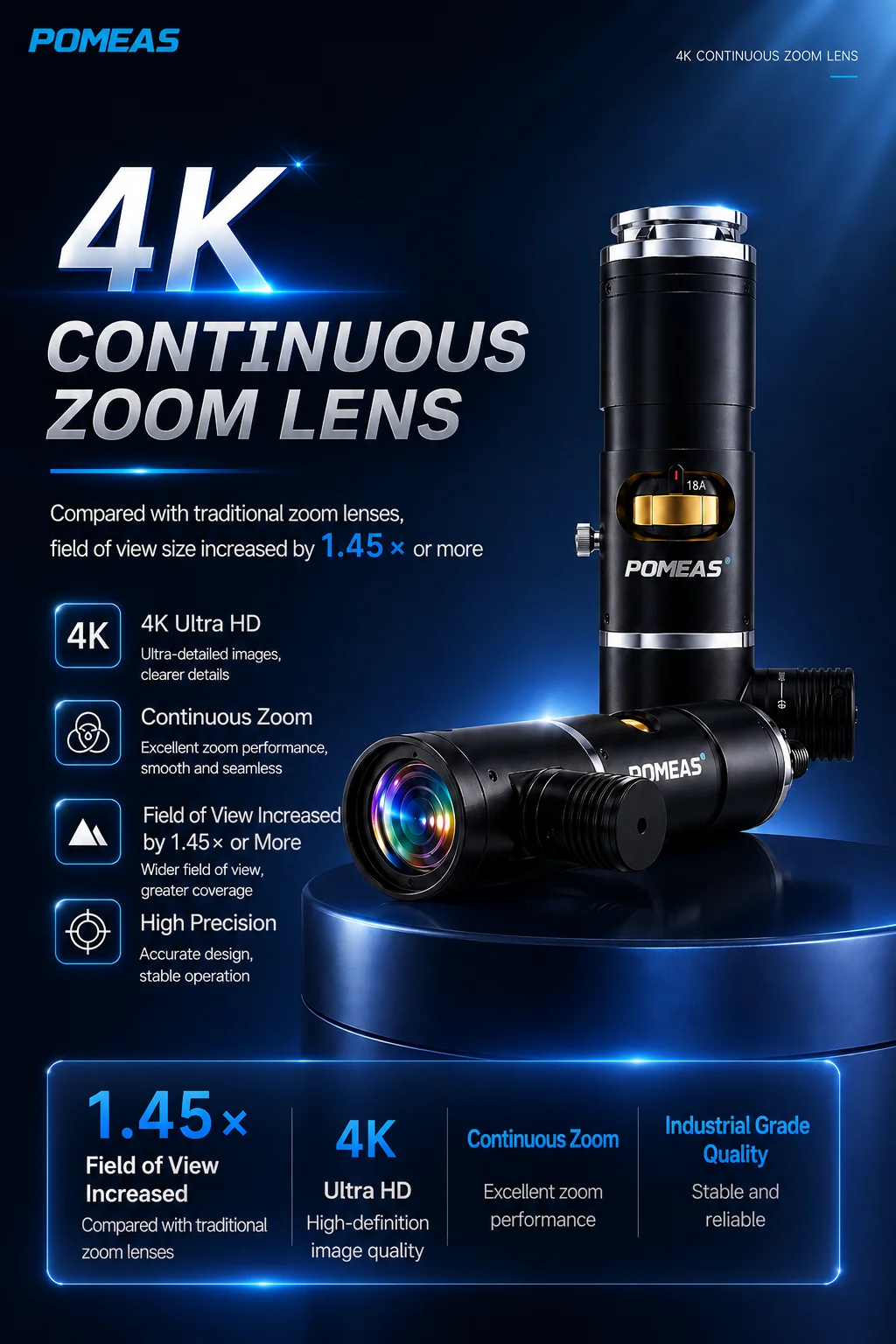

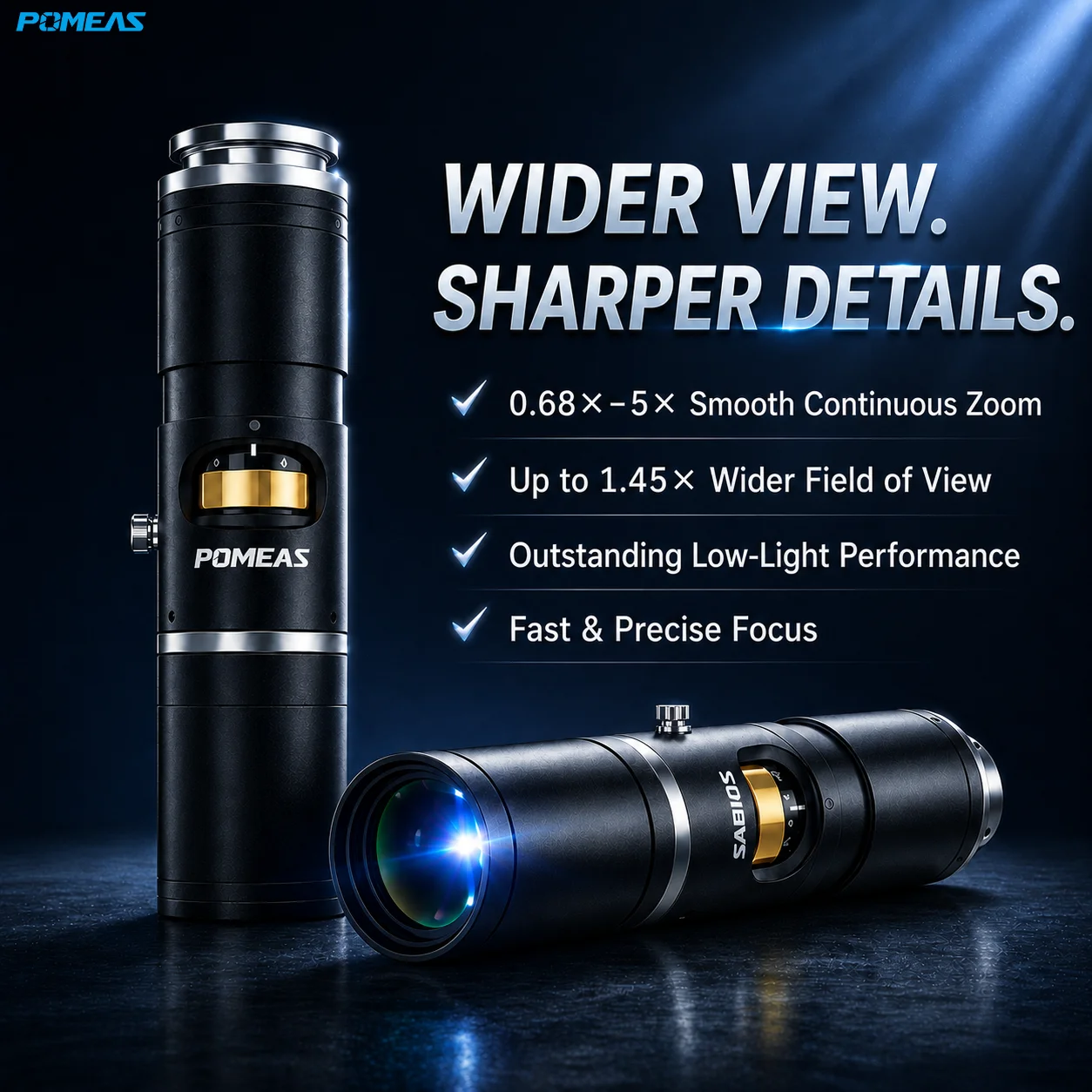

This premium 4K industrial zoom lens is engineered to meet the stringent demands of high-precision machine vision, automated optical inspection (AOI), and industrial metrology. Fully optimized for large-format industrial cameras up to a 1 inch sensor, it delivers exceptional edge-to-edge contrast and ultra-high resolving power across the entire 0.68x to 5.0x continuous zoom range.

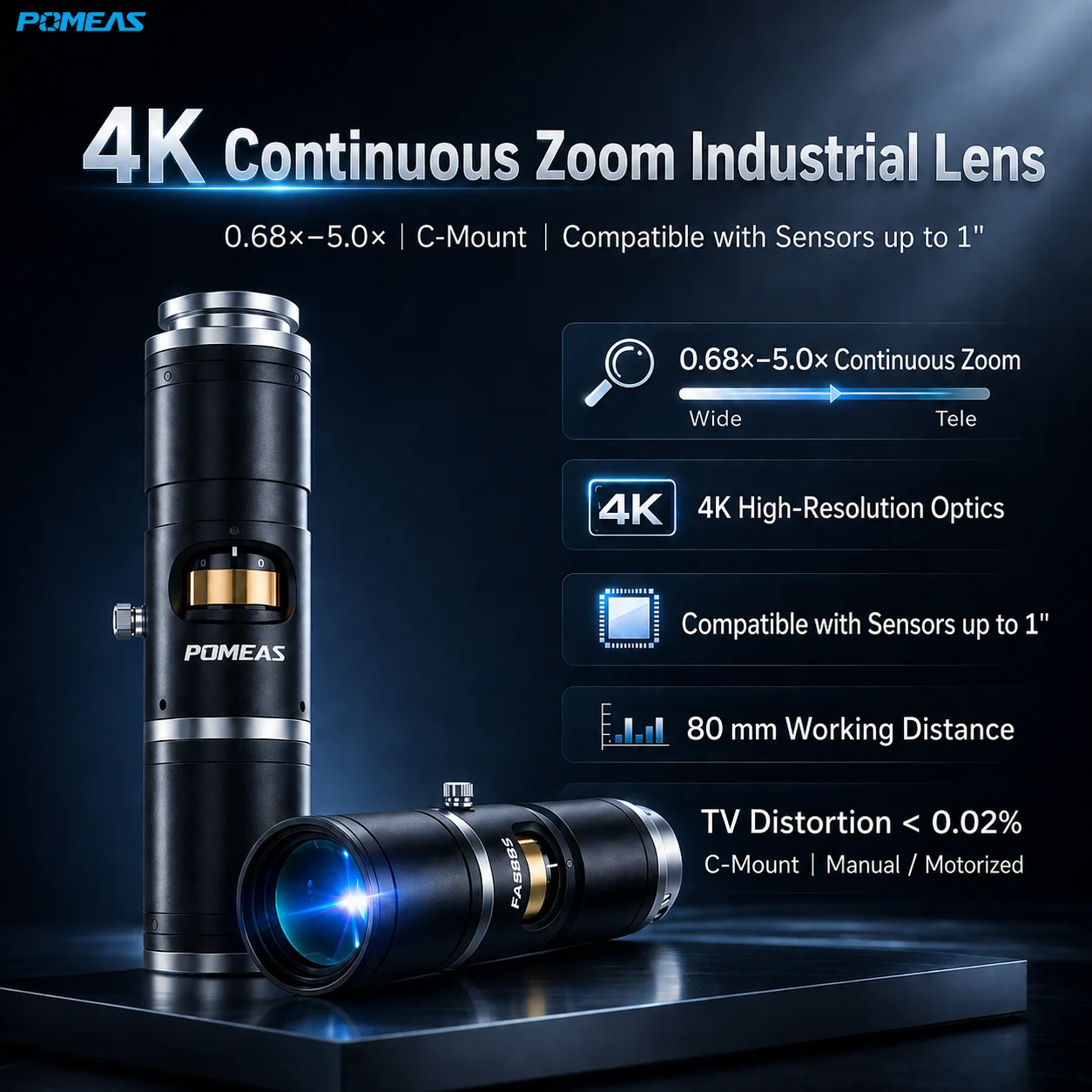

Key Features & Technical Advantages

• 4K High-Resolution Optics: Designed to maximize the performance of high-megapixel sensors, providing crystal-clear imaging from wide to telephoto fields of view.
• Standard C-Mount Interface: This universal c mount zoom lens ensures seamless mechanical and optical integration with leading global industrial camera brands.
• Virtually Zero Optical Distortion: Features an ultra-low TV distortion of less than 0.02%, eliminating geometric errors for critical 2D/3D dimensional measurements.
• Optimized 80mm Working Distance: The fixed 80mm working distance provides the perfect balance between compact system integration and sufficient clearance for coaxial or ring illumination.

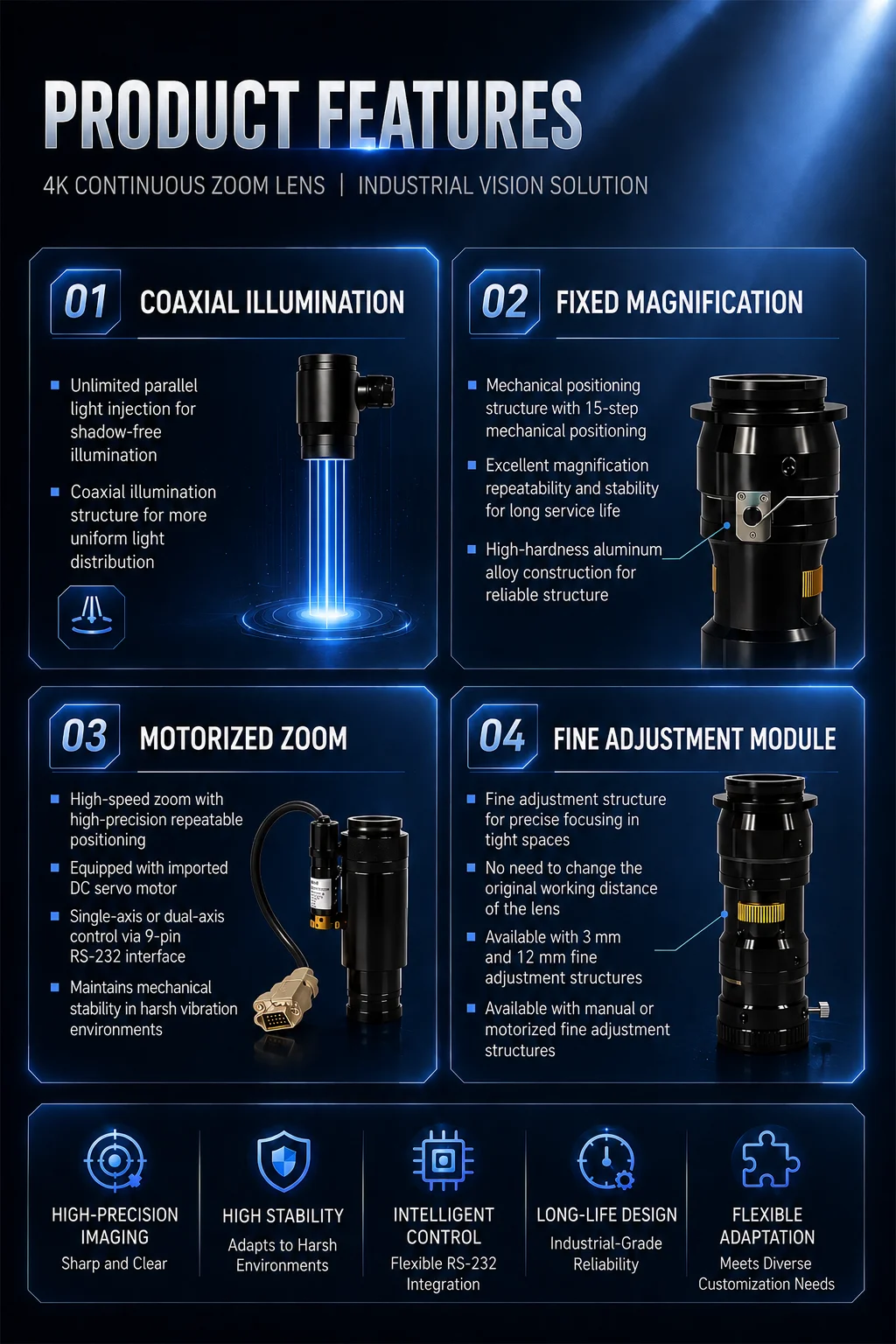

• Manual or Motorized Configurations: Available in both manual operation and motorized zoom lens options to support fully automated factory setups and software-driven calibration.

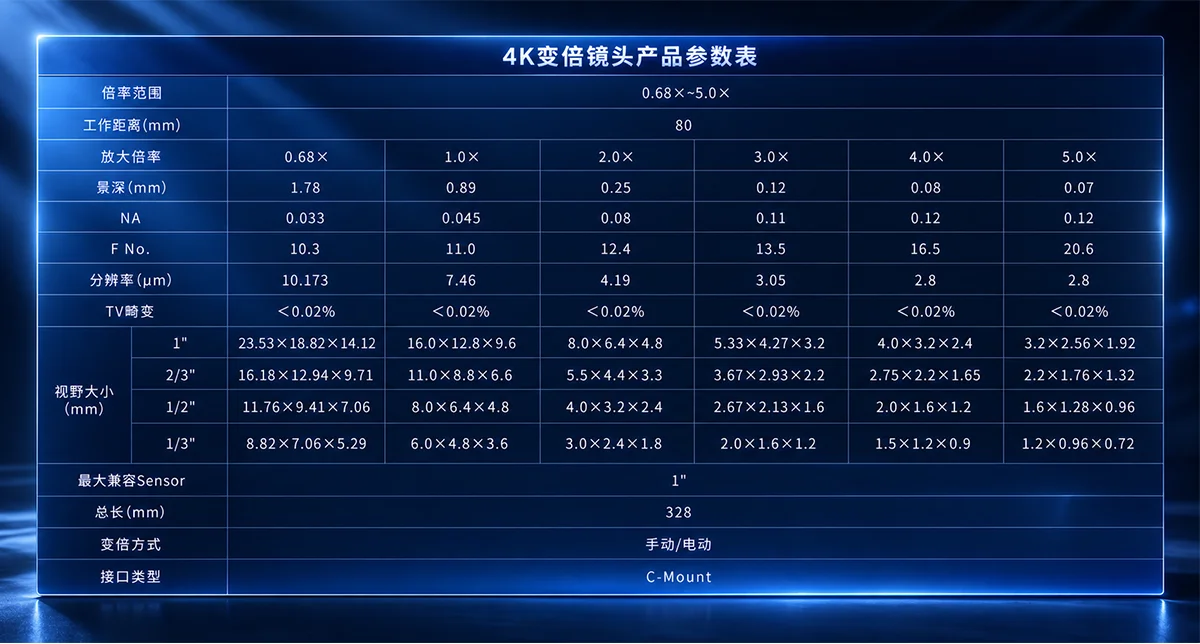

Technical Specifications

Target Applications

This 4K industrial camera lens is highly recommended for systemic integration in industries such as:

• Semiconductor Inspection: Wafer defect tracking, IC packaging alignment, and wire bonding inspection.
• PCB & Electronics AOI: High-resolution surface mount technology (SMT) solder joint and component defect inspection.
• Lithium-ion Battery Metrology: Precision edge detection, pouch cell alignment, and surface defect scanning.
• Automated Dimensional Measurement: High-accuracy 2D/3D non-contact optical gauging systems.

Frequently Asked Questions (FAQ)

Q1: Can this 0.68x–5.0x zoom lens be customized with a motorized driver for automated inspection lines?

A: Yes. As indicated in our product specifications, Pomeas provides both manual and motorized configurations. The motorized zoom lens variant allows factory automation systems to control magnification and focus via software interface control.

Q2: Why is the <0.02% TV distortion specification critical for my machine vision system?

A: For precise optical gauging and defect inspection, lens distortion can warp edge pixels, causing false negatives or measurement drift. A TV distortion level under 0.02% guarantees that the geometric image on your 1-inch sensor is an exact replica of the physical part, maximizing system accuracy without massive software calibration overhead.
