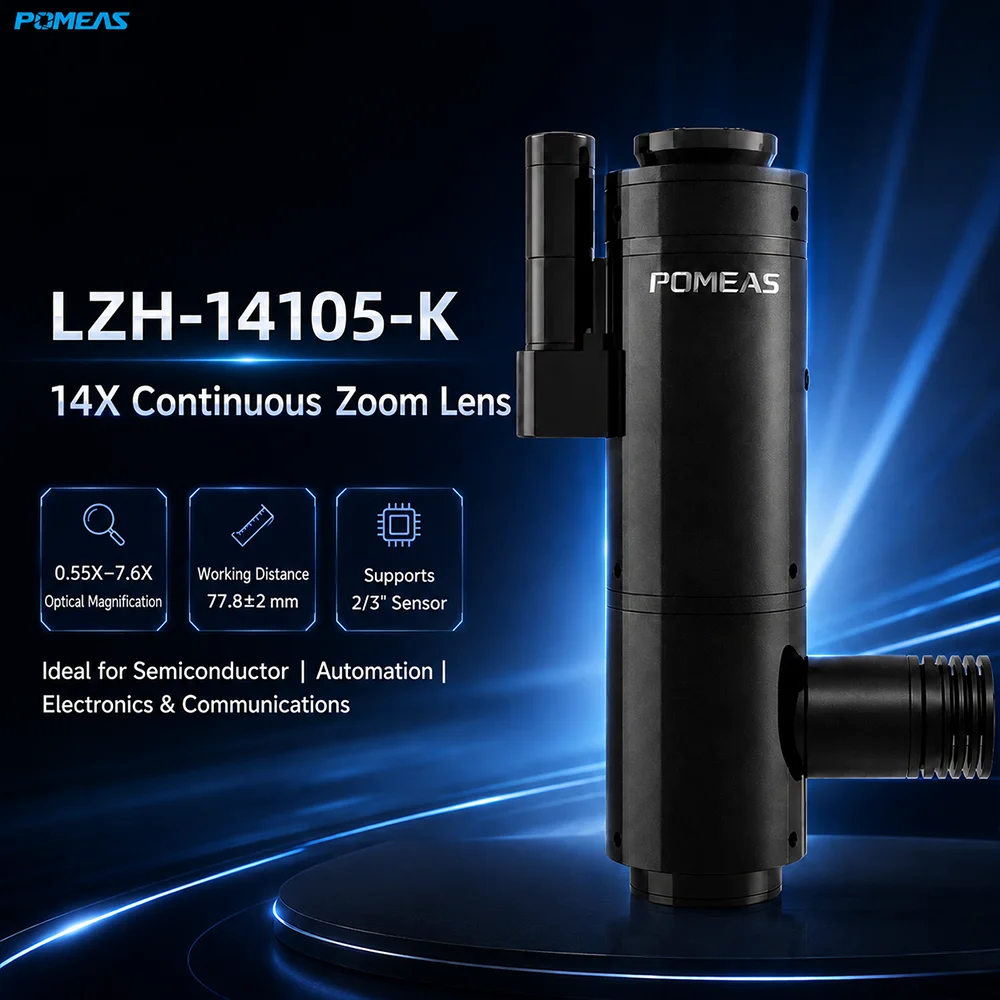

POMEAS 14X C-Mount Continuous Zoom Lens for Machine Vision
PMS-LZH-14105K is a 14X C-Mount continuous zoom lens with 0.55X–7.6X magnification, 77.8±2mm WD, 2/3" support, and coaxial lighting.
SKU:
PMS-LZH-14105K 14X C-Mount Continuous Zoom Lens for Machine Vision
The POMEAS PMS-LZH-14105K is a 14X continuous zoom lens designed for machine vision inspection, precision imaging, electronics inspection and industrial optical inspection applications. With an optical magnification range of 0.55X–7.6X, the lens allows users to switch between a larger field of view at low magnification and detailed feature inspection at high magnification.
The lens supports industrial cameras with sensor formats up to 2/3 inch and uses a standard C-Mount interface. Its 77.8 ± 2 mm working distance provides practical installation space for samples, fixtures and illumination.
Coaxial illumination is available for inspecting reflective and relatively flat surfaces such as PCB pads, semiconductor components, printed patterns and precision metal parts. Manual and motorized zoom configurations are available according to the system integration requirements.
Explore more POMEAS machine vision zoom lenses for different magnification ranges, working distances, control methods and illumination configurations.

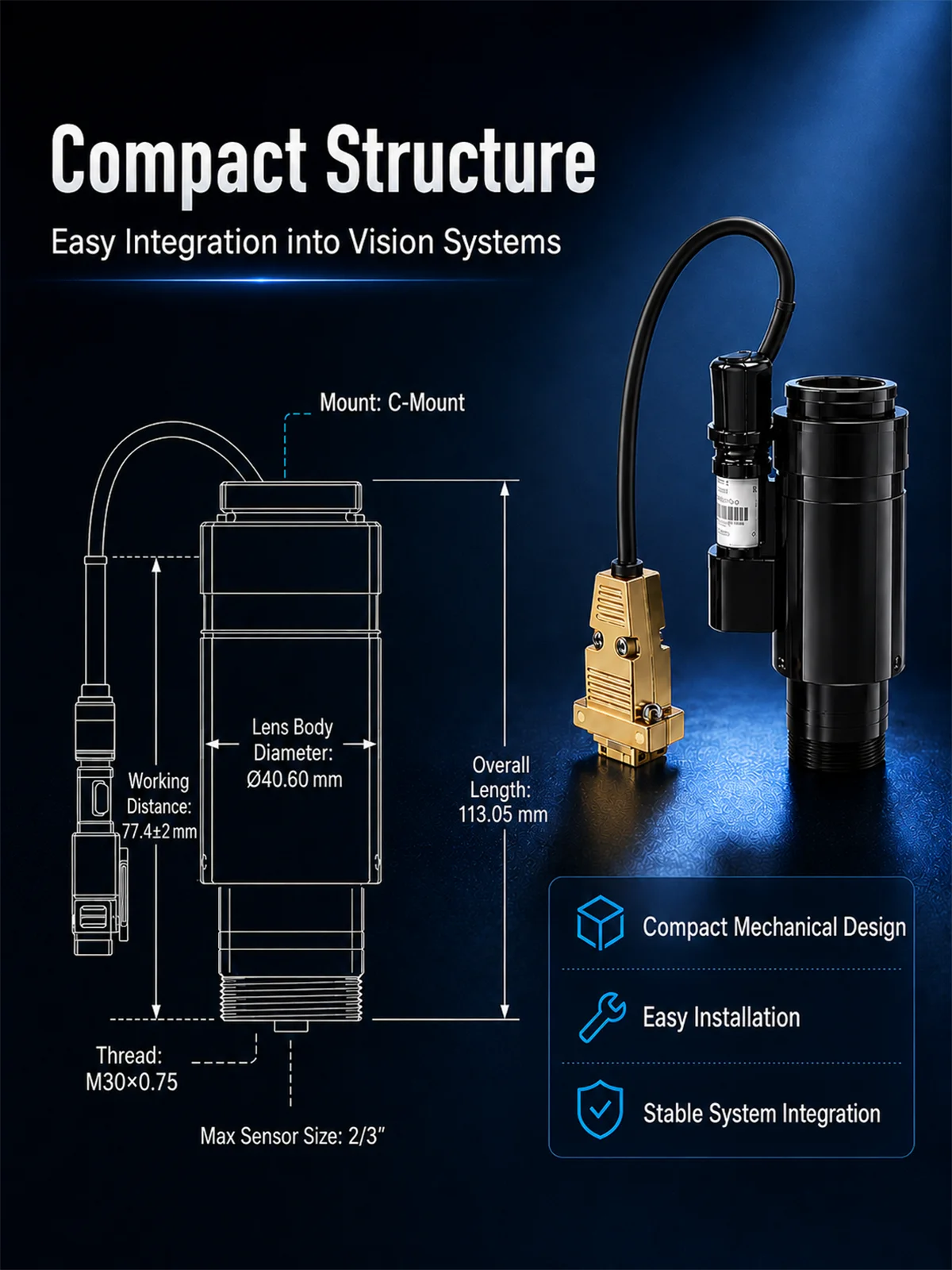

Product Images
Key Features

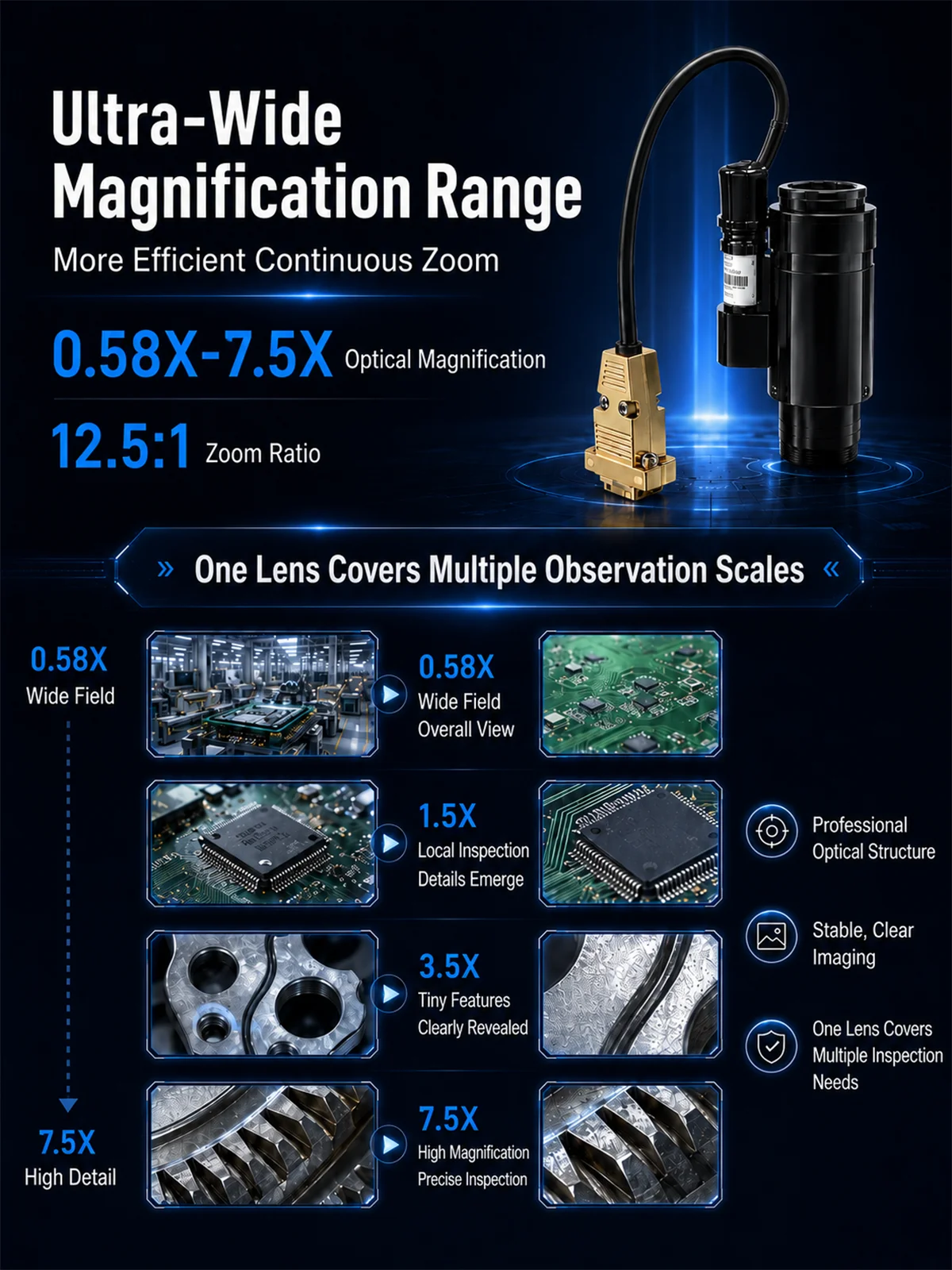

14X Continuous Zoom Range
The PMS-LZH-14105K provides 0.55X–7.6X optical magnification, allowing the imaging system to move between large-area observation and high-magnification detail inspection without frequently changing lenses.
Large Field of View at Low Magnification
At 0.55X magnification, the lens provides a large observation area for object positioning, overview inspection, alignment and target location.
High-Resolution Imaging at High Magnification
At higher magnification, optical resolution reaches approximately 2.80 μm under the specified optical conditions, supporting detailed industrial imaging and small-feature observation.

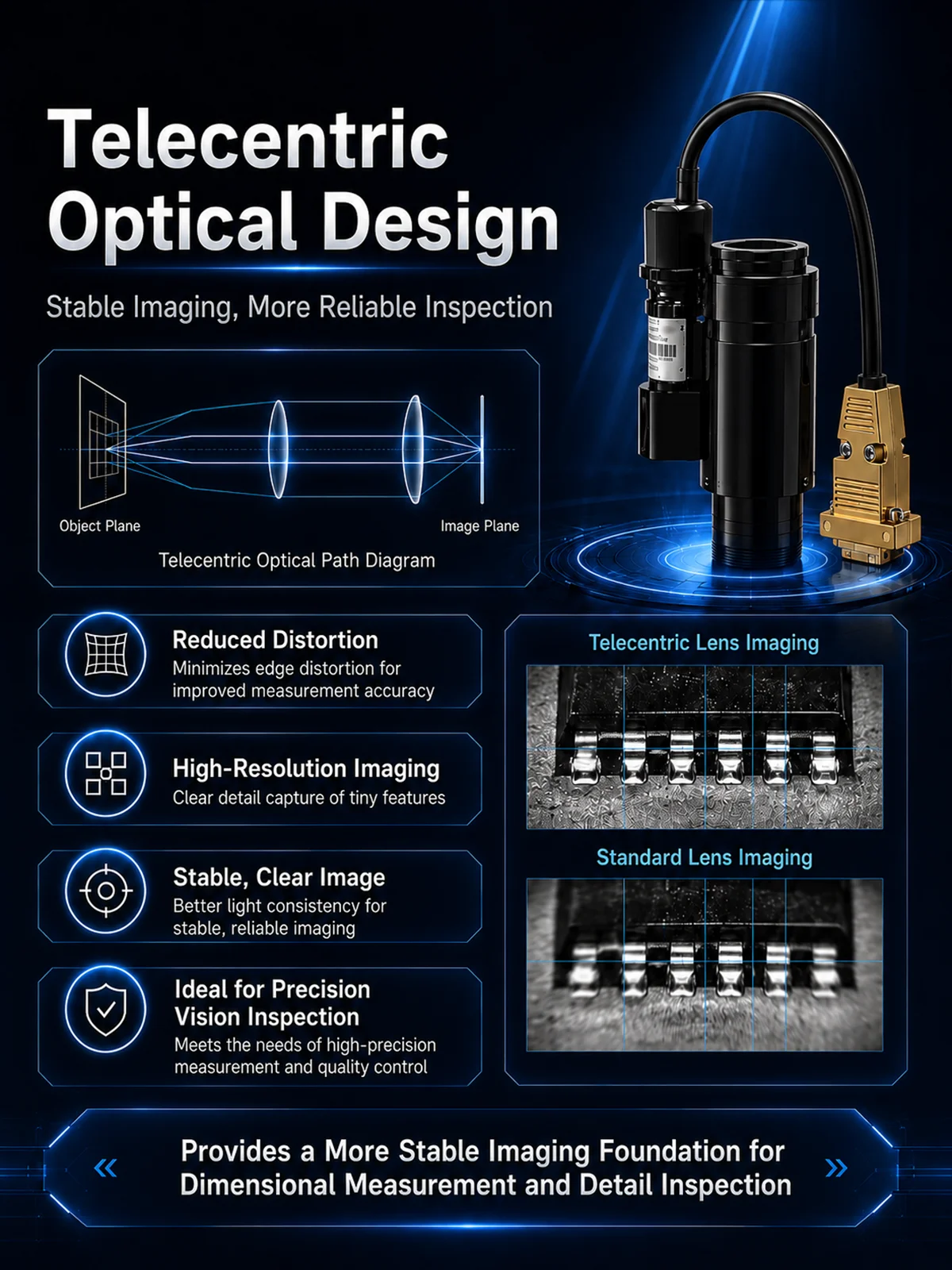

Low TV Distortion
Low TV distortion helps maintain stable object geometry across the image and reduces the amount of software correction required for many industrial inspection applications.
Supports Up to 2/3-Inch Sensors
The optical system supports industrial cameras with sensor formats up to 2/3 inch and can also be used with smaller 1/2-inch and 1/3-inch camera sensors.
Manual or Motorized Configurations
Manual and motorized zoom configurations are available, allowing the optical system to be selected for laboratory observation, manual inspection or automated machine vision equipment.

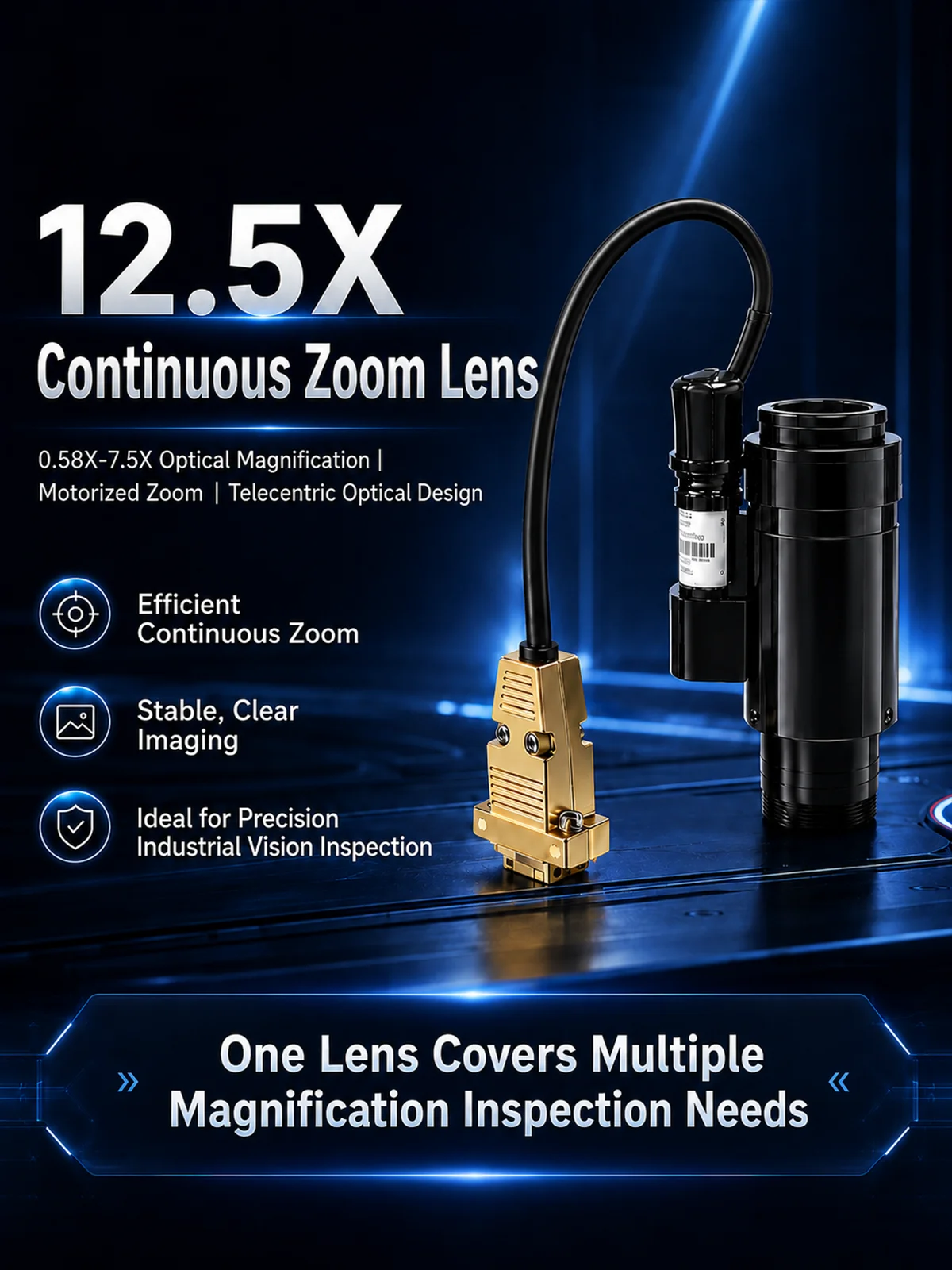

Coaxial Illumination
Coaxial illumination directs light along the imaging axis and is useful for reflective or relatively flat surfaces such as PCB pads, semiconductor components and polished metal parts.
77.8 ± 2 mm Working Distance
The specified working distance provides practical space for illumination, samples and fixtures while supporting a relatively stable mechanical installation.

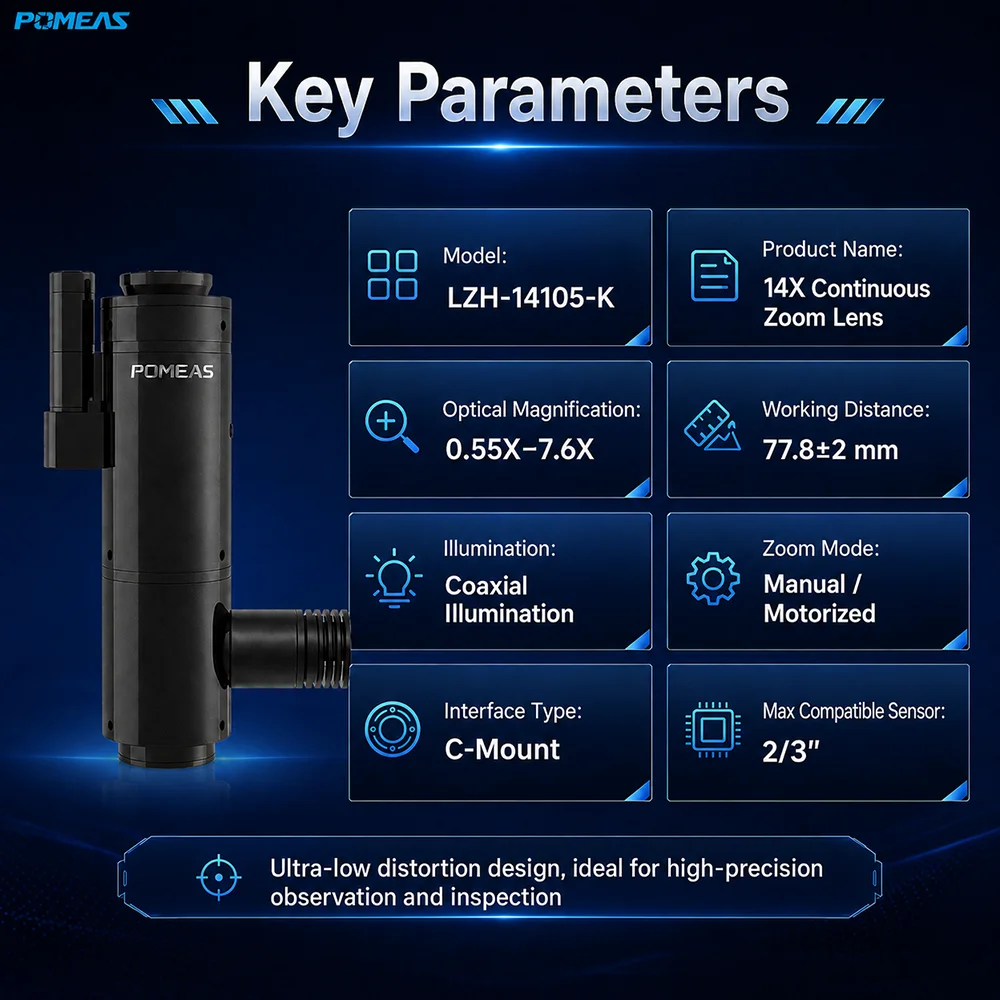

Product Specifications
| Parameter | Specification |
|---|---|
| Model | PMS-LZH-14105K |
| Product Name | 14X Continuous Zoom Lens |
| Product Type | Machine Vision Continuous Zoom Lens |
| Zoom Ratio | 14X |
| Optical Magnification | 0.55X–7.6X |
| Working Distance | 77.8 ± 2 mm |
| Maximum Sensor Size | 2/3 Inch |
| Camera Interface | C-Mount |
| Illumination | Coaxial Illumination |
| Zoom Configuration | Manual / Motorized |
| Resolution Range | 14.59 μm to 2.80 μm |
| TV Distortion | See Magnification Table |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 30–80%, No Condensation |
Magnification, Optical Performance and Field of View
The PMS-LZH-14105K provides different fields of view for 1/3-inch, 1/2-inch and 2/3-inch camera formats. Lower magnification provides a larger field of view, while higher magnification reduces the field of view and provides finer optical detail.
FOV values below are shown as Diagonal × Horizontal × Vertical. Actual field of view should be confirmed using the effective sensor dimensions of the selected industrial camera.
| Magnification | DOF (mm) | N.A. | F-Number | Resolution | TV Distortion | FOV 1/3" | FOV 1/2" | FOV 2/3" |
|---|---|---|---|---|---|---|---|---|
| 0.55X | 3.16 | 0.023 | 11.96 | 14.59 μm | <0.02% | 10.91 × 8.73 × 6.55 mm | 14.55 × 11.64 × 8.73 mm | 20.00 × 16.00 × 12.00 mm |
| 1X | 0.98 | 0.041 | 12.20 | 8.18 μm | <0.02% | 6.00 × 4.80 × 3.60 mm | 8.00 × 6.40 × 4.80 mm | 11.00 × 8.80 × 6.60 mm |
| 2X | 0.26 | 0.078 | 12.82 | 4.30 μm | <0.04% | 3.00 × 2.40 × 1.80 mm | 4.00 × 3.20 × 2.40 mm | 5.50 × 4.40 × 3.30 mm |
| 3X | 0.14 | 0.096 | 15.63 | 3.49 μm | <0.04% | 2.00 × 1.60 × 1.20 mm | 2.67 × 2.13 × 1.60 mm | 3.67 × 2.93 × 2.20 mm |
| 4X | 0.09 | 0.110 | 18.18 | 3.05 μm | <0.04% | 1.50 × 1.20 × 0.90 mm | 2.00 × 1.60 × 1.20 mm | 2.75 × 2.20 × 1.65 mm |
| 5X | 0.07 | 0.120 | 20.83 | 2.80 μm | <0.02% | 1.20 × 0.96 × 0.72 mm | 1.60 × 1.28 × 0.96 mm | 2.20 × 1.76 × 1.32 mm |
| 6X | 0.06 | 0.120 | 25.00 | 2.80 μm | <0.02% | 1.00 × 0.80 × 0.60 mm | 1.33 × 1.07 × 0.80 mm | 1.83 × 1.47 × 1.10 mm |
| 7X | 0.05 | 0.120 | 29.17 | 2.80 μm | <0.02% | 0.86 × 0.69 × 0.51 mm | 1.14 × 0.91 × 0.69 mm | 1.57 × 1.26 × 0.94 mm |
| 7.6X | 0.04 | 0.120 | 31.67 | 2.80 μm | <0.02% | 0.79 × 0.63 × 0.47 mm | 1.05 × 0.84 × 0.63 mm | 1.45 × 1.16 × 0.87 mm |
Selection Note: Depth-of-field values are theoretically calculated reference values. For accurate lens selection, please provide your camera sensor size, pixel size, object dimensions, required field of view, working distance, smallest inspection feature and required inspection accuracy.
Coaxial Illumination for Reflective Surfaces
Coaxial illumination directs light along or close to the imaging axis, making it particularly useful for relatively flat and reflective inspection targets.
Typical targets include PCB pads, semiconductor packages, printed markings, polished metal surfaces, connectors and precision electronic components. The final lighting configuration should always be selected according to the material, surface reflectivity and defect type.
Manual and Motorized Zoom Configurations
The 14X zoom lens platform can be configured for manual or motorized magnification adjustment depending on the inspection system.
Manual adjustment is suitable for laboratory imaging, engineering evaluation and inspection stations where magnification is changed occasionally. Motorized configurations are more suitable for automated equipment, remote optical adjustment and machine vision systems that need to switch between different fields of view during the inspection process.
For motorized configurations, the controller, cable, electrical interface and communication requirements should be confirmed before ordering.

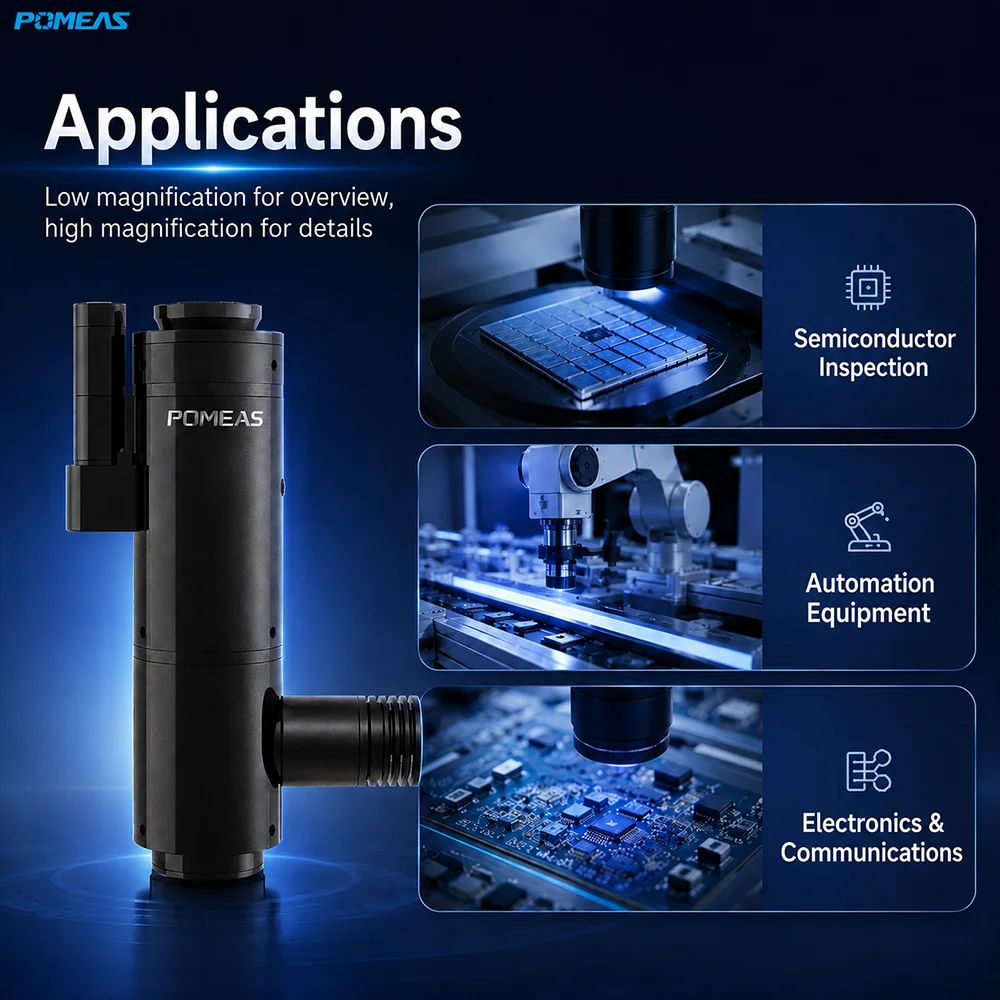

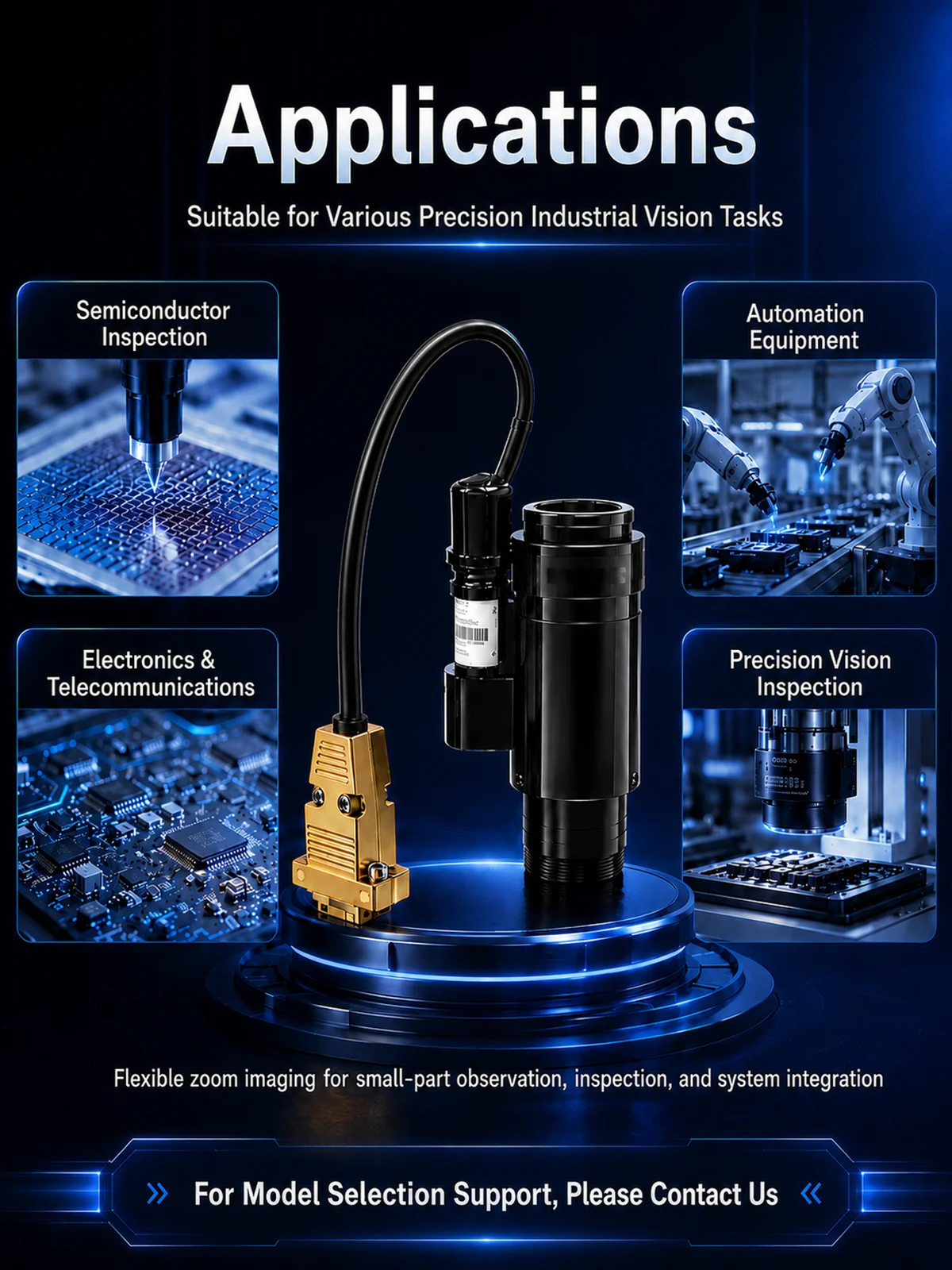

Typical Applications
The PMS-LZH-14105K is suitable for industrial imaging applications that require a wide magnification range, high optical resolution, low distortion and flexible field-of-view adjustment.
Machine Vision Inspection
The 14X continuous zoom range allows a machine vision system to combine overview observation with high-magnification detail inspection.
Electronics and PCB Inspection
Adjustable optical magnification and coaxial illumination make the lens useful for PCB pads, printed markings, connectors and electronic component inspection.
Semiconductor Inspection
The lens can be used to observe semiconductor packages, surface structures and small features where adjustable magnification is required.
Reflective Surface Inspection
Coaxial illumination helps improve imaging consistency on relatively flat reflective surfaces such as polished metal and electronic components.
Precision Imaging
High-resolution and low-distortion optical performance supports detailed observation, image acquisition and inspection of precision components.
Automated Optical Inspection
Motorized configurations can be integrated into automated systems that require different magnifications or fields of view during different inspection steps.
Camera and System Integration
The PMS-LZH-14105K uses a standard C-Mount interface and supports industrial cameras with sensor formats up to 2/3 inch.
Browse POMEAS industrial machine vision cameras for compatible area-scan camera options.
Camera sensor size, pixel size, resolution, required field of view, working distance and smallest inspection feature should be evaluated together when configuring the complete imaging system.
For electronics and semiconductor applications, read the POMEAS zoom lens selection and application guide for additional information about camera matching, field of view, magnification and illumination.

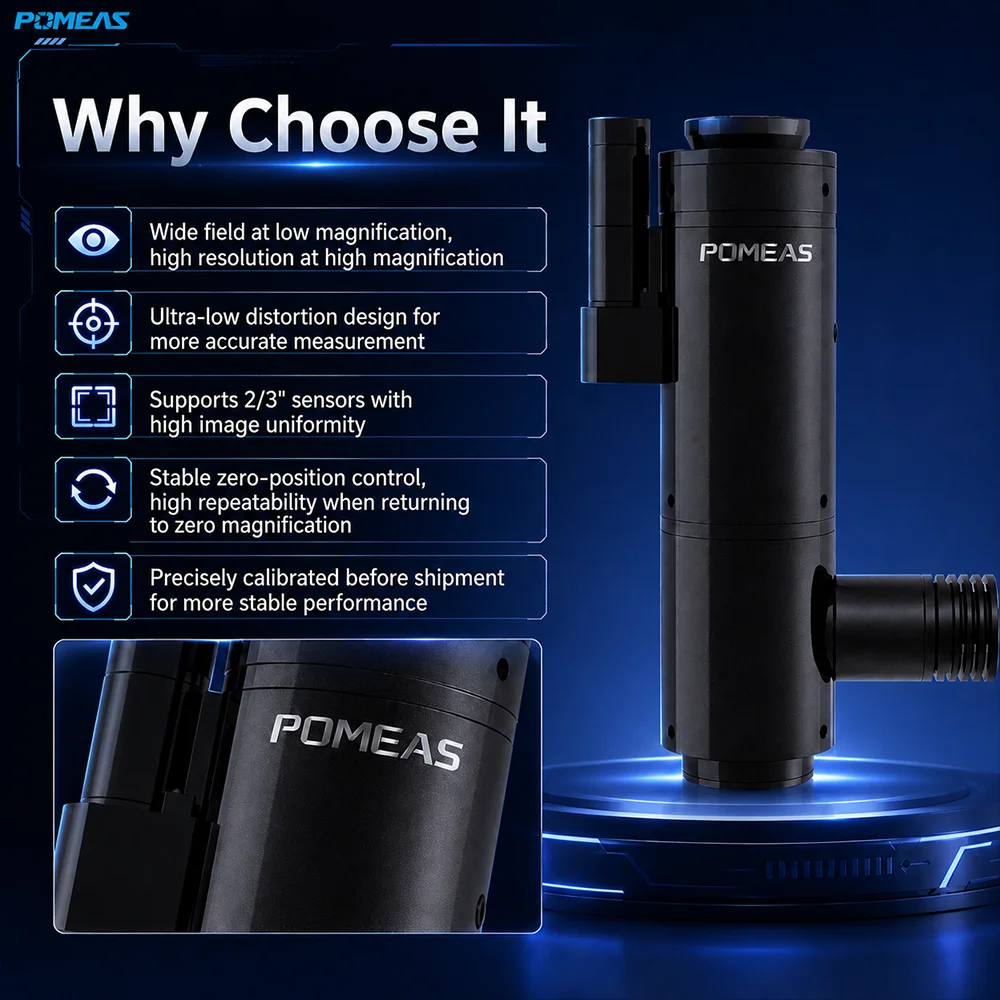

Why Choose the PMS-LZH-14105K?
The PMS-LZH-14105K combines a wide 0.55X–7.6X optical magnification range, 77.8 ± 2 mm working distance, 2/3-inch sensor support, C-Mount integration, coaxial illumination and low-distortion optical performance in one machine vision zoom platform.
For system integrators and equipment manufacturers, the wide zoom range can reduce the need to replace lenses when different fields of view are required within the same inspection system.
POMEAS can evaluate a suitable configuration based on camera sensor size, pixel size, object dimensions, required field of view, working distance, illumination method, smallest inspection feature and inspection accuracy.
Frequently Asked Questions
What is the PMS-LZH-14105K?
The PMS-LZH-14105K is a POMEAS 14X continuous zoom lens designed for machine vision inspection, precision imaging and industrial optical inspection.
What is the optical magnification range?
The optical magnification range is 0.55X–7.6X, providing both large field-of-view observation and high-magnification detail imaging.
What is the working distance?
The specified working distance is 77.8 ± 2 mm.
What camera sensor size does the lens support?
The lens supports industrial camera sensor formats up to 2/3 inch and can also be used with smaller 1/2-inch and 1/3-inch sensors.
What camera interface does the lens use?
The PMS-LZH-14105K uses a standard C-Mount interface for integration with compatible industrial machine vision cameras.
Does the lens support coaxial illumination?
Yes. Coaxial illumination is available for applications involving relatively flat or reflective surfaces such as PCB pads, electronic components and polished metal parts.
Is the lens manual or motorized?
Manual and motorized configurations are available. The exact zoom mechanism, controller and communication configuration should be confirmed when selecting the model.
What is the field of view at 0.55X with a 2/3-inch sensor?
The reference field of view is approximately 20.00 × 16.00 × 12.00 mm in diagonal, horizontal and vertical dimensions.
What is the field of view at 7.6X with a 2/3-inch sensor?
The reference field of view is approximately 1.45 × 1.16 × 0.87 mm.
How should I select the correct magnification?
Lower magnification provides a larger field of view, while higher magnification provides a smaller field of view and finer optical detail. Camera sensor size, object dimensions and the smallest inspection feature should be evaluated together before selecting the required magnification.
Related Optical Solutions
Explore the complete POMEAS machine vision zoom lens series for different zoom ratios, sensor formats, working distances and control configurations.
For applications requiring a smaller 6.5X motorized zoom range, view the LZ-650104 6.5X motorized continuous zoom lens .
For reflective surfaces requiring an integrated coaxial optical path, view the LZ-650105 6.5X motorized coaxial zoom lens .
Browse POMEAS industrial machine vision cameras for complete lens and camera system integration.
Need Help Selecting a 14X Machine Vision Zoom Lens?
Send us your camera sensor size, pixel size, target object dimensions, required field of view, working distance, illumination requirements, smallest inspection feature and required inspection accuracy. POMEAS can help evaluate a suitable 14X zoom lens and camera configuration for your machine vision system.
