6.5X Zoom Lens with 3mm Fine Focus | 0.7X–4.5X, 2/3", WD 87mm

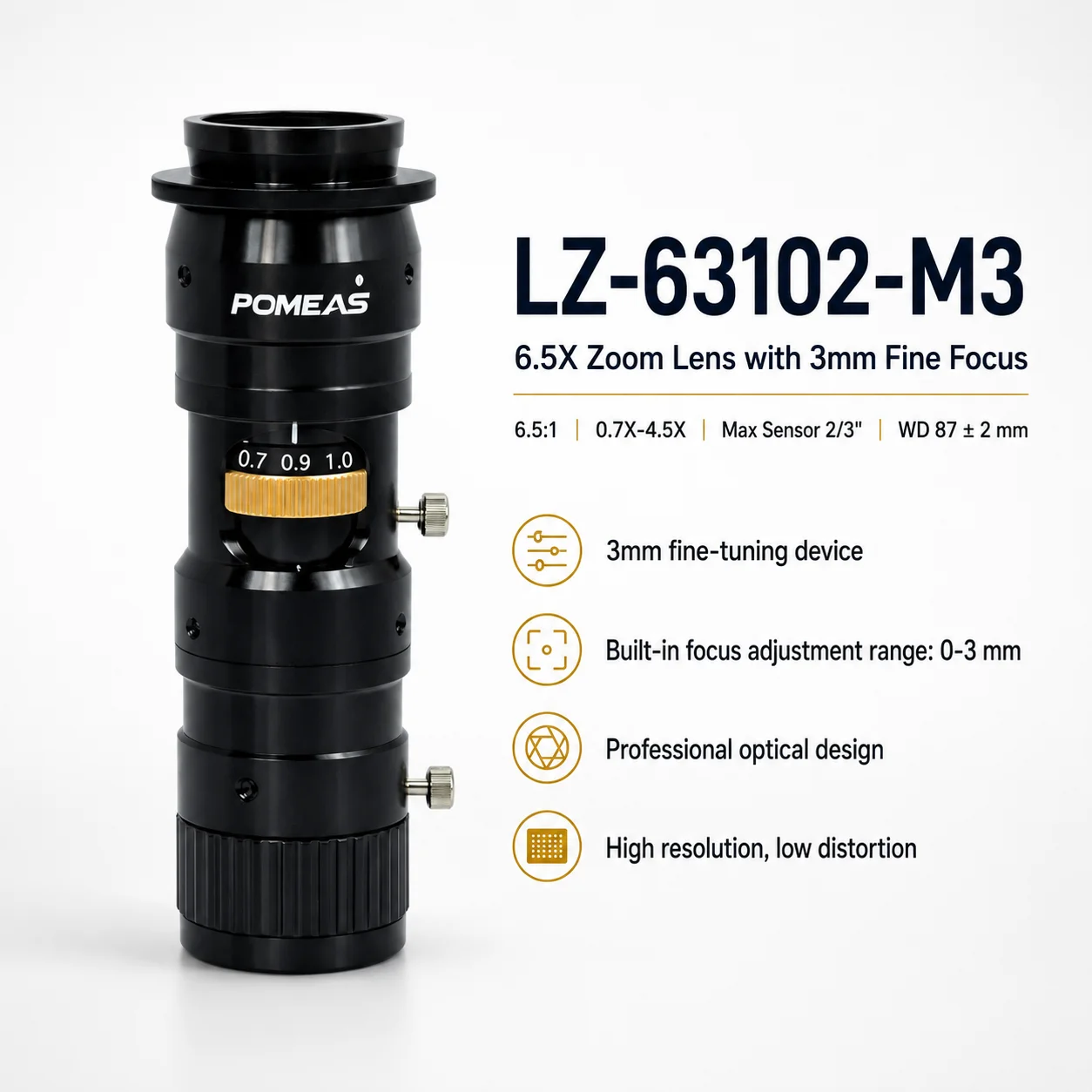

The LZ-63102-M3 is a 6.5X industrial zoom lens designed for machine vision inspection, precision imaging and optical measurement applications. With a 6.5:1 zoom ratio and 0.7X–4.5X magnification range, it gives engineers the flexibility to switch from a wider field of view to higher magnification without changing the lens setup.

This model supports camera sensors up to 2/3" and offers a working distance of 87±2mm, making it suitable for compact inspection systems where both image clarity and installation space matter. Its built-in 3mm fine focus adjustment helps operators achieve clear focus on workpieces with small height differences, while keeping the original working distance stable.

Key Features

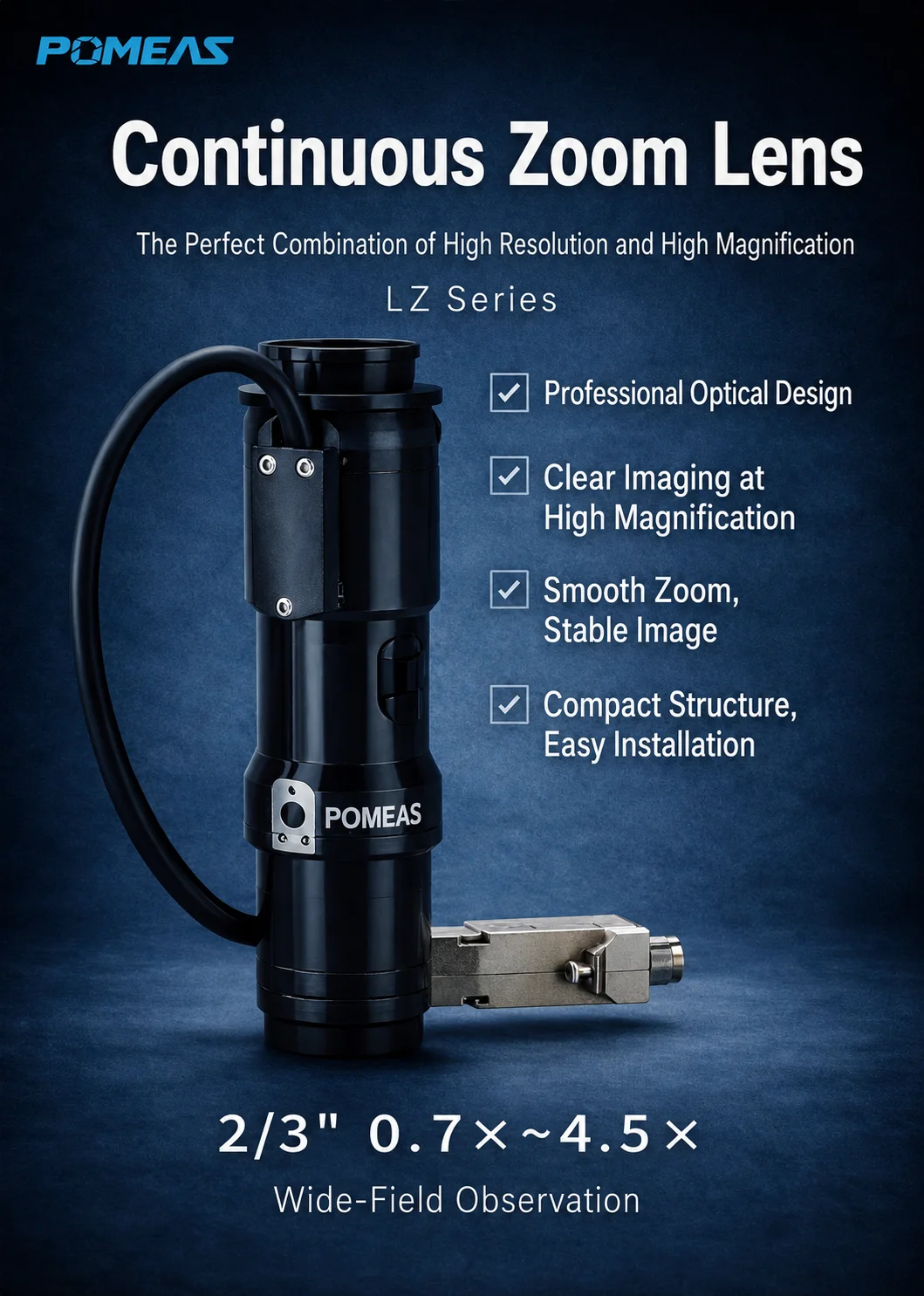

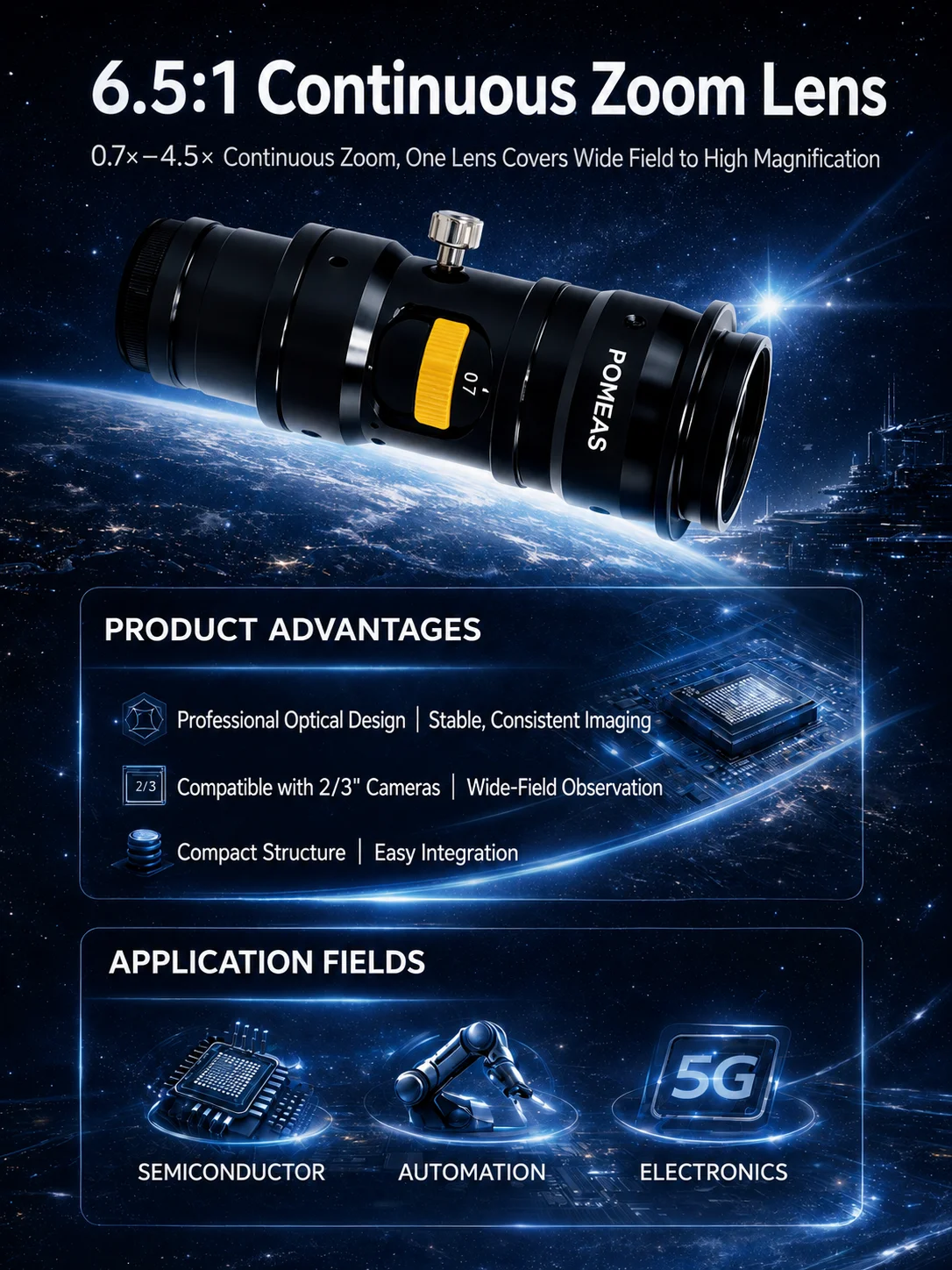

6.5:1 Continuous Zoom Range

The LZ-63102-M3 covers 0.7X to 4.5X magnification, giving users a practical zoom range for different inspection tasks. It is suitable for applications that require both wide-area observation and detailed image capture.

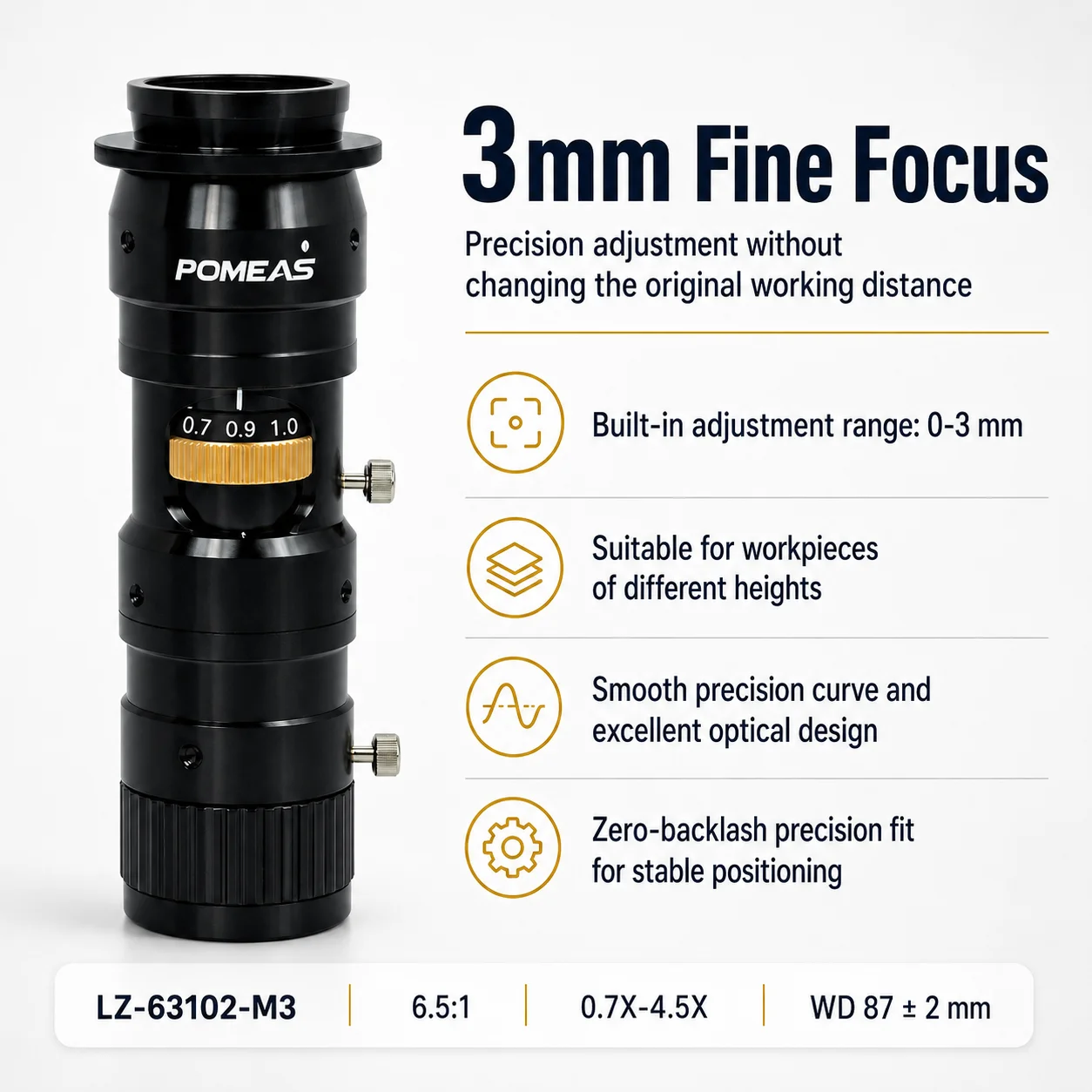

Built-in 3mm Fine Focus Adjustment

The integrated fine-tuning mechanism provides a 0–3mm focus adjustment range. This is especially useful when inspecting parts with slight height variations or when the lens is installed in a limited working space.

Designed for 2/3" Industrial Cameras

With support for sensors up to 2/3", this lens helps achieve a larger field of view while maintaining stable image performance for machine vision systems.

87±2mm Working Distance

The 87±2mm working distance provides a practical balance between installation flexibility and optical performance, making the lens easy to integrate into automated inspection equipment.

High Resolution and Low Distortion

The optical design is built for clear imaging, stable magnification and low distortion, helping improve measurement consistency and defect detection accuracy.

Compact and Easy to Integrate

The compact mechanical structure allows easier installation in machine vision modules, inspection stations, automation equipment and optical testing platforms.

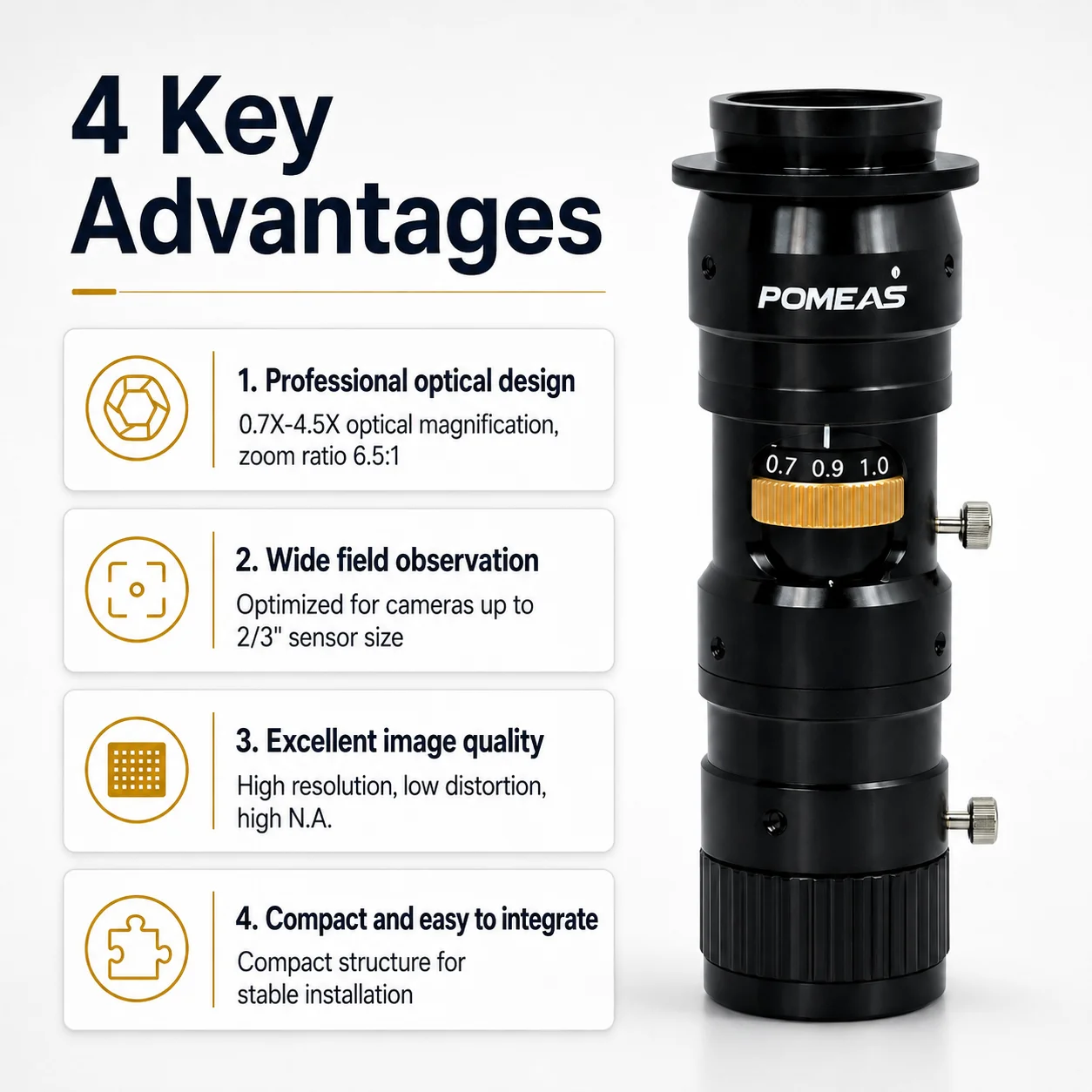

Product Advantages

1. Professional optical design with 0.7X–4.5X optical magnification and 6.5:1 zoom ratio.
2. Supports up to 2/3" camera sensors for wide-field observation.
3. Built-in 3mm fine focus structure for precise adjustment without changing the original working distance.
4. Smooth precision curve and stable optical performance for reliable imaging.
5. Zero-backlash precision fit for stable positioning at different adjustment points.
6. Compact structure, easy integration and convenient installation.

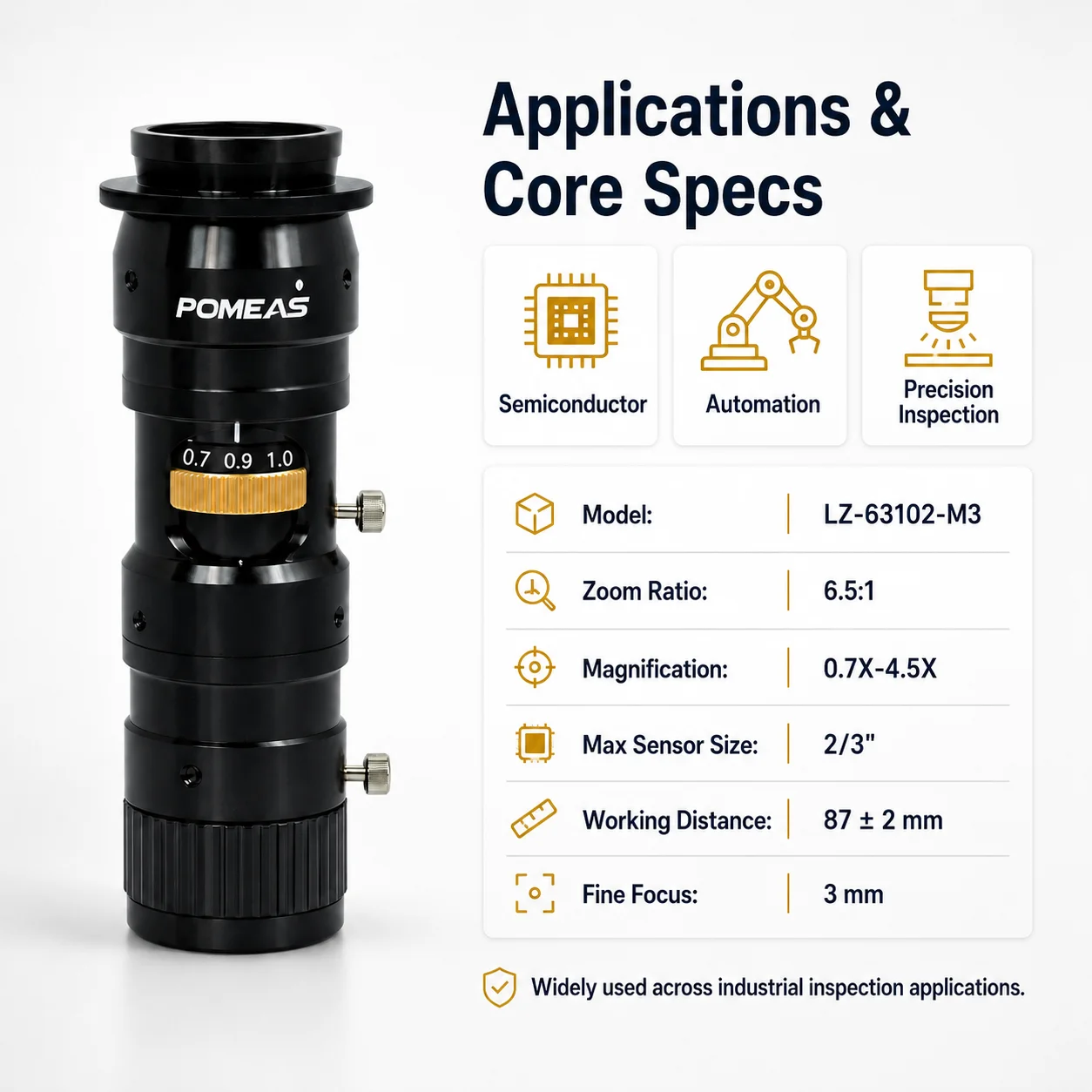

Typical Applications

The LZ-63102-M3 is suitable for industrial imaging tasks that require flexible magnification, fine focus control and stable optical performance.

Common applications include:

• Semiconductor inspection
• PCB and electronic component inspection
• Precision parts measurement
• Automated visual inspection
• Machine vision positioning
• Surface defect detection
• Laboratory imaging and optical testing
• High-precision industrial camera systems

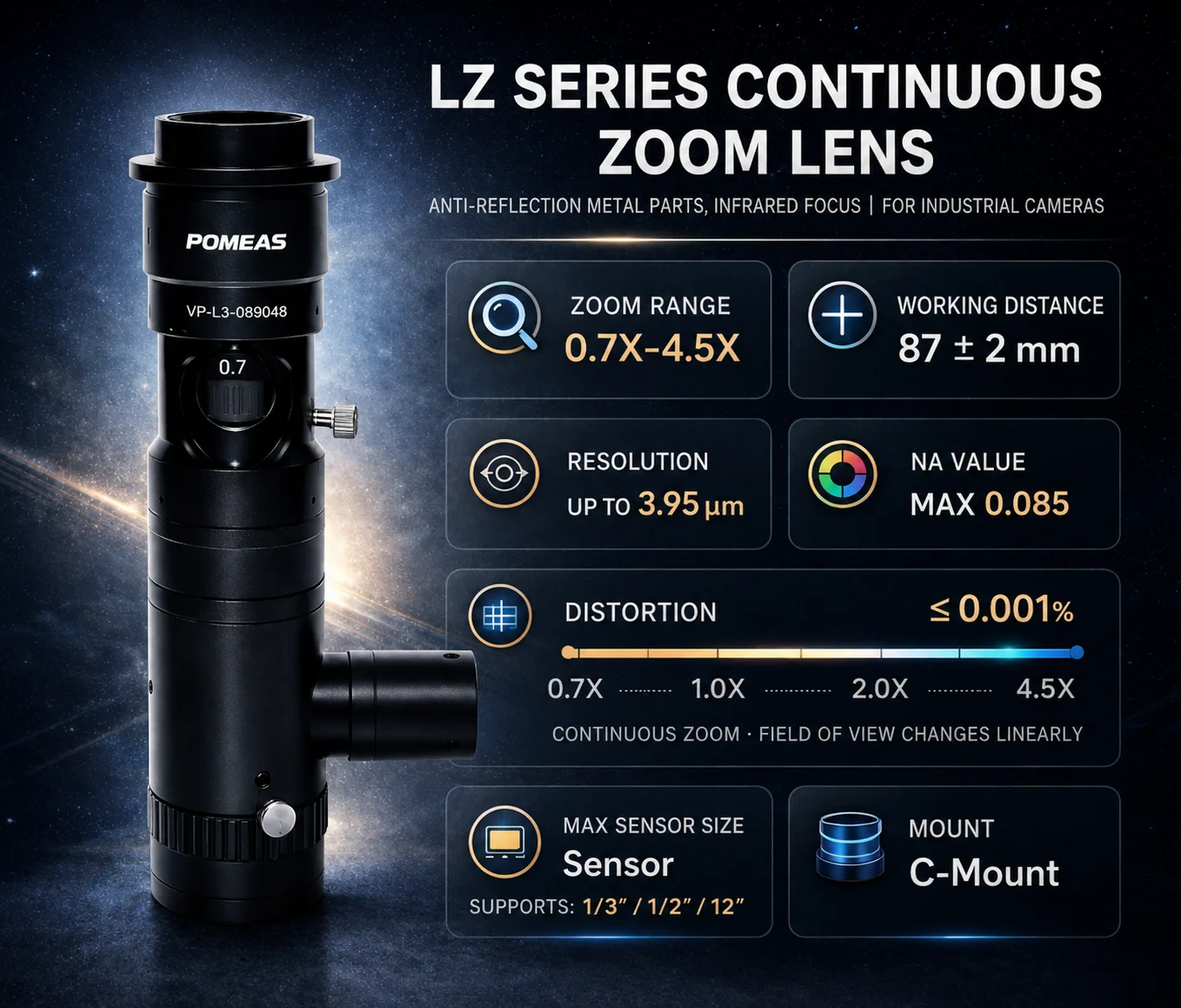

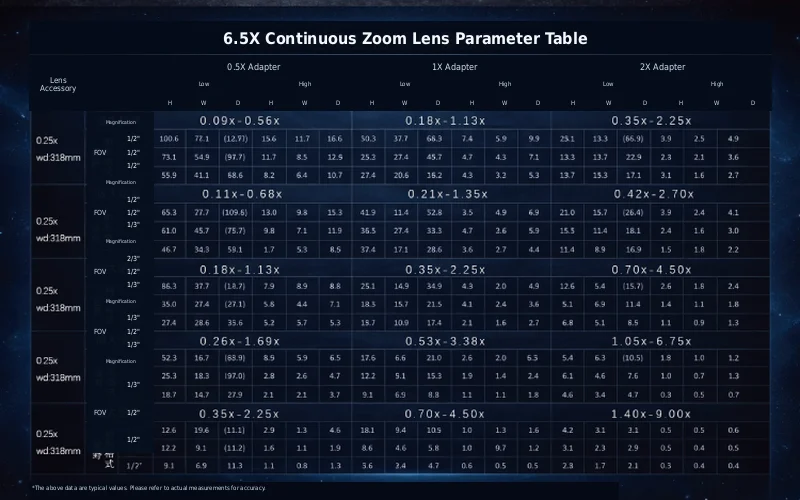

Technical Specifications

Model: LZ-63102-M3
Zoom Ratio: 6.5:1
Magnification Range: 0.7X–4.5X
Fine Focus Range: 0–3mm
Max Sensor Size: 2/3"
Working Distance: 87±2mm
Lens Type: Industrial zoom lens with fine focus
Application: Machine vision, automation inspection, precision imaging

Why Choose This Lens?

For machine vision projects, lens selection directly affects image clarity, inspection accuracy and system stability. The LZ-63102-M3 is a practical choice when your system needs flexible magnification, stable working distance and fine focus adjustment in a compact structure.

Compared with a standard fixed-magnification lens, this 6.5X zoom lens helps reduce repeated lens changes during testing or production setup. The 3mm fine focus design also makes it easier to handle small workpiece height differences, which is valuable in real inspection environments.

Short Product Summary

The LZ-63102-M3 6.5X zoom lens combines 0.7X–4.5X magnification, 3mm fine focus adjustment, 2/3" sensor support and 87±2mm working distance. It is designed for industrial camera systems that require clear imaging, flexible zoom control and reliable integration in machine vision inspection.
