POMEAS LM-1030 Online Digital Diameter Gauge for Wire Inspection

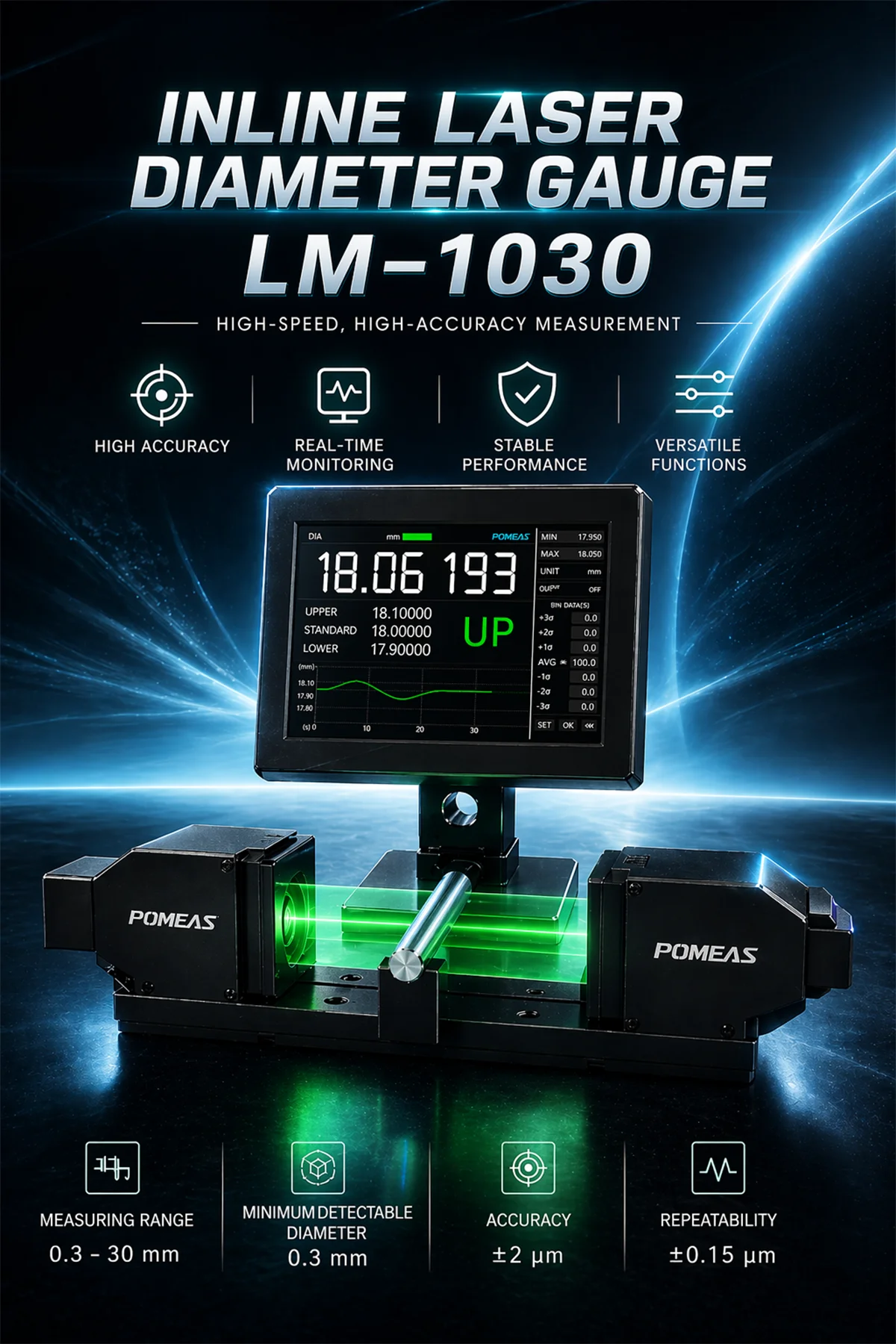

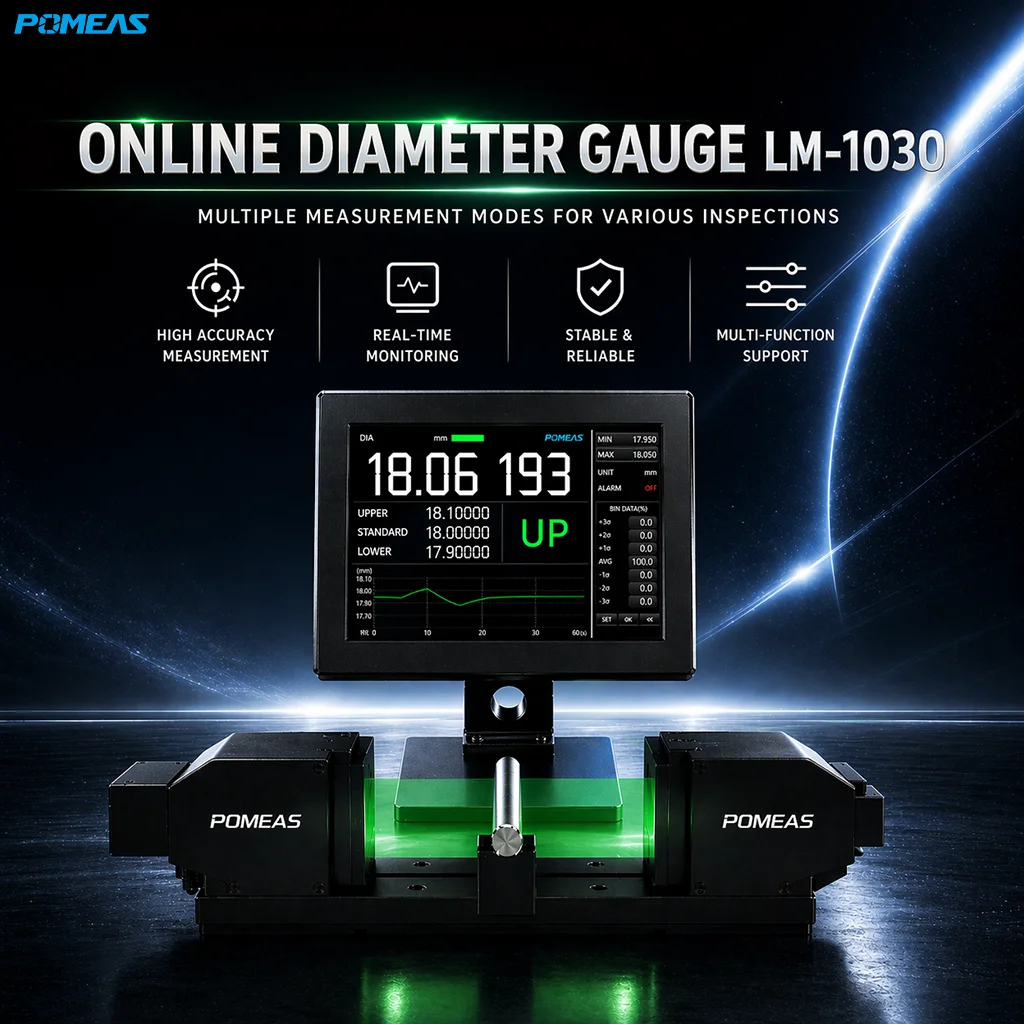

POMEAS LM-1030 Online Digital Diameter Gauge

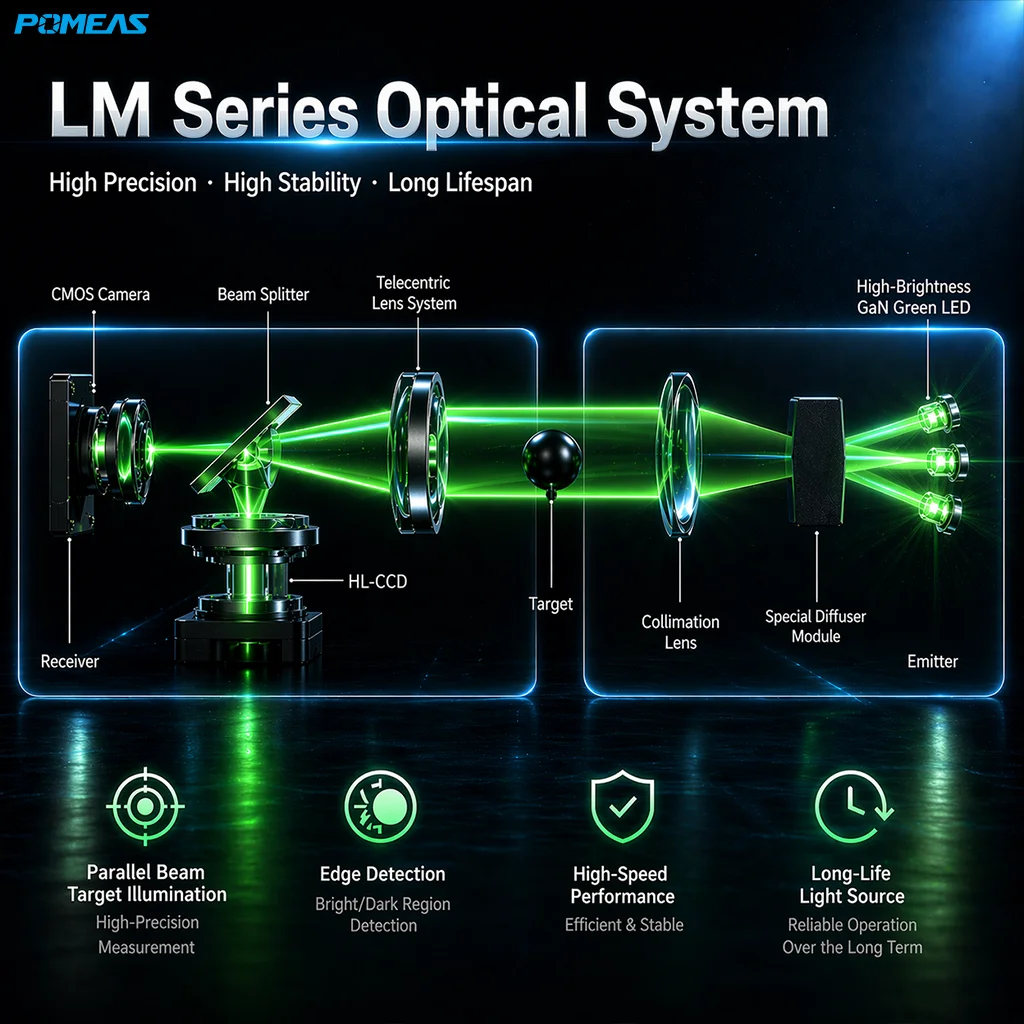

The POMEAS LM-1030 Online Digital Diameter Gauge is designed for high-speed non-contact diameter measurement of wires, cables, tubes, rods and other opaque objects. It uses an optical measuring method with a green LED light source and CCD receiving system to detect outer diameter changes without touching the workpiece.

With a measuring range of 0.3–30 mm, the LM-1030 is suitable for online diameter inspection in production lines. It can help users monitor product size in real time, reduce manual measurement errors and improve quality control efficiency.

The system supports high-speed sampling up to 240 samples per second, making it suitable for continuous production processes where wire diameter, cable diameter or tube outer diameter must be monitored quickly and consistently. The display resolution reaches 0.1 μm, allowing users to observe small dimensional changes during inspection.

Compared with traditional contact measurement tools, the POMEAS LM-1030 laser diameter gauge performs measurement without physical contact. This helps avoid deformation, scratches or measurement errors caused by contact pressure, especially for soft wires, thin tubes, precision rods and moving products.

The LM-1030 adopts a durable optical structure with no high-speed rotating motor. This design improves long-term stability and makes the gauge suitable for industrial environments. With IP64 protection, it can be used in production workshops where dust and splash resistance are required.

The POMEAS LM-1030 digital diameter measuring instrument is suitable for wire and cable manufacturing, extrusion lines, tube production, precision shaft inspection and automated quality control systems.

Key Features

Non-Contact Diameter Measurement

The LM-1030 measures outer diameter without touching the workpiece, helping protect soft, thin, moving or precision parts during inspection.

0.3–30 mm Measuring Range

The system supports diameter measurement from 0.3 mm to 30 mm, making it suitable for wires, cables, tubes, rods and similar products.

High-Speed Online Inspection

With a sampling rate of 240 samples/s, the gauge can monitor diameter changes in continuous production lines and support real-time quality control.

High Measurement Accuracy

The LM-1030 provides ±2 μm accuracy and 0.1 μm display resolution, helping users detect small dimensional deviations.

Durable Industrial Design

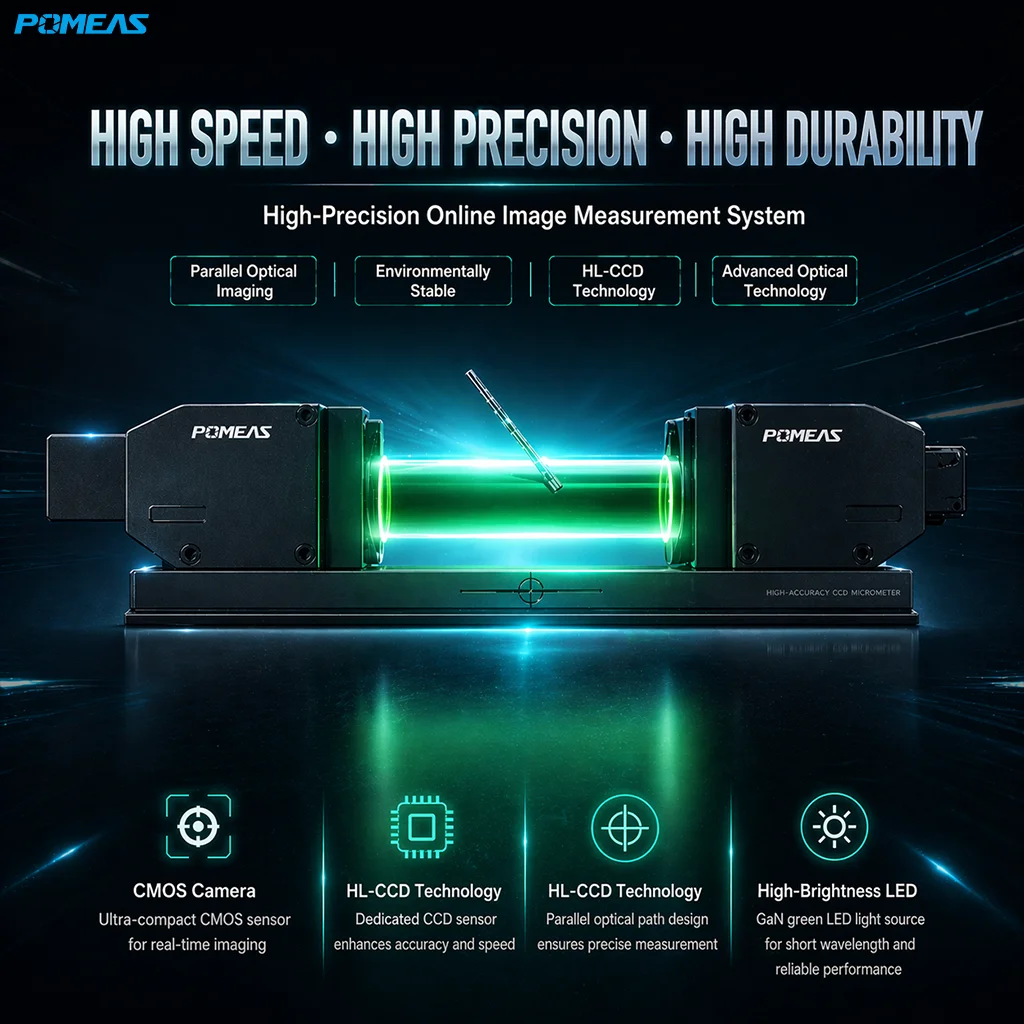

The optical structure uses a green LED light source and CCD receiving system without a high-speed rotating motor, helping improve durability and long-term stability.

IP64 Protection

The measurement head supports IP64 protection, making it more suitable for industrial production environments.

Typical Applications

• Wire diameter measurement
• Cable diameter measurement
• Tube outer diameter inspection
• Rod and shaft diameter measurement
• Extrusion line diameter monitoring
• Online dimensional inspection
• Non-contact quality control
• Automated production line measurement
• Precision component diameter checking
• Pass/fail sorting by diameter

Why Choose POMEAS LM-1030?

The POMEAS LM-1030 online digital diameter gauge is built for manufacturers that need fast, stable and accurate diameter inspection during production. It helps replace slow manual measurement and reduces errors caused by operator handling or contact pressure.

With non-contact measurement, high-speed sampling, micron-level accuracy and a compact industrial design, the LM-1030 is a practical solution for wire, cable, tube and rod production lines that require continuous dimensional quality control.

 FAQ

1. What is the POMEAS LM-1030 used for?

The POMEAS LM-1030 is used for online non-contact diameter measurement of wires, cables, tubes, rods and other opaque objects in production and quality control applications.

2. What is the measuring range of the LM-1030?

The measuring range of the POMEAS LM-1030 is 0.3–30 mm, with a minimum detectable object size of 0.3 mm.

3. Is the LM-1030 a contact or non-contact diameter gauge?

The LM-1030 is a non-contact digital diameter gauge. It uses optical measurement to detect the outer diameter without touching the workpiece.

4. Can the LM-1030 be used for wire and cable inspection?

Yes. The POMEAS LM-1030 is suitable for wire diameter measurement, cable diameter measurement and extrusion line diameter monitoring.

5. What accuracy does the LM-1030 provide?

According to the product parameters, the LM-1030 provides ±2 μm accuracy, ±0.15 μm linearity and 0.1 μm display resolution.
