PMS-LFE-2514M 25mm F1.4 C-Mount FA Lens for Machine Vision
PMS-LFE-2514M is a 25mm F1.4 C-Mount FA lens for 2/3" machine vision cameras, featuring low distortion, sharp imaging, and compact design.
SKU:
PMS-LFE-2514M 25mm F1.4 C-Mount FA Lens for Machine Vision
The PMS-LFE-2514M is a 25mm C-Mount FA lens designed for machine vision, automatic production, and electronic communication inspection applications. This 2/3" machine vision lens provides low distortion, sharp imaging, stable focusing, and compact structure for industrial camera systems that require reliable image quality and easy integration.
With a 25mm focal length, F1.4-C iris range, 2/3" maximum sensor size, and C-Mount interface, the PMS-LFE-2514M is suitable for industrial vision users who need a fixed focal length FA lens for image acquisition, visual positioning, and automated inspection tasks.
Key Features
The 25mm focal length provides a narrower field of view than shorter focal length lenses, making it suitable for applications that require longer-distance observation or more focused image capture.
The PMS-LFE-2514M supports a maximum 2/3" sensor size, making it suitable for industrial cameras used in machine vision inspection and automated production systems.
The F1.4-C iris range helps users adjust light input according to the inspection environment, supporting stable image acquisition under different lighting conditions.
The C-Mount interface is widely used in industrial camera systems, allowing this FA industrial lens to be integrated into common machine vision camera configurations.
Focus and iris locking screws help maintain stable focusing and aperture settings after adjustment, reducing the risk of parameter shift during long-term equipment operation.
The lens is designed for low distortion and sharp imaging, helping machine vision systems obtain clearer image data for inspection, positioning, and recognition tasks.
The compact mechanical structure supports easier integration into industrial inspection modules, automatic production equipment, and space-limited vision systems.
Excellent optical performance helps the PMS-LFE-2514M provide reliable imaging quality for industrial visual inspection and electronic communication inspection applications.

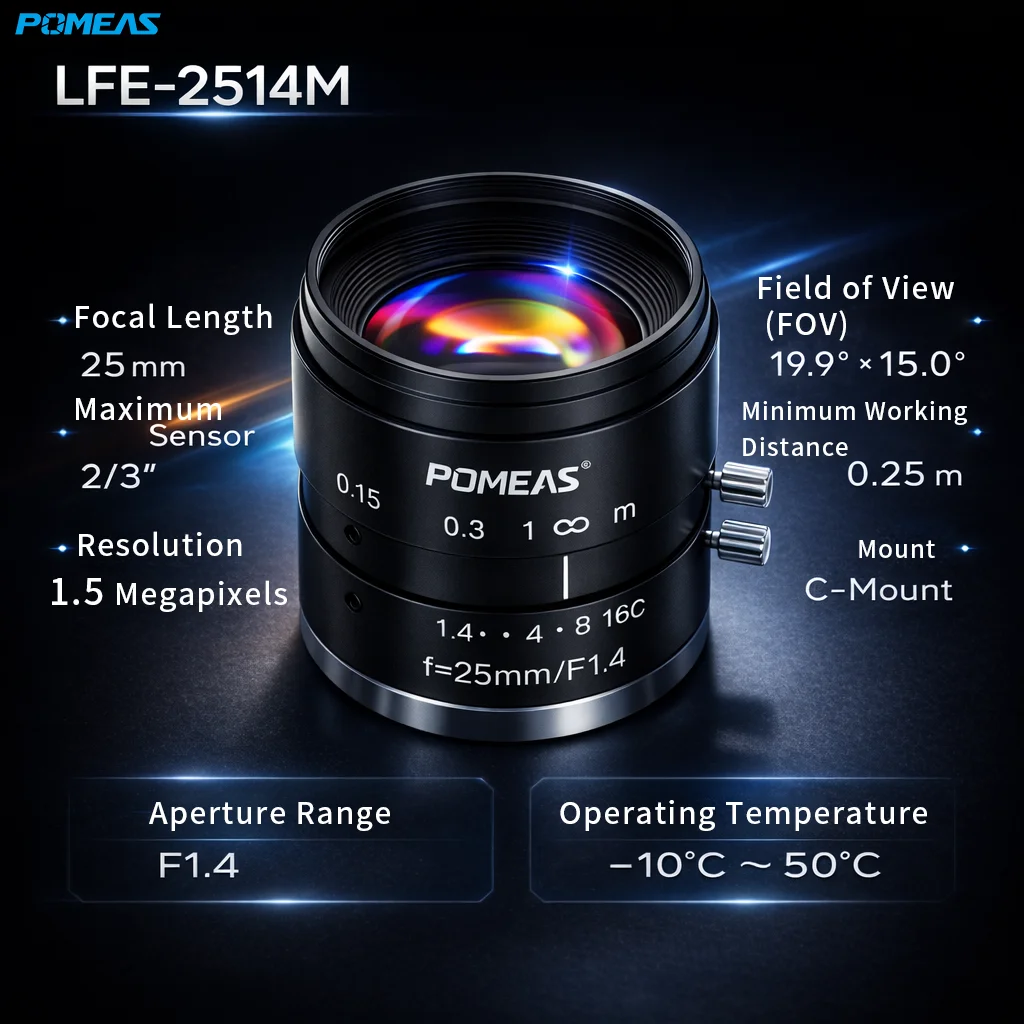

Product Specifications
| Parameter | Specification |
|---|---|
| Model | PMS-LFE-2514M |
| Product Name | 1.5MP 2/3" Machine Vision FA Lens |
| Product Type | FA Industrial Lens |
| Focal Length | 25mm |
| Iris Range | F1.4-C |
| Focusing Range | 0.25m–∞ |
| Distortion | -0.32%@y=5.5mm |
| Back Focal Length | 13.60mm |
| Mount Type | C-Mount |
| Filter Thread | M30.5×0.5mm |
| Max Sensor Size | 2/3" |
| Sensor Area | 8.8mm × 6.6mm, φ11mm |
| Field of View | 19.9° × 15.0° |
| Operating Environment | Temperature -10°C to +50°C; Humidity 30–80%, no condensation |
Field of View and Lens Selection Reference
The PMS-LFE-2514M C-Mount machine vision lens supports a 2/3" maximum sensor size with an 8.8mm × 6.6mm sensor area and φ11mm image circle. The listed field of view is 19.9° × 15.0°, which helps users evaluate whether the lens can cover the required inspection area with the selected industrial camera.
| Selection Item | Reference Information | Why It Matters |
|---|---|---|
| Sensor Match | 2/3", 8.8mm × 6.6mm, φ11mm | Helps confirm whether the lens can cover the camera sensor without image loss. |
| Focal Length | 25mm | Affects field of view, working distance planning, and object coverage. |
| Focusing Range | 0.25m–∞ | Helps determine whether the lens can focus at the required installation distance. |
| Mount Type | C-Mount | Supports integration with common industrial machine vision cameras. |
Typical Applications
The PMS-LFE-2514M FA industrial lens is widely used in machine vision, automatic production, and electronic communication fields. It is suitable for industrial camera systems that need stable image quality, compact lens structure, and reliable focusing performance.
The 25mm FA lens can be used for visual inspection systems that require stable image acquisition, low distortion, and clear edge-to-center imaging performance.
The compact structure and C-Mount interface make the PMS-LFE-2514M suitable for installation in automatic production equipment and industrial vision modules.
The lens can support inspection of electronic communication components, helping capture clear image details for positioning, recognition, and quality control.
With 2/3" sensor support and C-Mount compatibility, this fixed focal length lens is suitable for common industrial camera configurations.
Why Choose PMS-LFE-2514M?
The PMS-LFE-2514M combines a 25mm focal length, F1.4-C iris range, 2/3" sensor support, C-Mount interface, low distortion imaging, and compact structure. It is designed for machine vision users who need a practical fixed focal length lens for industrial inspection and automated imaging systems.
For system integrators and equipment manufacturers, this machine vision FA lens helps simplify camera-lens matching, supports stable focusing through locking screws, and provides reliable optical performance for long-term production use.
POMEAS can provide lens selection support based on your camera sensor size, required field of view, working distance, object size, lighting condition, and inspection requirement.
FAQ
1. What is PMS-LFE-2514M?
PMS-LFE-2514M is a 25mm C-Mount FA lens designed for machine vision, automatic production, and electronic communication inspection applications.
2. What camera sensor size does this lens support?
The lens supports a maximum 2/3" sensor size, with an 8.8mm × 6.6mm sensor area and φ11mm image circle.
3. What is the focal length of this FA lens?
The focal length is 25mm. It is suitable for fixed focal length machine vision imaging with a narrower field of view than shorter focal length lenses.
4. What is the iris range?
The iris range is F1.4-C, allowing users to adjust the aperture according to the actual lighting environment.
5. What mount type does PMS-LFE-2514M use?
PMS-LFE-2514M uses a C-Mount interface, which is commonly used with industrial cameras in machine vision systems.
6. Does the lens have locking screws?
Yes. The lens has focus and iris locking screws to help ensure stable focusing and aperture settings after adjustment.
7. Is this lens suitable for automatic production equipment?
Yes. The compact structure, C-Mount interface, and stable optical performance make it suitable for automatic production equipment and machine vision inspection modules.
8. How do I know whether this lens matches my camera?
Please provide your camera sensor size, required field of view, working distance, object size, and inspection requirements. POMEAS can help confirm whether PMS-LFE-2514M is suitable for your application.
Need Help Selecting a 25mm Machine Vision FA Lens?
Contact POMEAS with your camera model, sensor size, working distance, required field of view, object size, and inspection requirements. Our team can help recommend a suitable FA lens for your machine vision system.
