0.2X High-Resolution Telecentric Lens, 1-Inch Sensor, 180mm WD

0.2X High-Resolution Object-Side Telecentric Lens

The POMEAS PMS-02HT180 is a 0.2X high-resolution object-side telecentric lens designed for stable dimensional measurement and automated machine vision inspection. Its telecentric optical design reduces magnification variation caused by changes in object position, helping improve measurement repeatability and edge-detection stability.

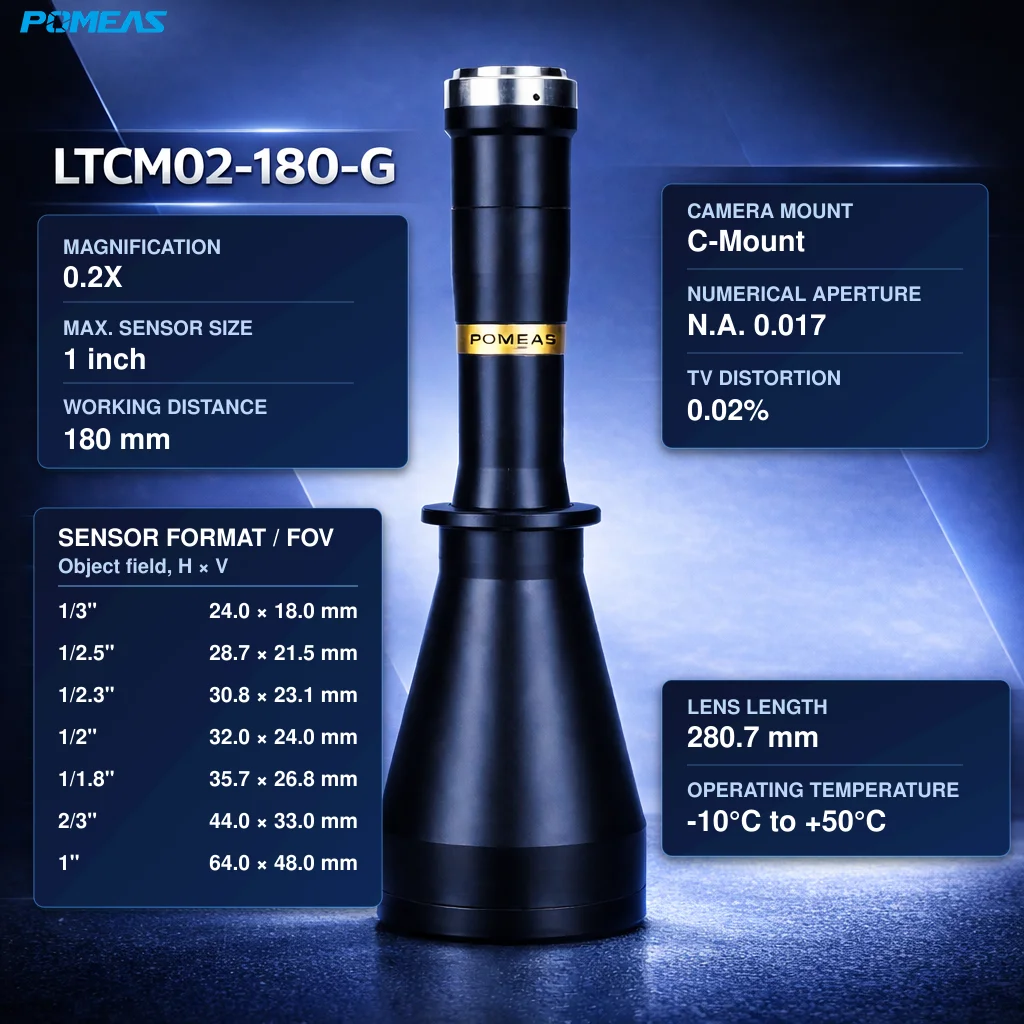

Supporting sensors up to 1 inch, the lens provides a maximum field of view of 64 × 48 mm at a fixed 180 mm working distance. With 0.01% TV distortion, adjustable aperture and standard C-Mount compatibility, it is suitable for inspecting medium-to-large precision components.

Explore the complete POMEAS telecentric lens range for other magnifications, sensor formats and working distances.

Key Optical Features and Engineering Benefits

• 0.2X optical magnification: Provides a large object-side field of view for complete component inspection and dimensional measurement.
• Object-side telecentric design: Reduces perspective error and magnification variation when the object position changes within the available depth of field.
• Support for up to 1-inch sensors: Enables a maximum object field of 64 × 48 mm while making effective use of larger-format machine vision cameras.
• 0.01% TV distortion: Preserves geometric accuracy across the image, supporting reliable edge extraction and dimensional analysis.
• 20.14 μm optical resolution: Supports clear imaging of component outlines and visible surface features within a large inspection area.
• 180 mm working distance: Provides sufficient installation space for fixtures, illumination and automated handling mechanisms.
• Adjustable F6.0 aperture: Allows the imaging system to balance resolution, brightness and depth of field according to the inspection target.
• 12 mm adjustable depth of field: Provides tolerance for object-height variation and positioning fluctuation.
• Optional coaxial illumination: External coaxial lighting can improve contrast when inspecting reflective or low-contrast flat surfaces.

Technical Specifications

Field of View by Sensor Format

Typical Applications

• Mobile phone screen outline and dimensional inspection
• PCB printing, pad-position and dimensional inspection
• Watch dial defect and size inspection
• Precision component profile measurement
• Automated production-line visual inspection

See the POMEAS watch dial defect and dimensional inspection solution for a related application example.

System Compatibility and Integration

The PMS-02HT180 uses a standard C-Mount interface and can be integrated with compatible industrial machine vision cameras with sensor formats up to 1 inch.

The final camera should be selected according to sensor size, pixel size, required field of view, smallest detectable feature and measurement accuracy. A steering prism can also be used when the installation space requires a folded optical path.

External coaxial illumination can be configured for flat reflective surfaces, while a telecentric or parallel backlight is recommended for high-contrast silhouette and edge measurement.

Lens Selection and Technical Support

Use the POMEAS telecentric lens selection tool to compare available magnifications, fields of view and working distances.

POMEAS provides camera and lighting matching, sample imaging evaluation, optical selection support and OEM/ODM customization. Custom configurations can be evaluated according to the required field of view, working distance, sensor format, mechanical interface and inspection target.

Request an Optical Evaluation

Send us your camera model, sensor size, required field of view, smallest feature size, measurement accuracy and sample information. Our optical engineers will evaluate whether the PMS-02HT180 is suitable for your application.

Contact POMEAS to request a quotation, sample test or optical evaluation.
