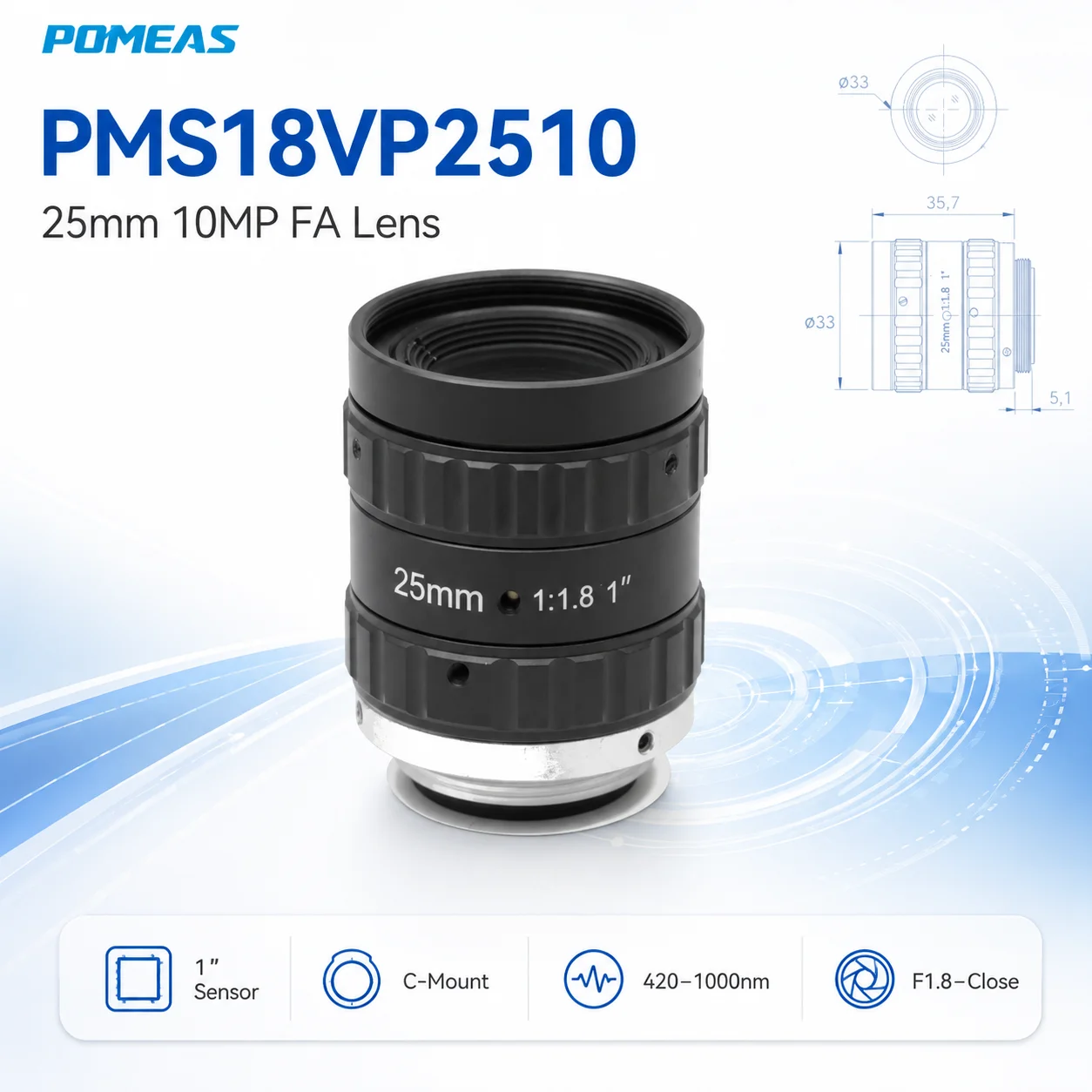

1 Inch 25mm Focal Length C-Mount 10MP Industrial Camera Lens
The POMEAS PMS18VP2510 is a 25mm industrial camera lens designed for machine vision cameras, factory automation equipment and automated inspection systems. This 10MP machine vision lens supports sensor formats up to 1 inch and uses a standard C-mount interface for easy integration with industrial cameras.
Featuring an F1.8 maximum aperture, manual focus, manual iris adjustment and a 420–1000nm spectral range, the lens is suitable for visible-light and near-infrared industrial imaging applications.

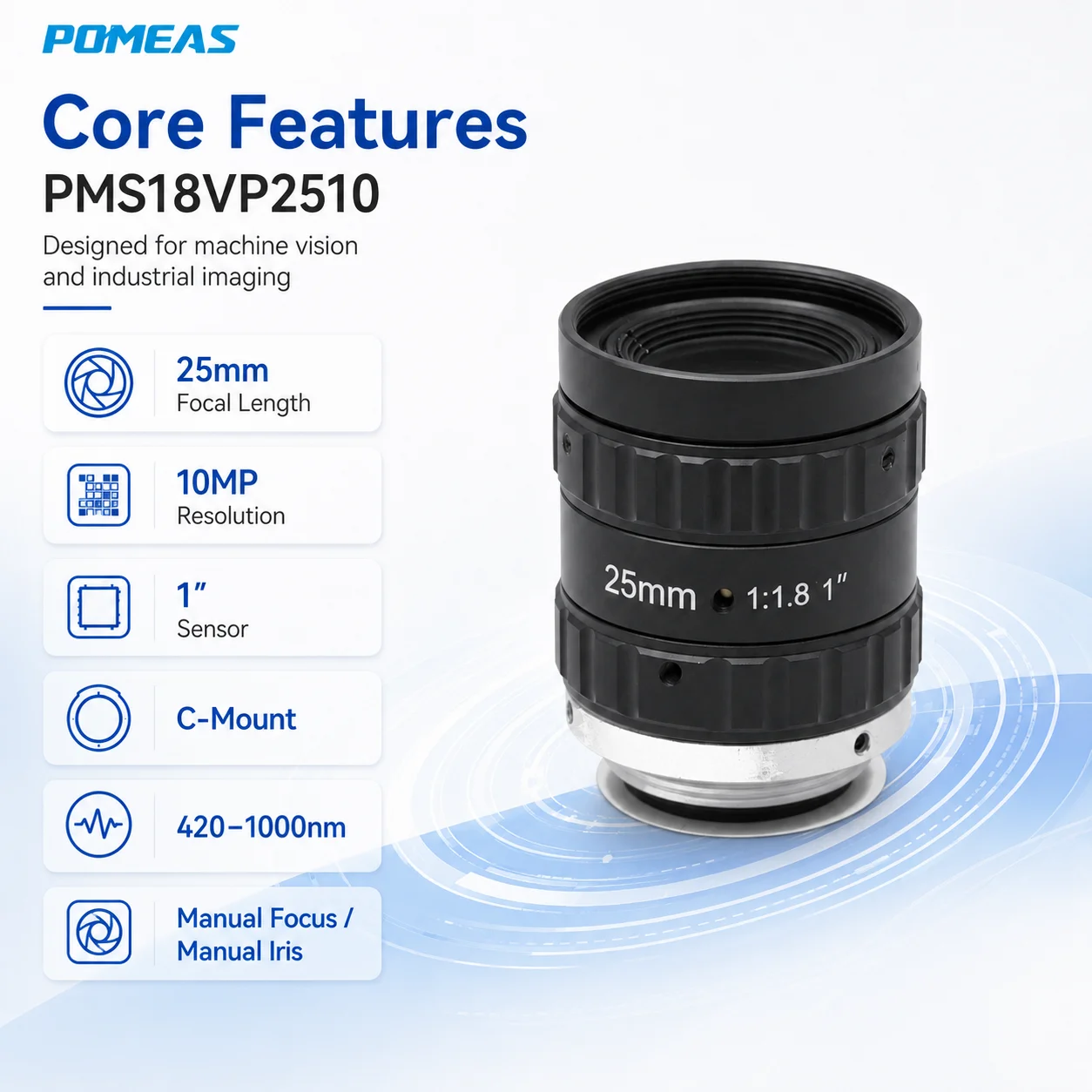

Key Features of the 25mm Industrial Camera Lens
- 25mm fixed focal length industrial camera lens
- Supports industrial cameras with sensors up to 1 inch
- 10MP machine vision lens resolution class
- Standard C-mount lens interface
- 420–1000nm visible and near-infrared spectral coverage
- F1.8 to fully closed manual iris
- Manual focus adjustment from 0.15m to infinity
- Compact Ø33 × 40.8mm mechanical design
- Suitable for machine vision and factory automation systems
1 Inch C-Mount Lens for Industrial Cameras
PMS18VP2510 is a C-mount industrial camera lens developed for sensor formats up to 1 inch. It can also be installed on machine vision cameras using smaller sensor formats, including 1/2 inch and 1/3 inch.
When the lens is used with a smaller image sensor, the industrial camera captures the central portion of the lens image circle. This produces a smaller field of view and uses the central optical area of the lens.
| Industrial Camera Sensor | Viewing Angle (Diagonal × Horizontal × Vertical) |
|---|---|
| 1 Inch | 36.21° × 29.08° × 21.86° |
| 1/2 Inch | 18.45° × 14.72° × 11.08° |
| 1/3 Inch | 13.81° × 11.08° × 8.34° |

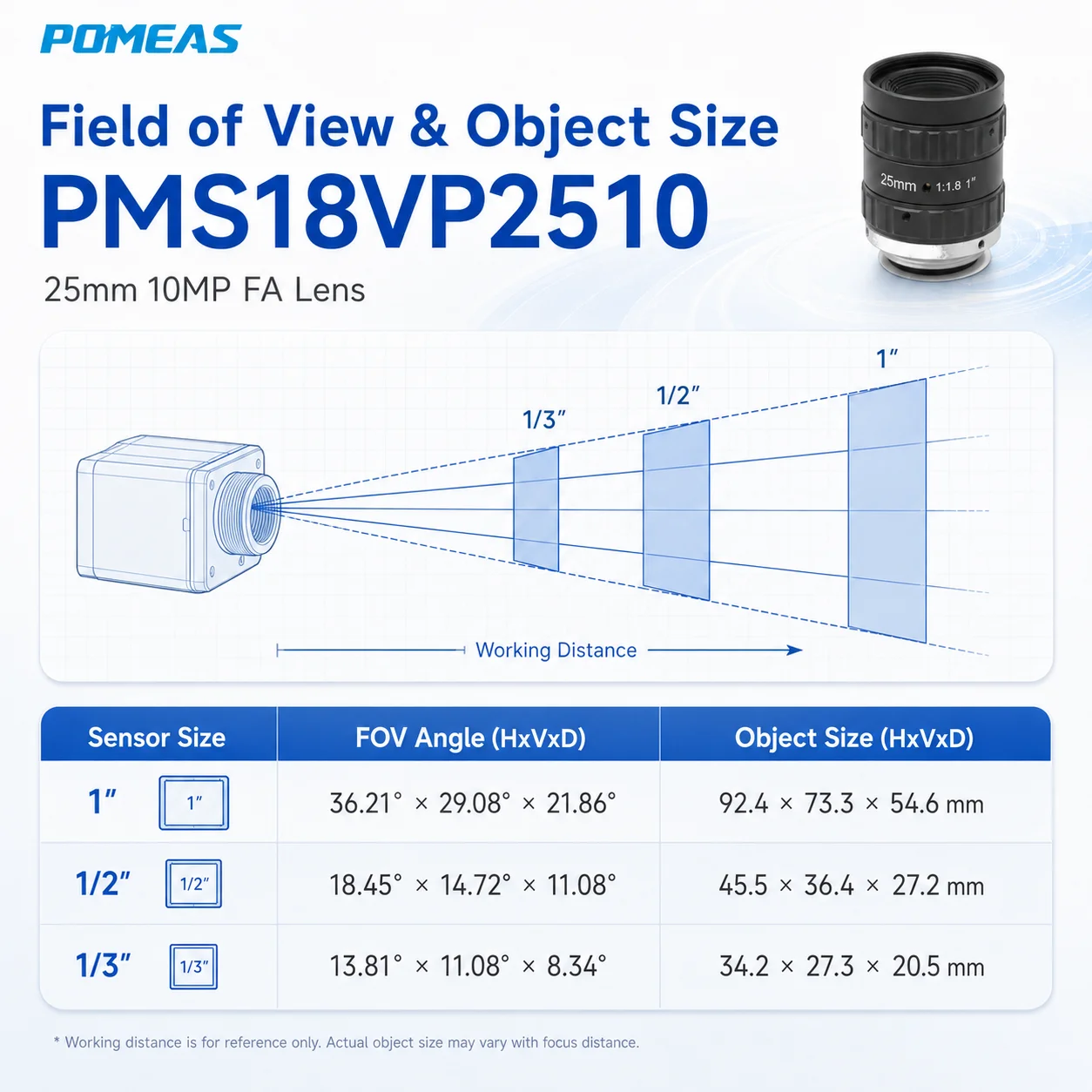

25mm Fixed Focal Length Lens and Field of View
The 25mm focal length provides a medium-angle field of view commonly used for industrial inspection, component recognition, product positioning and machine vision imaging.
At the minimum focusing distance, the approximate object sizes for different industrial camera sensors are shown below.
| Sensor Format | Object Size (Diagonal × Horizontal × Vertical) |
|---|---|
| 1 Inch | 92.4 × 73.3 × 54.6mm |
| 1/2 Inch | 45.5 × 36.4 × 27.2mm |
| 1/3 Inch | 34.2 × 27.3 × 20.5mm |
Actual field of view depends on the industrial camera sensor size, working distance and focus position. For accurate lens selection, confirm both the required field of view and the available installation distance.
10MP Machine Vision Lens for Industrial Inspection
The PMS18VP2510 is designed as a 10MP industrial lens for machine vision camera systems. It can be used for general high-resolution inspection, object recognition, surface observation and automated positioning tasks.
For the best image quality, the camera resolution, pixel size, sensor format, working distance and required inspection area should be evaluated together rather than selecting the lens only by megapixel rating.
420–1000nm VIS-NIR Industrial Lens
The lens supports wavelengths from 420nm to 1000nm, covering visible light and part of the near-infrared range. It can therefore be used as a VIS-NIR machine vision lens with suitable industrial lighting.
Possible lighting options include white, red and near-infrared machine vision light sources. The final imaging result depends on the material, surface reflectivity, illumination wavelength and camera sensor response.
Manual Focus and Manual Iris Control
The industrial camera lens provides manual focus and manual iris adjustment. The focus range extends from 0.15m to infinity, while the aperture can be adjusted from F1.8 to fully closed.
Opening the iris allows more light to reach the industrial camera sensor. Closing the iris can increase depth of field, but additional machine vision lighting may be required to maintain sufficient image brightness.

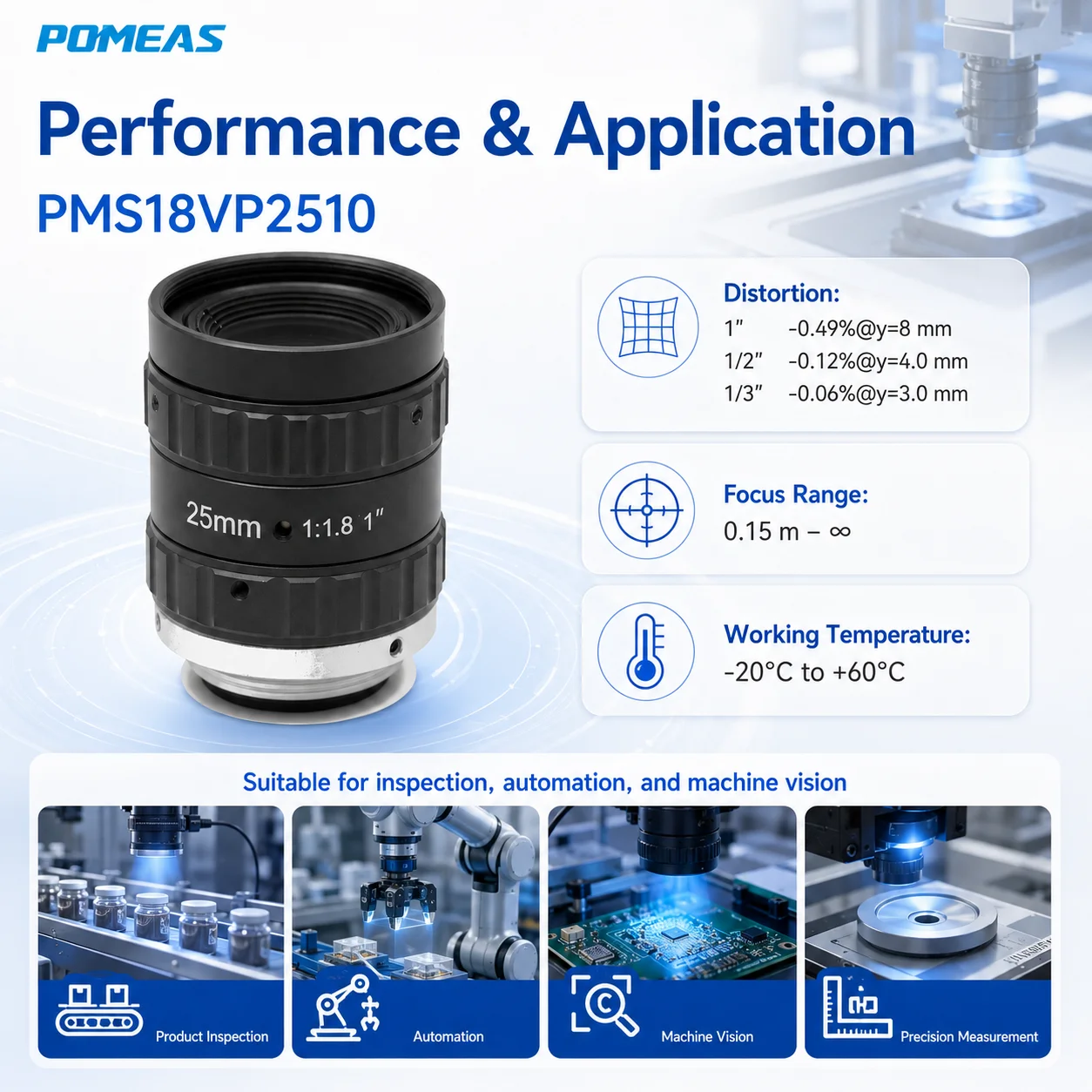

Low Distortion Performance
Specified distortion values for the PMS18VP2510 machine vision lens are:
- 1 Inch sensor: -0.49% at y=8mm
- 1/2 Inch sensor: -0.12% at y=4.0mm
- 1/3 Inch sensor: -0.06% at y=3.0mm
The lens can be used for industrial inspection, positioning and feature recognition. For precision dimensional measurement requiring minimal perspective error, a telecentric lens should also be considered.
Industrial Camera Lens Applications
- Machine vision camera imaging
- Factory automation inspection
- Electronic component inspection
- PCB and semiconductor inspection
- Product presence and position detection
- Barcode and character recognition
- Surface defect inspection
- Mechanical part inspection
- Visible-light industrial imaging
- Near-infrared machine vision imaging
Technical Specifications
| Model | PMS18VP2510 |
|---|---|
| Product Type | Industrial Camera Lens / Machine Vision Lens / FA Lens |
| Resolution | 10MP |
| Focal Length | 25mm |
| Maximum Sensor Format | 1 Inch |
| Lens Mount | C-Mount |
| Spectral Range | 420–1000nm |
| Aperture Range | F1.8–Close |
| Focus Control | Manual |
| Iris Control | Manual |
| Focus Range | 0.15m–Infinity |
| Back Focal Length | 12.6mm in air |
| Filter Thread | M30.5 × P0.5 |

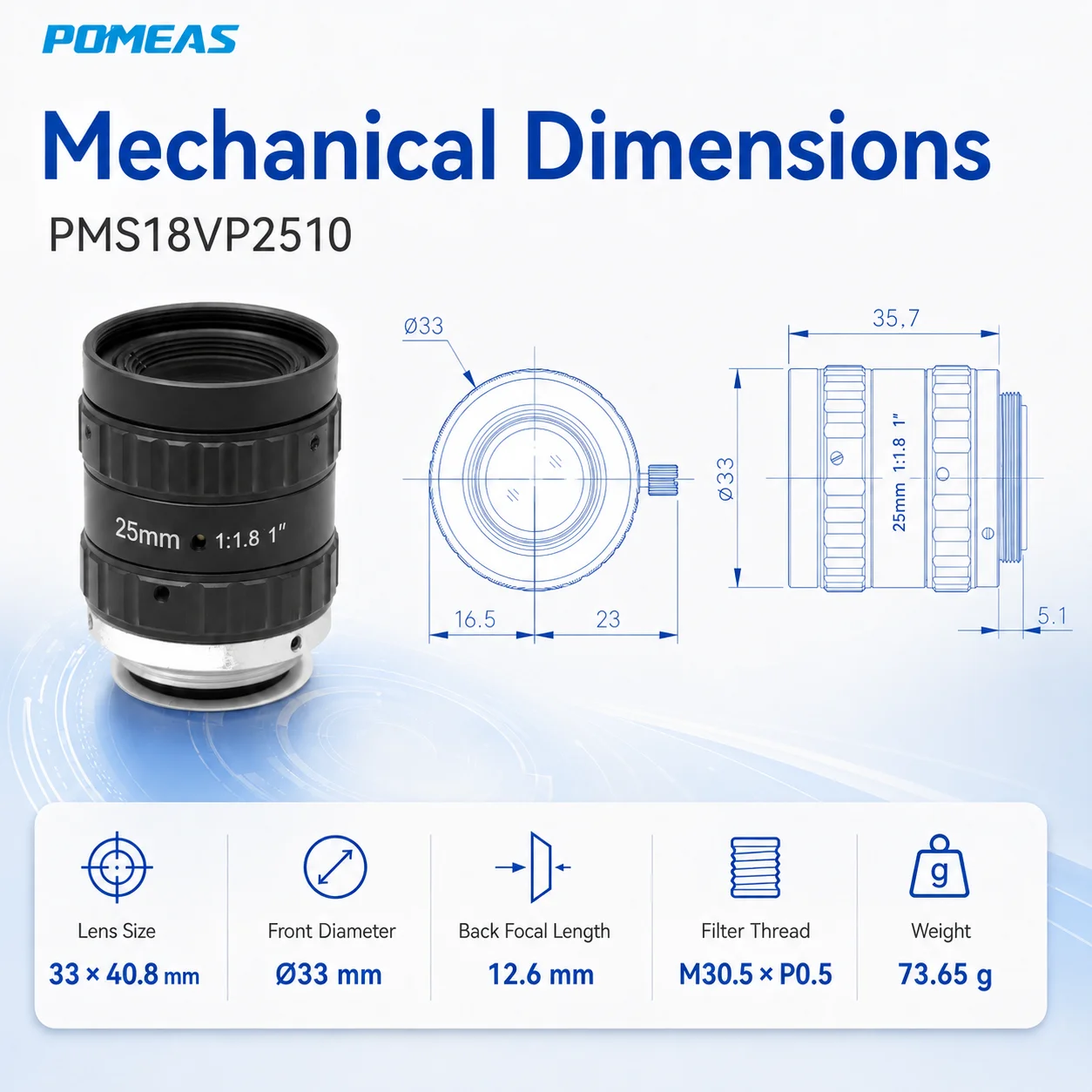

| Lens Dimensions | Ø33 × 40.8mm |
| Weight | 73.65g |
| Operating Temperature | -20°C to +60°C |
How to Select the Right Machine Vision Lens
Before choosing this 25mm C-mount lens, confirm the industrial camera model, sensor size, pixel size, required field of view, working distance and available installation space.
Not sure whether this industrial camera lens matches your application? Send us the camera model or one image of the inspection object, and POMEAS can help provide an initial lens recommendation.
Frequently Asked Questions
Is this a machine vision lens or an industrial camera lens?
Both terms describe the product. PMS18VP2510 is an industrial camera lens designed for machine vision and factory automation applications. It can also be described as a fixed focal length FA lens.
Can this 25mm lens support a 1 inch sensor?
Yes. The maximum specified sensor format is 1 inch. The lens can also be used with smaller 1/2 inch and 1/3 inch industrial camera sensors.
Does the lens use a C-mount interface?
Yes. PMS18VP2510 uses a standard C-mount interface for integration with compatible machine vision cameras.
Is this a fixed focus lens?
It is a fixed focal length lens with a 25mm focal length. The focal length does not change, but the focus position can be adjusted manually from 0.15m to infinity.
Does the lens support near-infrared imaging?
The specified wavelength range is 420–1000nm, covering visible light and part of the near-infrared range. Camera sensor sensitivity and the selected light source must also support the required wavelength.
