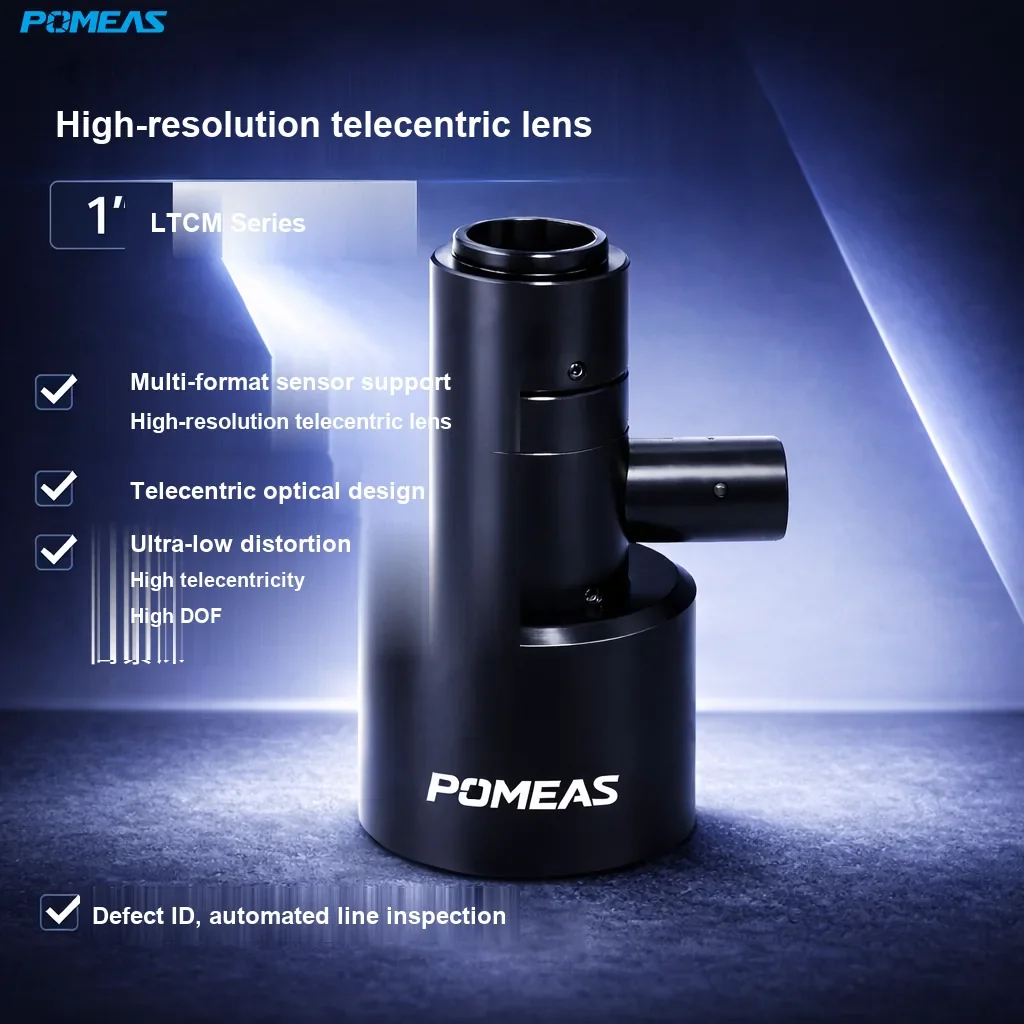

0.3X High-Resolution Coaxial Telecentric Lens, 110mm WD
SKU:
Product Overview
The PMS-LTCM03-110-C from POMEAS is a telecentric lens for high-precision dimensional measurement and visual inspection. With a resolution of 11.18 μm and a depth of field of 4.44 mm, it keeps magnification constant across the field of view, so dimensions can be measured directly on the image without perspective error. C-Mount mount, sensors up to 2/3".
Key Features
- 0.3X magnification with 4.44 mm depth of field for inspection of tall or stacked parts.
- 11.18 μm object-side resolution for fine-detail inspection.
- Constant magnification over the depth of field: no size shift when the part moves.
- Built-in coaxial lighting path for uniform illumination of reflective surfaces.
- Standard C-Mount mount, integrates with common industrial cameras.
- Supported sensors: 2/3". Customization available on request.
Specifications

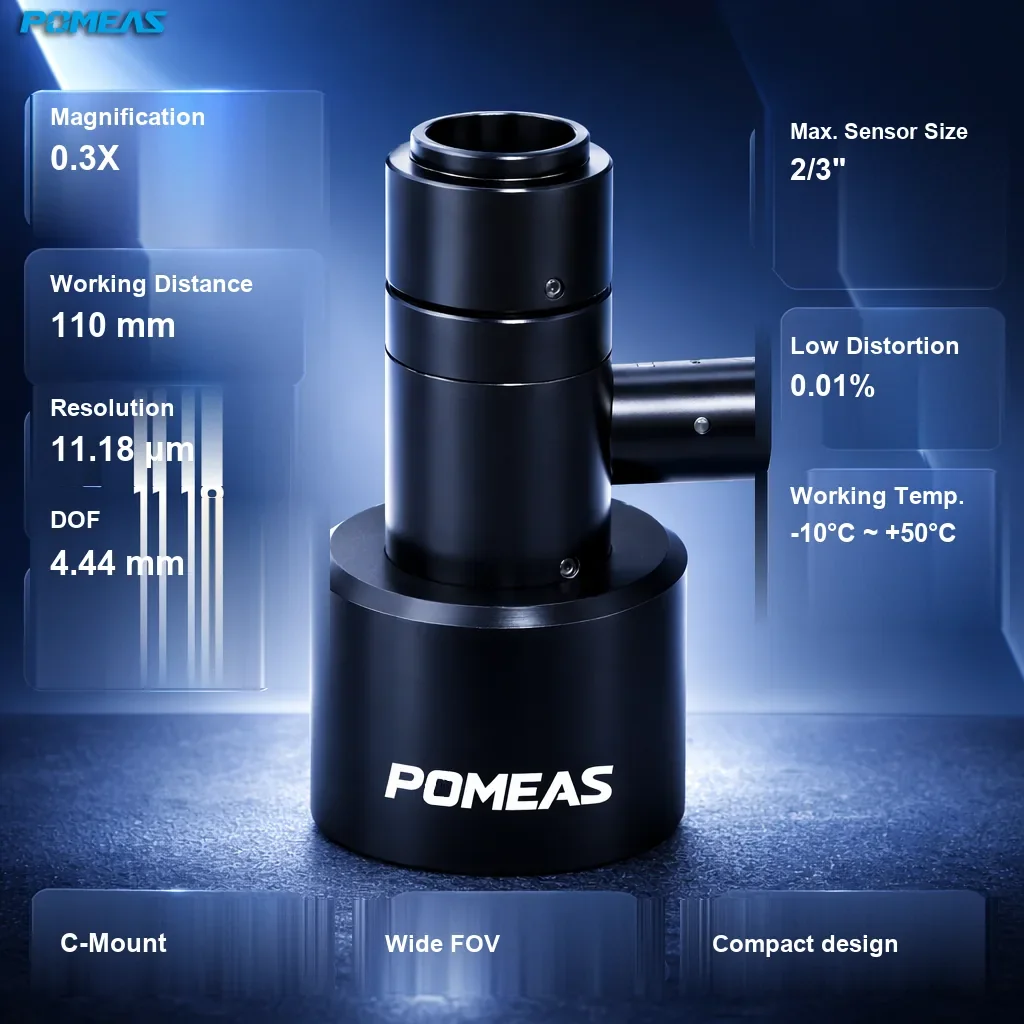

| Model | PMS-LTCM03-110-C |
|---|---|
| Magnification | 0.3X |
| Working Distance | 110mm |
| Resolution | 11.18μm |
| Depth of Field | 4.44mm |
| TV Distortion | 0.01% |
| Max. Sensor Size | 2/3″ |
| Lighting | Coaxial |
| Mount | C-Mount |
| Working Temp. | -10°C~+50°C |
Typical Applications
Dimensional measurement of machined and molded parts, electronics and connector inspection, glass and sheet-edge inspection, in-line quality control wherever telecentric geometry and stable magnification are required.
Selection Guide
To choose the right model, first compare the smallest feature to inspect with the lens resolution and the camera pixel size; then confirm the working distance available in the machine and the maximum supported sensor size. POMEAS can customize working distance, mount and magnification for your application.
Frequently Asked Questions
What is a telecentric lens and when should I use one?
A telecentric lens keeps magnification constant over its depth of field, so the part size does not change with position or height. Use it whenever dimensions are measured directly from the image: connector pins, machined features, stamped parts and glass edges.
Which sensors does this model support?
This model supports sensors up to 2/3". Verify the mount and sensor size of your camera before final selection.
How much distortion does it introduce?
The TV distortion of this model is 0.01%, keeping image geometry stable from center to edge — a key requirement when dimensions are calculated directly from image coordinates.
Can the working distance or mount be customized?
Yes. POMEAS offers customization of working distance, mount and magnification; send your part and camera specifications so the technical team can confirm the solution.
