0.5X Standard Telecentric Lens, 40mm WD
The PMS-LTC05-40 from POMEAS is a telecentric lens for high-precision dimensional measurement and visual inspection. At 0.5X magnification with a resoluti…
SKU:
Product Overview
The PMS-LTC05-40 from POMEAS is a telecentric lens for high-precision dimensional measurement and visual inspection. At 0.5X magnification with a resolution of 6.7 μm, it keeps magnification constant across the field of view, so dimensions can be measured directly on the image without perspective error. C-Mount mount, sensors up to 1/2".
Key Features
- Telecentric design with 0.5X magnification for stable dimensional measurement.
- 6.7 μm object-side resolution for fine-detail inspection.
- Constant magnification over the depth of field: no size shift when the part moves.

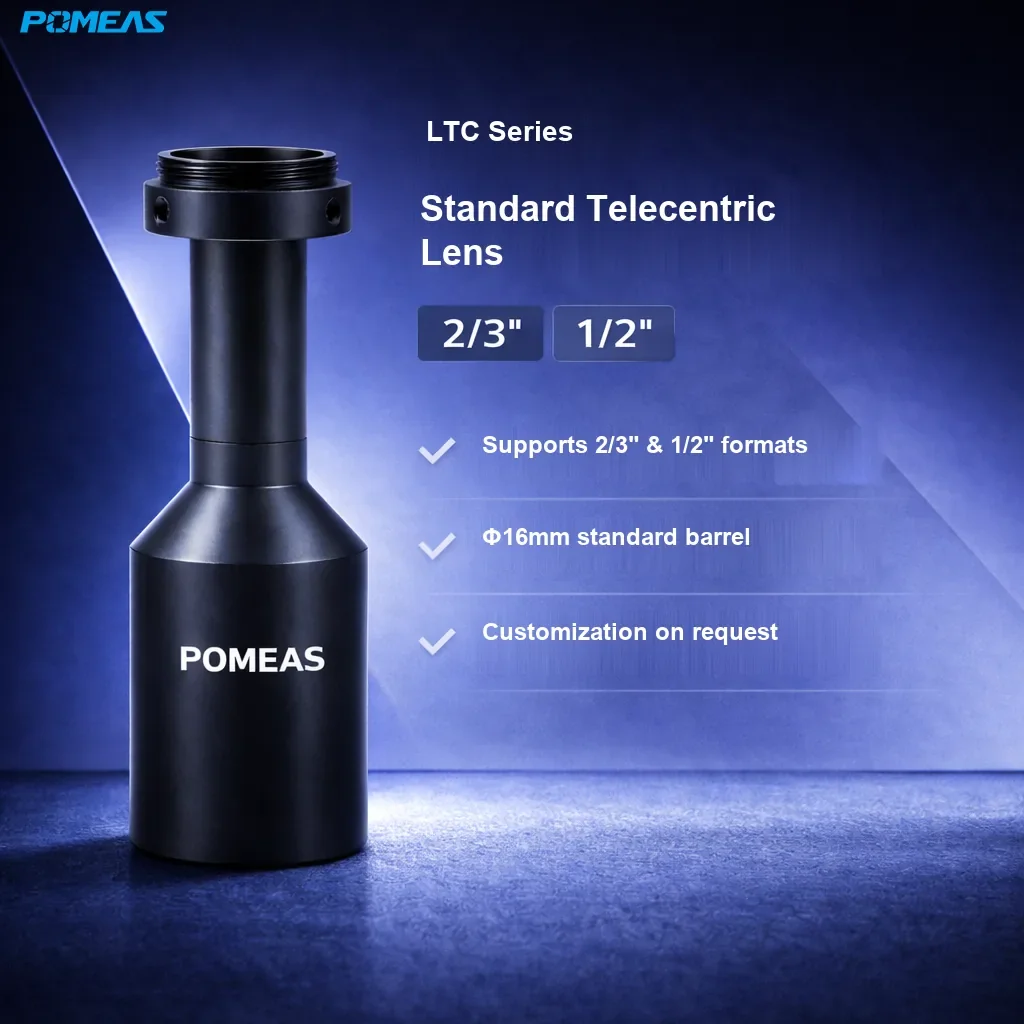

- Slim Φ16mm barrel fits compact machines and tight mounting spaces.
- Standard C-Mount mount, integrates with common industrial cameras.
- Supported sensors: 1/2". Customization available on request.
Specifications

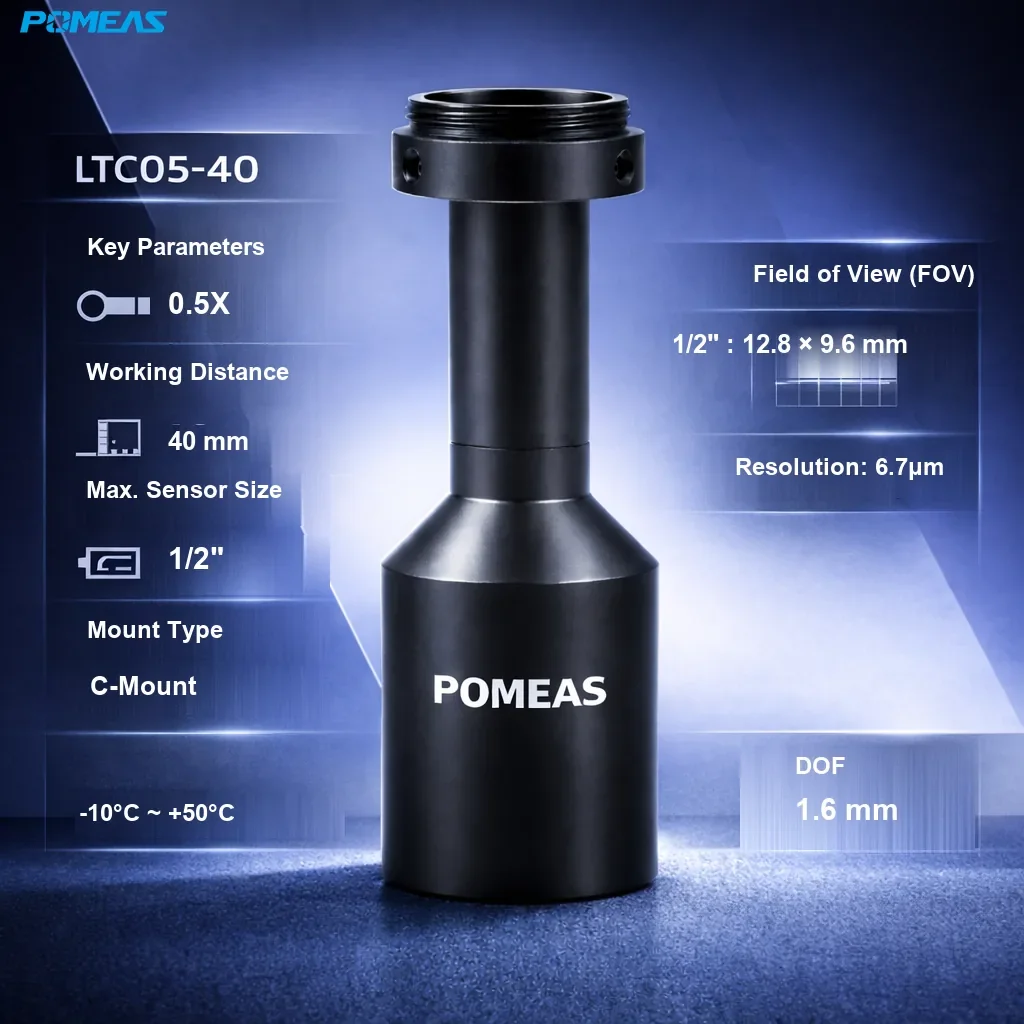

| Model | PMS-LTC05-40 |
|---|---|
| Magnification | 0.5X |
| Working Distance | 40mm |
| Resolution | 6.7μm |
| FOV (1/2") | 12.8mm×9.6mm |
| Depth of Field | 1.6mm |
| Max. Sensor Size | 1/2″ |
| Mount | C-Mount |
| Working Temp. | -10°C~+50°C |
Typical Applications
Dimensional measurement of machined and molded parts, electronics and connector inspection, glass and sheet-edge inspection, in-line quality control wherever telecentric geometry and stable magnification are required.
Selection Guide
To choose the right model, first compare the smallest feature to inspect with the lens resolution and the camera pixel size; then confirm the working distance available in the machine and the maximum supported sensor size. POMEAS can customize working distance, mount and magnification for your application.
Frequently Asked Questions
What is a telecentric lens and when should I use one?
A telecentric lens keeps magnification constant over its depth of field, so the part size does not change with position or height. Use it whenever dimensions are measured directly from the image: connector pins, machined features, stamped parts and glass edges.
Which sensors does this model support?
This model supports sensors up to 1/2". Verify the mount and sensor size of your camera before final selection.
What is the depth of field of this model?
The depth of field is 1.6 mm, which absorbs part-height variation and reduces the need for refocusing during in-line inspection.
Can the working distance or mount be customized?
Yes. POMEAS offers customization of working distance, mount and magnification; send your part and camera specifications so the technical team can confirm the solution.
