Compact LED Bar Light for Machine Vision
PMS-4BVP3016 LED Bar Light
The POMEAS PMS-4BVP3016 is a compact LED bar light designed for machine vision and industrial inspection applications. Its slim 42 × 22 × 26 mm housing provides a 30 × 16 mm lighting area, making it suitable for vision systems where installation space is limited.
The white LED illumination provides stable lighting for industrial imaging applications such as surface inspection, component inspection, positioning, code reading and dimensional measurement. The integrated mounting slots and 500 mm cable allow flexible installation into automated vision systems.
Key Features
Compact Design
Overall dimensions of only 42 × 22 × 26 mm make the light suitable for compact machine vision equipment and space-limited inspection stations.
White LED Illumination
White LED lighting provides clear and stable illumination for a wide range of machine vision inspection tasks.
30 × 16 mm Lighting Area
The rectangular lighting area is suitable for illuminating small components, surfaces and inspection regions.
DC 24V Input
Designed for DC 24V machine vision lighting systems and compatible lighting controllers.
Flexible Installation
Three mounting slots are provided for M3 nuts, allowing convenient integration and flexible positioning.
500 mm Cable
The standard 500 mm cable helps simplify connection inside industrial machines and automated inspection systems.

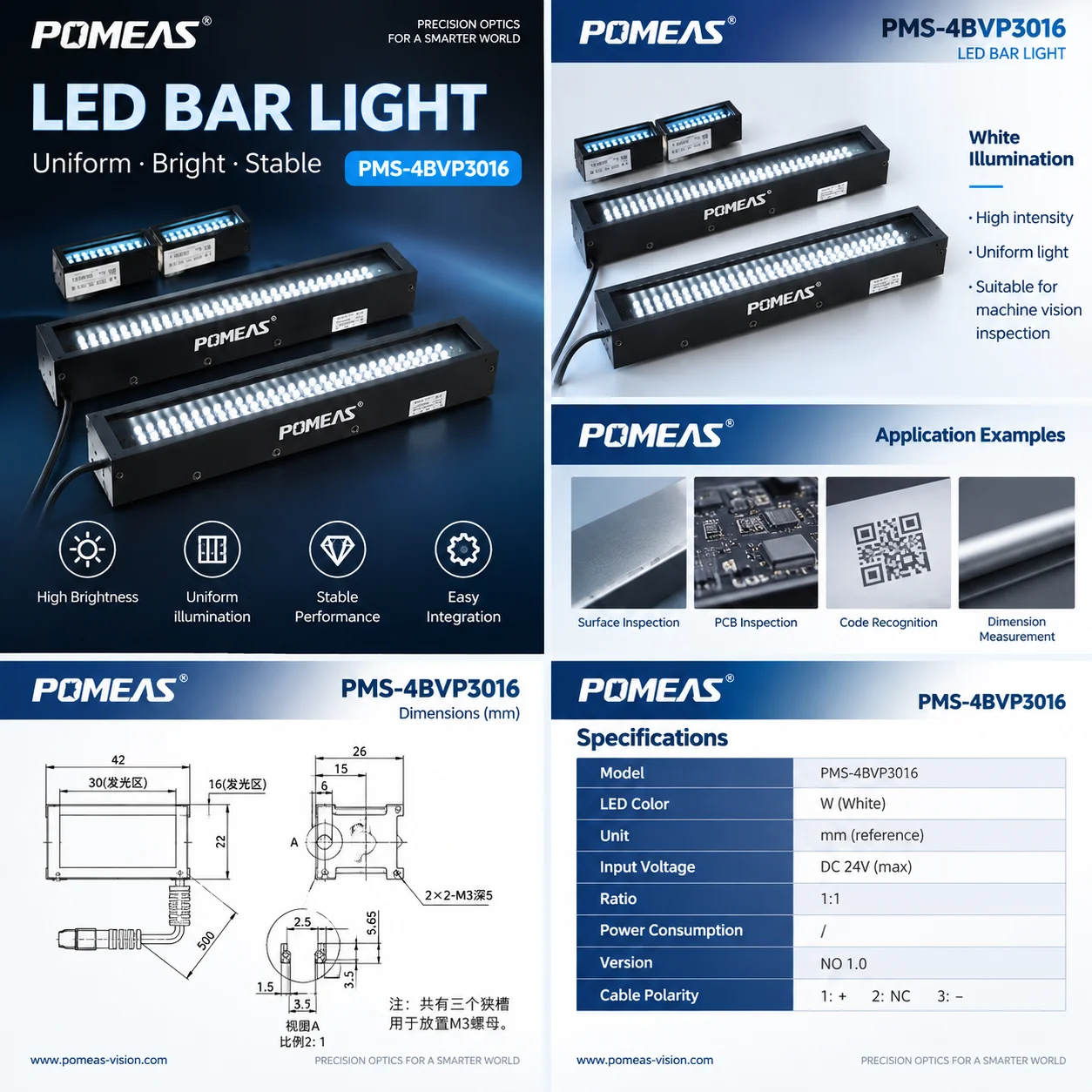

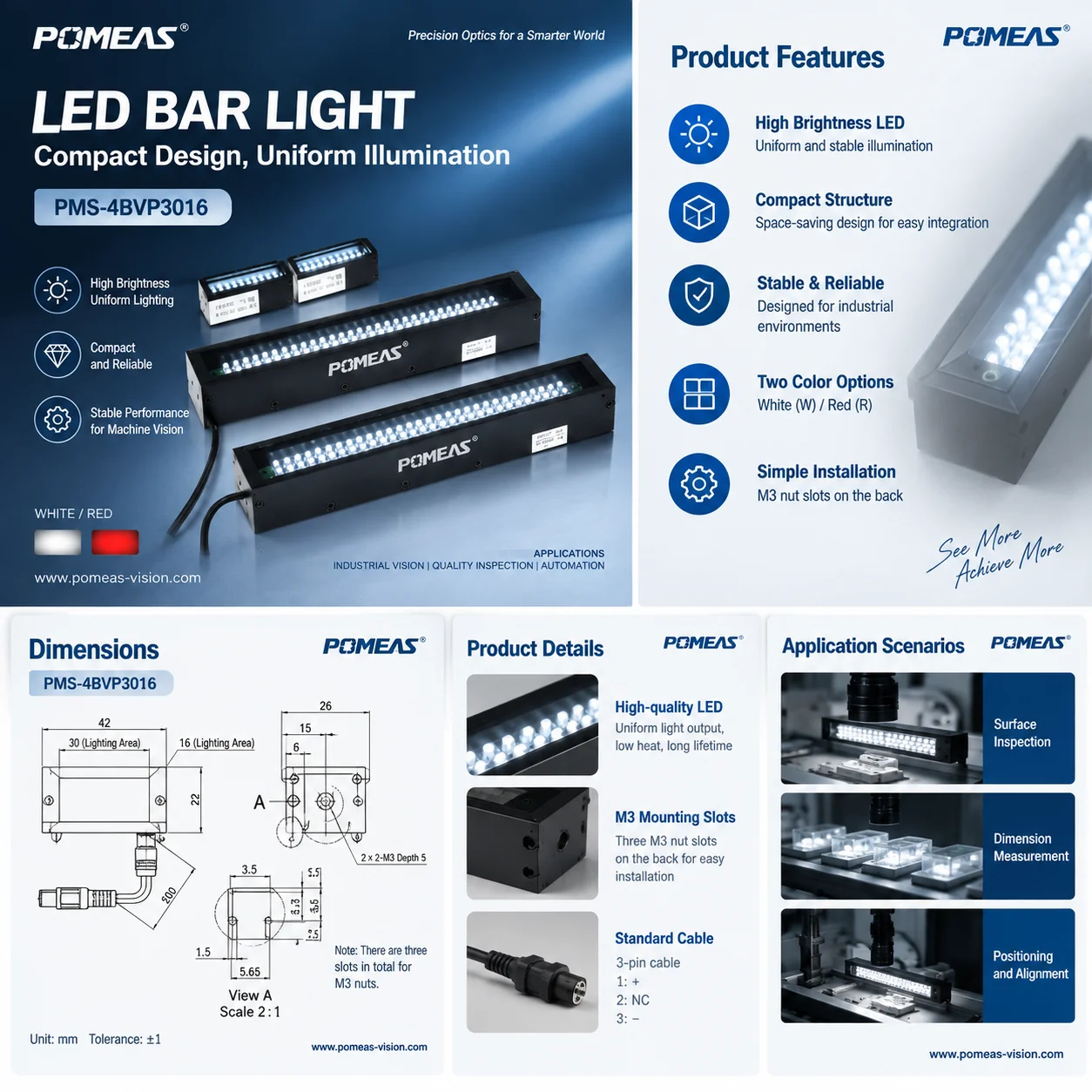

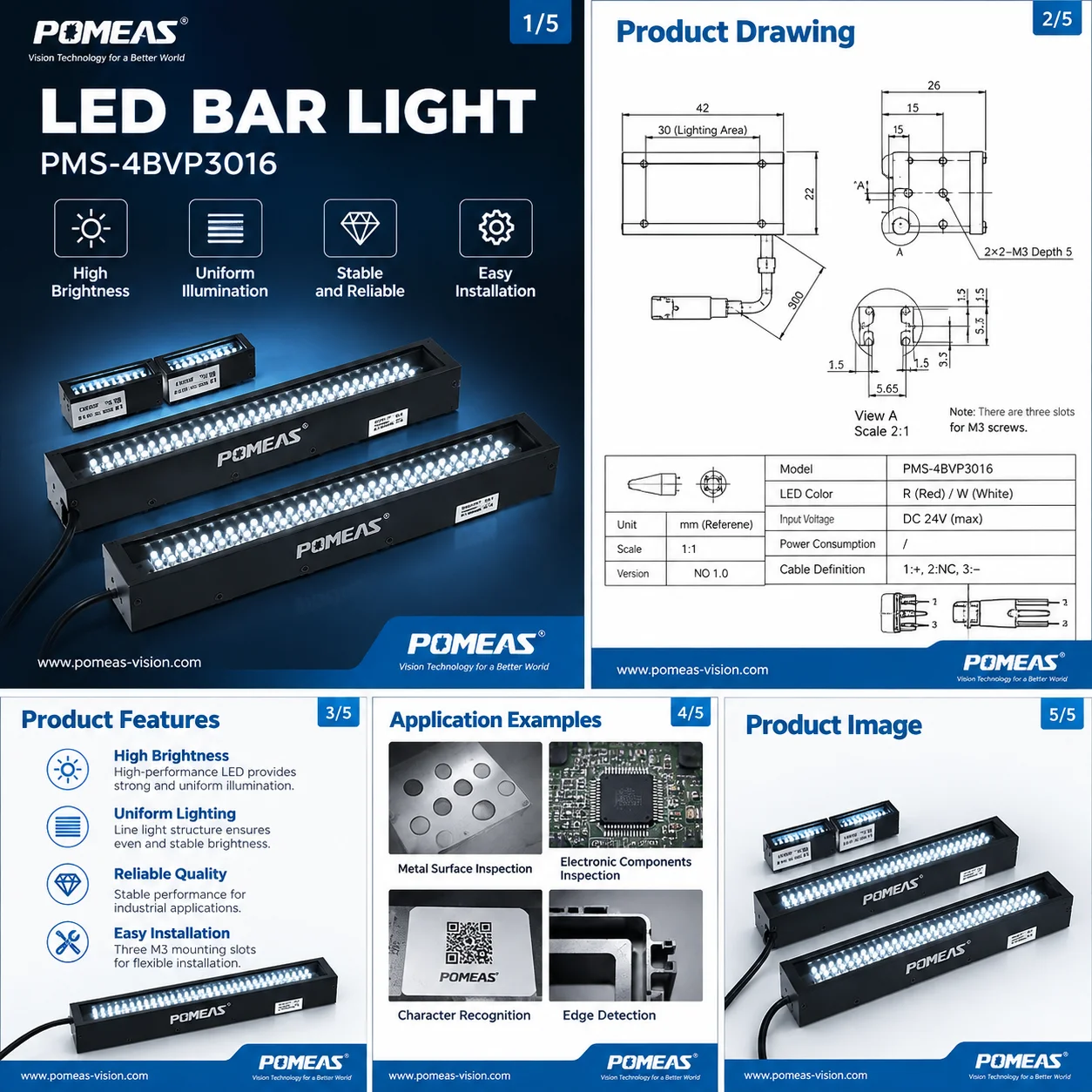

Technical Specifications
| Model | PMS-4BVP3016 |
|---|---|
| Product Type | LED Bar Light |
| LED Color | White (W) |
| Input Voltage | DC 24V (max) |
| Overall Dimensions | 42 × 22 × 26 mm |
| Lighting Area | 30 × 16 mm |
| Cable Length | 500 mm |
| Mounting | 2 × 2-M3, Depth 5 mm |
| Mounting Slots | Three slots for M3 nuts |
| Cable Definition | 1:+, 2:NC, 3:- |
| Scale | 1:1 |
| Version | NO 1.0 |
Typical Applications
PMS-4BVP3016 LED bar lighting can be integrated into industrial cameras, lenses and machine vision systems for a variety of inspection and automation applications.
- Surface inspection
- Electronic component inspection
- PCB inspection
- Character and code recognition
- Positioning and alignment
- Dimensional measurement
- Small component inspection
- Industrial automation equipment
Compact and Flexible Installation
The PMS-4BVP3016 features a compact housing with three mounting slots for M3 nuts. This structure allows the lighting angle and installation position to be adjusted according to the camera, lens, working distance and inspection area.
For machine vision applications, the final illumination result depends on the material surface, camera position, lens configuration, working distance and lighting angle. POMEAS can assist with lighting selection according to the actual inspection requirement.
