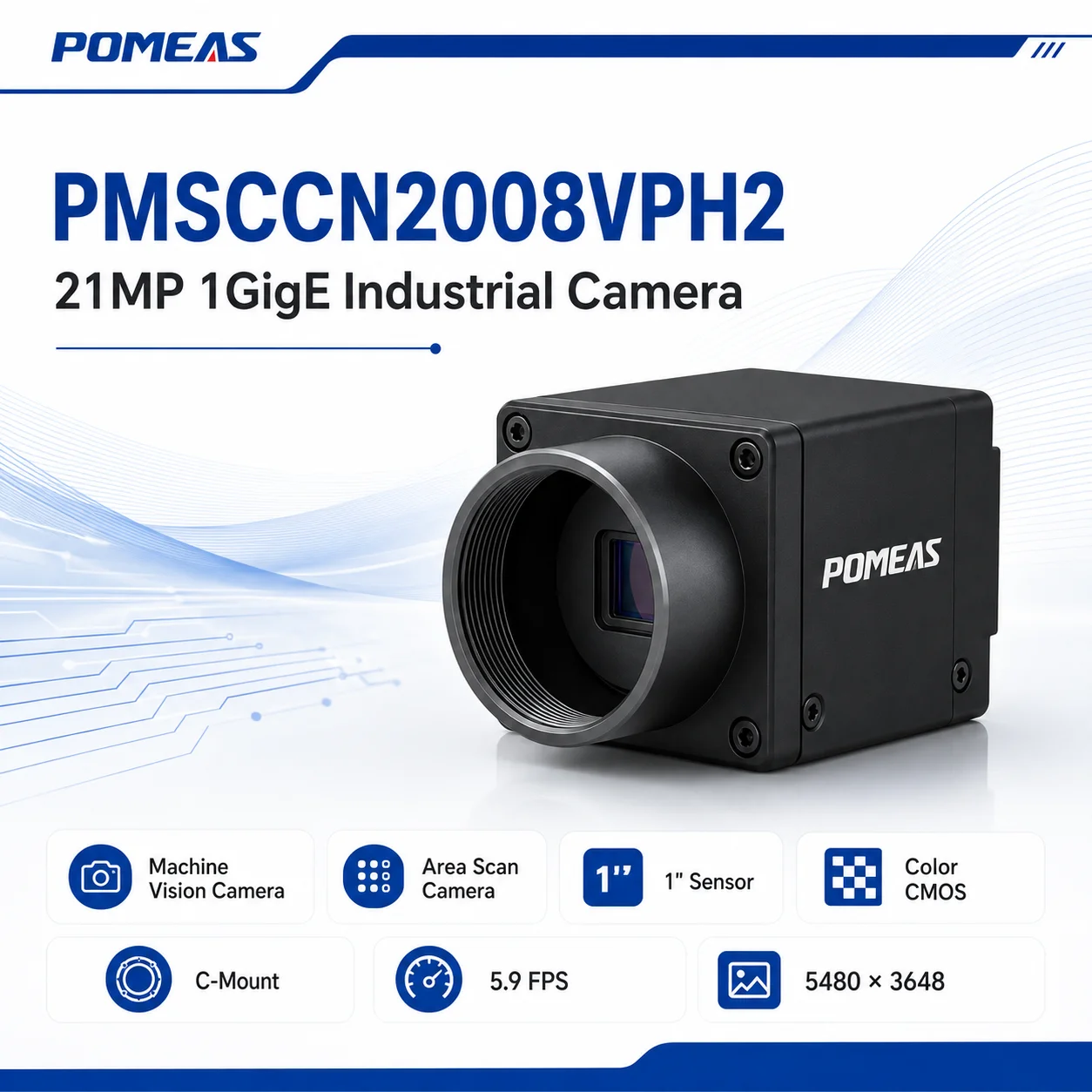

21MP 1 Inch Color GigE C-Mount Industrial Camera
The POMEAS PMSCCN2008VPH2 is a 21MP color industrial camera designed for machine vision, automated inspection and factory automation systems. It combines a 1-inch CMOS sensor, 5480 × 3648 resolution and a standard C-mount lens interface in a compact 29 × 29 mm camera housing.
The camera uses a 1GigE interface for stable long-distance image transmission and supports GigE Vision and GenICam standards. With PoE, hardware triggering, software triggering and industrial I/O functions, it can be integrated into a wide range of machine vision systems.
Key Features of the 21MP Industrial Camera
- 21MP color machine vision camera
- 5480 × 3648 high-resolution image output
- 1-inch CMOS image sensor
- Standard C-mount lens interface
- 1GigE Gigabit Ethernet communication
- Maximum network transmission distance of 100 metres
- PoE and DC 12–24 V power options
- Hardware trigger and software trigger support
- Compact 29 × 29 × 44.5 mm housing

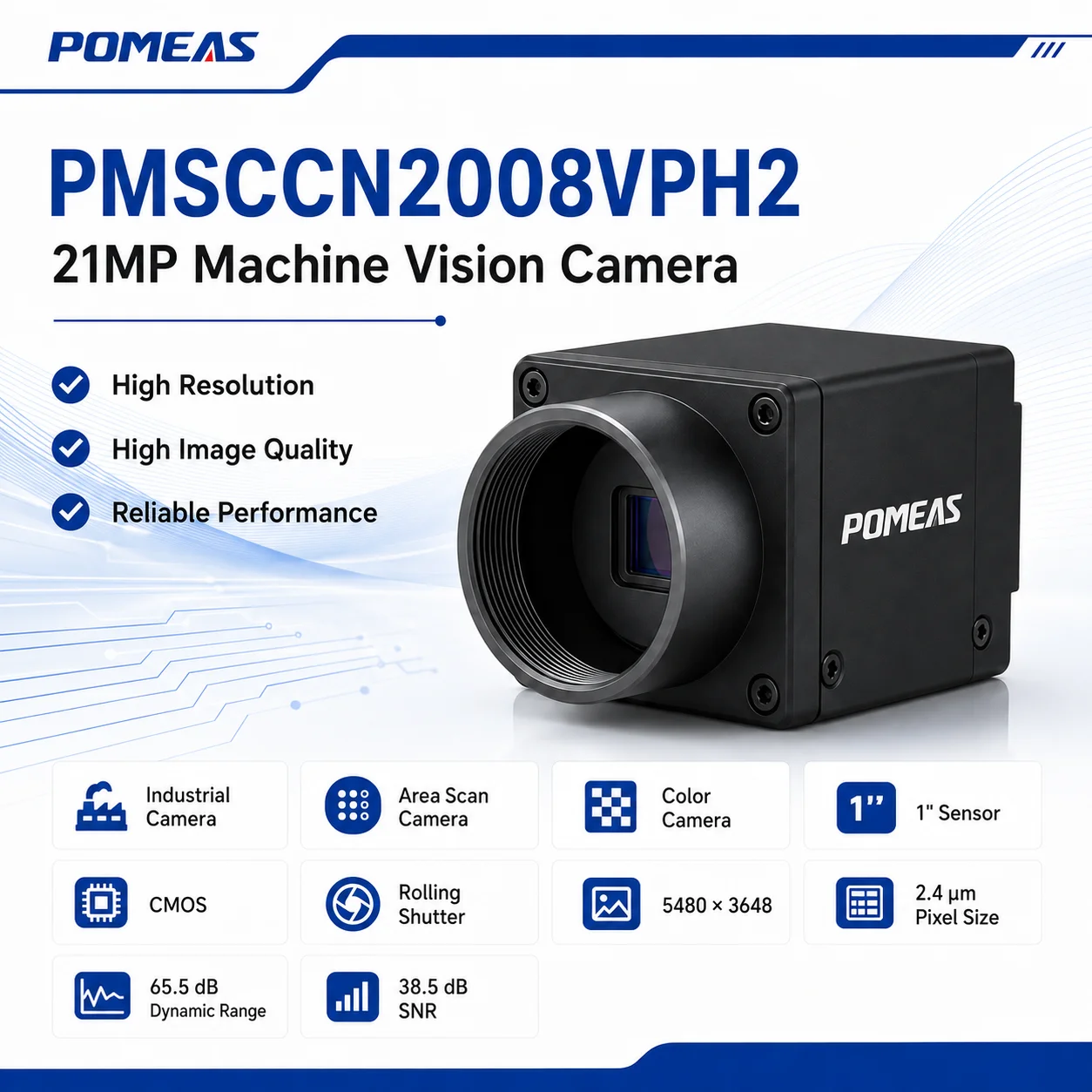

1 Inch Color CMOS Area Scan Camera
PMSCCN2008VPH2 is a color area scan camera with a 1-inch CMOS sensor and 2.4 μm × 2.4 μm pixel size. Its 5480 × 3648 image resolution provides approximately 21 megapixels for capturing small product features, characters, marks and surface details.
| Sensor Type | CMOS |
|---|---|
| Shutter Type | Rolling Shutter |
| Resolution | 5480 × 3648 |
| Sensor Format | 1 Inch |
| Pixel Size | 2.4 μm × 2.4 μm |
| Color Type | Color |
| Maximum Frame Rate | 5.9 FPS at 5480 × 3648 BayerRG8 |
High-Resolution Machine Vision Imaging
The 21MP resolution makes this industrial camera suitable for applications requiring a large field of view while retaining sufficient image detail. Typical tasks include electronic component inspection, PCB inspection, character recognition, positioning and product appearance inspection.
The camera provides a dynamic range of 65.5 dB and a signal-to-noise ratio of 38.5 dB. It also supports 12-bit image data for applications that require more grayscale information during image processing.

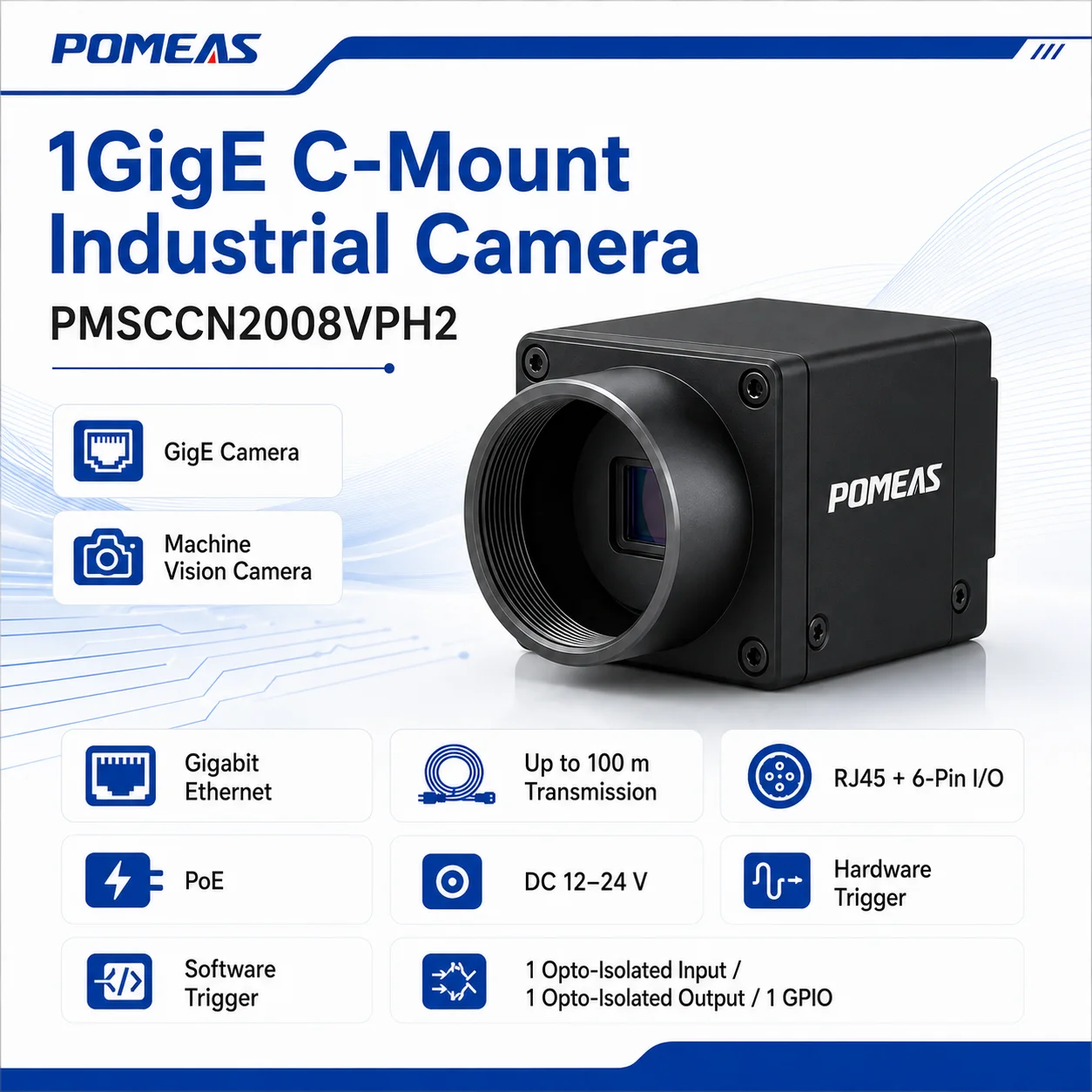

1GigE Industrial Camera with Long-Distance Transmission
The camera uses a 1000 Mbps Gigabit Ethernet interface with an RJ45 connector. A standard network cable can provide a transmission distance of up to 100 metres without a repeater, making the camera suitable for larger machines and production lines where the camera is installed away from the industrial computer.
As a GigE Vision camera, PMSCCN2008VPH2 can be integrated into compatible machine vision software and industrial image-processing platforms.
PoE, Power Supply and Industrial I/O
PMSCCN2008VPH2 supports both PoE power and a DC 12–24 V power input. Its typical power consumption is below 4 W at 24 VDC, helping reduce heat generation inside compact equipment.
The camera includes one opto-isolated input, one opto-isolated output and one non-isolated GPIO. It supports hardware triggering, software triggering and flash output for synchronising the camera with sensors, controllers and machine vision lighting.
| Data Interface | 1000 Mbps Ethernet |
|---|---|
| Network Connector | RJ45 |
| I/O Connector | 6-Pin Industrial Circular Connector |
| Power Supply | DC 12–24 V ±10% / PoE |
| Typical Power Consumption | Less Than 4 W at 24 VDC |
| Trigger Mode | Hardware Trigger / Software Trigger |
C-Mount Industrial Camera
The camera uses a standard C-mount interface and can be matched with compatible FA lenses, fixed focal length lenses, telecentric lenses and machine vision zoom lenses.
Lens selection should be based on the 1-inch sensor format, 2.4 μm pixel size, required field of view, working distance and inspection accuracy. A lens with insufficient image-circle coverage may cause corner shading, while insufficient optical resolution may limit the benefit of the 21MP camera resolution.

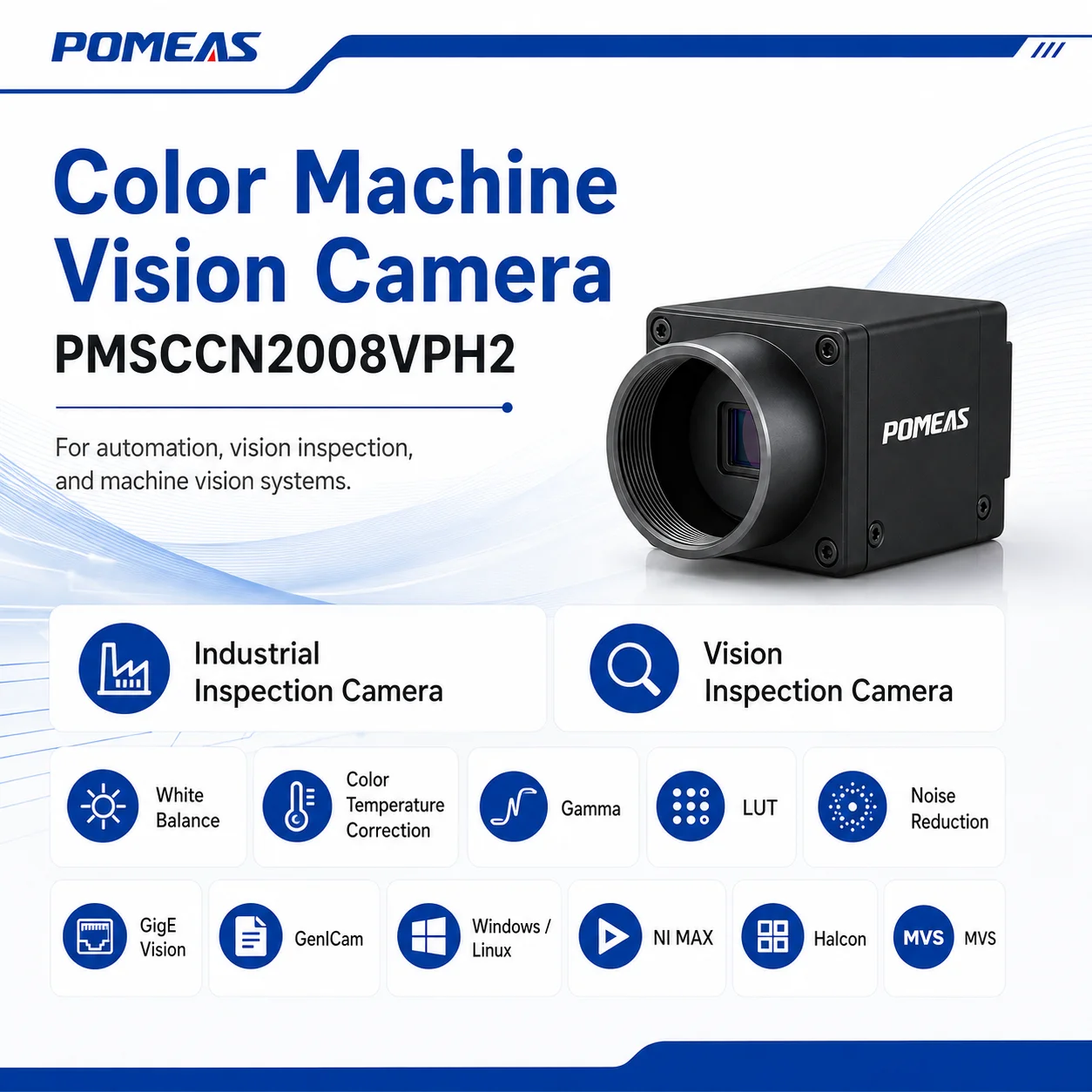

Image Processing and ISP Functions
The built-in ISP functions help users optimise color and image appearance for different inspection environments.
- White balance
- Color temperature correction
- Contrast and gamma adjustment
- LUT and sharpness adjustment
- Noise reduction and black level correction
- Flat field and defective pixel correction
- Horizontal and vertical image mirroring
Image Formats and Exposure Control
| Pixel Bit Depth | 12 Bit |
|---|---|
| Exposure Time | 45 μs–12 s |
| Exposure Mode | Automatic / Manual |
| Analog Gain | ×1–×16 |
| Output Formats | BayerRG8, BayerRG12Packed, Mono8, Mono12Packed and YUV |
| Binning | Supported |
| Image Buffer | 1 Gbit |

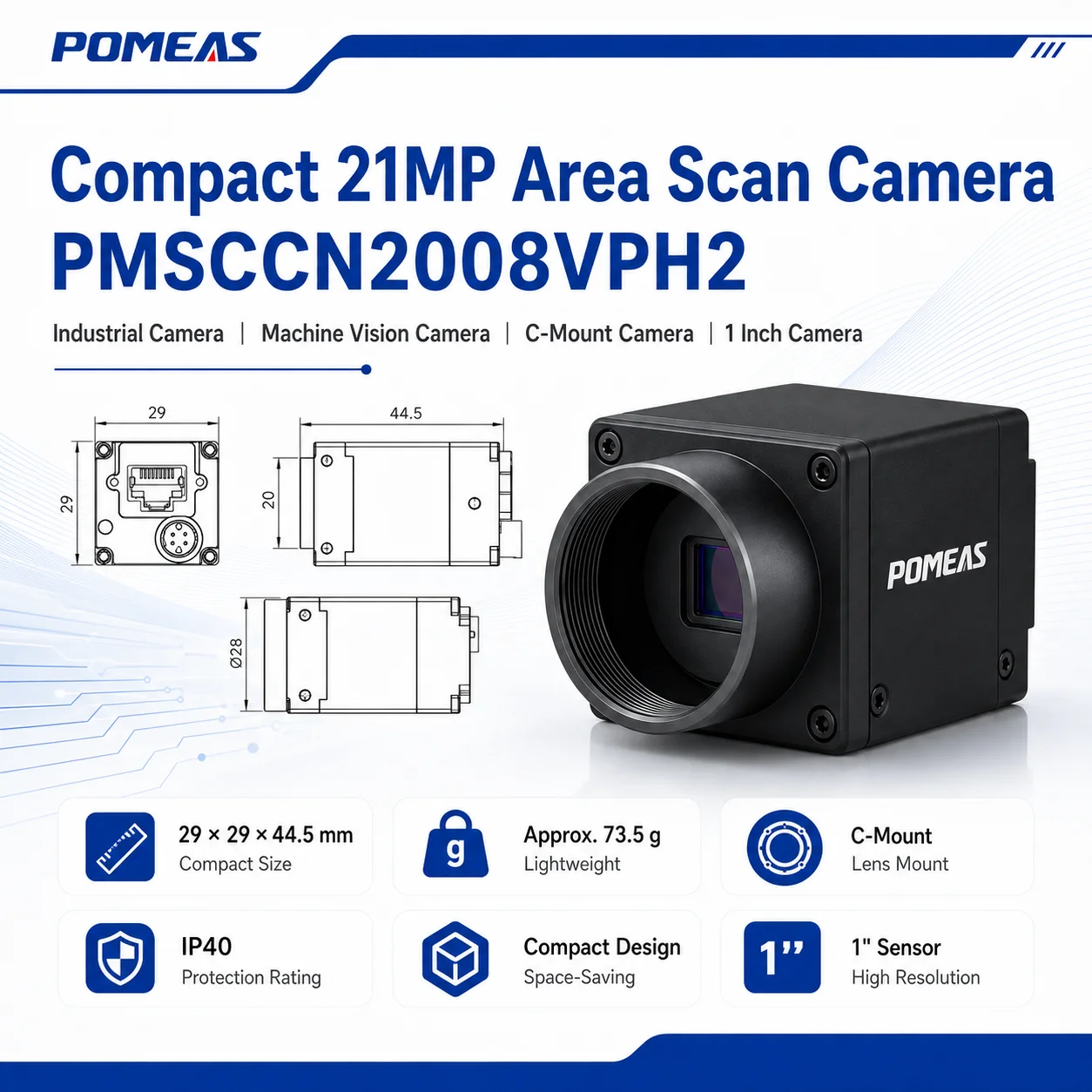

Compact Industrial Camera Housing
The camera body measures 29 × 29 × 44.5 mm, excluding the lens mount, and weighs approximately 73.5 g. Its compact housing is suitable for installation inside vision modules, automated equipment and inspection stations with limited space.
| Dimensions | 29 × 29 × 44.5 mm |
|---|---|
| Weight | Approx. 73.5 g |
| Protection Rating | IP40 |
| Operating Temperature | 10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 5%–90% RH, Non-Condensing |
Software and Machine Vision Compatibility
PMSCCN2008VPH2 supports GigE Vision V1.2 and GenICam protocols and can be used with Windows and Linux operating systems.
- Windows 7, Windows 10 and Windows 11
- PC Linux 32-bit and 64-bit
- NI MAX
- Halcon
- MV Viewer
- MVS
Typical Machine Vision Applications
- Electronic component inspection
- PCB and semiconductor inspection
- Industrial product appearance inspection
- Barcode, OCR and character recognition
- Product positioning and alignment
- Precision component observation
- Automated assembly inspection
- Factory automation vision systems
Selection Notes
This model uses a rolling shutter sensor. For applications involving fast-moving products, vibration or high-speed capture, the actual image result should be verified through sample testing.
Before selecting a lens, confirm the required field of view, working distance, inspection accuracy and installation space. Send us the camera application image or required field of view, and POMEAS can provide an initial camera and lens matching recommendation.
Frequently Asked Questions
Is PMSCCN2008VPH2 an industrial camera or a machine vision camera?
Both descriptions are applicable. It is a 21MP industrial area scan camera designed for machine vision, automated inspection and factory automation.
Does the camera support a 1-inch sensor format?
Yes. The camera uses a 1-inch CMOS sensor with a resolution of 5480 × 3648 and a pixel size of 2.4 μm.
What lens interface does the camera use?
The camera uses a standard C-mount interface. The selected lens should support a 1-inch sensor and provide sufficient optical resolution for 2.4 μm pixels.
Does the GigE camera support PoE?
Yes. It supports PoE as well as a DC 12–24 V power input.
Can the camera be triggered by external equipment?
Yes. The camera supports hardware triggering, software triggering, flash output, opto-isolated input and opto-isolated output.
