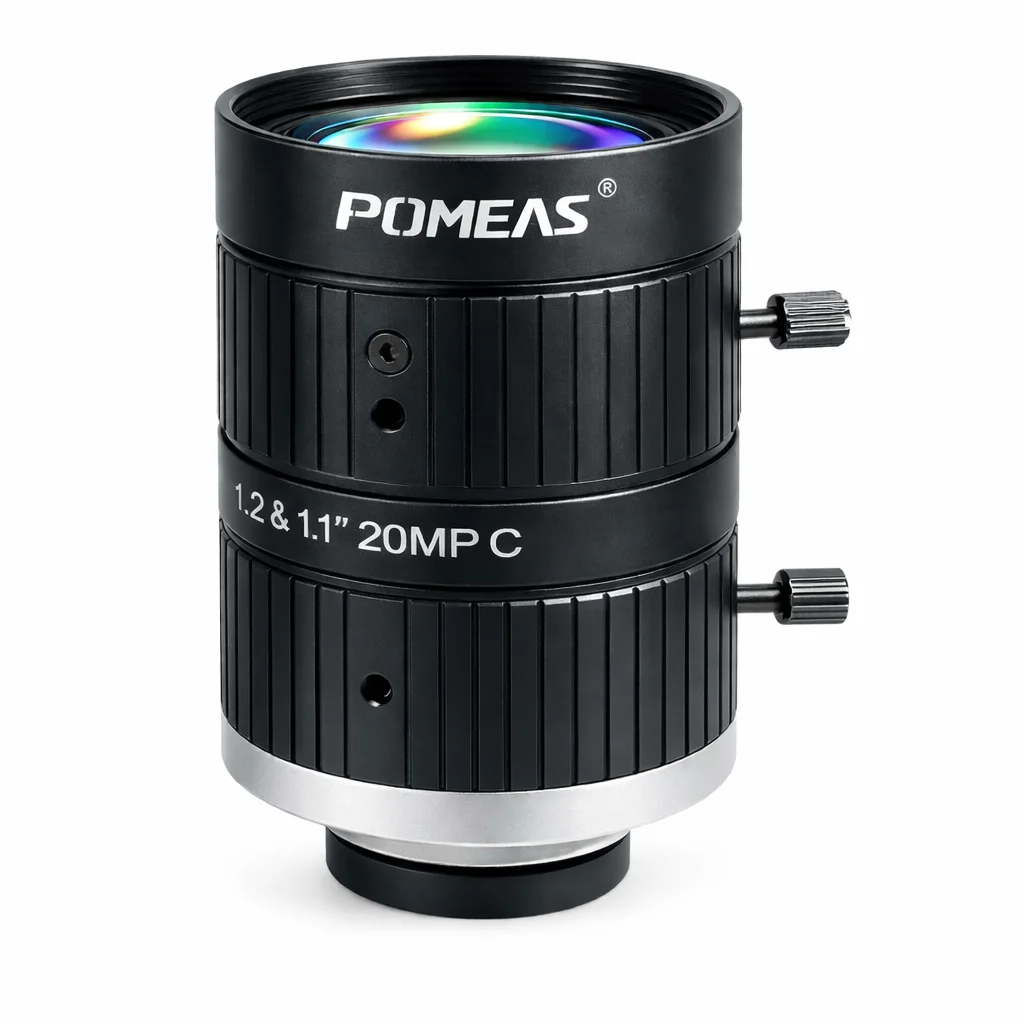

20MP 35mm C-Mount Machine Vision Lens for 1.1-Inch Cameras

Who Is This 35mm Machine Vision Lens Designed For?

This model is suitable for machine vision system integrators, automation equipment manufacturers and factory vision engineers who need a high-resolution C-Mount lens for medium-to-narrow field industrial imaging.

It is a practical candidate when the project requires:

• A 35mm focal length for increased target magnification
• Compatibility with 1.1-inch or smaller industrial camera sensors
• Up to 20MP imaging support
• Manual focus and iris settings that can be locked after setup
• Low-distortion imaging for inspection, OCR and positioning
• A compact lens for integration into automated equipment

Why Choose a 35mm Lens for Machine Vision?

Under the same sensor size and working distance, a 35mm lens provides a narrower field of view and greater target magnification than shorter focal lengths such as 16mm or 25mm. Compared with longer focal lengths such as 50mm or 75mm, it captures a wider inspection area and usually requires less installation distance for a similar field of view.

This makes 35mm a useful option when the system must inspect a moderate-to-small area while allowing fine edges, characters or defects to occupy more camera pixels.

• Electronic component and connector inspection
• PCB detail and assembly inspection
• Barcode, OCR and printed-mark recognition
• Robot guidance and component positioning
• Precision metal and molded-part inspection
• Surface inspection with a medium-to-narrow field of view

The correct focal length still depends on the active sensor dimensions, required horizontal and vertical field of view, available working distance and the smallest feature that must be detected.

For a wider field, compare the 25mm C-Mount machine vision lens. For a narrower field or longer installation distance, review the 50mm C-Mount machine vision lens or the 75mm C-Mount machine vision lens.

20MP Support for 1.1-Inch Industrial Cameras

A high-resolution industrial camera requires a lens that can transmit sufficient optical detail. If the lens resolution is too low, adding more camera pixels may not improve the actual inspection result.

The PMS-LFPHM-3528M(B) is specified for 20MP imaging and a maximum sensor format of 1.1 inch, with an effective image size of 17.6mm. This combination is intended for high-resolution systems that require large sensor coverage and increased target magnification.

Final system performance also depends on camera pixel size, field of view, working distance, object contrast, lighting, exposure time and image-processing settings. Camera-lens compatibility should be verified before production approval.

Reference Field of View at 0.25m Object Distance

The following field-angle and object-field data are specified for a 1-inch sensor at an object distance of 0.25m. The maximum supported sensor format is 1.1 inch, but the values below should not be treated as a direct 1.1-inch field calculation.

The actual field of view changes with the camera's active sensor dimensions, working distance and focus position. Provide the exact camera model and required horizontal and vertical field of view before final lens selection.

Low Distortion for More Reliable Image Processing

Optical distortion changes the apparent shape and position of features near the image edge. This may affect edge detection, component positioning, OCR, shape analysis and software calibration.

The specified distortion of the PMS-LFPHM-3528M(B) is 0.30%. This makes the lens suitable for general industrial inspection, recognition and positioning applications that require a narrower field and more target detail.

This is a conventional FA lens rather than a telecentric lens. For tight dimensional tolerances or objects with significant height variation, a C-Mount telecentric lens is generally the safer optical solution.

Lockable Focus and Iris for Stable Equipment Setup

The lens provides manual focus and manual iris adjustment, with separate locking mechanisms for both controls. After the image has been adjusted, the locks help reduce unintended changes during equipment operation, transportation or maintenance.

• Focus range: 0.2m to infinity
• Aperture range: F2.8-F16
• Focus control: Manual with locking mechanism
• Iris control: Manual with locking mechanism
• Mount: C-Mount

A wider aperture allows more light into the camera, while a smaller aperture can increase depth of field. The final setting should be selected according to lighting intensity, exposure time, object movement and required image detail.

Technical Specifications

Typical Machine Vision Applications

• PCB and electronic component inspection
• Connector, terminal and assembly inspection
• Part presence and orientation detection
• Barcode, OCR and printed-mark recognition
• Robot guidance and component positioning
• Precision hardware and machined-part inspection
• Surface inspection of molded or metal parts
• General industrial image acquisition using 1.1-inch or smaller cameras

When This Lens Is a Good Fit

• Your camera uses a C-Mount interface
• Your sensor format is 1.1 inch or smaller
• Your application requires a medium-to-narrow field of view
• Your camera resolution is up to 20MP
• Your working distance is at least approximately 0.2m
• Manual focus and iris adjustment are acceptable
• The system requires locking screws for stable long-term setup

When to Consider Another Lens

• A substantially wider field of view is required
• A narrower field or greater target magnification is required
• The sensor is larger than 1.1 inch
• The object distance is shorter than the specified focus range
• Motorized focus, autofocus or automatic iris control is required
• Object height variation must not change image magnification
• The project requires high-accuracy dimensional measurement with minimal perspective error

Information Required for Lens Selection

To confirm whether this lens is suitable, please provide:

1. Industrial camera model
2. Sensor size and active dimensions
3. Camera resolution and pixel size
4. Required horizontal and vertical field of view
5. Available working distance
6. Smallest feature or defect to detect
7. Required positioning or measurement accuracy
8. Object material, color and surface reflectivity
9. Lighting type and wavelength
10. Available installation space

Manufacturer-Direct Optical and Application Support

POMEAS provides manufacturer-direct communication for optical selection, camera-lens matching, sample evaluation, quality review and repeat-order support. This helps customers evaluate the complete imaging system rather than choosing a lens only by focal length or megapixel rating.

• Direct review of camera, field of view and working distance
• Application-based lens selection before quotation
• Support for camera, lens and lighting coordination
• Sample testing and compatibility verification
• Quality review and batch-consistency communication
• Technical support for repeat-order automation projects

Reduce Selection Risk Before Ordering

Selecting a machine vision lens by focal length alone can result in an incorrect field of view, insufficient sensor coverage or inadequate image sampling. Before ordering, POMEAS can review the camera model, field of view, working distance, smallest feature and inspection accuracy to confirm whether the PMS-LFPHM-3528M(B) is a suitable option.

Frequently Asked Questions

Can this lens support a 1.1-inch industrial camera?

Yes. The specified maximum sensor format is 1.1 inch, with a 17.6mm effective image size. Final edge image quality should still be confirmed with the exact camera model.

Is the published field-of-view data based on a 1.1-inch sensor?

No. The datasheet's field-angle and object-field values are specified for a 1-inch sensor at an object distance of 0.25m.

How does a 35mm lens compare with a 25mm or 50mm lens?

At the same sensor size and working distance, 35mm provides a narrower field and more target magnification than 25mm, but a wider field than 50mm.

Can the focus and iris settings be locked?

Yes. The lens provides separate manual focus and iris locking mechanisms to help maintain the selected settings after commissioning.

Is this lens suitable for precision dimensional measurement?

It can support general inspection and calibrated measurement tasks, but it is not telecentric. For tight tolerances or objects with height variation, a telecentric lens is usually more appropriate.
