12MP USB3.0 Color Industrial Camera, 35.9 fps, C-Mount
12MP USB3.0 color area scan camera with 4000×3000 resolution, 35.9 fps, 1/1.7″ sensor, C-mount, GenICam and a compact 29 mm housing.
SKU:
12 MP USB3.0 INDUSTRIAL CAMERA

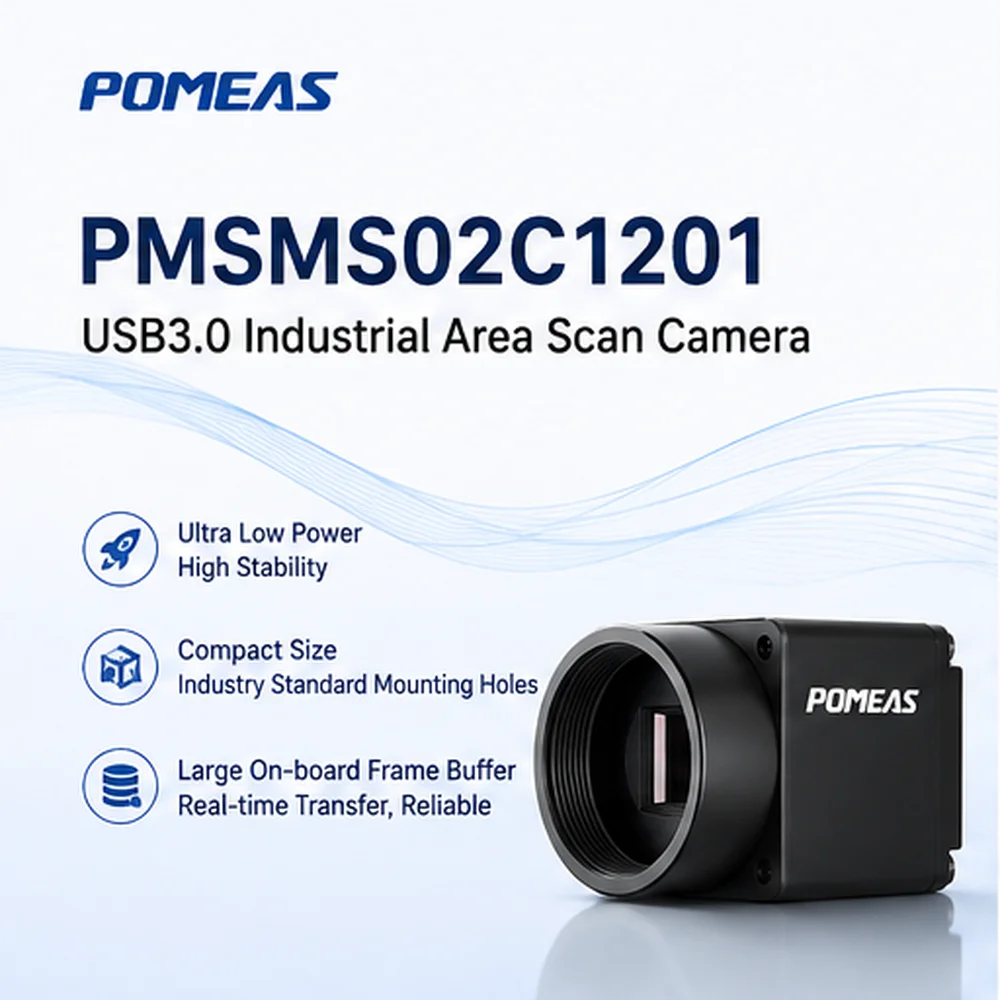

Compact Color Area Scan Camera for Machine Vision
The PMSMS02C1201 is a compact USB3.0 color industrial camera providing 4000 × 3000 resolution at up to 35.9 fps. Its small 29 mm cubic housing, C-mount interface and open machine-vision compatibility make it suitable for inspection, positioning, OCR and automated imaging systems.
12 MPResolution
35.9 fpsMaximum Frame Rate
1/1.7″Color Sensor
1.85 μmPixel Size
USB3.0Data Interface
C-MountLens Mount
High-Resolution Color Imaging
With a resolution of 4000 × 3000 pixels, the camera captures detailed color images for component inspection, printed-mark recognition, surface analysis and precision imaging.
- 4000 × 3000 image resolution
- 1/1.7-inch color sensor
- 1.85 μm pixel size
- 12-bit image depth
- Maximum frame rate of 35.9 fps
- 72 dB dynamic range
- 36.7 dB signal-to-noise ratio

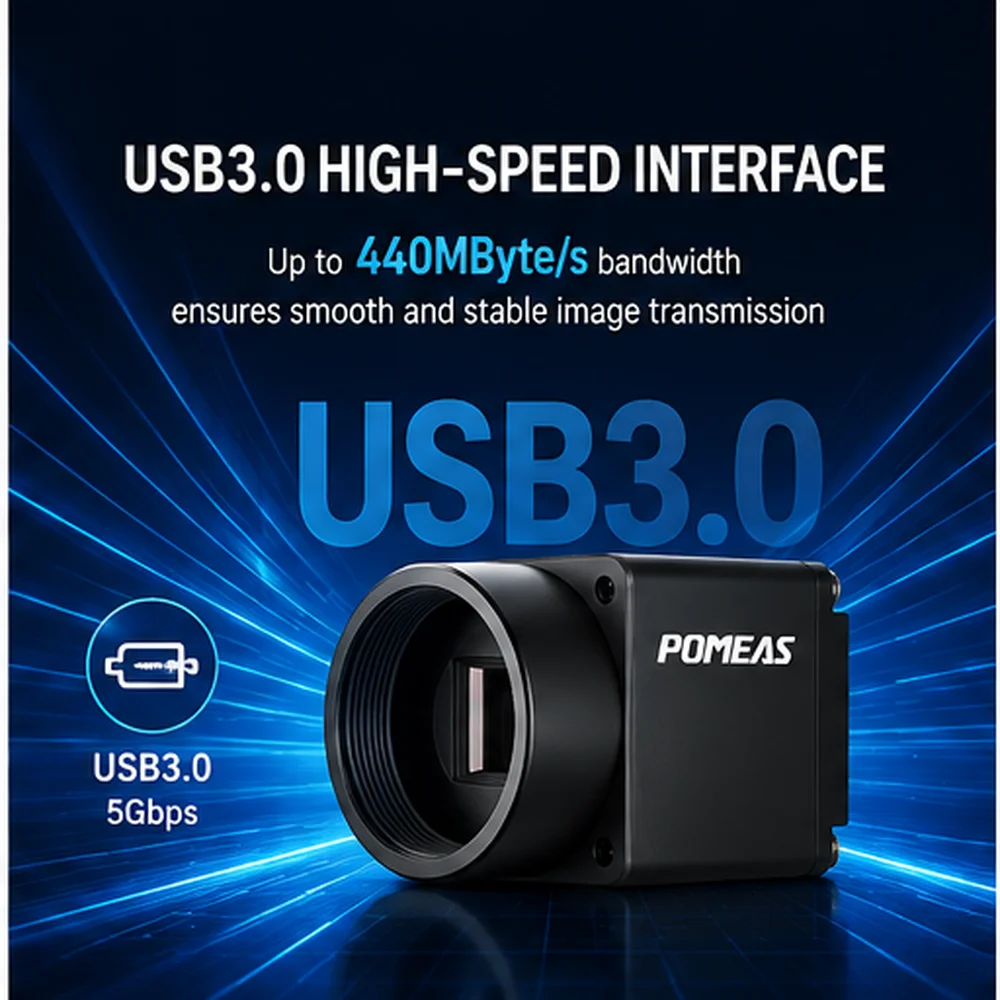

Stable USB3.0 Image Transmission
The USB3.0 interface supports high-speed image transmission, while the built-in frame buffer helps maintain stable and reliable real-time data transfer.
- USB3.0 high-speed data interface
- Communication bandwidth up to 440 MByte/s

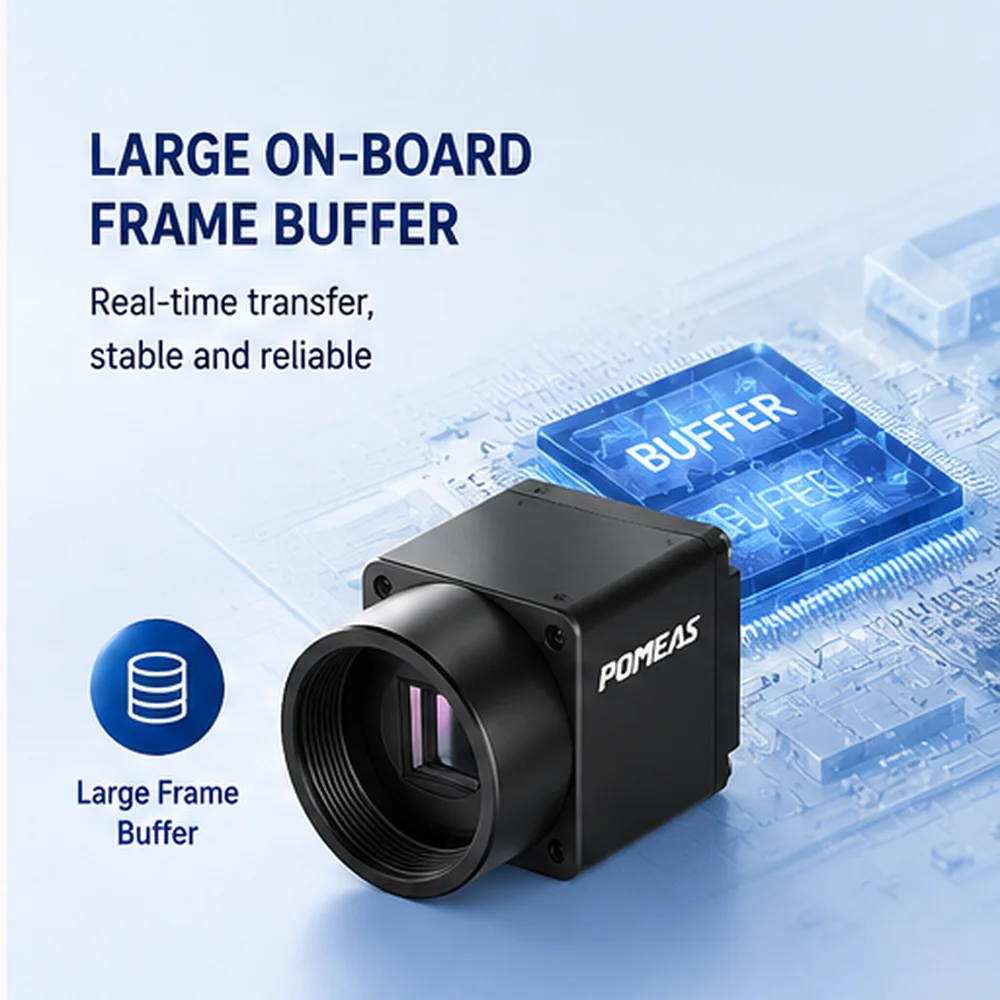

- Large onboard frame buffer
- USB 5 V power supply
- Typical operating power of 1.9 W
- Typical standby power of 1.2 W

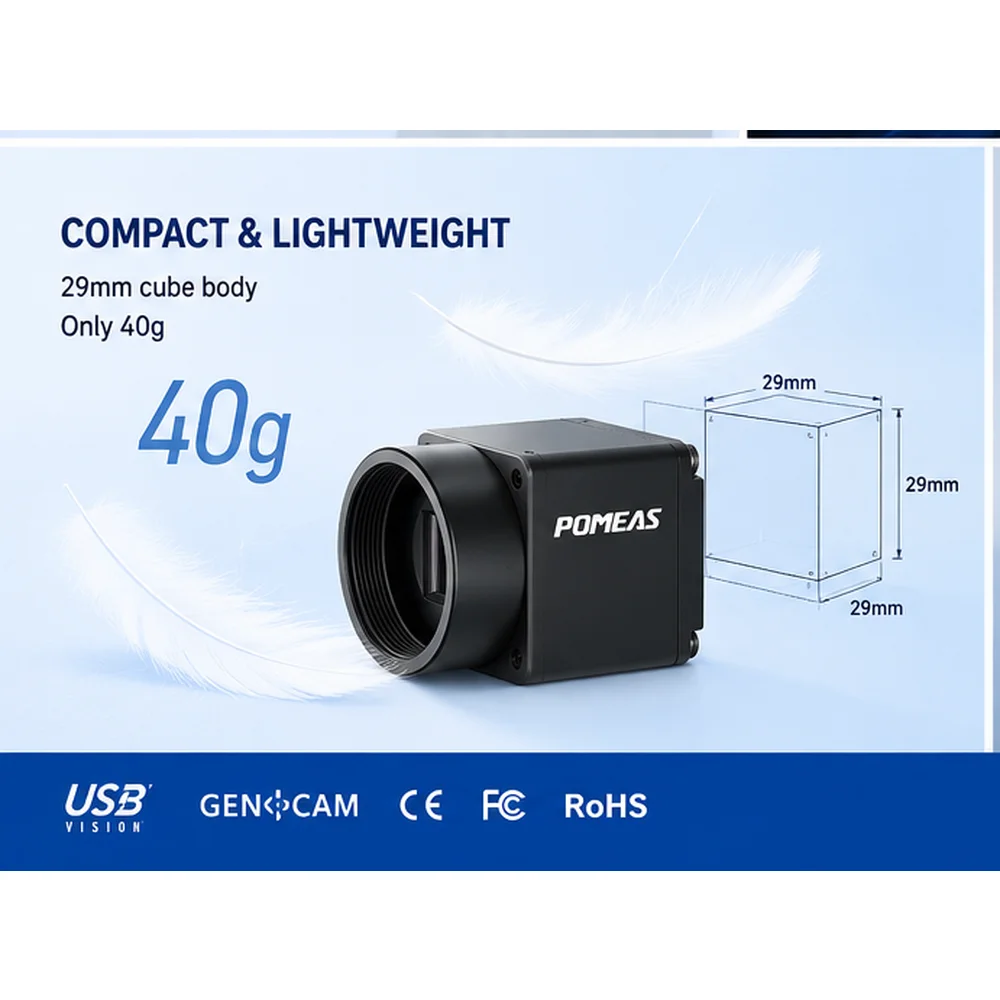

Compact Design for Easy Integration
The 29 × 29 × 29 mm housing weighs approximately 40 g, allowing the camera to be integrated into compact inspection stations, robotic systems and automated production equipment.
- Camera dimensions: 29 × 29 × 29 mm
- Weight: approximately 40 g
- Industry-standard mounting holes
- Standard C-mount lens interface
- Operating temperature: −10°C to +50°C
- Protection rating: IP30
Trigger and Strobe Control
The camera supports both software and isolated hardware triggering. A dedicated strobe output enables synchronization with an external machine-vision light source.
- Software trigger and hardware trigger
- Isolated trigger input
- Isolated general-purpose output
- Strobe output for lighting synchronization
- Trigger input level: low 0–1 V, high 5–24 V
- Optocoupler output current limit: 20 mA
Software and Protocol Compatibility
The camera supports standard machine-vision protocols, helping system integrators connect it to commonly used inspection and image-processing software.
USB3 VisionGenICamHALCONLabVIEWOpenCV
Imaging Specifications
| Model | PMSMS02C1201 |
|---|---|
| Resolution | 4000 × 3000 |
| Minimum ROI | 32 × 32, increment 8 |
| Sensor Format | 1/1.7 inch |
| Color Mode | Color |
| Shutter Type | Rolling shutter |
| Pixel Size | 1.85 μm |
| Active Sensor Area | 7.40 × 5.55 mm |
| Maximum Frame Rate | 35.9 fps |
| ADC Bit Depth | 12-bit |
| Dynamic Range | 72 dB |
| Signal-to-Noise Ratio | 36.7 dB |
| Spectral Response | 390–650 nm |
| Exposure Time | 9 μs–30.602632 s |
| Gain Range | 1×–16×, 0.125× step |
| Pixel Formats | MONO8, MONO16, BGR24, RAW8, RAW16 |
| Image File Formats | RAW, BMP, JPEG, PNG |

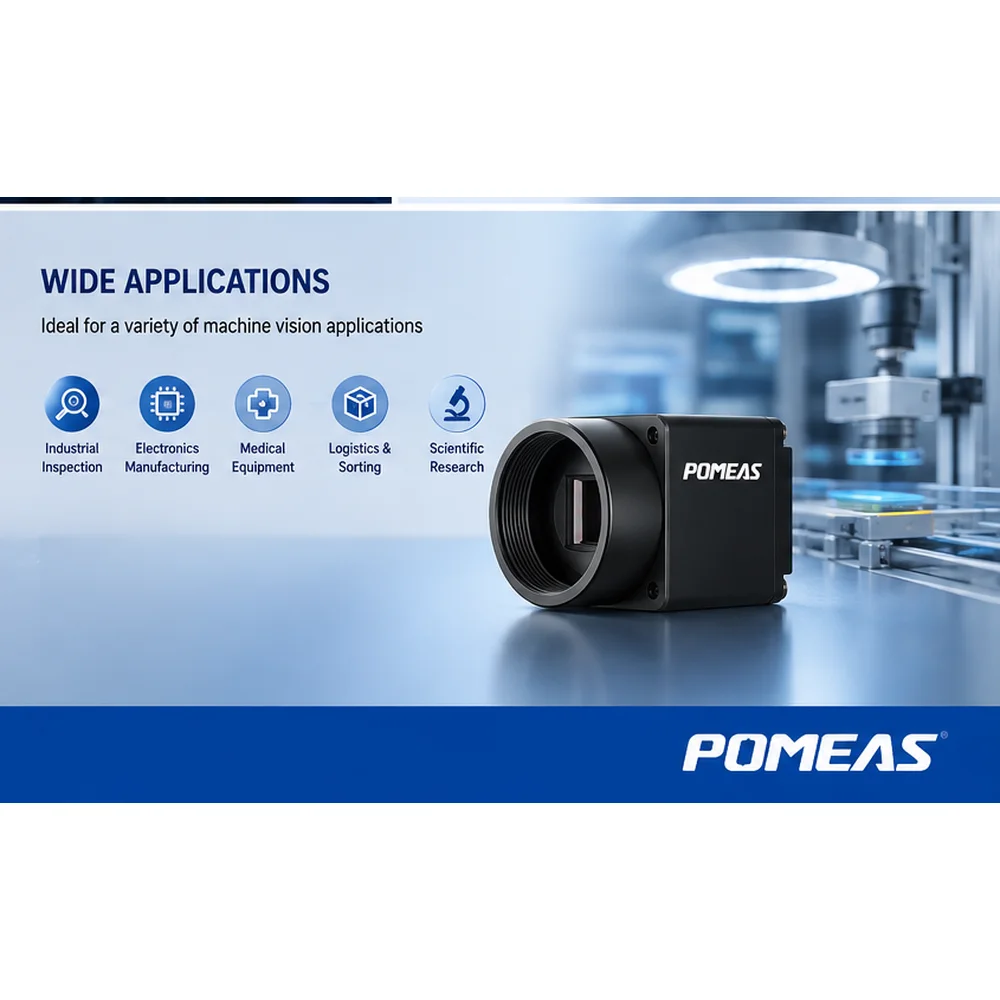

Typical Machine Vision Applications
OCR and Mark Inspection
Printed characters, labels, codes, production marks and identification information.
Electronics Inspection
PCB, connector, electronic component and assembly condition inspection.
Dimensional Imaging
Measurement and positioning tasks when used with suitable optics, lighting and system calibration.
Recommended System Configuration
CameraPMSMS02C1201
Lens12 MP C-mount lens
LightingSelected for the target surface
ConnectionUSB3.0 cable and I/O cable
SoftwareGenICam-compatible vision software
For reliable image quality, select a C-mount lens capable of resolving 12 MP across a 1/1.7-inch sensor. The final lens and lighting configuration should be selected according to field of view, working distance, target speed and the smallest feature that must be detected.
Selection Notes
- The camera uses a rolling shutter and is best suited to static objects or controlled-motion applications.
- For faster motion, use a short exposure time and synchronized strobe lighting to reduce image distortion and motion blur.
- Sustainable frame rate depends on ROI, pixel format, exposure, USB bandwidth and computer performance.
- Dimensional measurement requires suitable lens calibration and accuracy verification with a reference standard.
- The IP30 housing is intended for protected industrial installations rather than wet or heavily contaminated areas.
Frequently Asked Questions
Does the camera support hardware triggering?
Yes. It supports software triggering and isolated hardware trigger input.
Which lens mount does it use?
The camera uses a standard C-mount. A lens designed for a 1/1.7-inch sensor and 12 MP resolution is recommended.
Which software platforms are compatible?
It supports USB3 Vision and GenICam and is compatible with HALCON, LabVIEW and OpenCV.
How is the camera powered?
It is powered through USB 5 V. Typical operating power is approximately 1.9 W.
Is it suitable for high-speed moving objects?
The camera uses a rolling shutter. Target speed, exposure time and strobe synchronization should be evaluated before selection for high-speed motion.
