12.6MP 1.1" Monochrome GigE Global Shutter Industrial Camera

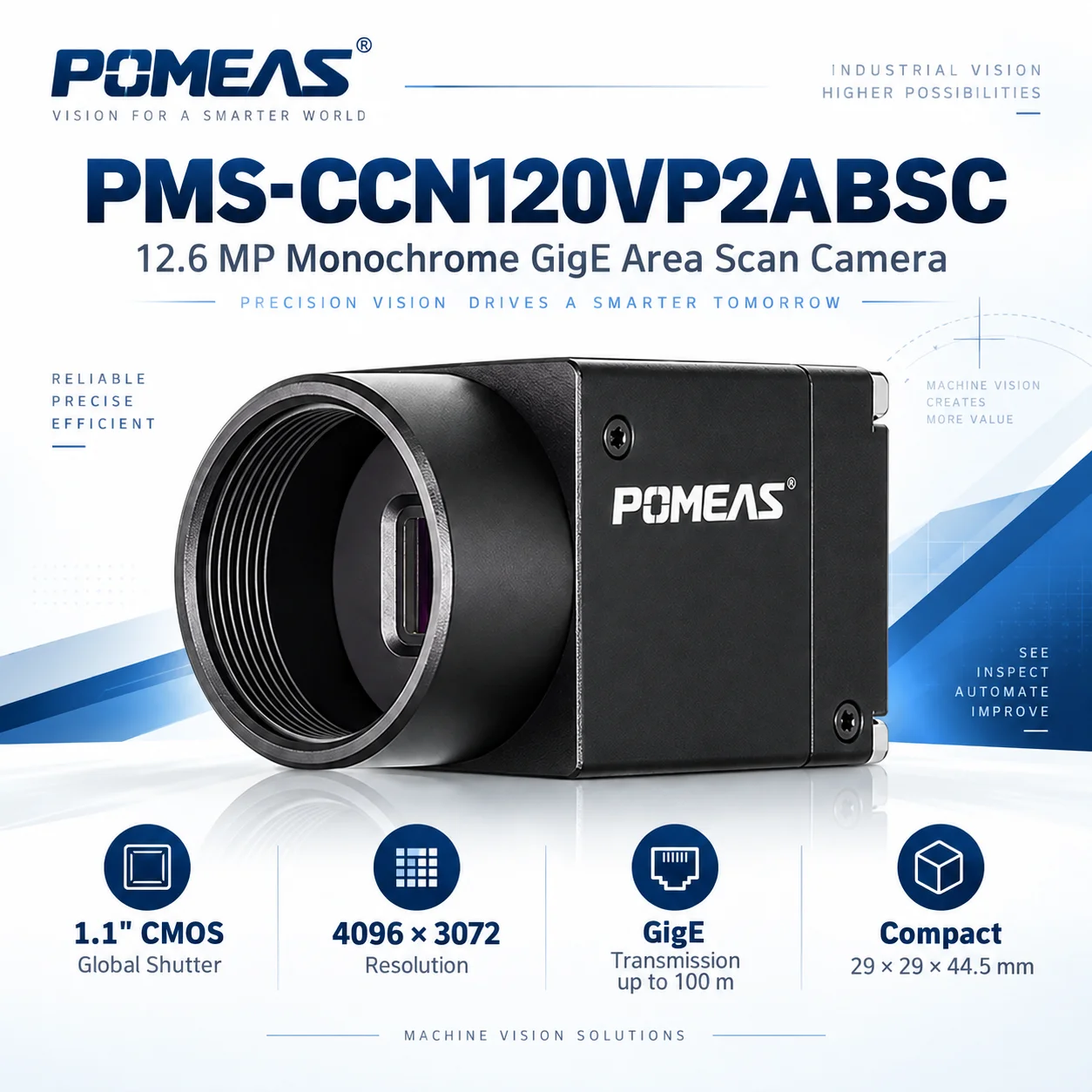

PMS-CCN120VP2ABSC 12.6MP Monochrome GigE Industrial Camera

The POMEAS PMS-CCN120VP2ABSC is a high-resolution 12.6 MP monochrome GigE area scan camera designed for industrial machine vision and precision imaging applications.

Equipped with a 1.1-inch CMOS global shutter sensor, the camera delivers a resolution of 4096 × 3072 with a pixel size of 3.4 μm × 3.4 μm. Its monochrome imaging architecture makes it suitable for applications requiring stable grayscale contrast and accurate edge acquisition.

Key Features

• 12.6 MP high-resolution monochrome industrial camera
• 1.1" CMOS global shutter sensor
• 4096 × 3072 image resolution
• 3.4 μm × 3.4 μm pixel size
• 9.4 fps at 4096 × 3072 MONO8
• 67.9 dB dynamic range
• 39.5 dB signal-to-noise ratio
• 12-bit image output
• Exposure time from 1 μs to 10 s
• GigE interface with transmission distance up to 100 m
• Supports 12–24 VDC and PoE power supply
• 1 Gbit built-in frame buffer
• Hardware trigger and software trigger
• Standard C-Mount lens interface
• GigE Vision V1.2 and GenICam compatible

High-Resolution Monochrome Imaging

The PMS-CCN120VP2ABSC combines a large 1.1-inch sensor with 3.4 μm pixels and 12.6 MP resolution, providing detailed image acquisition for machine vision systems.

Its global shutter architecture captures the entire frame simultaneously, making it suitable for imaging moving objects and triggered industrial inspection processes.

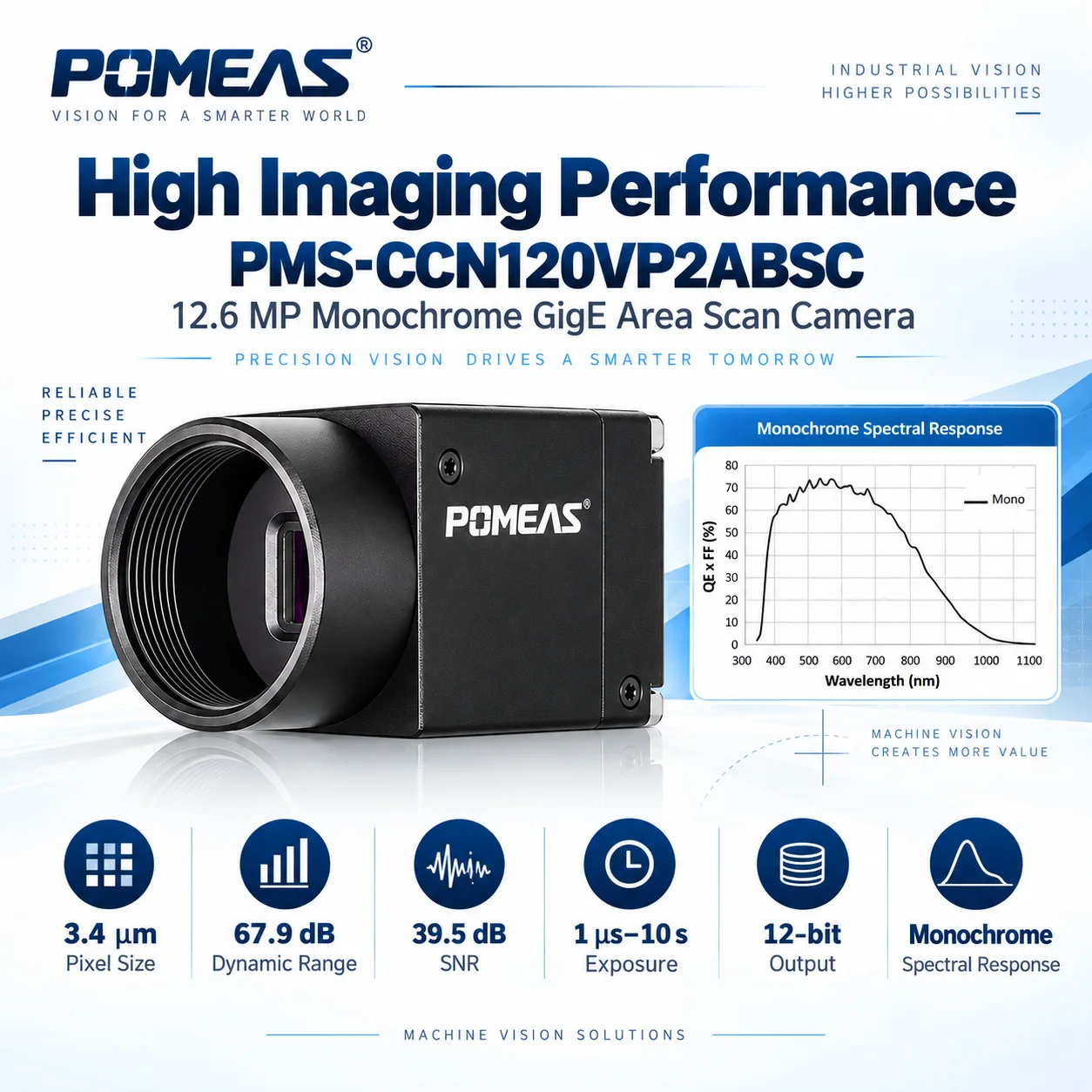

Imaging Performance

Flexible Image Acquisition

The camera supports automatic exposure, manual exposure, pulse-width controlled exposure and multiple exposure modes. Image output formats include MONO8 and MONO12Packed.

SUM, BIN and SKIP pixel processing modes are supported for flexible resolution, sensitivity and acquisition configuration. Hardware and software triggering are also available for integration with automated inspection systems.

Advanced ISP Functions

Built-in image processing functions include contrast adjustment, LUT, gamma correction, sharpening, noise reduction, flat-field correction, defective pixel correction, multi-parameter exposure, and horizontal/vertical image mirroring.

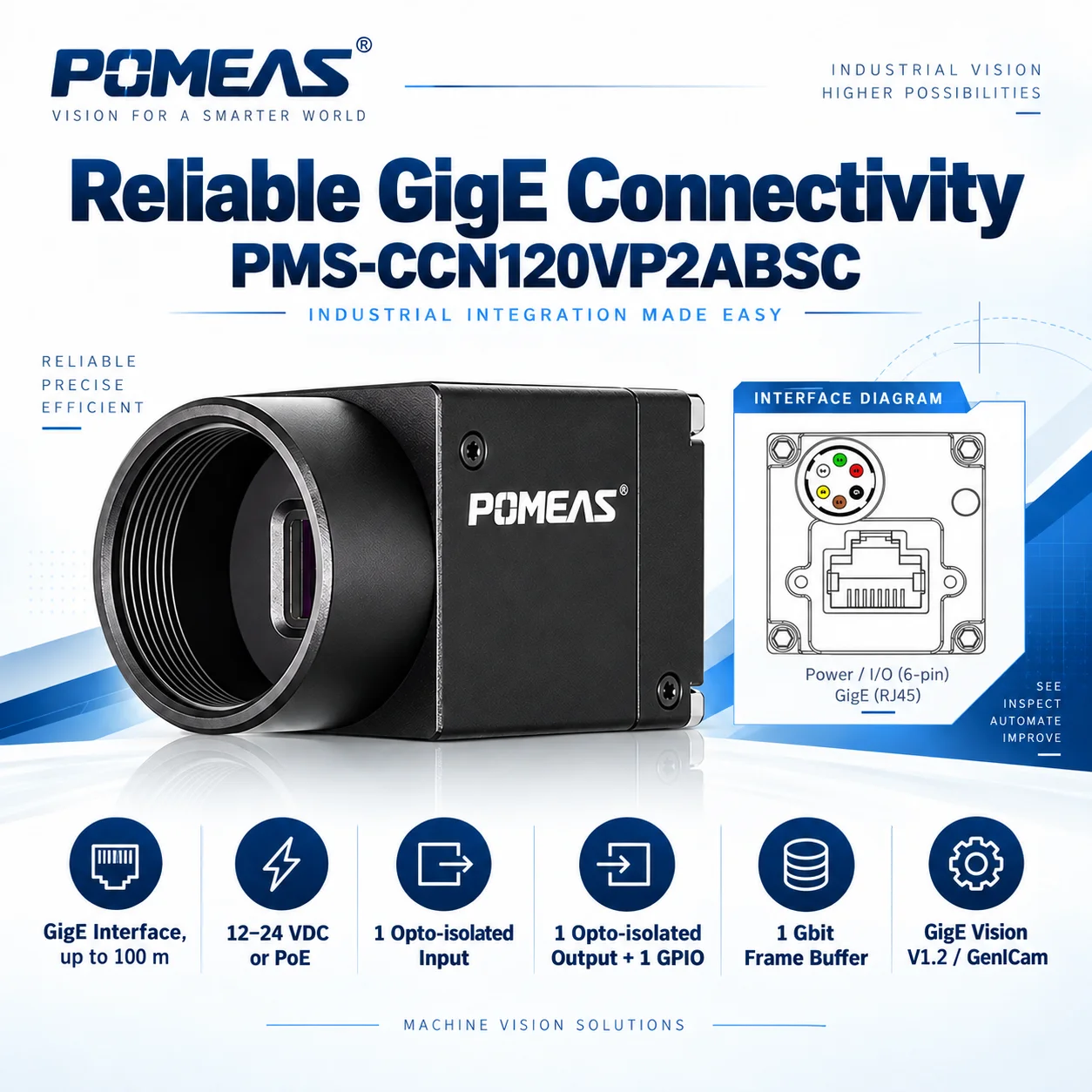

GigE Interface & Long-Distance Transmission

The PMS-CCN120VP2ABSC uses a 1000 Mbps GigE interface with an industrial RJ45 connector. GigE communication allows transmission distances of up to 100 meters without a repeater, making the camera suitable for distributed machine vision systems and industrial production lines.

The camera supports both 12–24 VDC power input and PoE, simplifying system wiring and installation.

Electrical & I/O Specifications

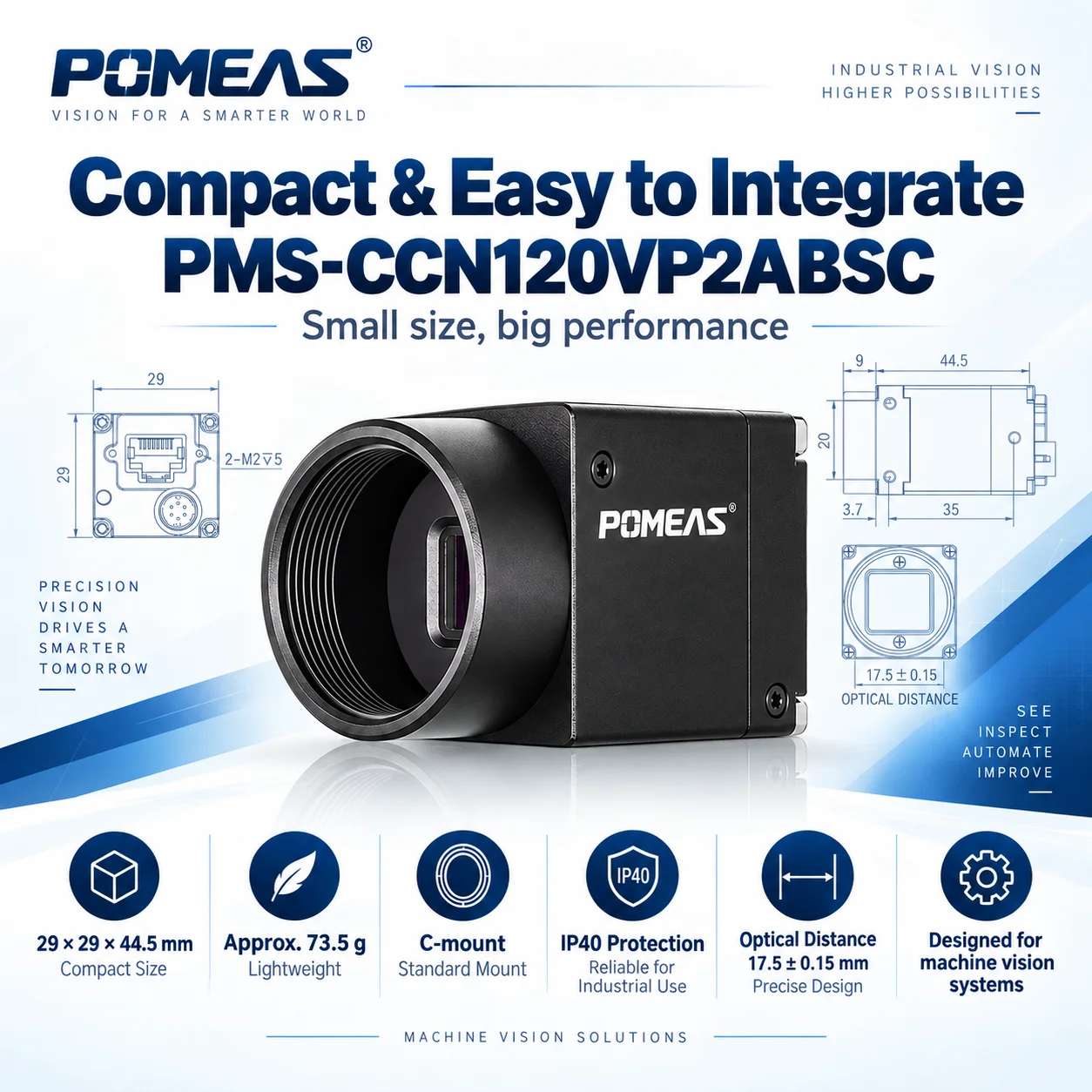

Compact Industrial Design

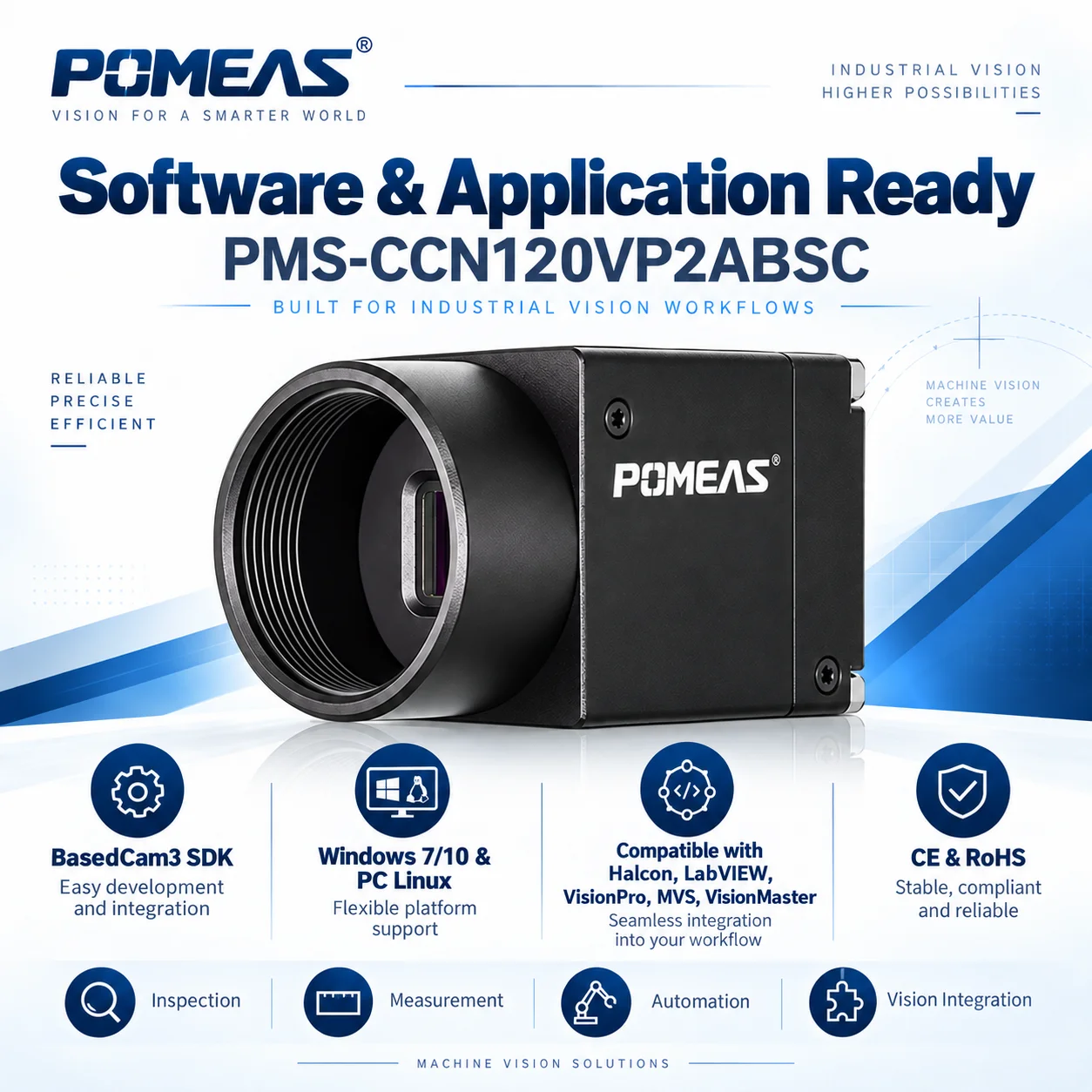

Software & Compatibility

The camera is supplied with the BasedCam3 SDK and related demonstration and calibration software. It supports GigE Vision V1.2 and GenICam standards for integration into common machine vision platforms.

• Windows 7 / 10, 32-bit and 64-bit
• PC Linux, 32-bit and 64-bit
• NI MAX
• Halcon
• LabVIEW
• VisionPro
• MVS
• VisionMaster

Typical Applications

• Precision dimensional inspection
• Telecentric vision measurement systems
• Surface and defect inspection
• Machine vision positioning
• Automated optical inspection
• Industrial image acquisition
• High-precision edge detection

Why Choose PMS-CCN120VP2ABSC?

With its combination of 12.6 MP resolution, 1.1-inch global shutter sensor, monochrome imaging, GigE connectivity, PoE support and compact 29 mm × 29 mm housing, the PMS-CCN120VP2ABSC provides a flexible camera platform for industrial machine vision systems requiring high-resolution and stable image acquisition.
