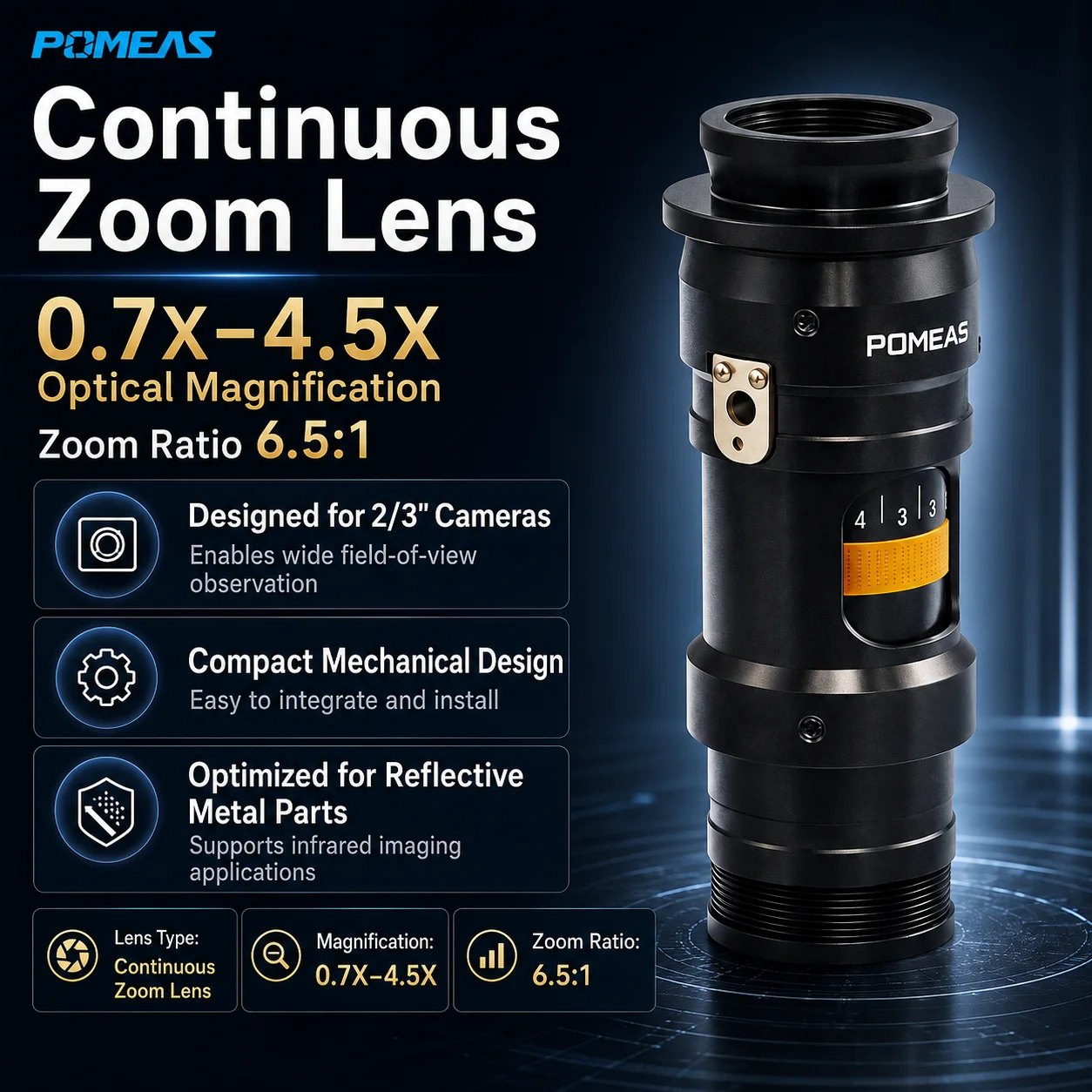

LZ-650100DS9 6.5X Electronic Feedback Zoom Lens

The POMEAS LZ-650100DS9 is a 6.5X manual continuous zoom lens equipped with RS232 magnification position feedback. Its 0.7X–4.5X optical magnification range supports both large-field observation and detailed industrial inspection.

Designed for cameras with sensors up to 2/3 inch, the lens offers an 87±2 mm working distance and a standard C-Mount. The RS232 feedback interface outputs magnification position information, allowing the vision system to record or identify the current zoom setting for repeatable inspection configurations.

Product Advantages

• 6.5X continuous zoom ratio with 0.7X–4.5X optical magnification.
• RS232 magnification position feedback for system integration.
• Manual zoom adjustment for direct and precise operation.
• Supports repeatable inspection settings by identifying the current zoom position.
• Resolution down to 3.95 μm for detailed industrial imaging.
• TV distortion as low as 0.001%.
• Supports machine vision cameras with sensors up to 2/3 inch.
• Standard C-Mount for convenient machine vision integration.
• Compact structure with a maximum outer diameter of 44 mm.

Technical Specifications

RS232 Magnification Position Feedback

The LZ-650100DS9 uses manual optical zoom adjustment combined with RS232 magnification position feedback. The RS232 interface does not control the zoom mechanism; instead, it outputs position information that can be used by a machine vision system to identify or record the current zoom setting.

This function is useful for applications that require repeatable inspection configurations, recipe management, multi-product inspection or recording of different optical magnification settings.

Application Fields

• Semiconductor and PCB inspection
• Electronic component inspection
• Industrial automation
• Machine vision positioning
• Precision part observation
• Multi-product inspection systems
• Machine vision R&D
• Scientific and laboratory imaging

Frequently Asked Questions

Is the LZ-650100DS9 motorized?

No. The LZ-650100DS9 uses manual zoom adjustment. The RS232 interface provides magnification position feedback rather than motorized zoom control.

Can the zoom be controlled through RS232?

No. Zoom adjustment is manual. The RS232 interface is used to output magnification position information so the vision system can identify or record the current zoom setting.

What is the optical magnification range?

The lens provides a 6.5X continuous zoom ratio with optical magnification from 0.7X to 4.5X.

What camera sensor size is supported?

The lens supports machine vision cameras with sensor formats up to 2/3 inch and uses a standard C-Mount.

Why is magnification position feedback useful?

Magnification position feedback allows a machine vision system to identify or record different zoom settings, which is useful for repeatable inspection recipes, multi-product inspection and process traceability.

What information is required for lens selection?

Please provide the camera sensor size, required field of view, object dimensions, working distance, smallest inspection feature and required inspection accuracy.
