LFE-16120 16.33mm 1MP 2/3-Inch C-Mount Machine Vision FA Lens
16.33mm 1MP FA lens for 2/3-inch cameras, featuring F12 iris, C-Mount, focus and iris locks, and a compact optical design.
SKU:
LFE-16120 16.33mm 1MP 2/3-Inch C-Mount Machine Vision FA Lens
A compact 1MP FA lens for 2/3-inch cameras, featuring a 16.33mm focal length, F12 iris specification, C-Mount interface and focus and iris locking screws.
Product Overview
The LFE-16120 is a 1MP FA lens designed for machine vision cameras with sensors up to 2/3 inch. It combines a 16.33mm focal length, F12 iris specification and a 0.30m-infinity focusing range in a compact C-Mount body. Focus and iris locking screws help maintain the selected settings during operation, while the optical design provides low distortion and sharp imaging for machine vision, automated production and electronic communication applications.
Key Benefits
2/3-Inch Sensor Support
Designed for 1.0MP cameras with sensors up to 8.8mm×6.6mm and a Φ11mm image circle.
16.33mm Focal Length
Provides the specified focal length for general industrial imaging and machine vision integration.
Low-Distortion Imaging
Specified at -1.00% distortion at y=5.5mm and designed to deliver sharp images.
Stable Locked Settings

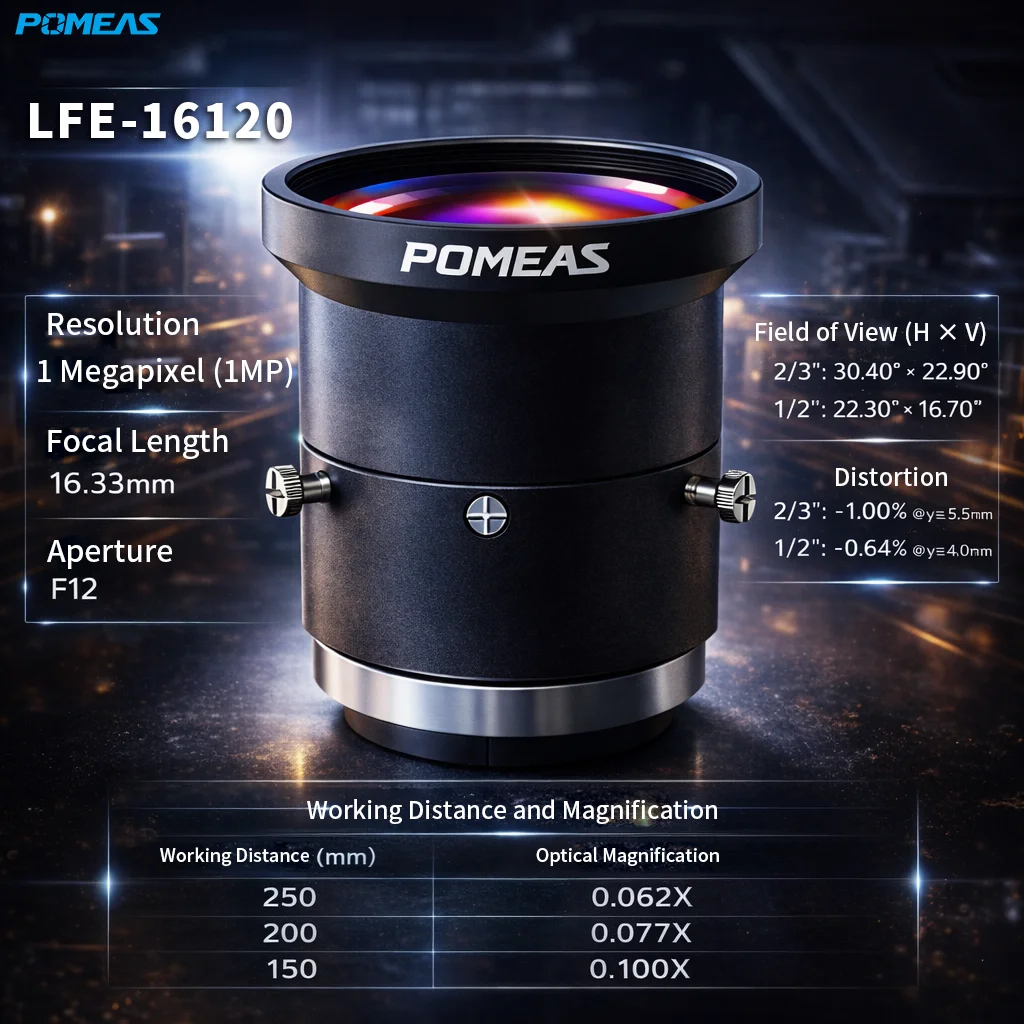

Focus and iris locking screws help maintain the selected settings during operation.
Compact Structure
The compact optical structure supports integration into industrial vision equipment.
C-Mount Integration
A standard C-Mount and M30.5 × 0.5mm filter thread support compatible system components.
Specifications
| Product Type | Machine Vision FA Lens |
|---|---|
| Resolution | 1.0MP |
| Max. Sensor Size | 2/3 Inch |
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | Φ11mm |
| Focal Length | 16.33mm |
| Iris Range | F12 |
| Focusing Range | 0.30m-∞ |
| Distortion | -1.00%@y=5.5mm |
| Back Focal Length | 12.67mm |
| Mount | C-Mount |
| Filter Thread | M30.5 × 0.5mm |
| Field of View | 2/3 Inch: 30.4°×22.9° |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 30-80% (No Condensation) |
Field of View and Camera Compatibility
The lens supports 1.0MP cameras with sensors up to 2/3 inch. The maximum sensor dimensions are 8.8mm×6.6mm, with a Φ11mm image circle.
Specified field of view for a 2/3-inch sensor: 30.4°×22.9°
The datasheet does not provide FOV values for other sensor formats. Confirm the camera sensor size and required field of view before selection.
Product Details
Application Fields
The LFE-16120 is intended for machine vision, automated production and electronic communication applications.
- Machine vision imaging
- Automated production equipment
- Electronic communication equipment
Frequently Asked Questions
What camera sensor size does the LFE-16120 support?
It supports machine vision cameras with sensors up to 2/3 inch, with maximum sensor dimensions of 8.8mm×6.6mm and a Φ11mm image circle.
What camera resolution is specified?
The lens is specified for 1.0MP cameras.
What are the focal length and iris specifications?
The focal length is 16.33mm and the iris specification is F12.
What is the focusing range?
The specified focusing range is 0.30m to infinity.
Which camera mount does the lens use?
The lens uses a standard C-Mount interface.
Can the focus and iris settings be locked?
Yes. The lens includes focus and iris locking screws to help maintain stable settings during operation.
What distortion value is specified?
The datasheet specifies -1.00% distortion at y=5.5mm.
Are a camera, light source, filter or mounting bracket included?
The datasheet does not identify these items as standard accessories. Please confirm the required system configuration before ordering.
Are customization and lead time confirmed?
Please contact us to confirm available customization options, current lead time and order requirements.
