35mm 2/3-Inch 10MP Low-Distortion C-Mount Lens

Product Overview

POMEAS PMS-LFEHH-3528M(B) is a 10-megapixel low-distortion fixed focal FA industrial lens with a 35mm focal length for 2/3-inch sensors (8.8 × 6.6 mm, max image circle Ø11 mm). Distortion is -0.172% @ y=5.5 mm for high geometric fidelity. The F2.8-F16 aperture and FAR/NEAR focus ring make it well suited for dimension measurement, precision positioning and other applications with strict geometry requirements.

Key Features

• 10 MP high resolution, supports 2/3-inch sensors (8.8 × 6.6 mm, max image circle Ø11 mm)
• Low distortion: -0.172% @ y=5.5 mm
• Aperture range F2.8-F16
• Field of view 14.8° × 11.1° (H×V) on 2/3" format
• Filter thread M27 × P0.5, C-Mount
• FAR/NEAR focus ring for intuitive adjustment

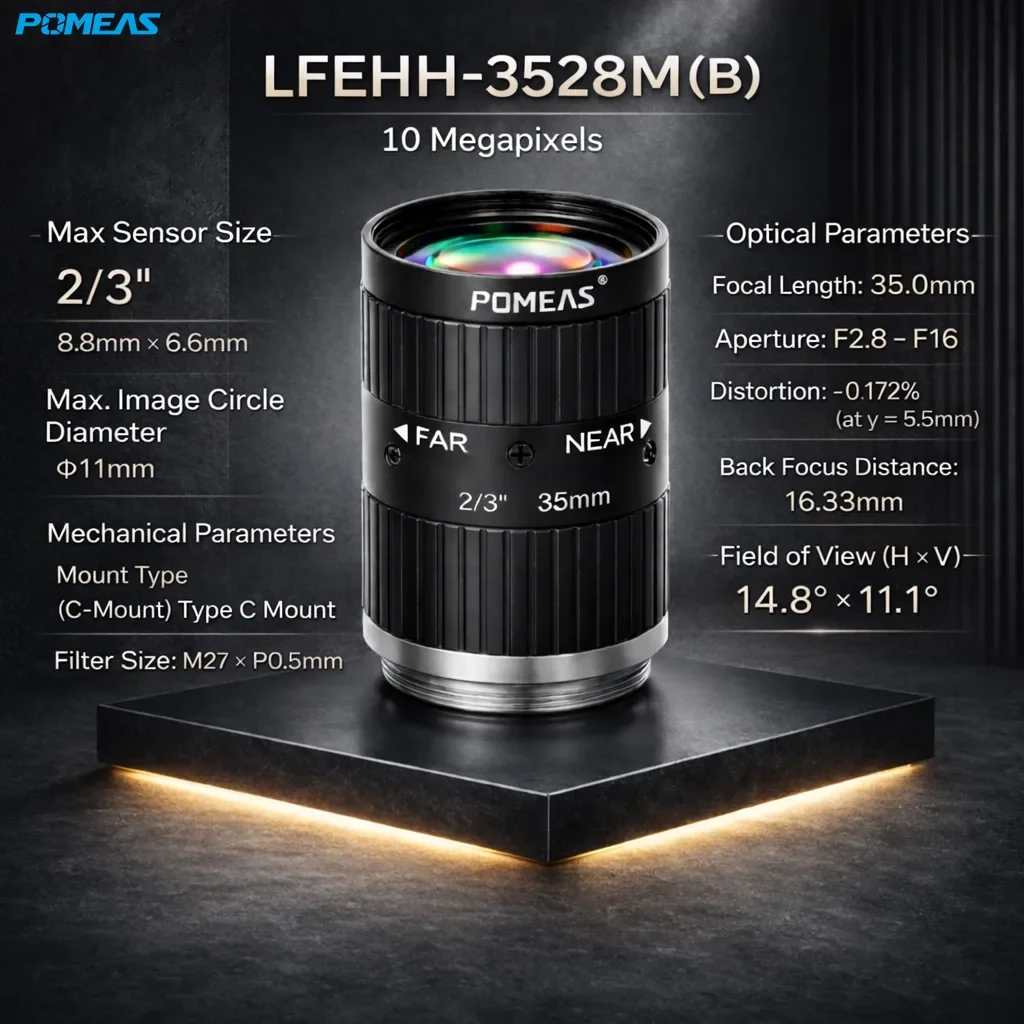

Technical Specifications

Applications

Designed for dimension measurement, precision positioning and geometric analysis applications where fidelity matters; the 35mm focal length suits mid-range working distances.

FAQ

What is the distortion level of the PMS-LFEHH-3528M(B)?

-0.172% @ y=5.5 mm, a low-distortion design suitable for measurement and geometric analysis.

What is the aperture range?

F2.8-F16, covering most production-line lighting conditions.

How does it differ from the PMS-LFEHH-3520M(D)?

The 3528M(B) is a low-distortion B series (-0.172%) with F2.8-F16; the 3520M(D) has a larger F2.0-F22 aperture with -0.16% distortion. Choose 3528M(B) for geometry-critical tasks, 3520M(D) for light-gathering priority.

What sensor sizes does it support?

Up to 2/3-inch (8.8 × 6.6 mm, max image circle Ø11 mm); smaller formats are also compatible.
