140nm Confocal Displacement Sensor with 47mm Reference

SFS-D7047 is a spectral confocal displacement sensor with 47 mm reference distance, ±3.5 mm measuring range, 140 nm repeatability, <±0.7 μm linearity error and a ±21° measuring angle.

SKU:

Description
Parameters
Files (0)

Product Overview

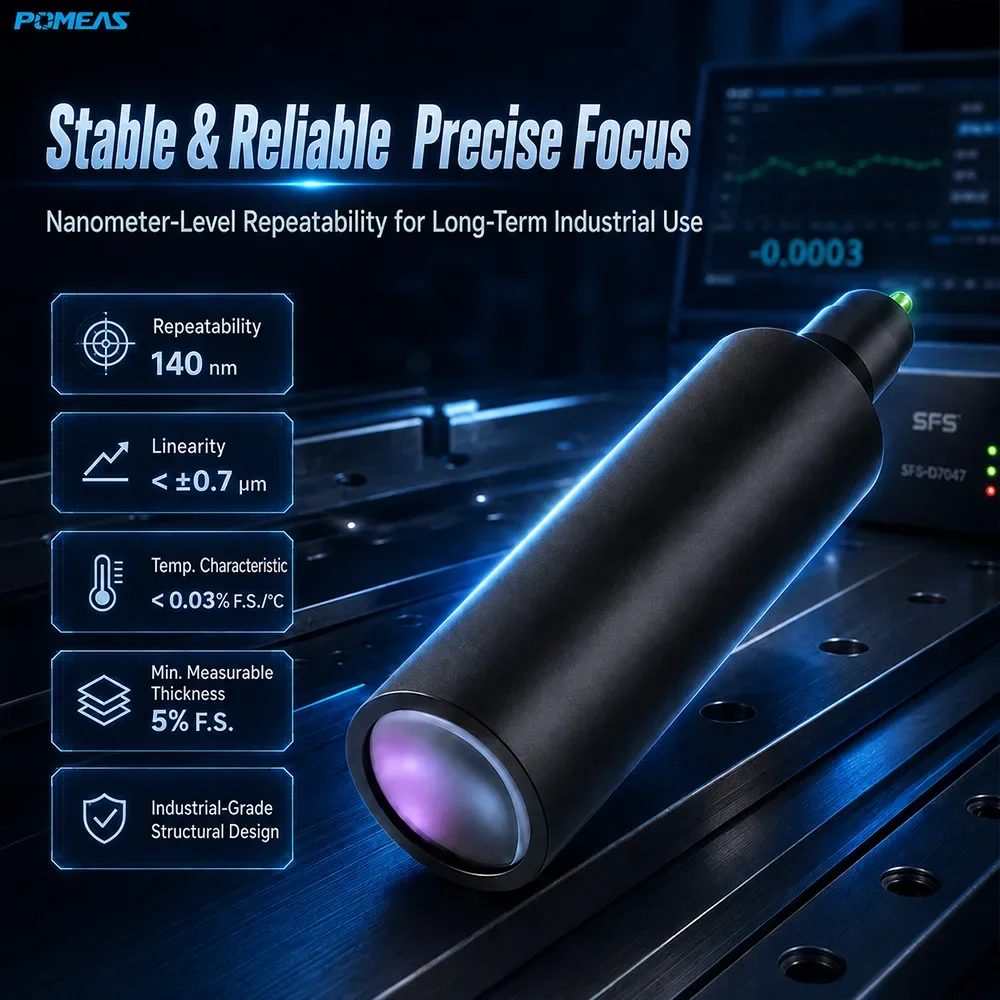

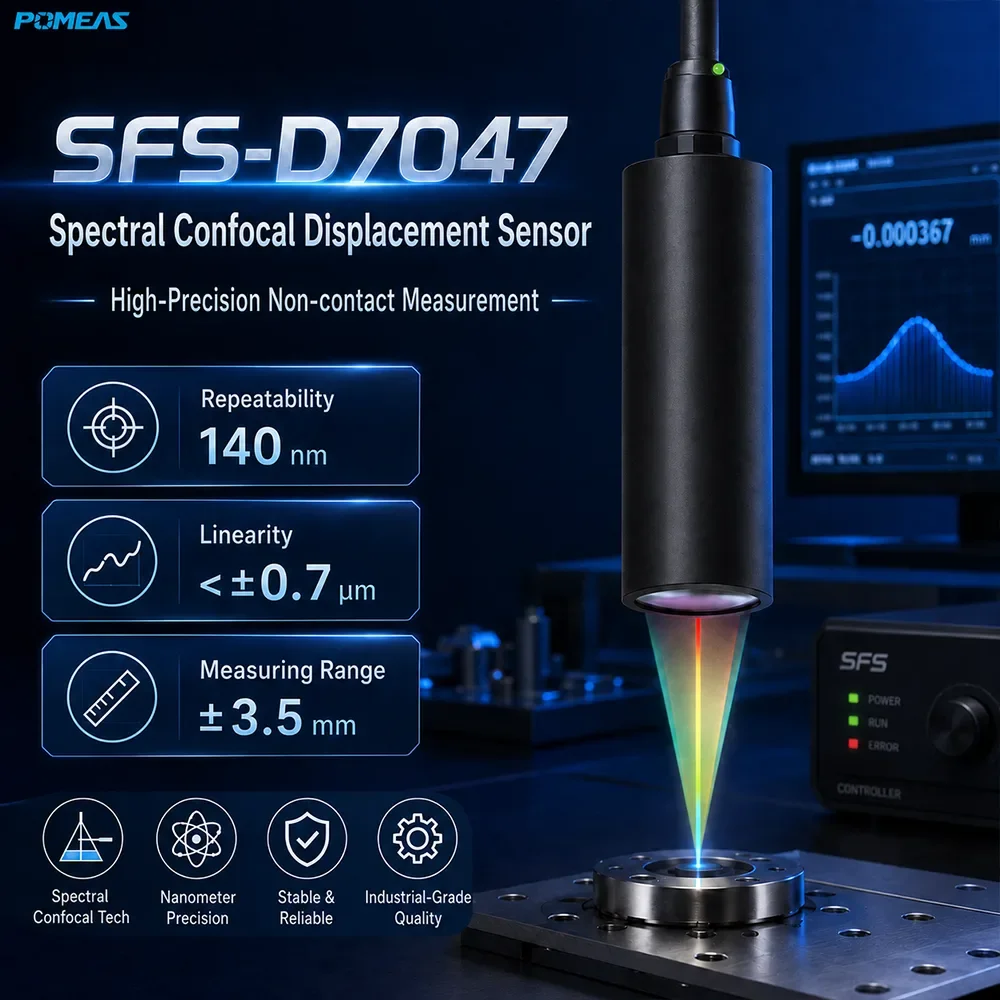

POMEAS SFS-D7047 is a high-precision spectral confocal displacement sensor with a 47 mm reference distance, ±3.5 mm measuring range, 140 nm repeatability and <±0.7 μm linearity error. Its ±21° measuring angle is among the widest in the series, adapting to strongly inclined surfaces; the Φ52×207 mm body weighing about 784 g suits fixed-station installation.

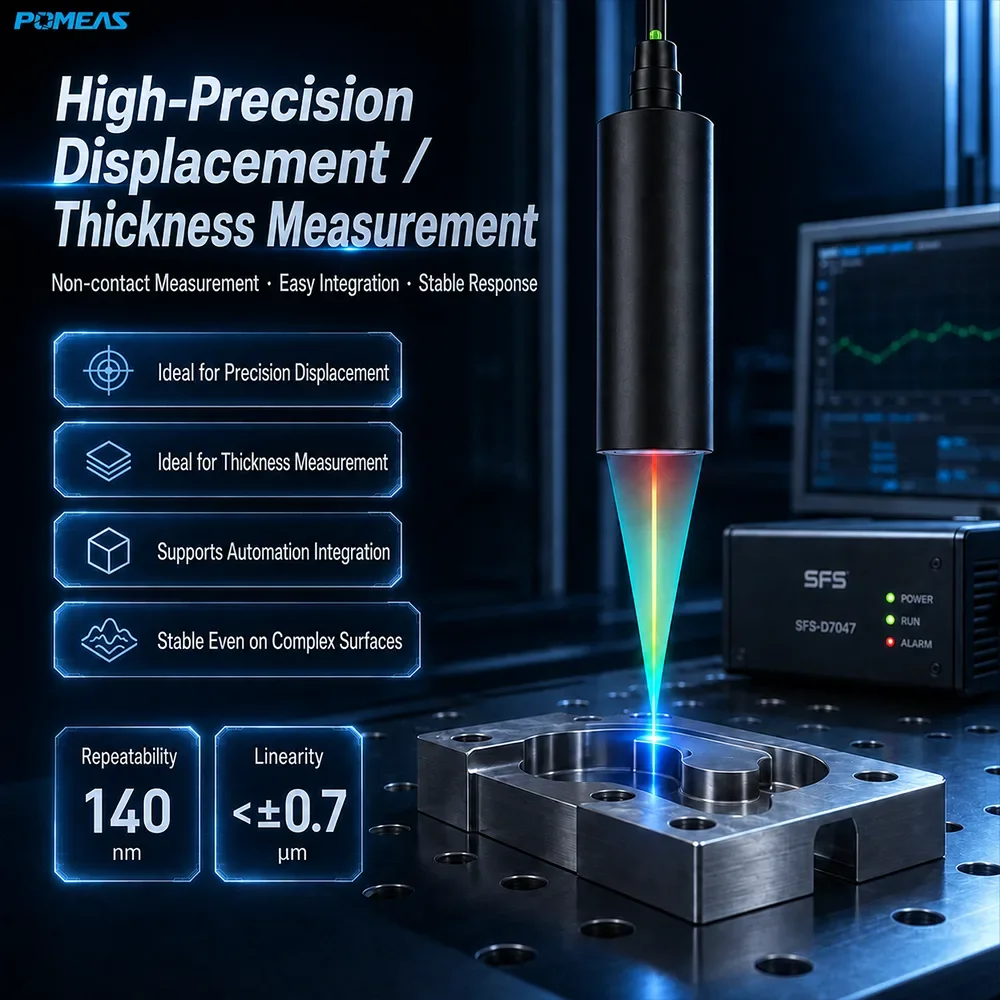

SFS-D7047 spectral confocal displacement sensor

Key Features

140 nm repeatability, linearity error <±0.7 μm
±3.5 mm measuring range, 7 mm total travel
47 mm reference distance for ample clearance
±21° wide measuring angle
Φ16/32 μm small spot
Minimum measurable thickness 5% F.S., supports transparent materials
IP40

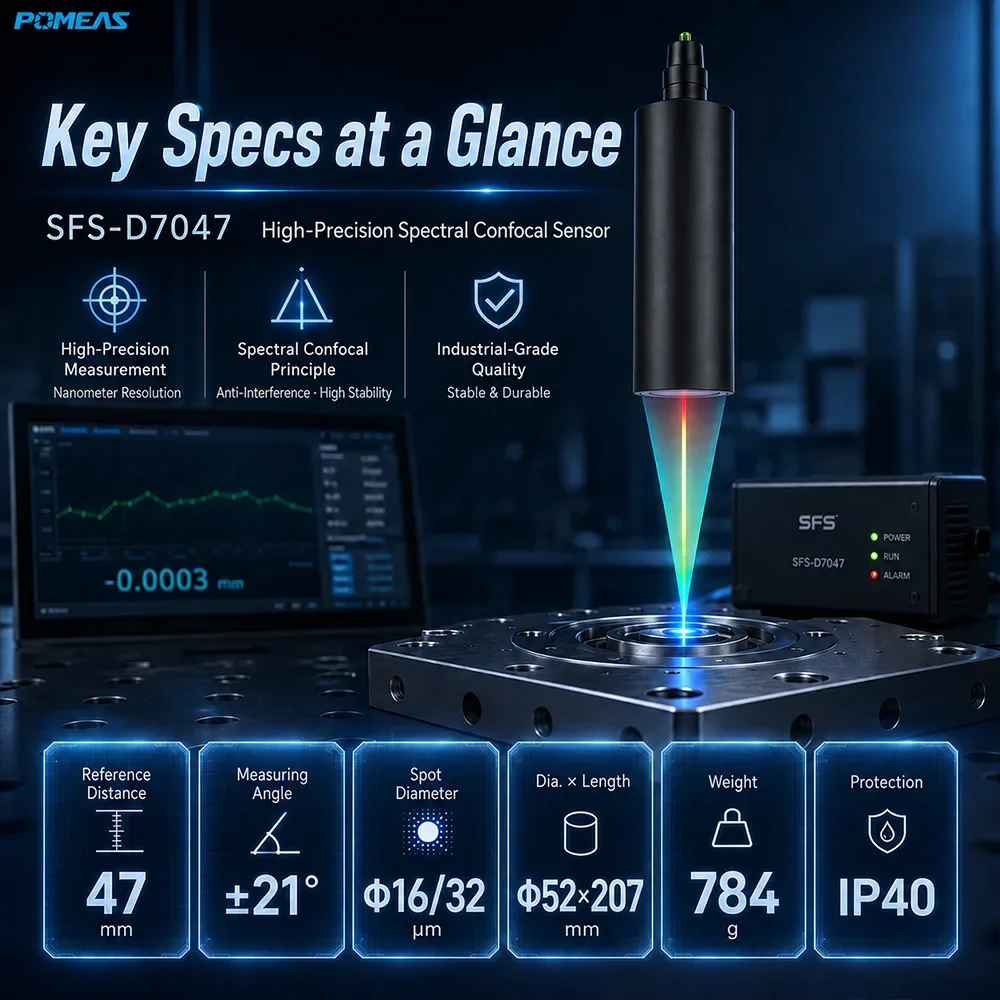

Technical Specifications

Product Model	SFS-D7047
Sensor Type	Chromatic Confocal Displacement Sensor
Reference Distance	47 mm
Measuring Range	±3.5 mm
Measuring Angle	±21°
Spot Diameter	Φ16/32 μm
Repeatability	140 nm
Linearity Error	<±0.7 μm
Probe Size	Φ52×207 mm
Weight	784 g
Minimum Measurable Thickness	5% of F.S.
Temperature Characteristic	<0.03% F.S./°C
Protection Rating	IP40
Measurement Method	Non-contact Optical Measurement
Application	Displacement, Thickness and Height Measurement

Applications

Ideal for long-working-distance displacement and height measurement, inclined-surface inspection, transparent material thickness measurement and surface contour scanning.

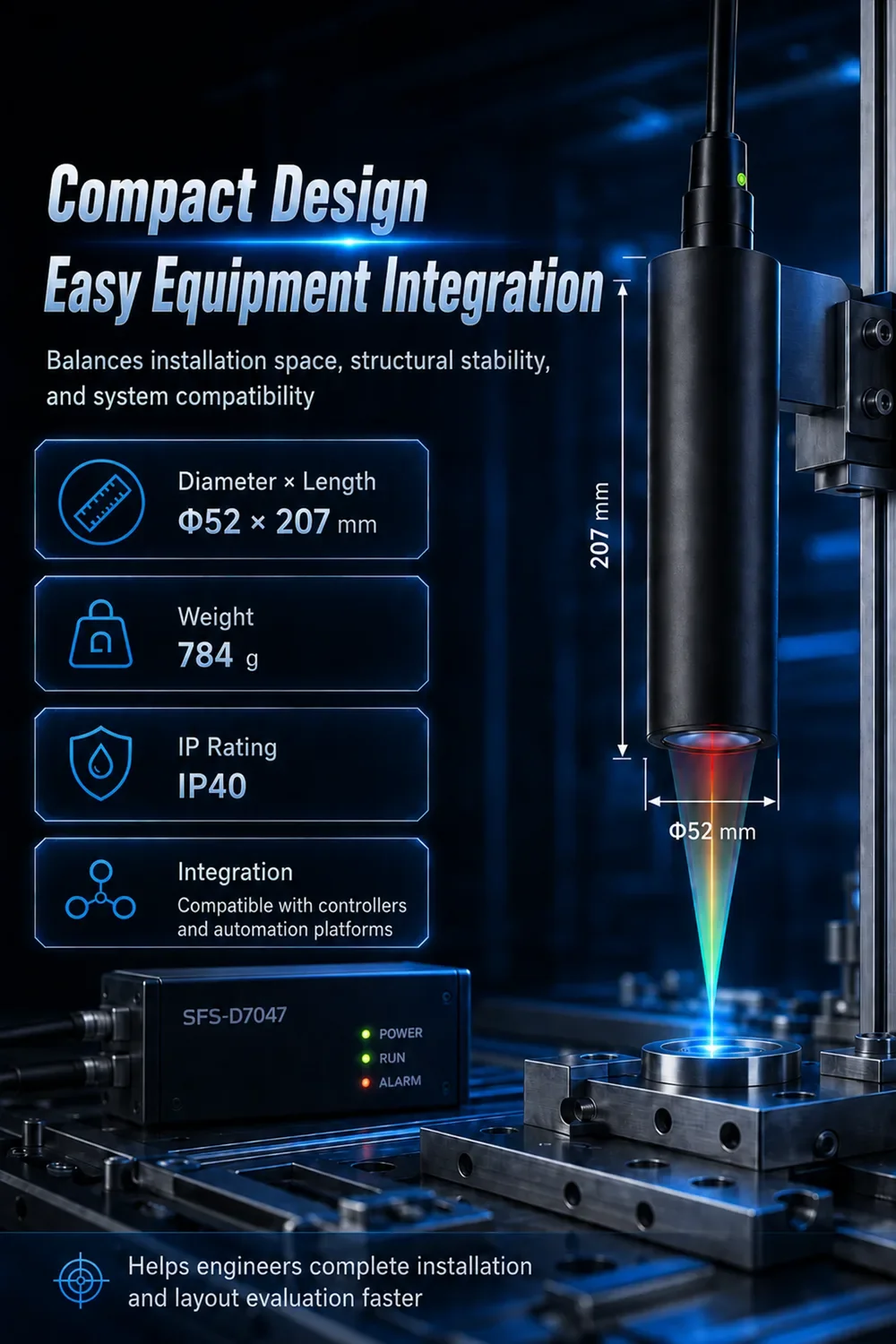

SFS-D7047 application

FAQ

What is the measuring angle of the SFS-D7047?

±21° measuring angle (tested on a standard flat mirror at 1 kHz sampling), among the widest in the series.

What are the range and precision?

Measuring range ±3.5 mm (7 mm total travel), repeatability 140 nm, linearity error <±0.7 μm.

How does it differ from the SFS-D7045?

Precision and range are identical (140 nm, ±3.5 mm); the D7047 has a wider measuring angle (±21° vs ±15.5°) and a longer probe (Φ52×207 mm vs Φ36×84.2 mm). Choose by installation space and surface inclination.
