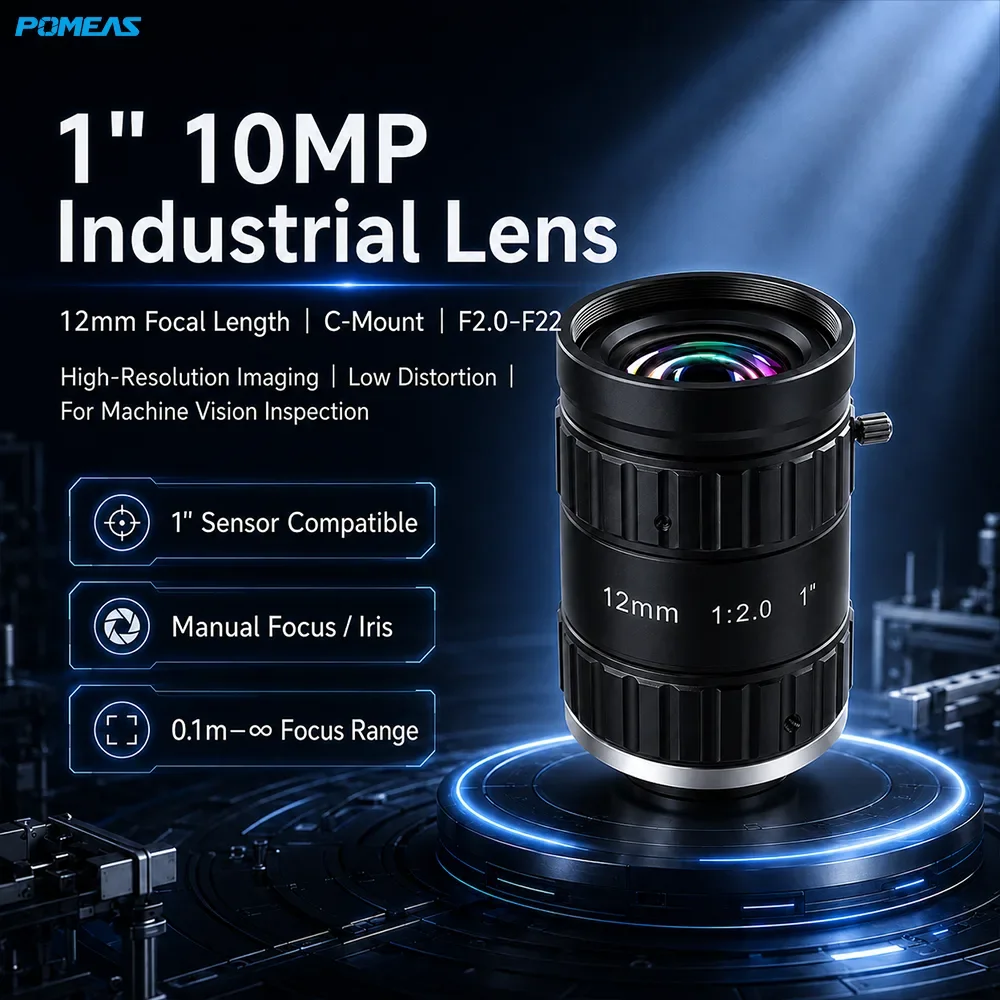

12mm 1-Inch 10MP C-Mount FA Industrial Lens

MH2012-10MP is a POMEAS 10MP fixed-focal FA industrial lens, 12mm focal length, sensors up to 1" (16mm), C-mount, aperture F2.0-F22, focus range 0.1m~∞, distortion -0.80% (1"), for industrial inspection and dimensional measurement.

SKU:

Description
Parameters
Files (0)

Product Overview

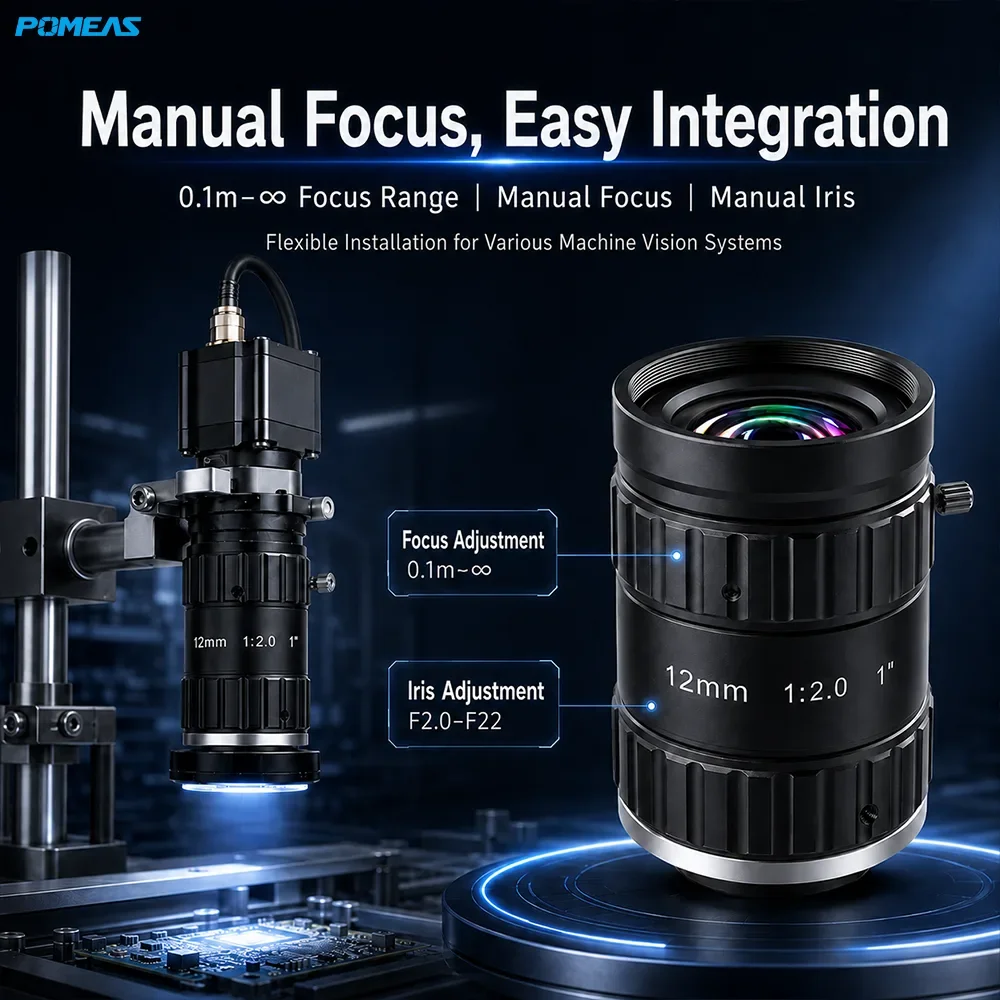

POMEAS MH2012-10MP is a 10MP fixed-focal FA industrial lens with a 12mm focal length, supporting sensors up to 1" (16mm), C-mount. The diagonal field of view on 1" format is 67.6°, with distortion of -0.80% at y=8.0mm. Focus range 0.1m~∞, manual focus and manual iris, suitable for industrial inspection, dimensional measurement and automated identification in machine vision applications.

Key Features

High-resolution 10MP fixed-focal design
12mm focal length, 1" diagonal FOV 67.6° on 1" format
Supports sensors up to 1" (16mm)
Low distortion -0.80%@y=8.0mm (1")
Aperture F2.0-F22, focus range 0.1m~∞
Weight 202g

Specifications

Model	MH2012-10MP
Type	Fixed-Focal FA Industrial Lens
Resolution	10MP
Max Sensor Format	1" (16mm)
Mount	C-Mount
Aperture	F2.0-F22
Focal Length	12mm
Distortion (1")	-0.80%@y=8.0mm
Back Focal Length (in air)	10.3mm
Focus Range	0.1m~∞
FOV (1", D×H×V)	67.6°×56.7°×43.5°
Object Size at Min. Focus (D×H×V, 1")	152.7×128.74×89.5mm
Filter Thread	M37.5×P0.5
Weight	202g
Operating Temperature	-20°C～+60°C
Wavelength	420~1000nm
Operation	Manual focus / manual iris
