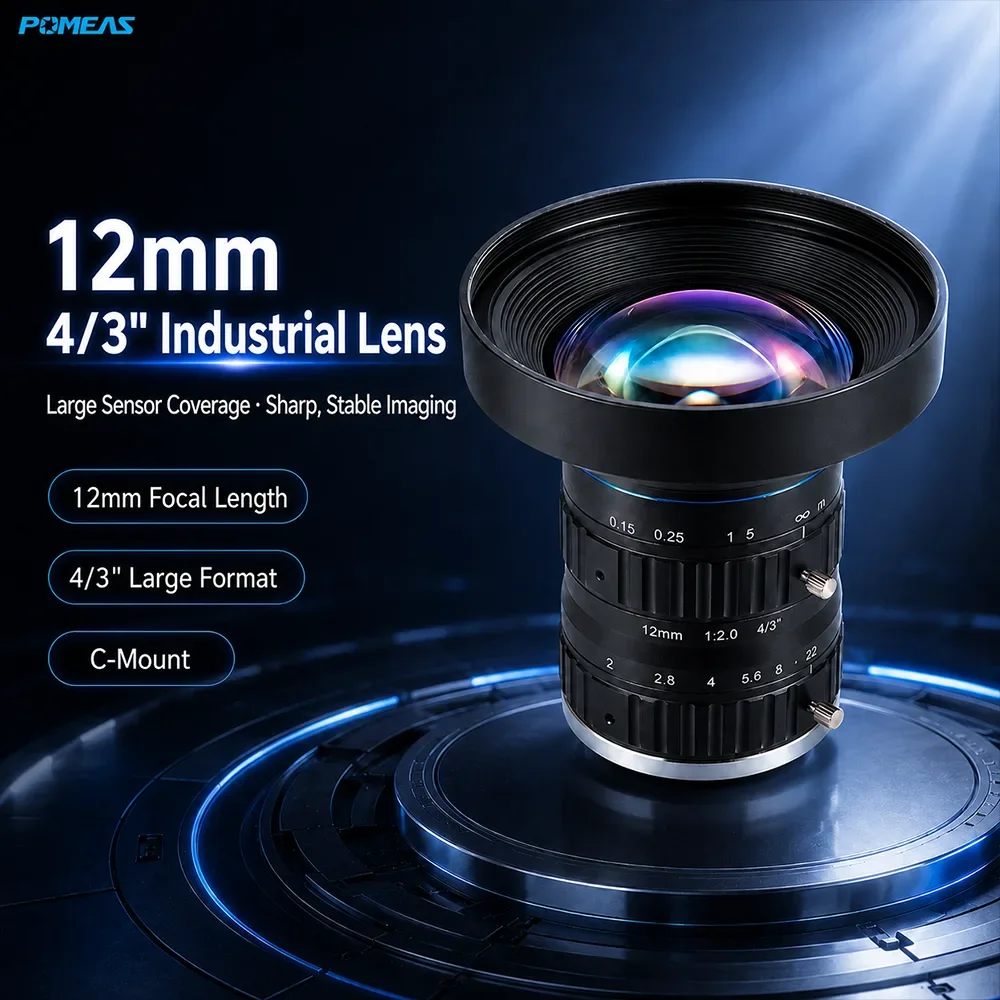

12mm 4/3-Inch 12MP C-Mount FA Industrial Lens

MH2012-12MP is a POMEAS 12MP fixed-focal FA industrial lens, 12mm focal length, sensors up to 4/3" (23mm), C-mount, aperture F2.0-F22, focus range 0.15m~∞, distortion -2.05% (4/3"), for industrial inspection and dimensional measurement.

SKU:

Description
Parameters
Files (0)

Product Overview

POMEAS MH2012-12MP is a 12MP fixed-focal FA industrial lens with a 12mm focal length, supporting sensors up to 4/3" (23mm), C-mount. The diagonal field of view on 4/3" format is 89.1°, with distortion of -2.05% at y=11.5mm. Focus range 0.15m~∞, manual focus and manual iris, suitable for industrial inspection, dimensional measurement and automated identification in machine vision applications.

Key Features

High-resolution 12MP fixed-focal design
12mm focal length, 4/3" diagonal FOV 89.1° on 4/3" format
Supports sensors up to 4/3" (23mm)
Low distortion -2.05%@y=11.5mm (4/3")
Aperture F2.0-F22, focus range 0.15m~∞
Weight 438g

Specifications

Model	MH2012-12MP
Type	Fixed-Focal FA Industrial Lens
Resolution	12MP
Max Sensor Format	4/3" (23mm)
Mount	C-Mount
Aperture	F2.0-F22
Focal Length	12mm
Distortion (4/3")	-2.05%@y=11.5mm
Back Focal Length (in air)	18.8mm
Focus Range	0.15m~∞
FOV (4/3", D×H×V)	89.1°×75.6°×61.2°
Object Size at Min. Focus (D×H×V, 4/3")	319.4×262.7×204.4mm
Filter Thread	M77.0×P0.75
Weight	438g
Operating Temperature	-20°C～+60°C
Wavelength	420~1000nm
Operation	Manual focus / manual iris
