PMS-LZH-7505W 4K Industrial Zoom Lens for Machine Vision

PMS-K75M 4K Industrial Zoom Lens for Machine Vision

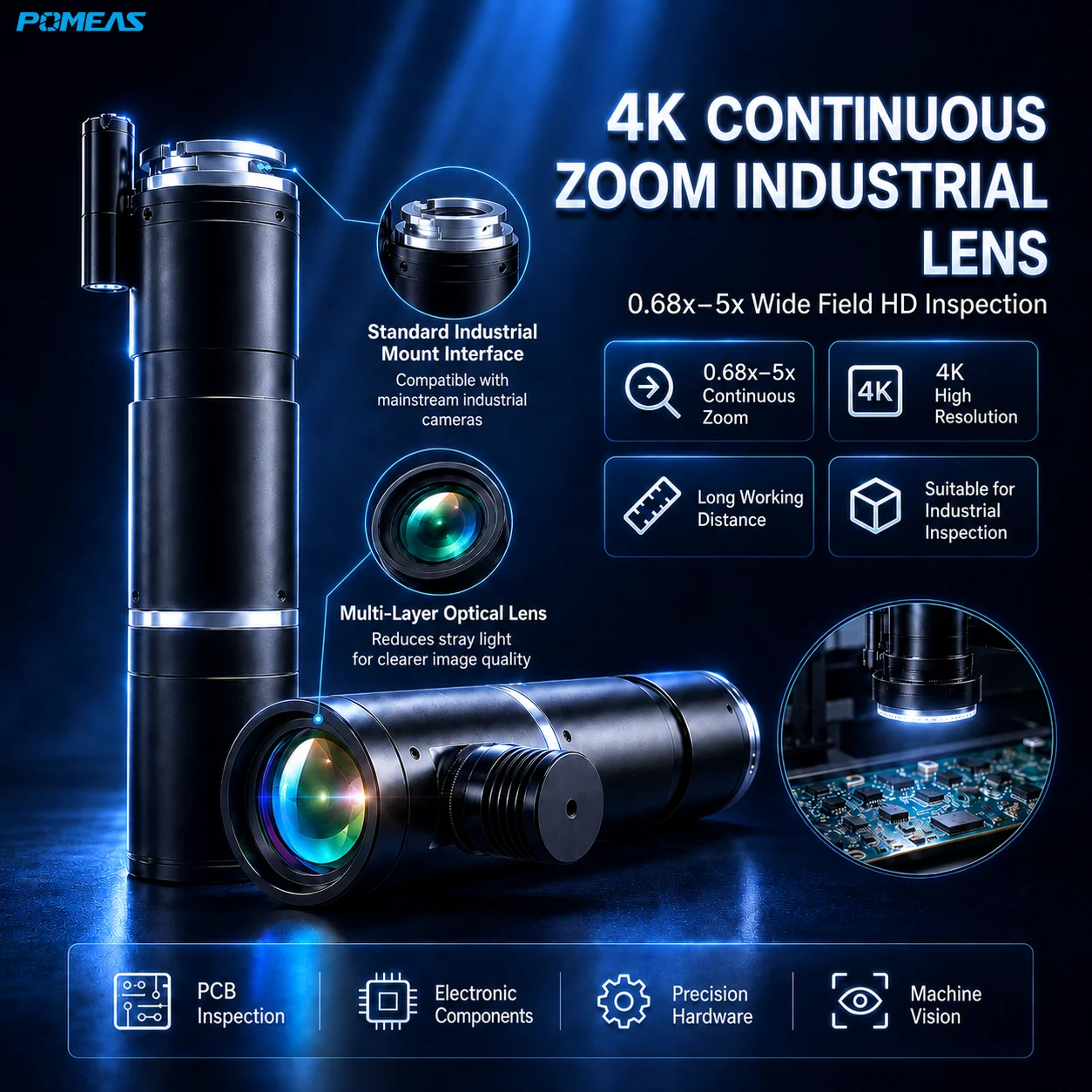

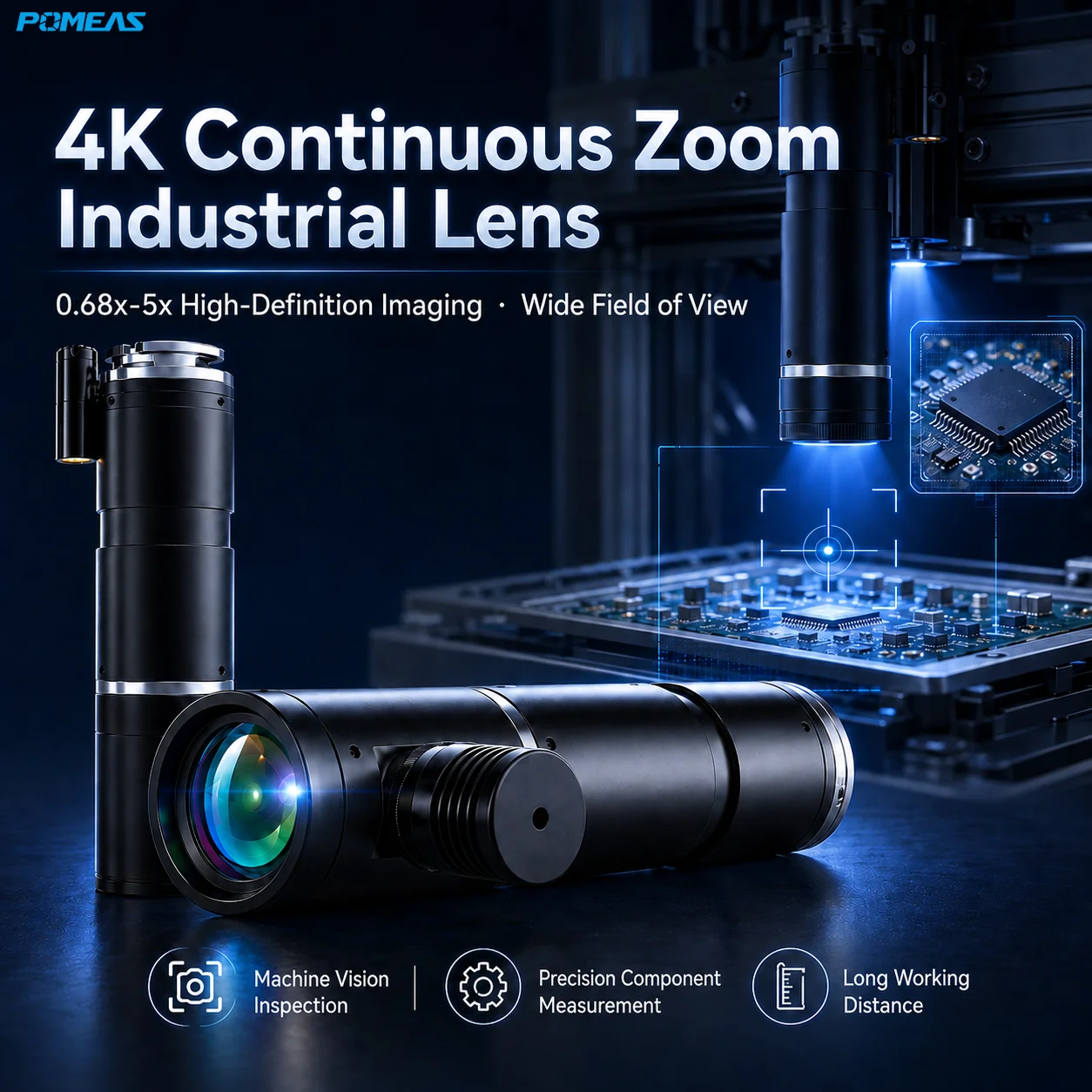

PMS-K75M is a 4K big FOV high-resolution industrial zoom lens designed for machine vision inspection, semiconductor inspection, electronics inspection, and other high-precision visual applications. It provides a 0.68x-5x magnification range, 80mm working distance, 1" sensor camera support, and C-Mount connection for industrial imaging systems.

Compared with traditional zoom lens systems, PMS-K75M offers a wider field of view at the same magnification, helping machine vision systems inspect larger areas while maintaining high-resolution imaging performance. It is suitable for high-speed detection, accurate inspection, and production-line visual inspection tasks.

Key Features

• 4K High-Resolution Imaging: Designed for high-resolution inspection requirements and supports 4K-level horizontal resolution with a 1" camera.
• 0.68x-5x Zoom Range: Covers a wide magnification range for most industrial inspection and testing applications.
• 80mm Working Distance: Provides stable installation space for lighting, fixtures, platforms, and machine vision equipment.
• 1" Sensor Support: Supports 1" sensor industrial cameras and expands the field of view compared with traditional zoom lenses.
• C-Mount Interface: Uses a standard C-Mount connection for easy integration with industrial cameras.

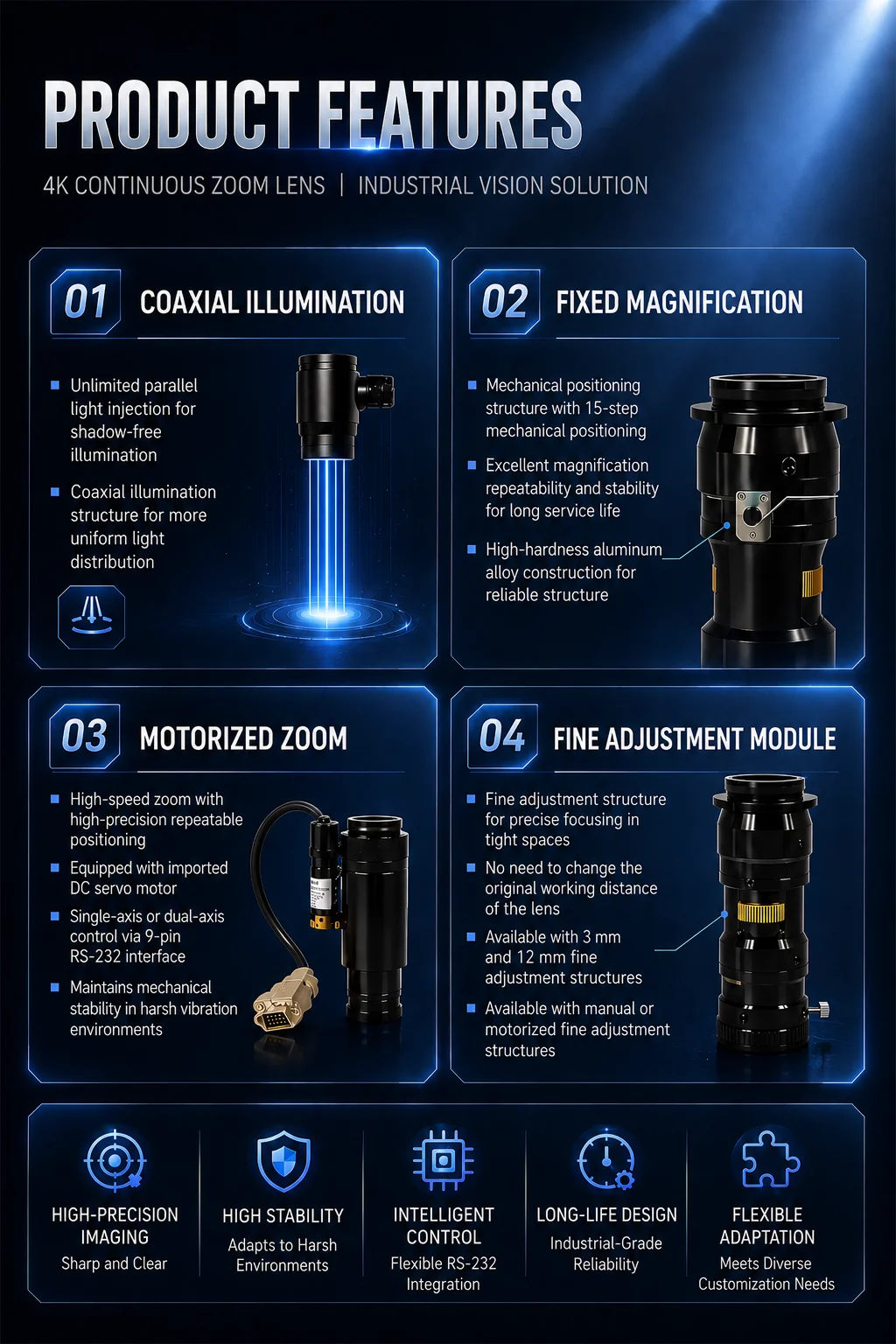

• Manual or Motorized Zooming: Available for both manual adjustment and motorized zoom control according to system requirements.
• Low TV Distortion: TV distortion is less than 0.02%, helping maintain image accuracy during visual inspection.

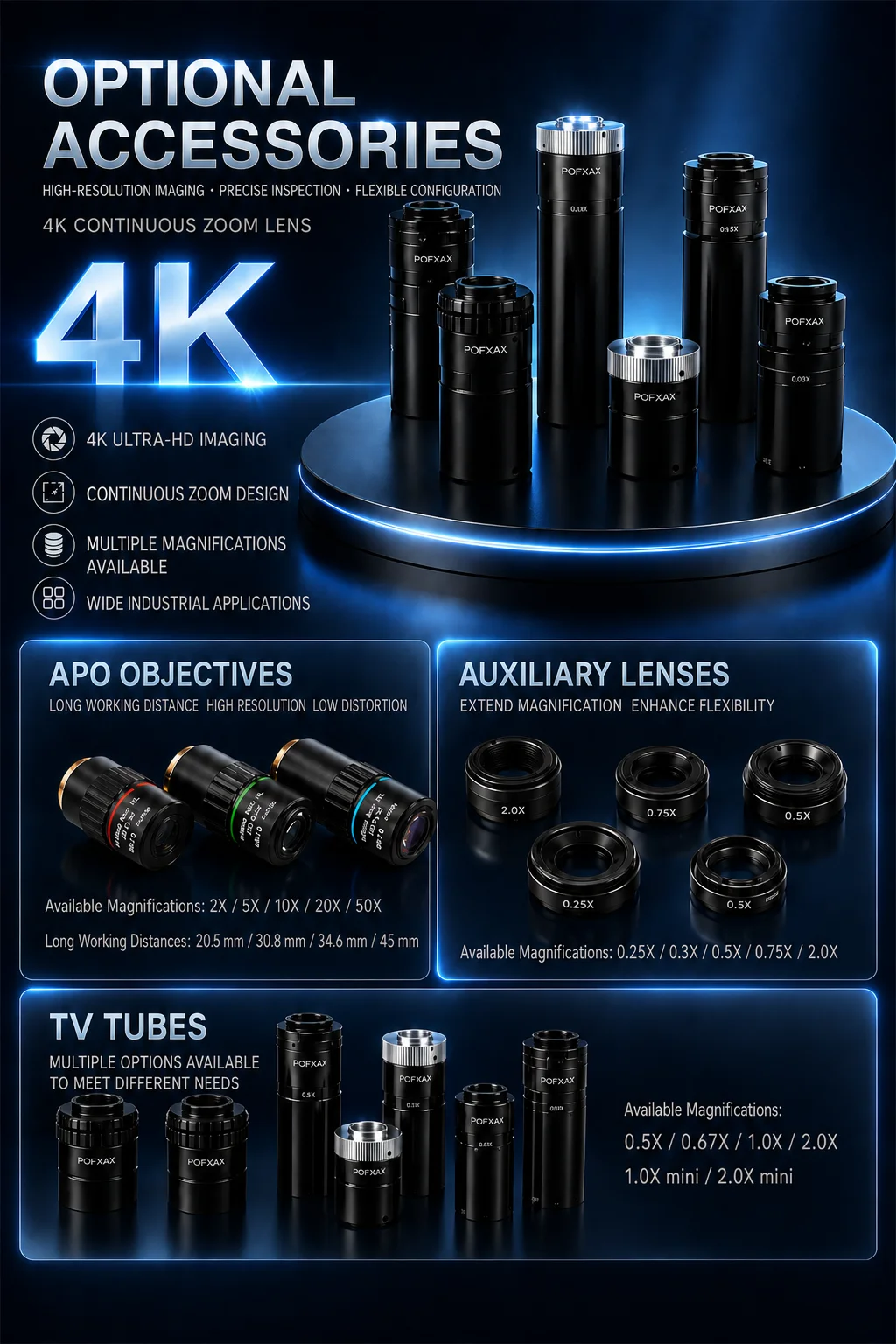

• Modular Design: Multiple magnification TV tubes and lens attachments are optional for different inspection setups.

Designed for 4K Machine Vision Inspection

In machine vision inspection, the lens must provide clear image detail, stable optical performance, and enough field of view for different object sizes. PMS-K75M is designed for 4K high-resolution imaging, making it suitable for visual inspection systems that require accurate edge observation, surface inspection, component recognition, and defect detection.

The lens is especially suitable for semiconductor, electronics, PCB, machine vision, and precision inspection applications where image clarity and measurement stability are important.

Large Field of View with 1" Sensor Cameras

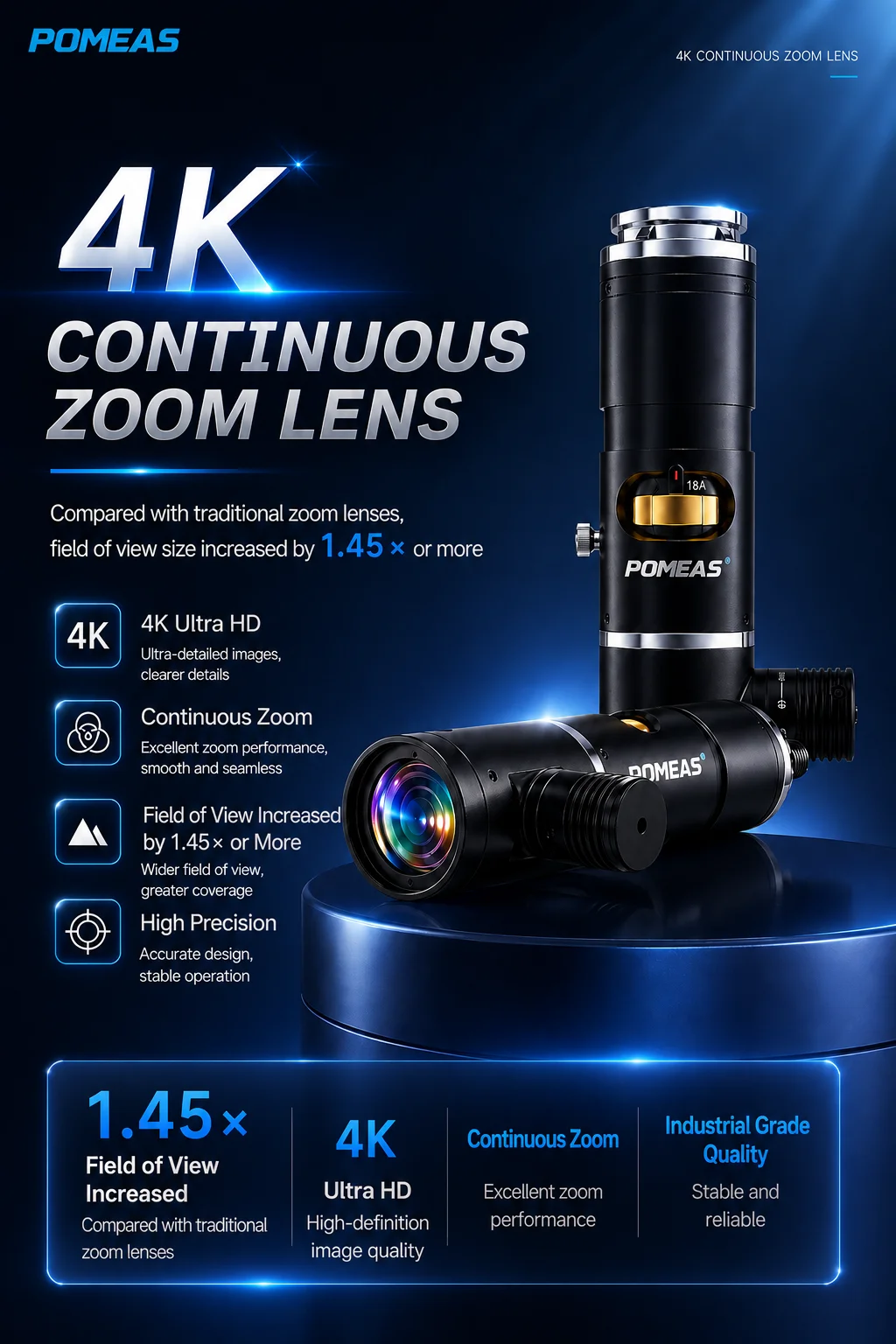

PMS-K75M supports 1" sensor cameras and can expand the field of view by more than 1.45x compared with traditional zoom lenses at the same magnification. This helps users inspect a larger area without sacrificing the flexibility of zoom adjustment.

For electronics manufacturing, semiconductor inspection, and automated optical inspection systems, a larger field of view can improve inspection efficiency and reduce the need for frequent lens changes.

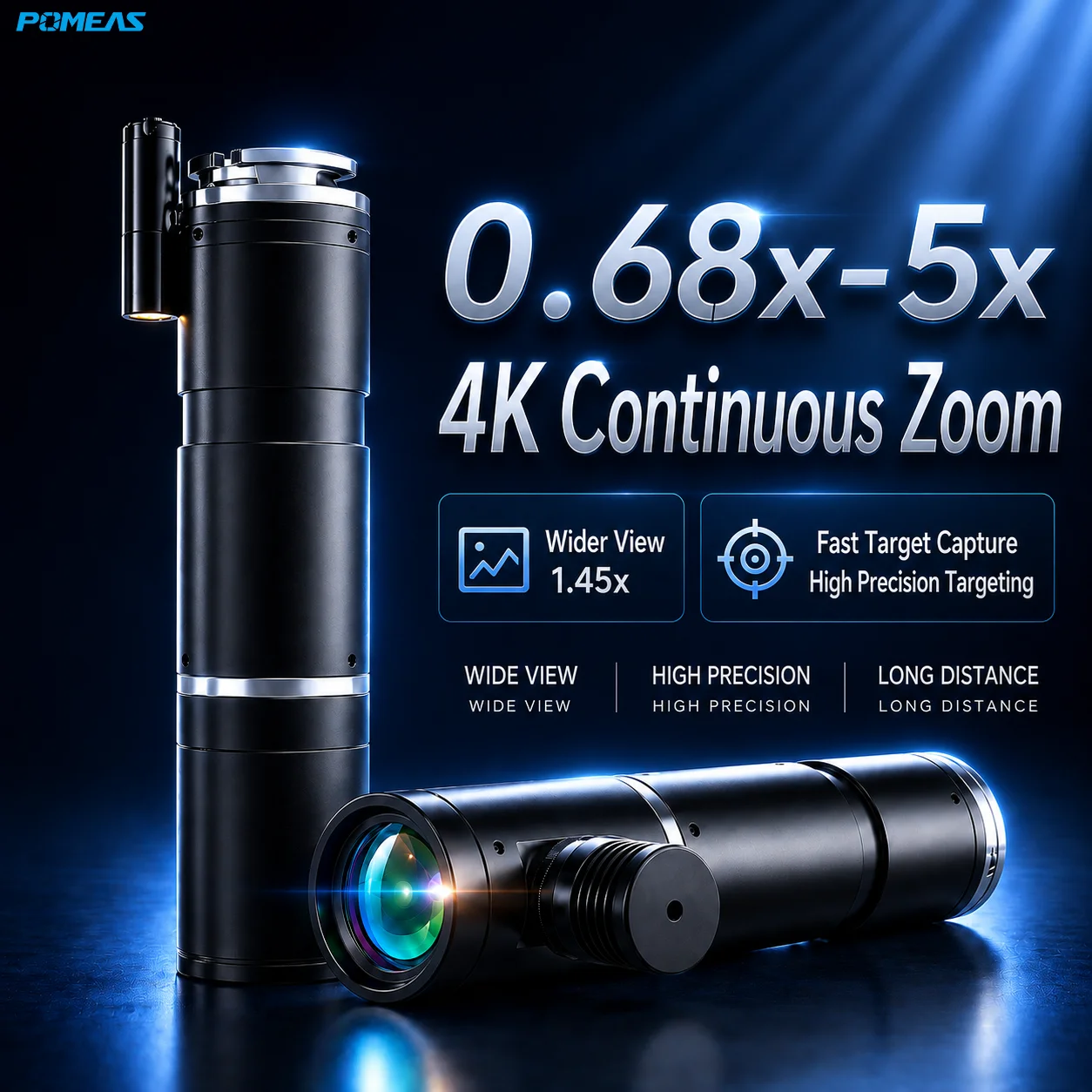

0.68x-5x Continuous Zoom for Flexible Inspection

The 0.68x-5x magnification range allows PMS-K75M to support both wide-area observation and detailed inspection. Users can adjust the magnification according to the size of the inspected object, making it suitable for different production-line inspection tasks.

This flexibility is useful for machine vision systems that handle different products, components, or inspection areas within the same equipment platform.

80mm Working Distance for System Integration

The 80mm working distance provides space for industrial lighting, fixtures, motion platforms, and other machine vision accessories. This makes the lens easier to integrate into automated inspection equipment, laboratory testing systems, and production-line visual inspection devices.

Suitable for Semiconductor and Electronics Inspection

PMS-K75M is suitable for semiconductor inspection, electronics inspection, PCB inspection, precision component inspection, and other high-precision industrial applications. It can be used in machine vision systems for manufacturers and equipment builders serving semiconductor and electronics production regions such as Taiwan, Malaysia, and Southeast Asia.

The product is designed for demanding inspection environments where high-resolution imaging, low distortion, flexible zooming, and stable field-of-view performance are required.

Technical Specifications

Magnification-Based Optical Data

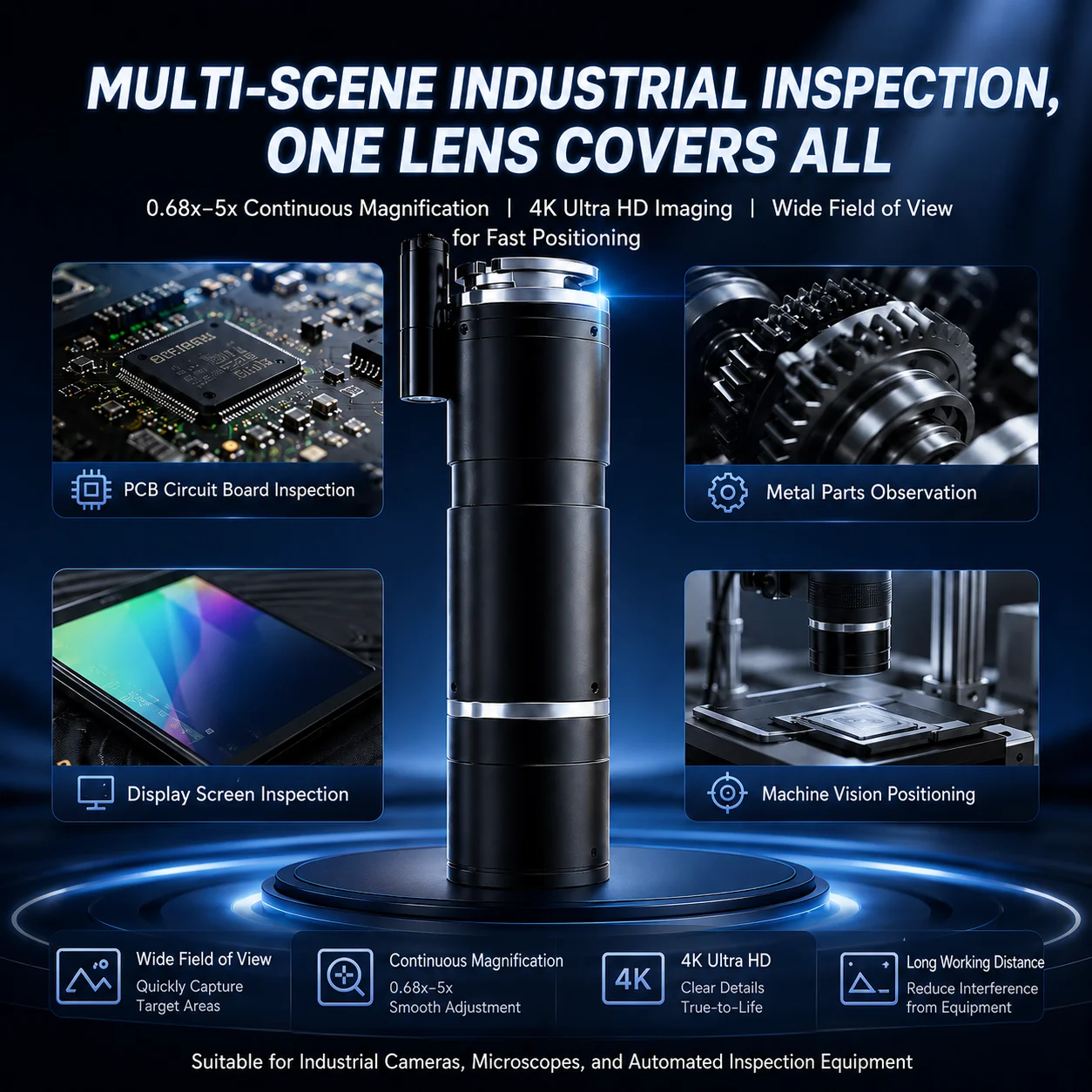

Typical Applications

• Semiconductor inspection
• Electronics inspection
• PCB inspection
• Precision component inspection
• Machine vision inspection systems
• Automated optical inspection equipment
• High-speed detection systems
• Biology and laboratory visual inspection

FAQ

What is PMS-K75M?

PMS-K75M is a 4K big FOV high-resolution industrial zoom lens designed for machine vision, semiconductor, electronics, biology, and precision inspection applications.

What is the magnification range of PMS-K75M?

The magnification range of PMS-K75M is 0.68x-5x, making it suitable for both wide-field observation and detailed inspection.

What sensor size does PMS-K75M support?

PMS-K75M supports 1" sensor industrial cameras, helping expand the field of view compared with traditional zoom lenses at the same magnification.

What is the working distance of PMS-K75M?

The working distance of PMS-K75M is 80mm, which provides space for lighting, fixtures, and other machine vision system components.

Is PMS-K75M suitable for semiconductor inspection?

Yes. PMS-K75M is suitable for semiconductor inspection, electronics inspection, PCB inspection, and other high-precision machine vision applications.

Does PMS-K75M support motorized zooming?

Yes. PMS-K75M supports manual or motorized zooming, allowing users to choose the adjustment method according to their inspection system requirements.
