4.5mm 5MP Low Distortion Wide-Angle FA Industrial Lens
PMS-LFCH-4.528M(J) is a 5MP fixed focal length FA industrial lens with 4.5mm focal length, supporting up to 1/1.8" (9mm) sensors. C-Mount, F2.8-F16 iris, focus range 0.1m to infinity, distortion approx. -1.2% at y=4.5mm, suitable for wide-FOV positioning and inspection.
SKU:
Overview
POMEAS PMS-LFCH-4.528M(J) is a 5-megapixel fixed focal length FA industrial lens with a 4.5mm focal length, designed for sensors up to 1/1.8" (9mm) with a C-Mount. At 1/1.8" format it delivers an 89.0° diagonal angle of view, enabling large-area imaging in a single shot with low distortion (approx. -1.2% at y=4.5mm), ideal for positioning, code reading and wide-FOV inspection.
Key Features
- 5 MP resolution, supports sensors up to 1/1.8" (9mm)
- 4.5mm ultra wide angle: 89.0° x 81.9° x 52.3° angle of view (diagonal x horizontal x vertical) at 1/1.8"
- Low distortion: approx. -1.2% @ y=4.5mm (1/1.8" format)
- Iris range F2.8-F16, manual iris and focus
- Focus range 0.1m to infinity, back focal length 8.4mm (in air)
- Compact metal barrel: Φ44 x 59.9mm, operating temperature -20°C to +60°C

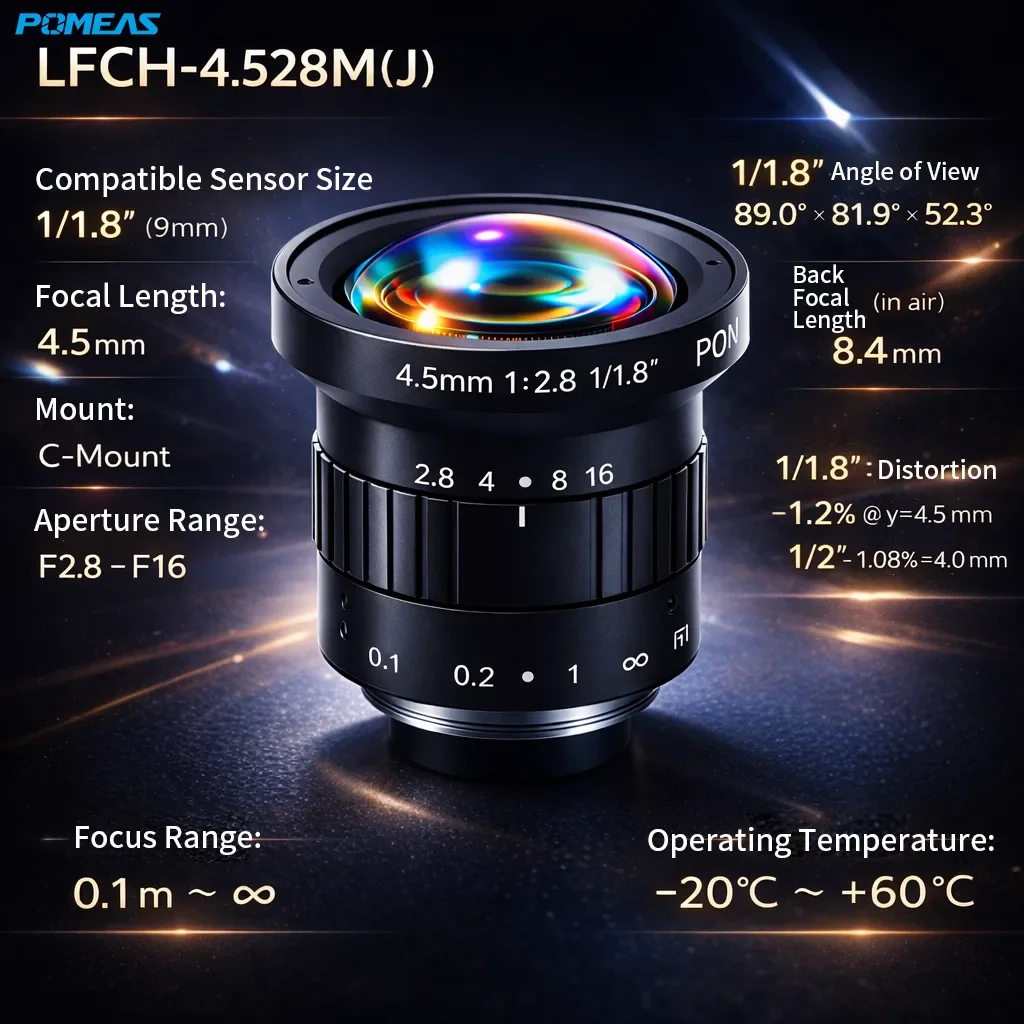

Technical Specifications
| Model | PMS-LFCH-4.528M(J) |
|---|---|
| Product Type | Fixed Focal Length FA Lens |
| Resolution | 5 MP |
| Max Sensor Size | 1/1.8" (9mm) |
| Focal Length | 4.5mm |
| Mount | C-Mount |
| Iris Range | F2.8-F16 |
| Focus Range | 0.1m-∞ |
| Back Focal Length (in air) | 8.4mm |
| Angle of View (1/1.8") | 89.0°×81.9°×52.3° |
| Distortion (1/1.8") | approx. -1.2% @ y=4.5mm |
| Dimensions | Φ44×59.9mm |
| Operating Temperature | -20°C to +60°C |
Applications
Suitable for wide-area positioning and guidance, QR code and barcode reading, electronics appearance inspection and other scenarios that require a large field of view in a single shot.
Frequently Asked Questions
What sensor size does the PMS-LFCH-4.528M(J) support?
It supports sensors up to 1/1.8" (9mm), and is also compatible with smaller formats such as 1/2".
What is the distortion of this 4.5mm lens?
The distortion is approximately -1.2% at y=4.5mm on a 1/1.8" sensor, keeping wide-angle imaging geometry stable.
How close can this lens focus?
The focus range is 0.1m to infinity, so it covers both close-range wide-FOV imaging and distant scenes.
Can the iris and focus be locked?
The iris (F2.8-F16) and focus are manually adjusted; after setup, settings stay stable in typical industrial environments.
