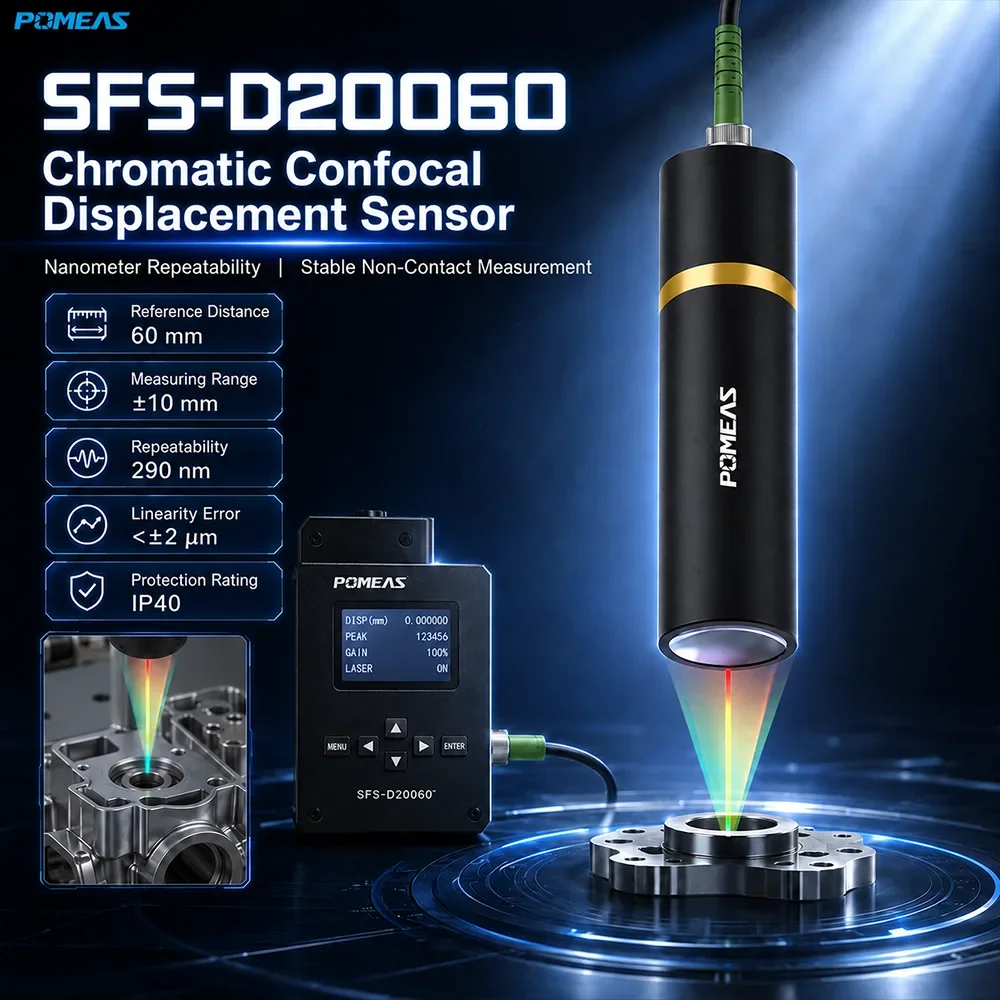

290nm Confocal Displacement Sensor with ±10mm Range
SFS-D20060 is a large-range spectral confocal displacement sensor with 60 mm reference distance, ±10 mm measuring range, 290 nm repeatability, <±2 μm linearity error and a lightweight Φ36×163 mm body weighing only 310 g.
SKU:

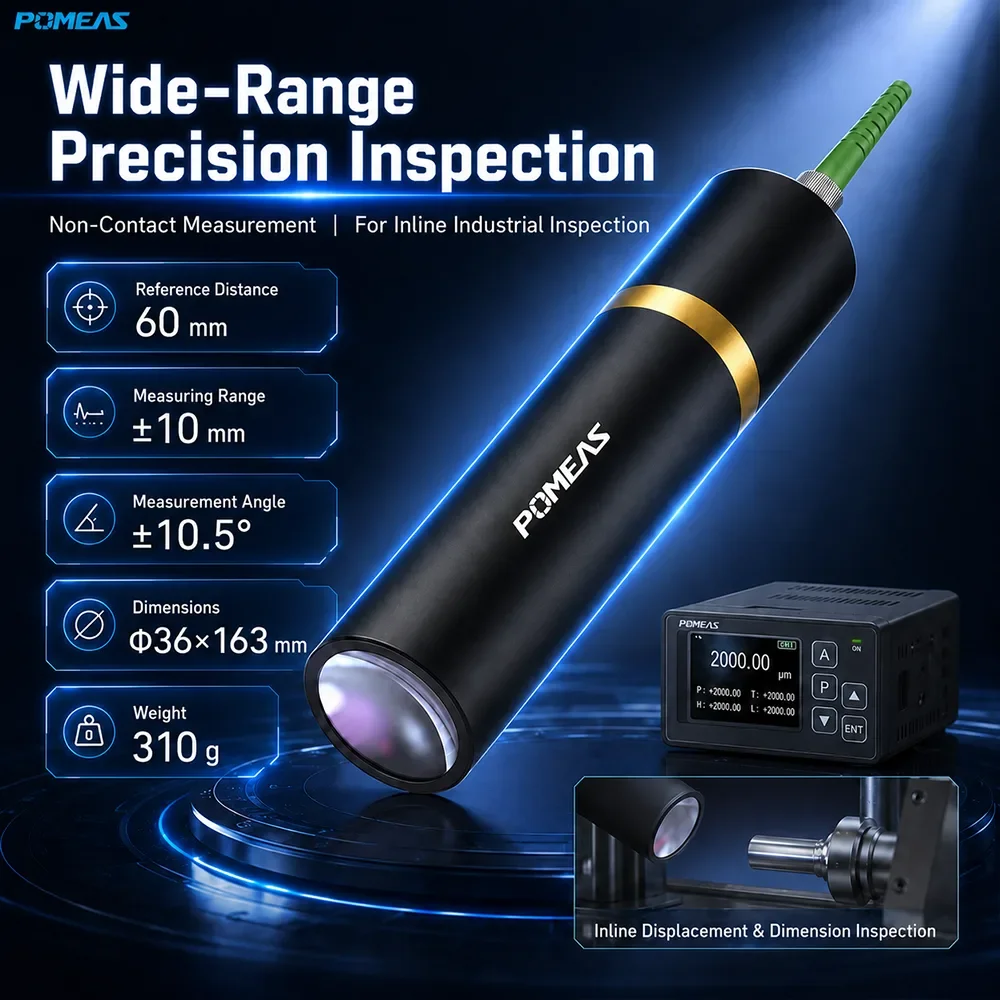

Product Overview
POMEAS SFS-D20060 is a large-range spectral confocal displacement sensor with a 60 mm reference distance, ±10 mm measuring range, 290 nm repeatability and <±2 μm linearity error. The ±10 mm range suits targets with large height variation, and the Φ36×163 mm body weighing about 310 g is notably lightweight for its range class, making integration easy.

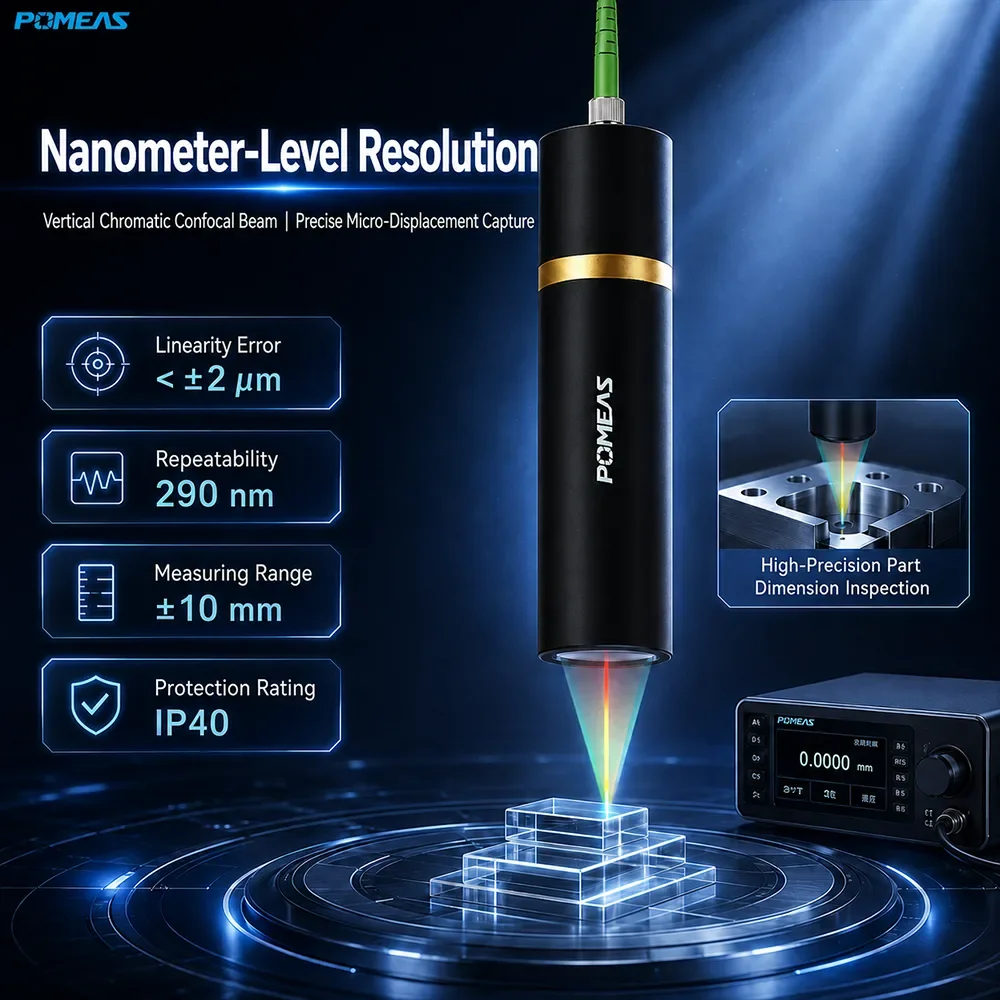

Key Features
- 290 nm repeatability, linearity error <±2 μm
- ±10 mm large measuring range, 20 mm total travel
- 60 mm reference distance for ample clearance
- Φ36×163 mm body, about 310 g lightweight
- Φ25/50/400 μm three-mode spot
- Minimum measurable thickness 5% F.S., supports transparent materials
- IP40
Technical Specifications
| Product Model | SFS-D20060 |
|---|---|
| Sensor Type | Chromatic Confocal Displacement Sensor |
| Reference Distance | 60 mm |
| Measuring Range | ±10 mm |
| Measuring Angle | ±10.5° |
| Spot Diameter | Φ25/50/400 μm |
| Repeatability | 290 nm |
| Linearity Error | <±2 μm |
| Probe Size | Φ36×163 mm |
| Weight | 310 g |
| Minimum Measurable Thickness | 5% of F.S. |
| Temperature Characteristic | <0.03% F.S./°C |
| Protection Rating | IP40 |
| Measurement Method | Non-contact Optical Measurement |
| Application | Large-Range Displacement, Thickness and Height Measurement |
Applications

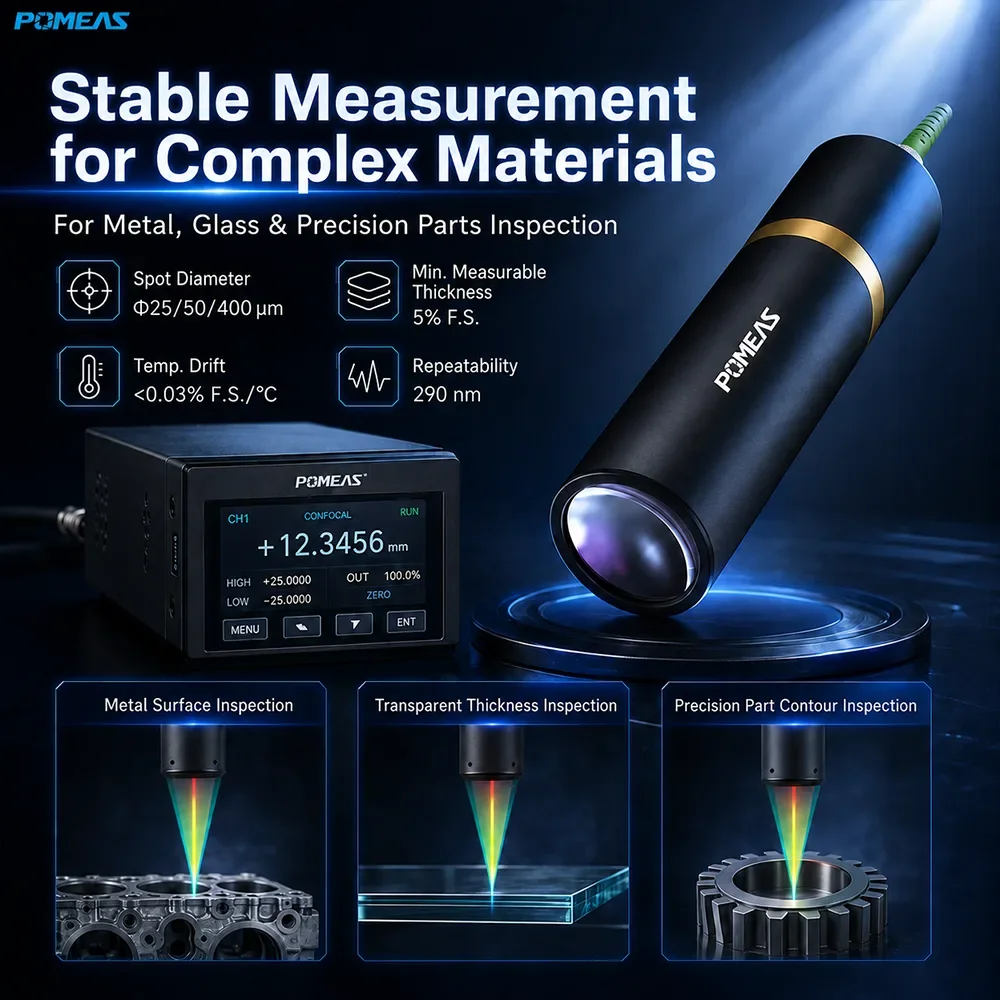

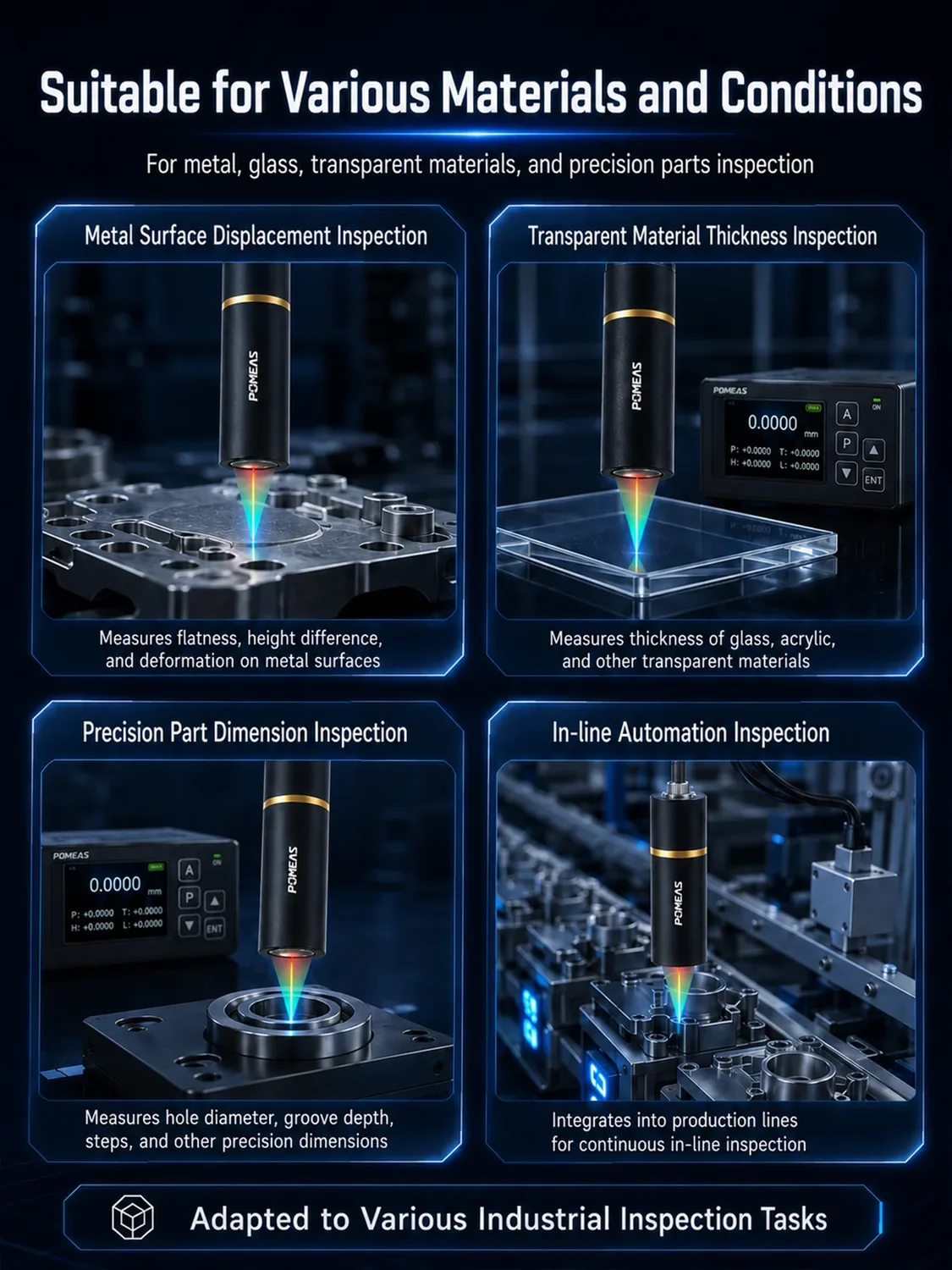

Ideal for large-travel displacement and height measurement, surface contour inspection, transparent material thickness measurement and warpage/step inspection where a large range and lightweight integration matter.
FAQ
What are the range and precision of the SFS-D20060?
Measuring range ±10 mm (20 mm total travel), repeatability 290 nm, linearity error <±2 μm.
What is the weight?
About 310 g (Φ36×163 mm), notably lightweight for its range class, easy to integrate into automation equipment.
Is there a high-temperature version?
Yes. The SFS-D20060H is the high-temperature version operating from -10°C to 150°C with the same core measurement specifications.
Related Reading: Spectral Confocal Displacement Sensors | SFS-D5007 100nm Confocal Sensor | Confocal vs Laser Triangulation
- Application
- Large-Range Displacement, Thickness and Height Measurement
- Linearity Error
- <±2 μm
- Measurement Method
- Non-contact Optical Measurement
- Measuring Angle
- ±10.5°
- Measuring Range
- ±10 mm
- Minimum Measurable Thickness
- 5% of F.S.
- Probe Size
- Φ36×163 mm
- Product Model
- SFS-D20060
- Protection Rating
- IP40
- Reference Distance
- 60 mm
- Repeatability
- 290 nm
- Sensor Type
- Chromatic Confocal Displacement Sensor
- Spot Diameter
- Φ25/50/400 μm
- Temperature Characteristic
- <0.03% F.S./°C
- Weight
- 310 g
