140nm Confocal Displacement Sensor with ±3mm Range

Product Overview

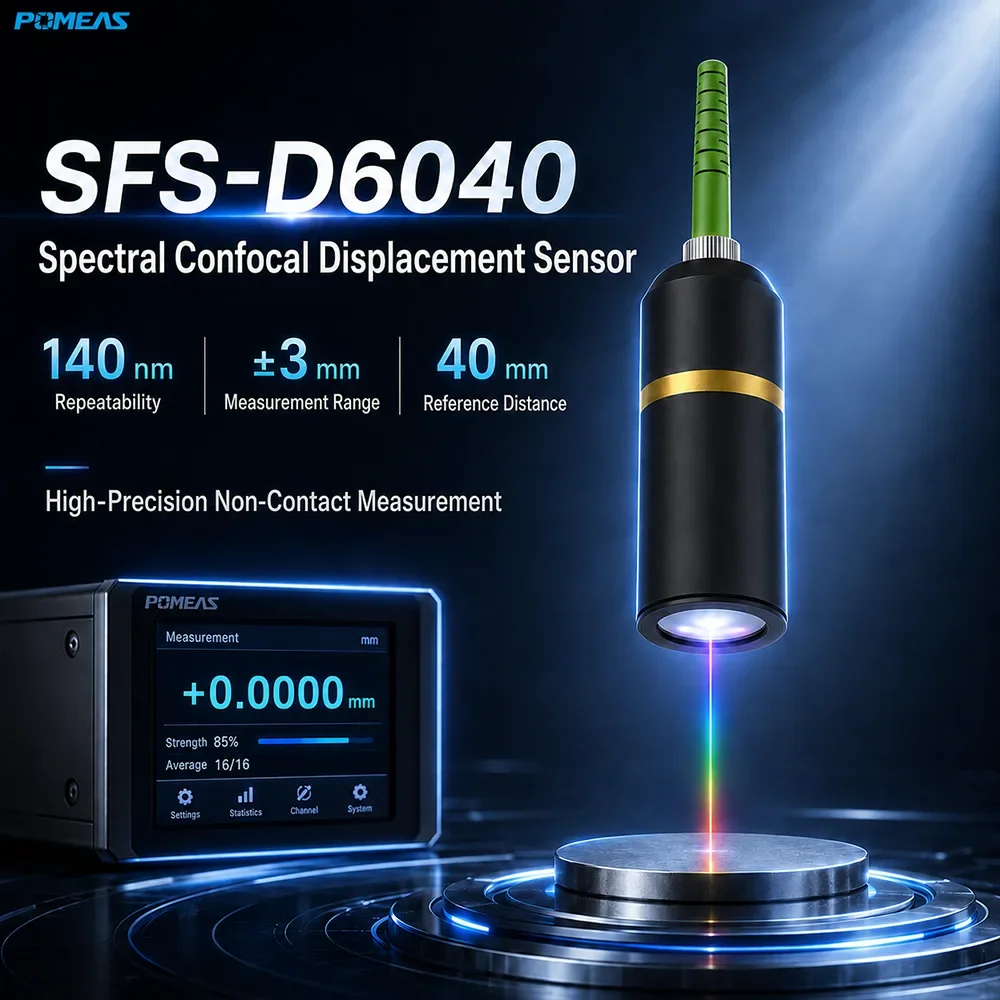

POMEAS SFS-D6040 is a large-range spectral confocal displacement sensor with a 40 mm reference distance, ±3 mm measuring range, 140 nm repeatability and <±0.72 μm linearity error. The ±3 mm range suits surfaces with larger height variation, while the compact Φ30×65.3 mm body weighing about 112 g is easy to integrate. The non-contact optical method handles highly reflective, transparent and soft surfaces.

Key Features

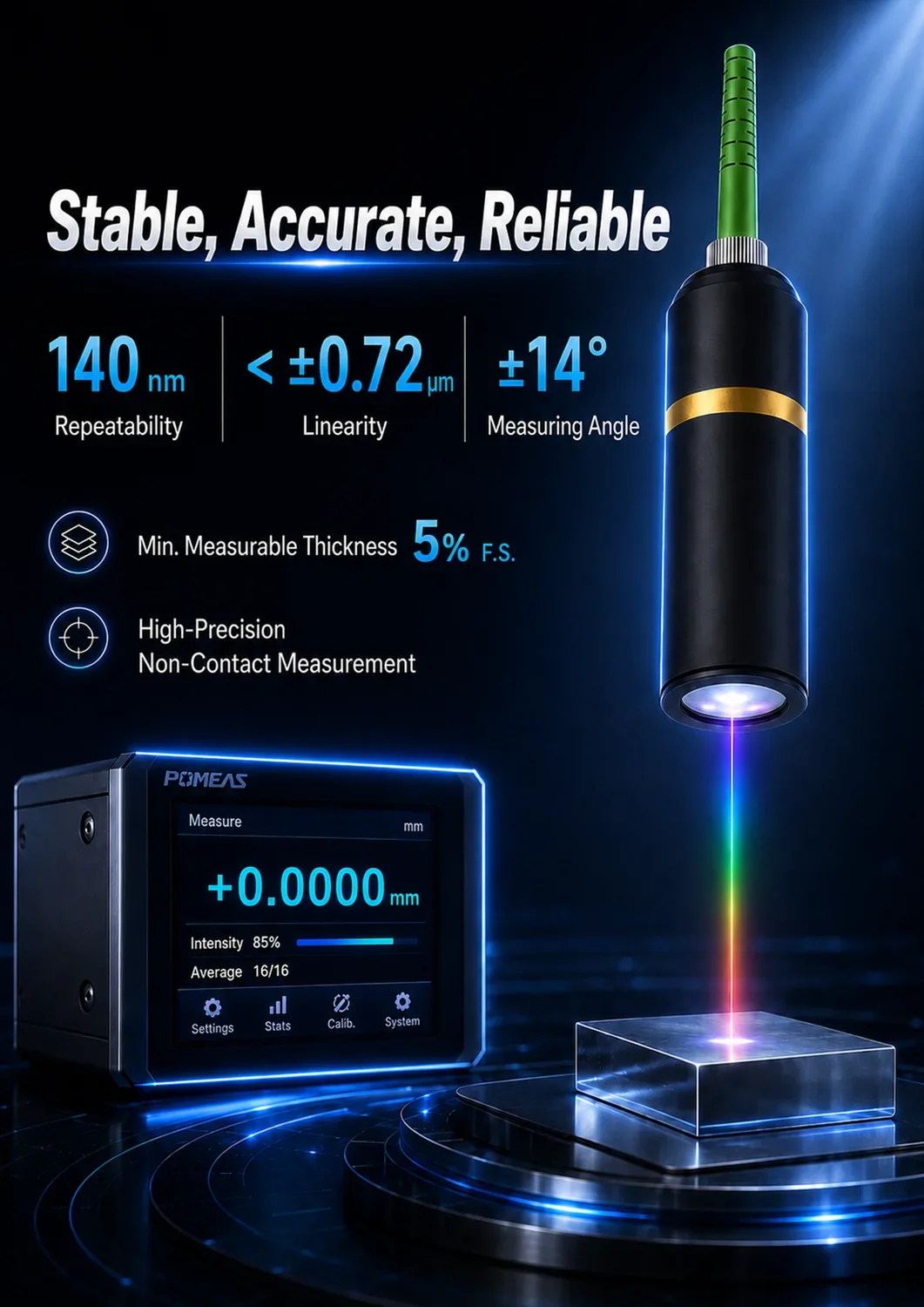

• 140 nm repeatability, linearity error <±0.72 μm
• ±3 mm large measuring range, 6 mm total travel
• 40 mm reference distance for ample clearance
• Compact Φ30×65.3 mm body, only 112 g
• ±14° measuring angle

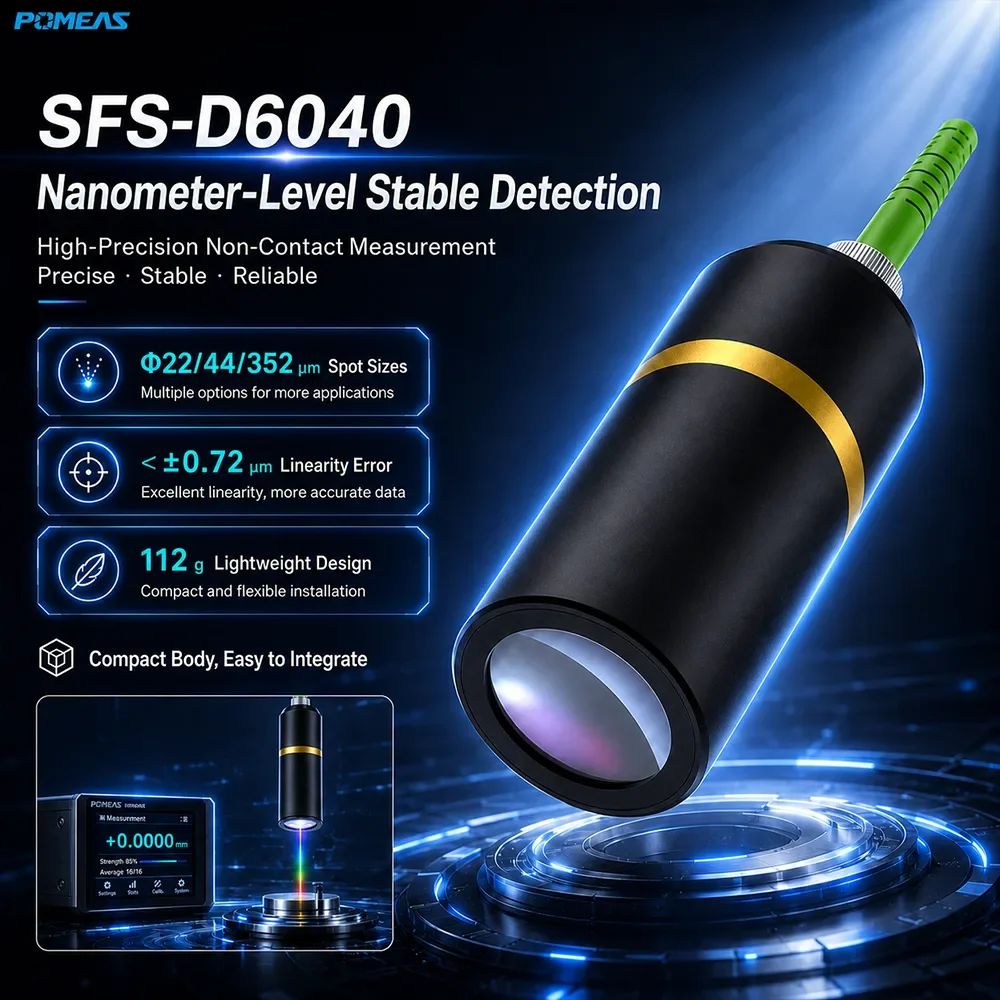

• Φ22/44/352 μm three-mode spot
• Minimum measurable thickness 5% F.S., IP40

Technical Specifications

Applications

Ideal for large-travel displacement and height measurement, surface contour inspection, transparent material thickness measurement and warpage/step inspection.

FAQ

What are the range and precision of the SFS-D6040?

Measuring range ±3 mm (6 mm total travel), repeatability 140 nm and linearity error <±0.72 μm, one of the larger-range models in the SFS series.

What are the body size and weight?

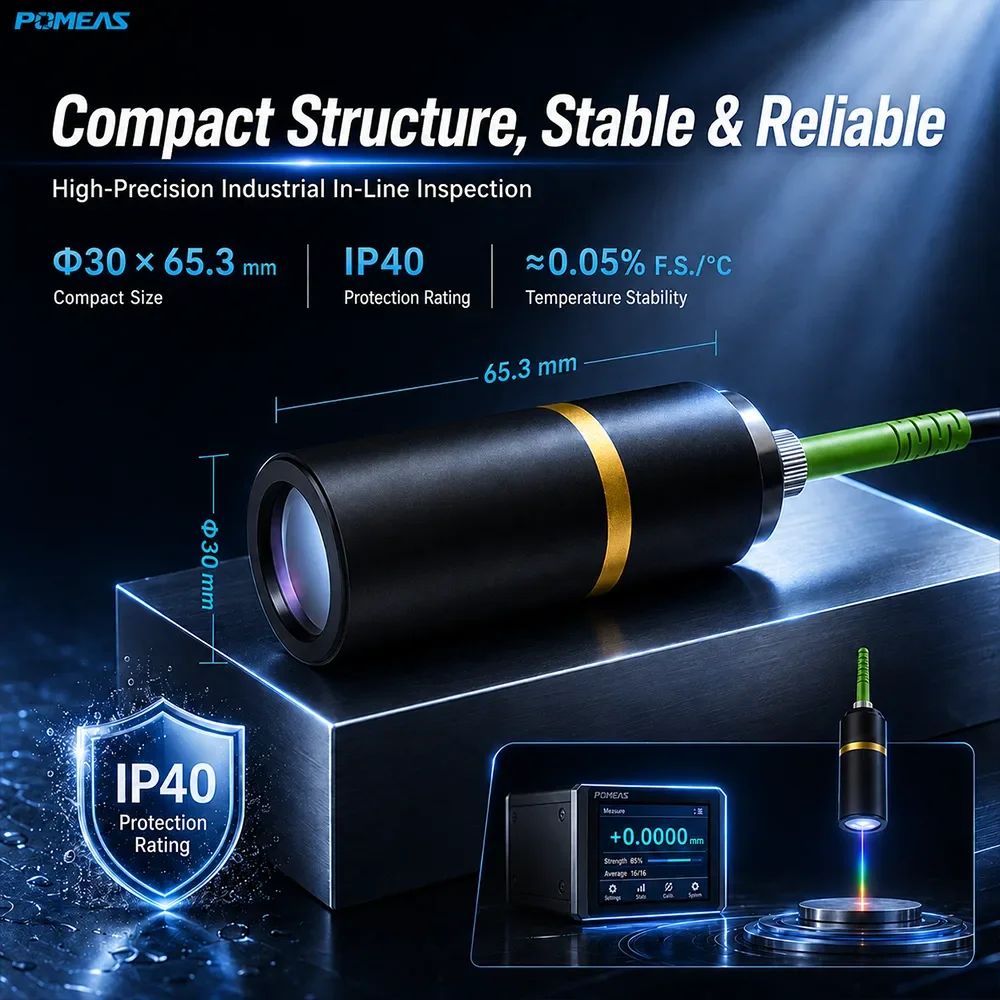

Φ30×65.3 mm, weighing about 112 g, compact and easy to integrate into automation equipment and motion platforms.

Why is the reference distance important?

The 40 mm reference distance is the nominal working distance from the probe to the target. A longer distance gives more mounting and travel clearance, reducing collision risk and suiting surfaces with larger height variation.
