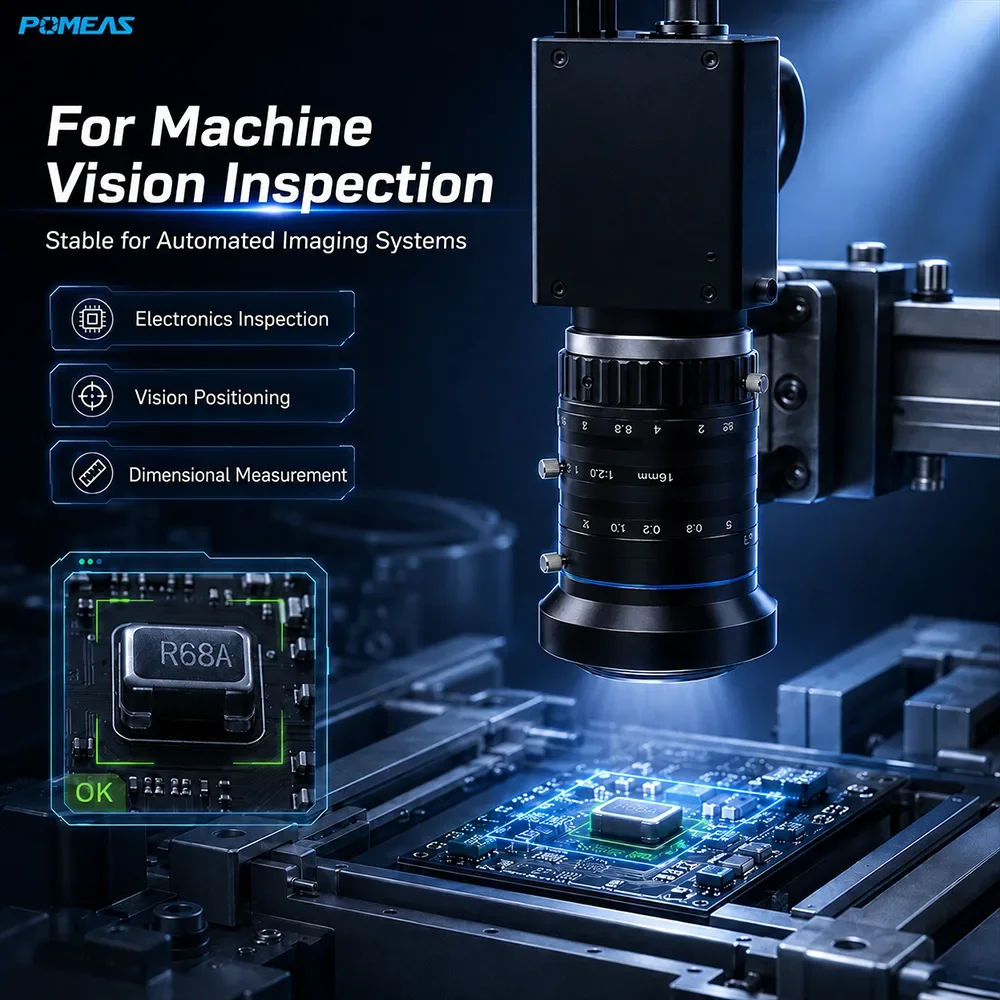

16mm 4/3-Inch 12MP Wide-Angle C-Mount FA Lens
PMS-LFHHG-1612M(B) is a 12MP fixed focal FA lens with 16mm focal length for 4/3-inch sensors, C-Mount, F2.0-F22 aperture and a 0.1 m-Infinity focusing range.
SKU:
Product Overview
POMEAS PMS-LFHHG-1612M(B) is a 12-megapixel wide-angle fixed focal FA industrial lens with a 16mm focal length for 4/3-inch (23 mm) sensors, C-Mount. It provides a 73.0-degree diagonal field of view on the 4/3-inch format, and its 0.1 m-Infinity focusing range gives the strongest close-focus capability in this series, with manual focus and iris adjustment.
Key Features
- 12 MP high resolution
- 16mm wide angle, 73.0° diagonal FOV on 4/3-inch
- Supports 4/3-inch (23 mm) sensors
- Large F2.0-F22 aperture
- Focusing range 0.1 m to infinity
- 420-1000 nm wide spectral range
- C-Mount
Technical Specifications
| Model | PMS-LFHHG-1612M(B) |
|---|---|
| Product Type | Fixed Focal Machine Vision FA Lens |
| Resolution Rating | 12MP |
| Maximum Sensor Format | 4/3 inch (23 mm) |
| Wavelength Range | 420-1000 nm |
| Focal Length | 16 mm |
| Lens Mount | C-Mount |
| Aperture Range | F2.0-F22 |
| Angle of View 4/3" (D×H×V) | 73.0° × 61.0° × 47.3° |
| Angle of View 1" (D×H×V) | 54.2° × 44.3° × 33.6° |
| Angle of View 1/2" (D×H×V) | 28.3° × 22.7° × 17.1° |
| Object Field at Min. Focus 4/3" (D×H×V) | 195.5 × 145.5 × 107.3 mm |
| Object Field at Min. Focus 1" (D×H×V) | 125.5 × 99.3 × 73.9 mm |
| Object Field at Min. Focus 1/2" (D×H×V) | 61.3 × 48.9 × 36.6 mm |
| Back Focal Length in Air | 21 mm |
| Distortion (4/3") | -1.93% @ y=11.5 mm |
| Distortion (1") | -1.82% @ y=8.0 mm |
| Distortion (1/2") | -0.55% @ y=4.0 mm |
| Focusing Range | 0.1 m to infinity |
| Filter Thread | M58.0 × P0.75 |
| Focus Adjustment | Manual |
| Iris Adjustment | Manual |
| Weight | 339 g |
| Operating Temperature | -20°C to +60°C |
Applications
Ideal for wide-field inspection, large workpiece appearance inspection and close-range positioning applications. Also compatible with 1-inch and smaller sensors.
FAQ
What sensor sizes does the PMS-LFHHG-1612M(B) support?
Up to 4/3-inch (23 mm). Official field angle and distortion data are provided for 4/3-inch, 1-inch and 1/2-inch formats, and smaller sensors are also compatible.
What is the minimum focusing distance?
The focusing range is 0.1 m to infinity, the strongest close-focus capability in this series, covering an object field of about 195.5 × 145.5 mm on the 4/3-inch format.
How does it differ from the 12mm LFHHG-1212M(B)?
The 1612M(B) has a longer focal length (16 mm) and a narrower field of view (73.0° vs 89.1° diagonal), so the target occupies more pixels on the sensor. Both are 4/3-inch 12MP designs.
