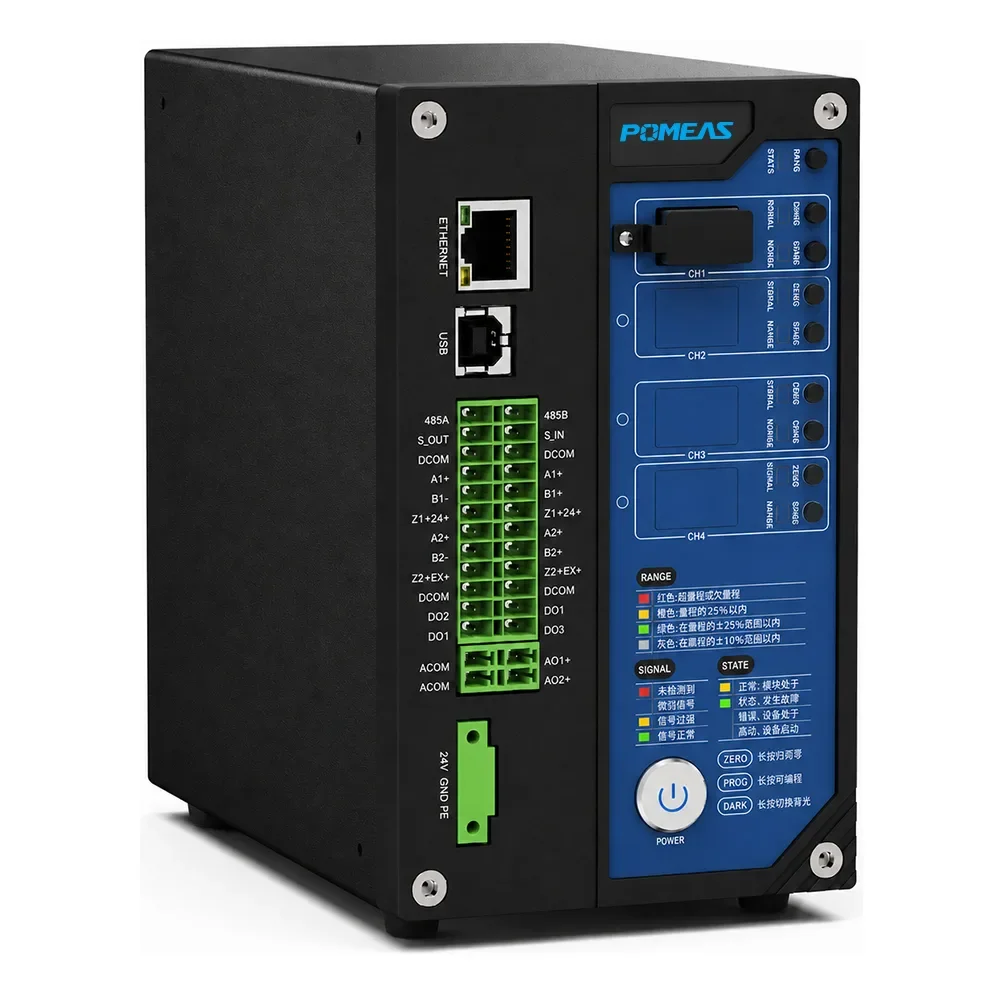

Single-Channel Confocal Displacement Sensor Controller
SFS-C8008 is a single-channel confocal displacement sensor controller supporting 1 sensor head with up to 32 kHz sampling, 100BASE-TX Ethernet, USB 2.0 High-speed, RS-485 Modbus and optional EtherCAT.
SKU:
Product Overview
POMEAS SFS-C8008 is the single-channel controller of the C8008 series for SFS spectral confocal displacement sensors, supporting 1 sensor head with up to 32 kHz sampling. It targets single-point high-precision displacement and thickness measurement, supports encoder-synchronized triggering and comparator outputs, and provides Ethernet, USB and RS-485 industrial interfaces for easy integration with PLCs and host computers.
Key Features
- Supports 1 confocal sensor head
- Up to 32 kHz sampling per channel
- 100BASE-TX Ethernet and USB 2.0 High-speed
- RS-485 Modbus with optional EtherCAT
- AB/ABZ encoder input and pulse/level triggering
- ±10 V / 4~20 mA analog output
- 24 VDC supply, 0 to +50 °C operating temperature
Technical Specifications
| Sensor Head Connection | 1 |
|---|---|
| Sampling Frequency | Single-channel Max. 32 kHz |
| Encoder Input | AB / ABZ encoder input, configurable for triggering |
| Trigger Input | Pulse trigger / level trigger |
| Digital Output | Alarm output, comparator output (configurable as comparator output or invalid-data warning) |
| Analog Signal Output | Linear ±10 V analog voltage output; 4~20 mA analog current output (optional module) |
| Ethernet Interface | 100BASE-TX |
| USB Interface | USB2.0 High-speed（480Mbps） |
| RS-485 Interface | Modbus protocol, 19200~115200 baud |
| EtherCAT Interface | Optional |
| Host Software | TSConfocalStudio |
| SDK | C++ and C# SDK |
| Supply Voltage | 24 VDC ±10% |
| Current Consumption | Approx. 1.0 A |
| Operating Temperature | 0 to +50 °C |
| Relative Humidity | 20 to 85% RH (no condensation) |
| Weight | Approx. 3200 g |
Applications
Ideal for single-point high-precision displacement and thickness measurement, in-line height inspection and single-point automated metrology systems.
FAQ
How many sensor heads can the SFS-C8008 connect?
1 SFS series confocal sensor head, with up to 32 kHz sampling.
Which interfaces are available?
100BASE-TX Ethernet, USB 2.0 High-speed and RS-485 Modbus, with optional EtherCAT.
How is triggering synchronized?
AB / ABZ encoder input (configurable for triggering) plus pulse and level triggering.

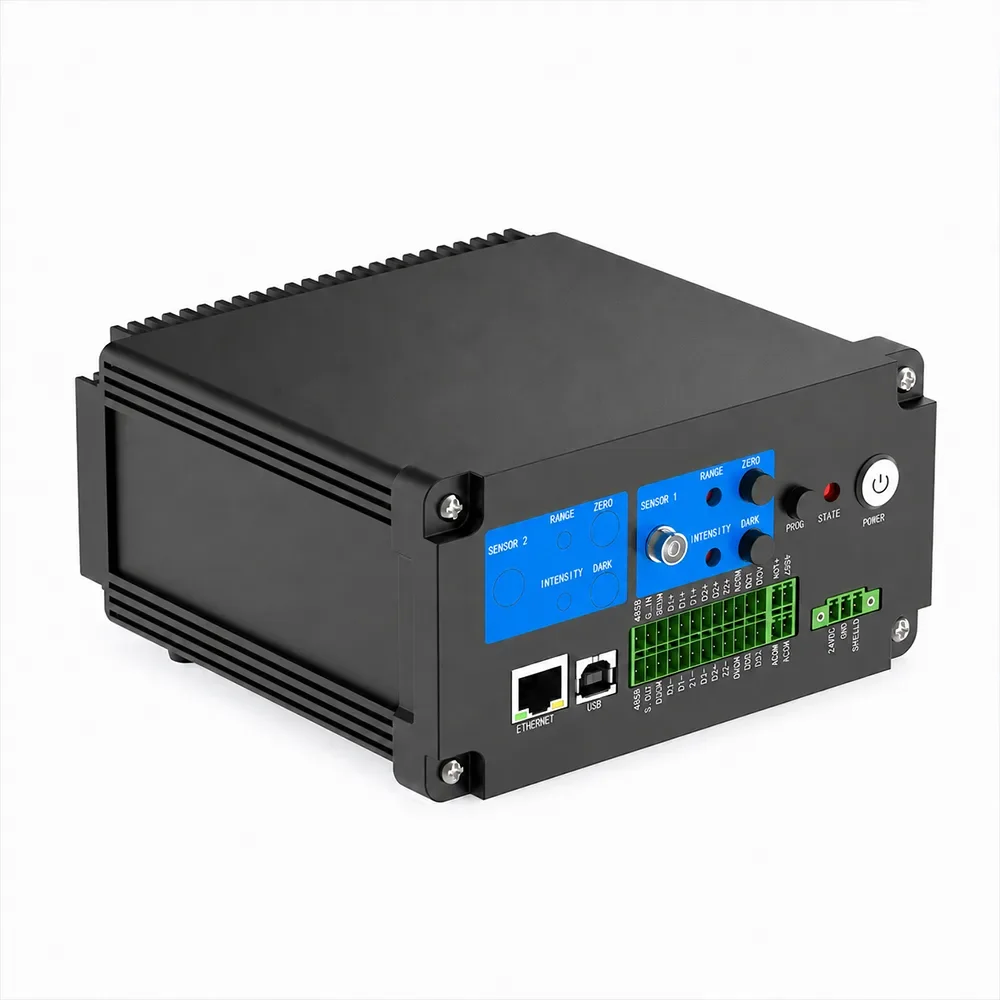

Related Reading: Spectral Confocal Displacement Sensors | 10kHz Single-Channel Controller (C8004L)
