0.24X F-Mount Double Telecentric Lens, 398mm WD

The PMS-LTFM024-398 from POMEAS is a telecentric lens for high-precision dimensional measurement and visual inspection. With a Φ180 mm object field and TV…

SKU:

Description
Parameters
Files (0)

Product Overview

The PMS-LTFM024-398 from POMEAS is a telecentric lens for high-precision dimensional measurement and visual inspection. With a Φ180 mm object field and TV distortion of only 0.01%, it keeps magnification constant across the field of view, so dimensions can be measured directly on the image without perspective error. F-Mount mount, sensors up to 35mm.

PMS-LTFM024-398 0.24X F-Mount Double Telecentric Lens, 398mm WD

Key Features

0.24X magnification with a 398 mm working distance over a 150 × 100 mm field on 35 mm sensors.
30.76 μm object-side resolution for fine-detail inspection.
Constant magnification over the depth of field: no size shift when the part moves.
30.76 μm resolution and >50% center MTF for full-field, high-throughput inspection.
Standard F-Mount mount, integrates with common industrial cameras.
Supported sensors: 35mm. Customization available on request.

Specifications

Model	PMS-LTFM024-398
Magnification	0.24X
Working Distance	398mm
Resolution	30.76μm
Center MTF	>50%
TV Distortion	0.01%
FOV (35mm)	150×100mm
Field of View	Φ180mm
Max. Sensor Size	35mm
Mount	F-Mount
Working Temp.	-10°C~+50°C

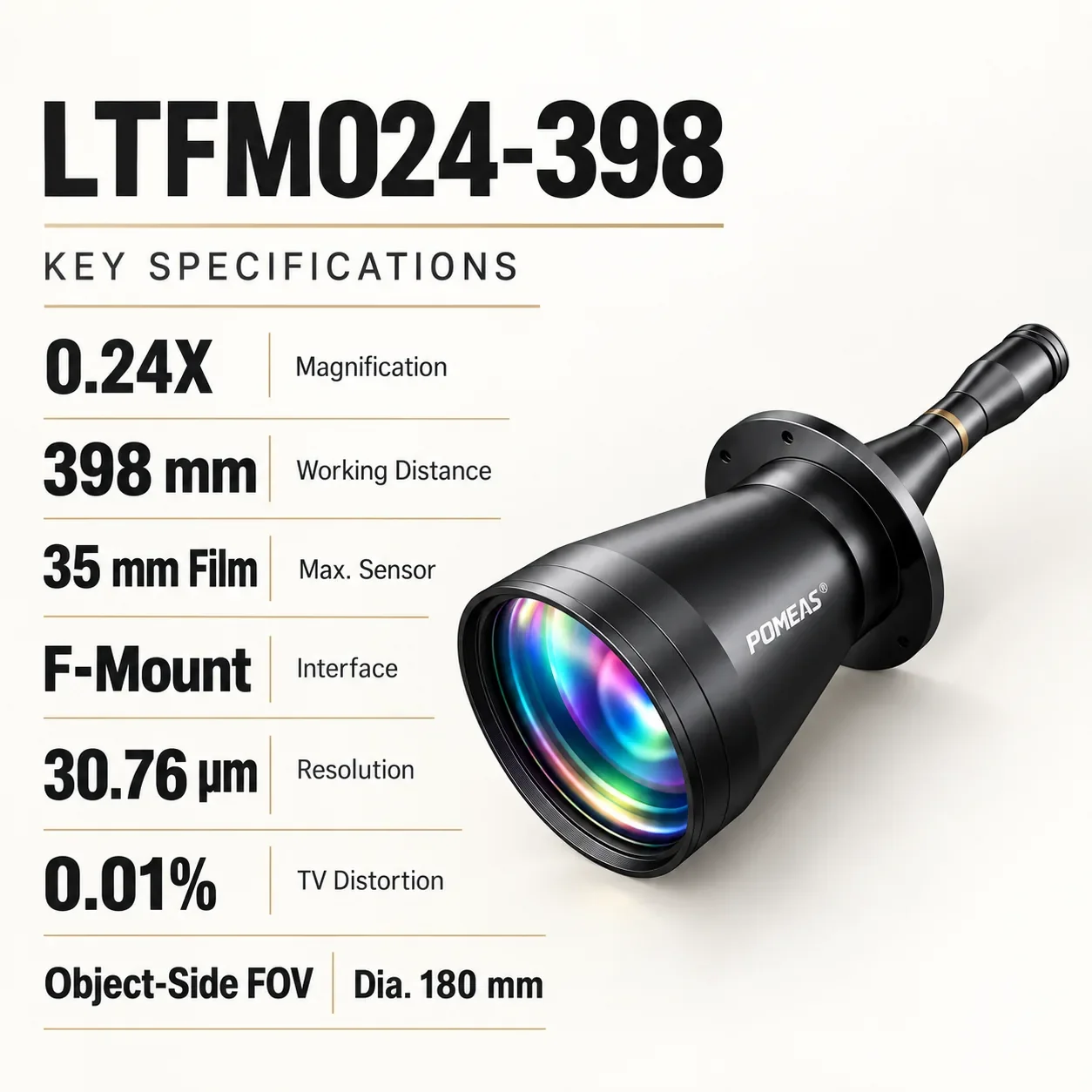

PMS-LTFM024-398 0.24X F-Mount Double Telecentric Lens, 398mm WD - Specifications

Typical Applications

Dimensional measurement of machined and molded parts, electronics and connector inspection, glass and sheet-edge inspection, in-line quality control wherever telecentric geometry and stable magnification are required.

Selection Guide

To choose the right model, first compare the smallest feature to inspect with the lens resolution and the camera pixel size; then confirm the working distance available in the machine and the maximum supported sensor size. POMEAS can customize working distance, mount and magnification for your application.

Frequently Asked Questions

What is a telecentric lens and when should I use one?

A telecentric lens keeps magnification constant over its depth of field, so the part size does not change with position or height. Use it whenever dimensions are measured directly from the image: connector pins, machined features, stamped parts and glass edges.

Which sensors does this model support?

This model supports sensors up to 35mm. Verify the mount and sensor size of your camera before final selection.

How much distortion does it introduce?

The TV distortion of this model is 0.01%, keeping image geometry stable from center to edge — a key requirement when dimensions are calculated directly from image coordinates.

Can the working distance or mount be customized?

Yes. POMEAS offers customization of working distance, mount and magnification; send your part and camera specifications so the technical team can confirm the solution.
