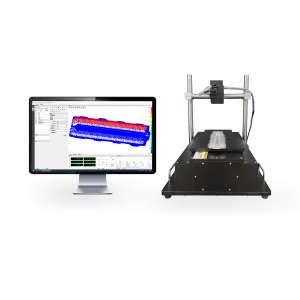

POMEAS LPS-8200 Line Laser 3D Contour Sensor | 23 μm X-Resolution

<ul><li>Infinity optical design supporting up to 4/3-inch (φ22 mm) sensors</li><li>Compatible with mainstream flat-field achromatic long working distance objectives</li><li>Professional coaxial light path with uniform, high-contrast illumination</li><li>Modular: optional bright/dark field, DIC module and objective switching module</li><li>Functional extensions such as dual-camera interface and coaxial multi-interface</li></ul>

<ul><li>Plan apochromatic flat-field imaging with apochromatic correction</li><li>Long working distance: 29.5 mm clearance for inspection and integration</li><li>Infinity-corrected, specified for a 200 mm reference tube lens</li><li>0.8 μm resolution with ±2.38 μm depth of field at NA 0.34</li><li>M26 × 0.705 mount with 95 mm parfocal distance</li></ul>

<ul><li>Plan apochromatic correction for flat-field, colour-accurate imaging</li><li>Infinity-corrected optical design for modular machine-vision builds</li><li>NA 0.55 with 13 mm working distance</li><li>0.5 μm resolution and 0.9 μm depth of field</li><li>Maximum image field of view 0.36 mm on a 180 mm tube lens</li></ul>

<ul><li>Plan apochromatic correction for flat-field, colour-accurate imaging</li><li>Infinity-corrected optical design for modular machine-vision builds</li><li>NA 0.42 with 20 mm working distance</li><li>0.7 μm resolution and 1.6 μm depth of field</li><li>Maximum image field of view 0.89 mm on a 180 mm tube lens</li></ul>

<ul><li>Plan apochromatic correction for flat-field, colour-accurate imaging</li><li>Infinity-corrected optical design for modular machine-vision builds</li><li>NA 0.28 with 34 mm working distance</li><li>1 μm resolution and 3.5 μm depth of field</li><li>Maximum image field of view 1.78 mm on a 180 mm tube lens</li></ul>

<ul><li>Plan apochromatic correction for flat-field, colour-accurate imaging</li><li>Infinity-corrected optical design for modular machine-vision builds</li><li>NA 0.14 with 35 mm working distance</li><li>2 μm resolution and 14 μm depth of field</li><li>Maximum image field of view 3.56 mm on a 180 mm tube lens</li></ul>

<ul><li>Plan apochromatic correction for flat-field, colour-accurate imaging</li><li>Infinity-corrected optical design for modular machine-vision builds</li><li>NA 0.055 with 34 mm working distance</li><li>5 μm resolution and 91 μm depth of field</li><li>Maximum image field of view 8.89 mm on a 180 mm tube lens</li></ul>

<ul><li>3200 data points per contour with 0.1% MR Z-direction linearity</li><li>3400 Hz full-frame and 14500 Hz ROI sampling speed</li><li>405 nm Class II/III laser with cylindrical-lens line projection</li><li>HDR dual-slope gain exposure for bright and dark surfaces in one frame</li><li>Anti-glare optical path design reduces interference from reflective surfaces</li><li>IP67-rated housing with C/C++/.NET SDK for PLC and host integration</li></ul>

<ul><li>3200 data points per contour with 0.1% MR Z-direction linearity</li><li>3400 Hz full-frame and 14500 Hz ROI sampling speed</li><li>405 nm Class II/III laser with cylindrical-lens line projection</li><li>HDR dual-slope gain exposure for bright and dark surfaces in one frame</li><li>Anti-glare optical path design reduces interference from reflective surfaces</li><li>IP67-rated housing with C/C++/.NET SDK for PLC and host integration</li></ul>

<ul><li>3200 data points per contour with 0.1% MR Z-direction linearity</li><li>3400 Hz full-frame and 14500 Hz ROI sampling speed</li><li>405 nm Class II/III laser with cylindrical-lens line projection</li><li>HDR dual-slope gain exposure for bright and dark surfaces in one frame</li><li>Anti-glare optical path design reduces interference from reflective surfaces</li><li>IP67-rated housing with C/C++/.NET SDK for PLC and host integration</li></ul>
