50mm 1-Inch 10MP C-Mount FA Industrial Lens

MH2050-10MP is a POMEAS 10MP fixed-focal FA industrial lens, 50mm focal length, sensors up to 1" (16mm), C-mount, aperture F2.0-F22, focus range 0.25m~∞, distortion -0.013% (1"), for industrial inspection and dimensional measurement.

SKU:

Description
Parameters
Files (0)

Product Overview

POMEAS MH2050-10MP is a 10MP fixed-focal FA industrial lens with a 50mm focal length, supporting sensors up to 1" (16mm), C-mount. The diagonal field of view on 1" format is 18.38°, with distortion of -0.013% at y=8.0mm. Focus range 0.25m~∞, manual focus and manual iris, suitable for industrial inspection, dimensional measurement and automated identification in machine vision applications.

Key Features

High-resolution 10MP fixed-focal design
50mm focal length, 1" diagonal FOV 18.38° on 1" format
Supports sensors up to 1" (16mm)

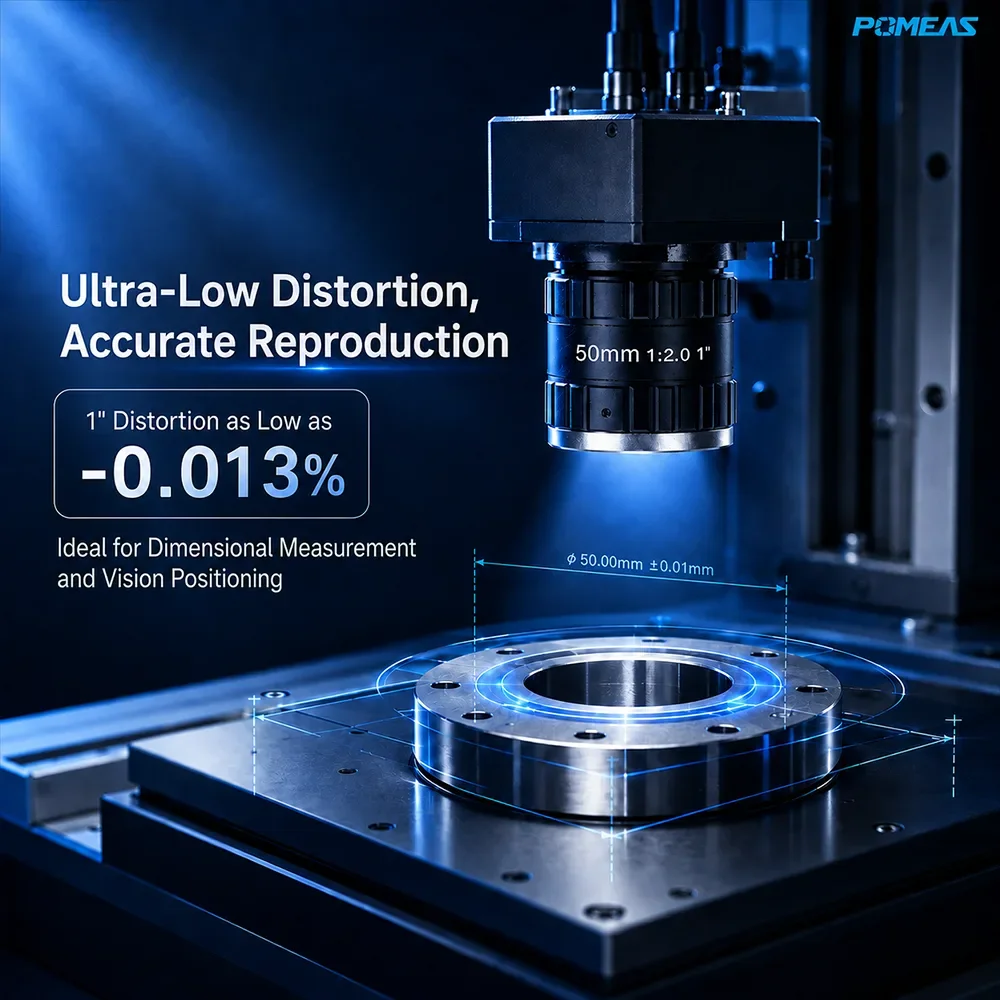

Low distortion -0.013%@y=8.0mm (1")
Aperture F2.0-F22, focus range 0.25m~∞
Weight 105.25g

Specifications

Model	MH2050-10MP
Type	Fixed-Focal FA Industrial Lens
Resolution	10MP
Max Sensor Format	1" (16mm)
Mount	C-Mount
Aperture	F2.0-F22
Focal Length	50mm
Distortion (1")	-0.013%@y=8.0mm
Back Focal Length (in air)	21.3mm
Focus Range	0.25m~∞
FOV (1", D×H×V)	18.38°×14.70°×10.98°
Object Size at Min. Focus (D×H×V, 1")	72.50×57.94×43.34mm
Filter Thread	M37×P0.5
Weight	105.25g
Operating Temperature	-20°C～+60°C

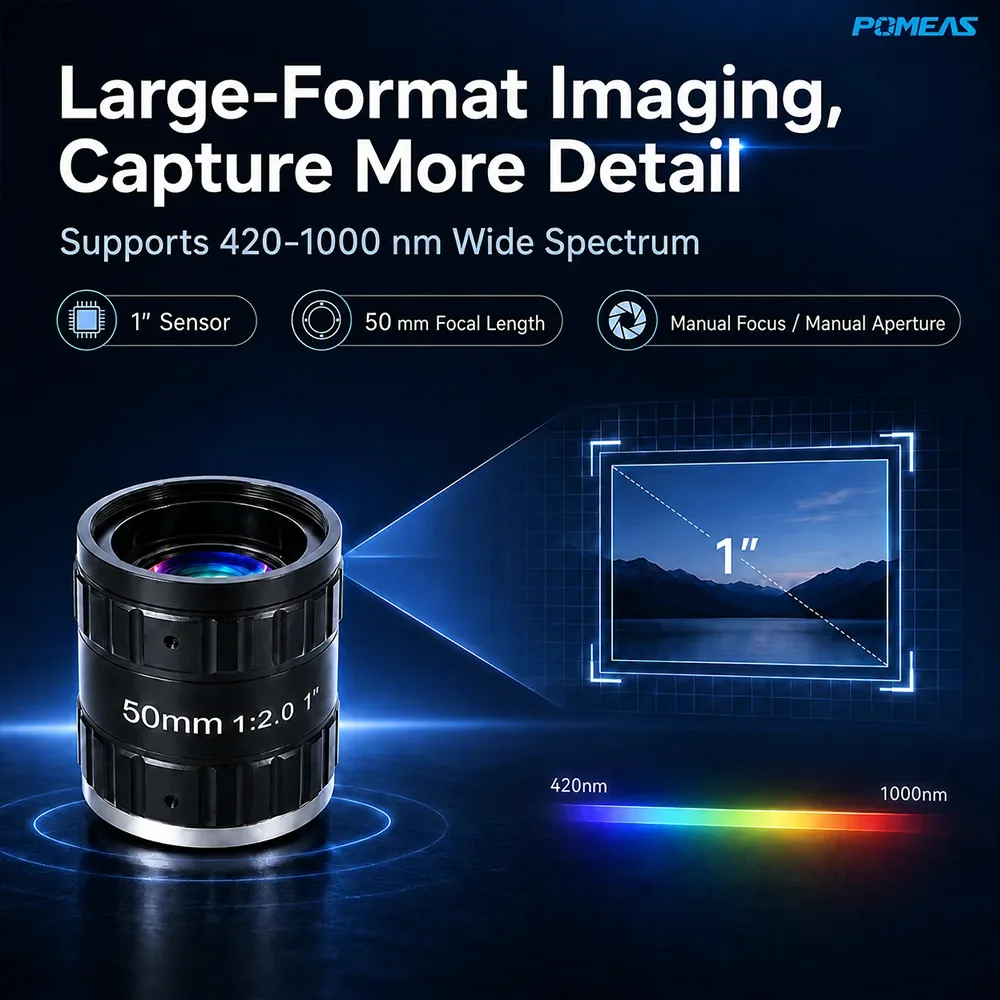

Wavelength	420~1000nm
Operation	Manual focus / manual iris
