300nm Confocal Displacement Sensor with ±8mm Range

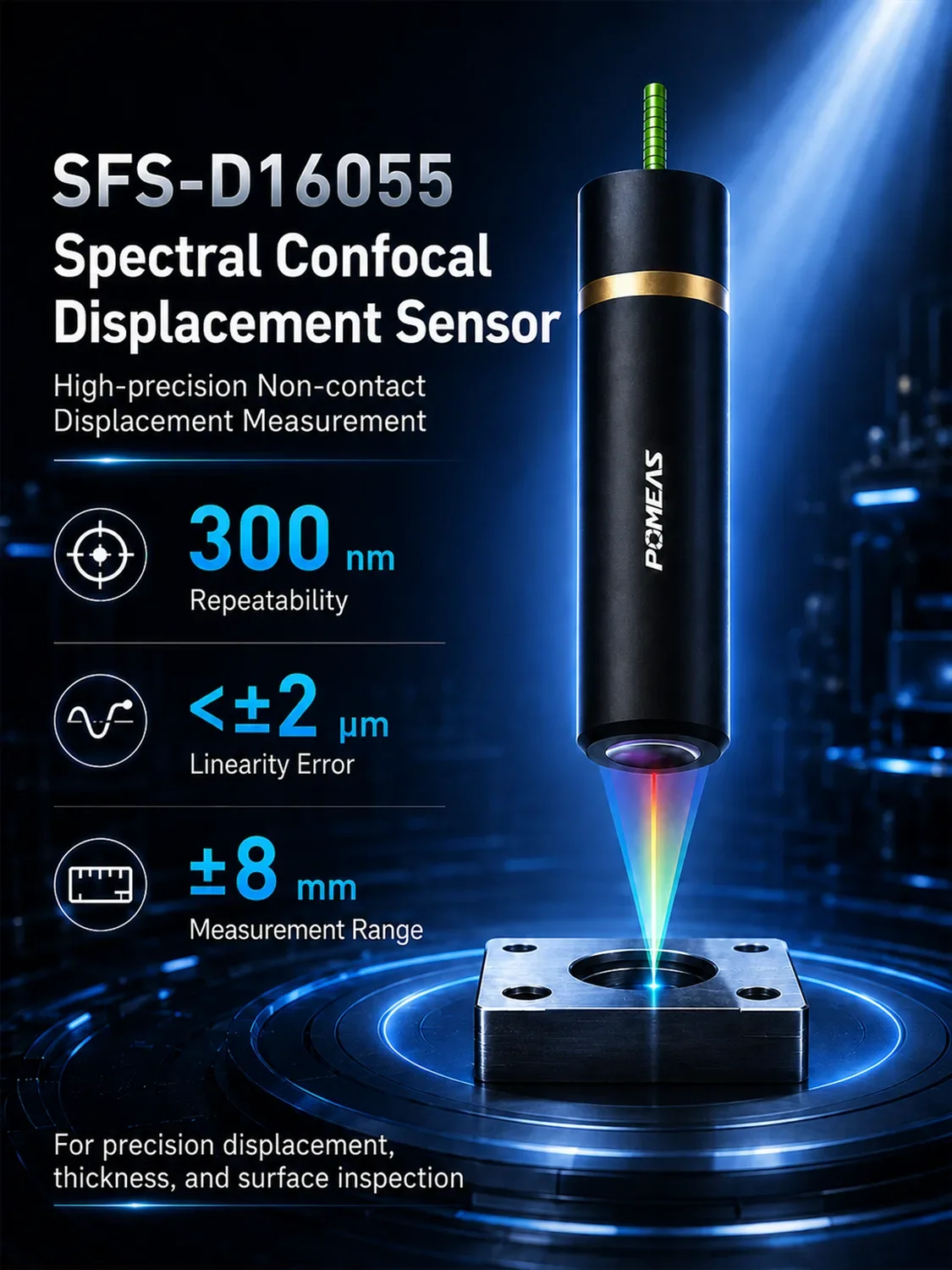

SFS-D16055 is a large-travel spectral confocal displacement sensor with 55 mm reference distance, ±8 mm measuring range, 300 nm repeatability and <±2 μm linearity error.
SKU:
Product Overview

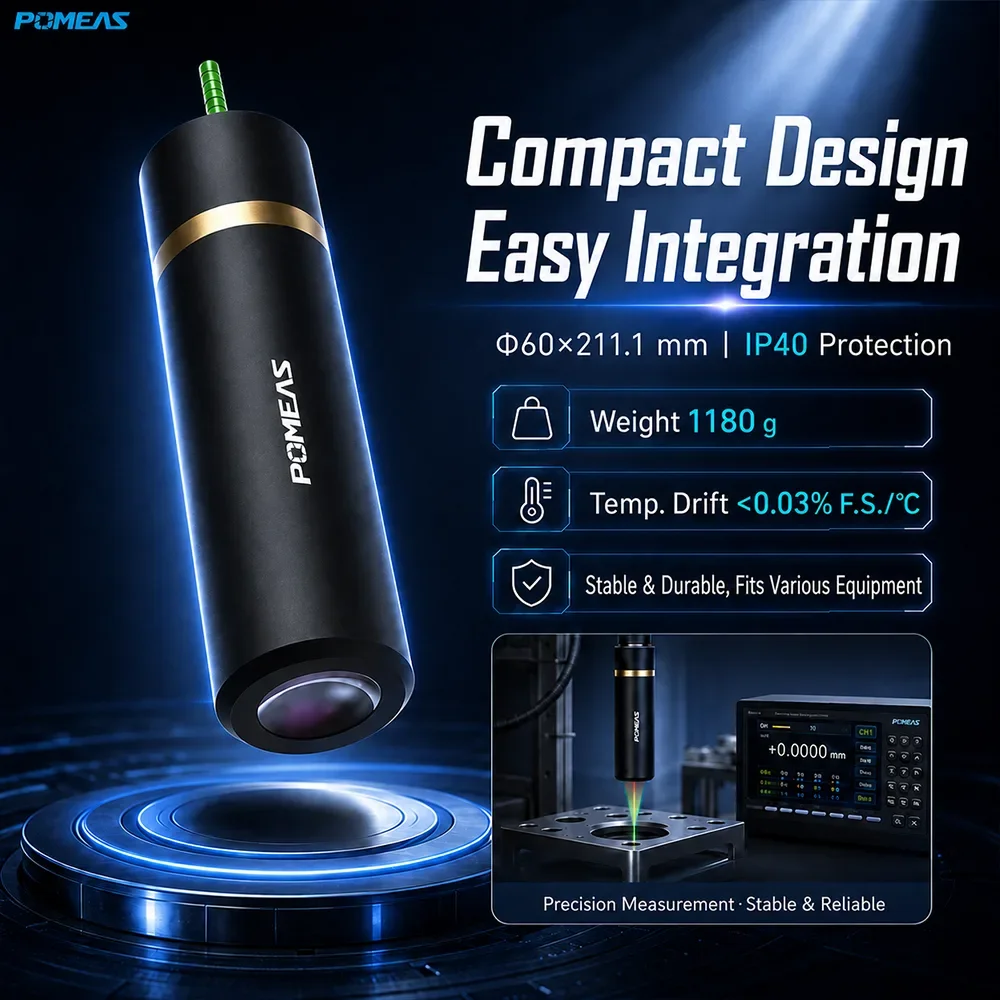

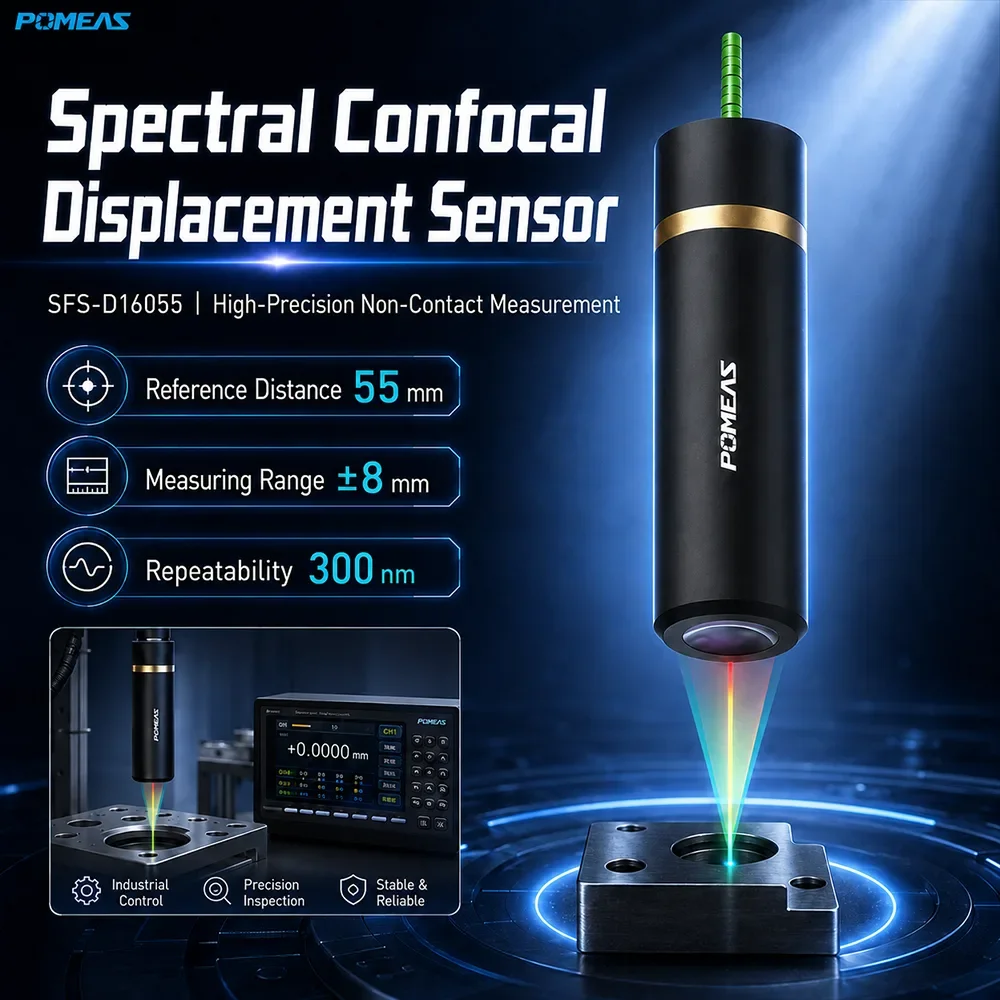

POMEAS SFS-D16055 is a large-travel high-precision spectral confocal displacement sensor with a 55 mm reference distance, ±8 mm measuring range, 300 nm repeatability and <±2 μm linearity error. The ±8 mm range suits targets with large height variation and the ±15.3° measuring angle offers good surface adaptability; the Φ60×211.1 mm body weighing about 1180 g suits fixed-station installation.
Key Features
- 300 nm repeatability, linearity error <±2 μm
- ±8 mm large measuring range, 16 mm total travel
- 55 mm reference distance for ample clearance

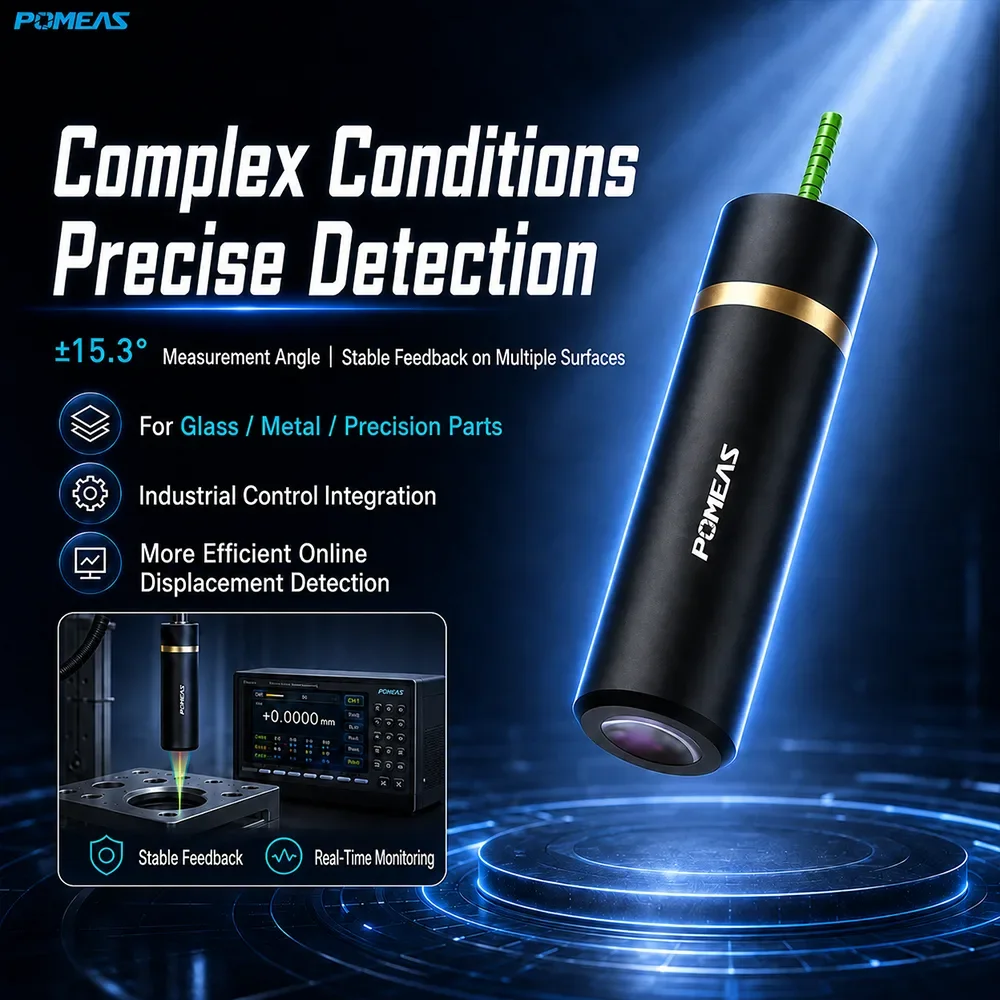

- ±15.3° measuring angle for good surface adaptability

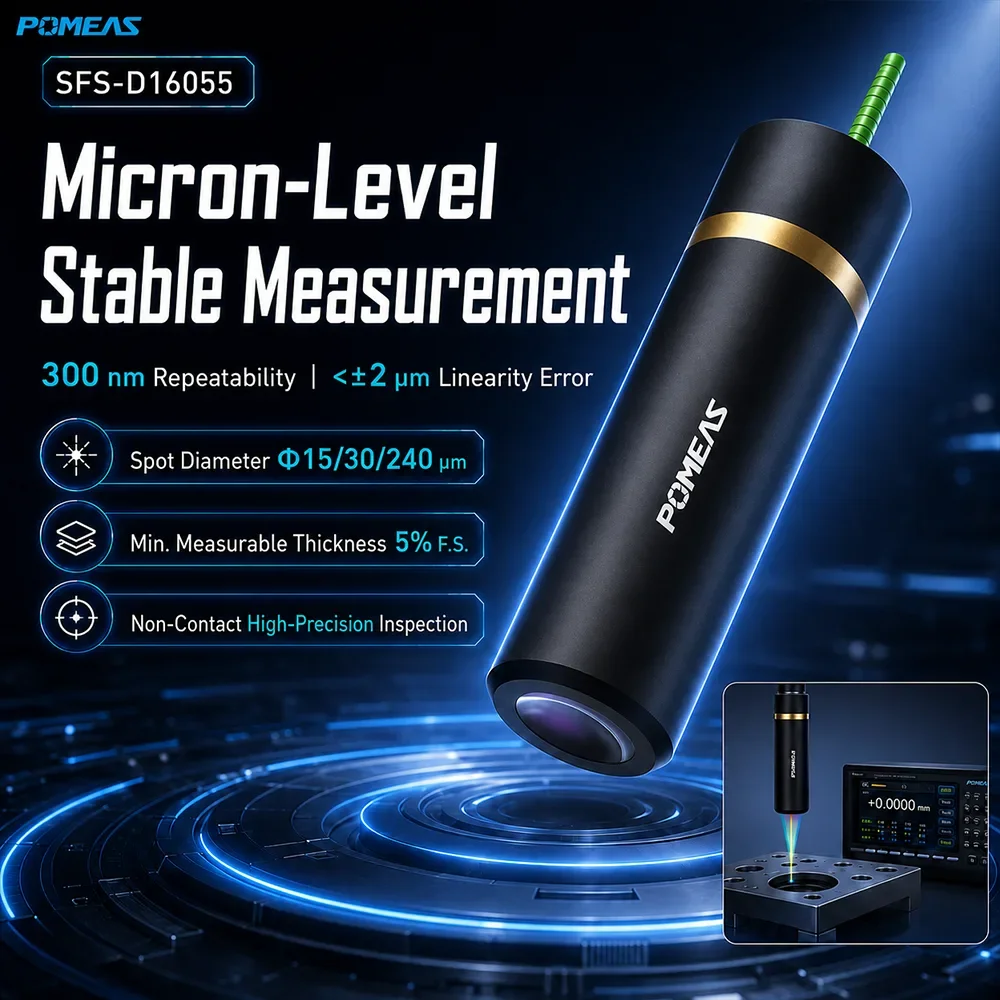

- Φ15/30/240 μm three-mode spot
- Minimum measurable thickness 5% F.S., supports transparent materials
- IP40
Technical Specifications
| Product Model | SFS-D16055 |
|---|---|
| Sensor Type | Chromatic Confocal Displacement Sensor |
| Reference Distance | 55 mm |
| Measuring Range | ±8 mm |
| Measuring Angle | ±15.3° |
| Spot Diameter | Φ15/30/240 μm |
| Repeatability | 300 nm |
| Linearity Error | <±2 μm |
| Probe Size | Φ60×211.1 mm |
| Weight | 1180 g |
| Minimum Measurable Thickness | 5% of F.S. |
| Temperature Characteristic | <0.03% F.S./°C |
| Protection Rating | IP40 |
| Measurement Method | Non-contact Optical Measurement |
| Application | Large-Range Displacement, Thickness and Surface Contour Measurement |
Applications
Ideal for large-travel displacement and height measurement, surface contour inspection, transparent material thickness measurement and warpage/step inspection.
FAQ
What are the range and precision of the SFS-D16055?
Measuring range ±8 mm (16 mm total travel), repeatability 300 nm, linearity error <±2 μm, one of the large-travel models in the SFS series.
What is the reference distance?
The reference distance is 55 mm, giving ample clearance for fixturing and surface variation.
What is the measuring angle?
±15.3° measuring angle (tested on a standard flat mirror at 1 kHz sampling).
